Summary of Contents for Pro-Ject Audio Systems Debut Carbon EVO

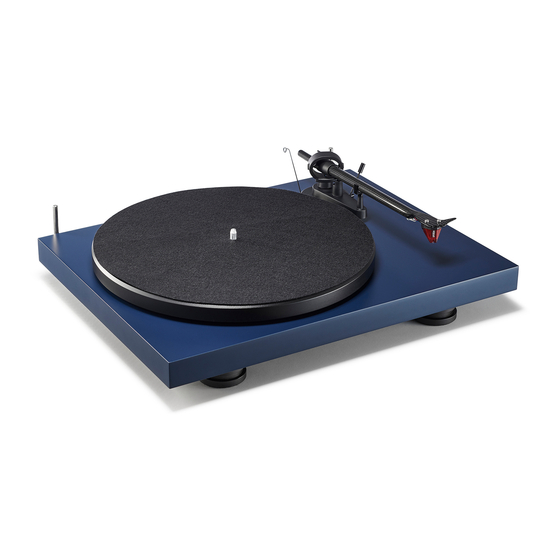

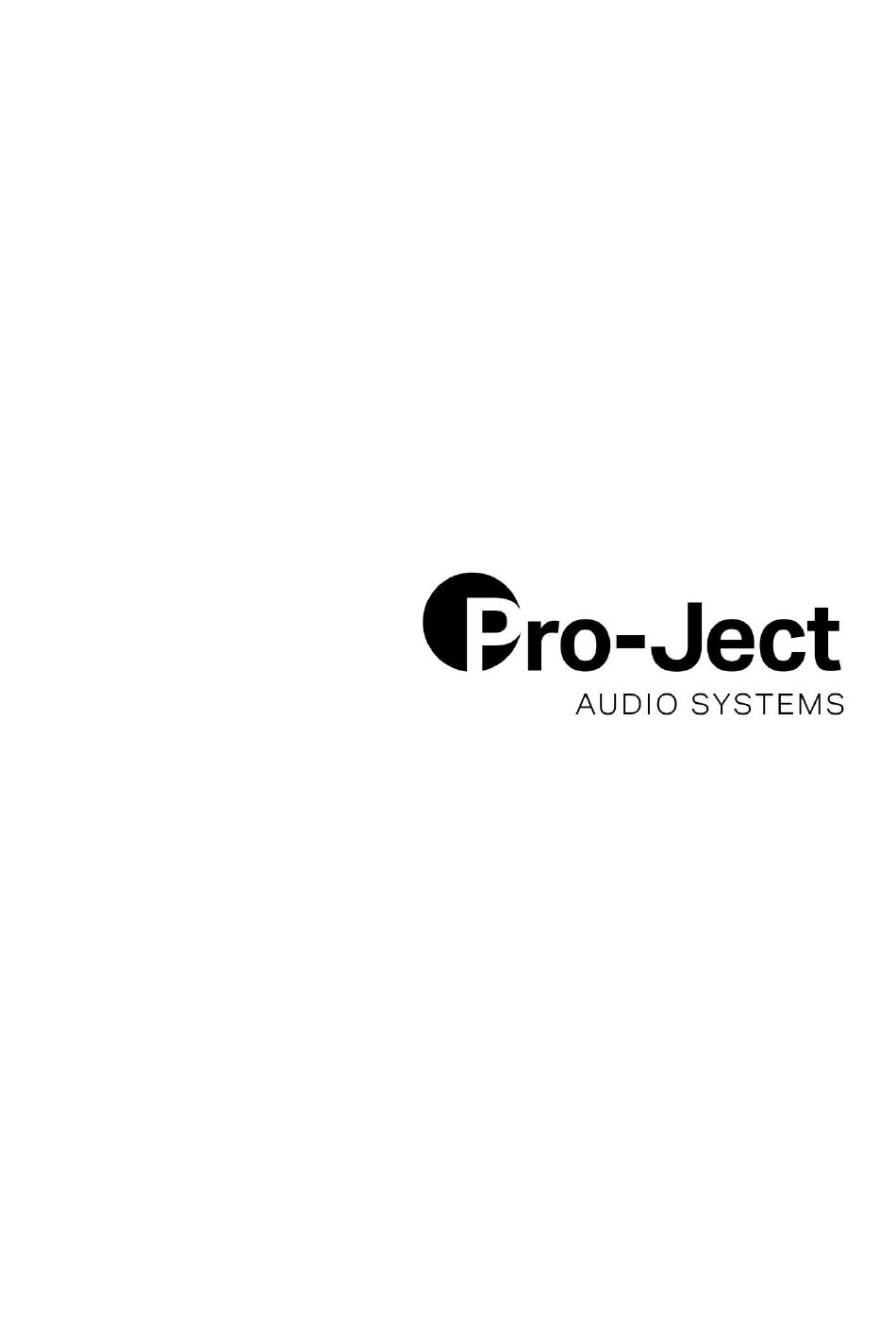

- Page 1 INSTRUCTIONS FOR USE Debut Carbon EVO...
- Page 2 © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05...
-
Page 3: Controls, Features And Connections
Headshell with finger lift and fitted Ortofon 2M RED or Sumiko Rainier cartridge (21) Single adapter Signal cable Connect IT E RCA (not shown) 78 rpm round belt (not shown) © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... -
Page 4: Safety Instructions
Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0.1g / 0.1 Pond) of downforce. © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... -
Page 5: Anti-Skating Force Adjustment
(4) and the larger diameter part of the motor pulley (2). To do so, the platter (5) has to be removed. After the round drive belt, has been fitted, pressing the ON/OFF switch to the right selects 78 r.p.m. © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... -
Page 6: Useful Tips
The full sound quality of the record player can only be achieved if the cartridge is correctly adjusted. Particular tools like the Pro-Ject alignment tool are required to accomplish this job properly. © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... -
Page 7: Maintenance And Cleaning
Frequency range 20-22.000Hz Channel separation 22dB/1kHz Output voltage 5.5mV Recommended load impedance 47kohms/ amplifier connection – MM-input Compliance/stylus type 20µm/mN – elliptical Recommended tracking force 17.5mN Weight 7.2g © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... -
Page 8: Warranty
This guide was produced by: Pro-Ject Audio Systems changes to the technical specification without prior Copyright © 2020. All rights reserved. notice as deemed necessary to uphold the ongoing process of technical development. © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05... - Page 9 © Pro-Ject Audio Systems · Pro-Ject Debut Carbon EVO · Revision 2020.08.05...
