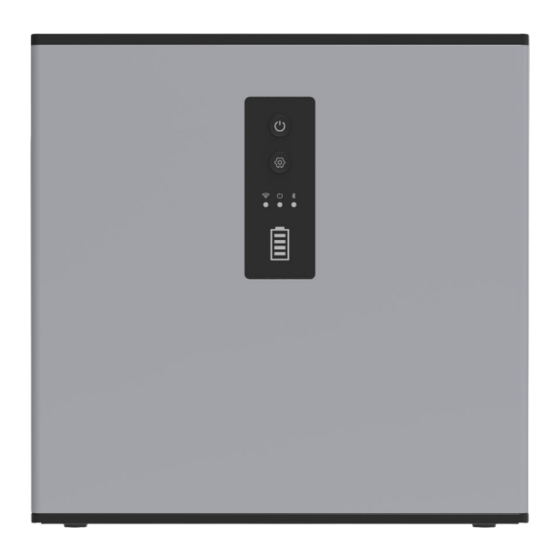

- Page 1 Open Energy for All Installation Guide Hoymiles MS-A2 Region: Global REV1.1 AP040982 hoymiles.com...
- Page 2 1. Packing List • Immediately contact your supplier or distributor upon noticing any damaged or missing parts. • In these instructions, the are referred to as "MS-A2" for short. Hoymiles MS-A2 NOTICE MS Plug-and-Play Cable Installation Guide Mounting Set Hoymiles MS-A2 ×1...
- Page 3 (33 kg), dimensions, and cable length of the MS-A2. - Installation Space Requirements: To ensure air circulation, the installation site must have sufficient air clearances around the MS-A2. Clearances may vary depending on specific installations, and we suggest a general minimum guideline: maintain at least 3.5 mm...
- Page 4 Depth ≥ 50mm D)-1. Torque:9 N•m Wall Wall-Mount Bracket M6 × 50 Expansion Screws D)-2. D)-3. E) Install the other mounting bracket into the MS-A2 and secure them using the M5 × 10 screws. (Torque: 1.5-2 N•m) Torque: 1.5-2 N•m E)-1. E)-2.
- Page 5 A) Unplug the HMS Plug and Play Cable from the socket. Step 2 Connecting the Microinverter System to the MS-A2 A) Insert the HMS Plug and Play Cable into the AC Off-Grid cable entry of the MS-A2. Listen for a click to ensure proper engagement.
- Page 6 A)-4. Step 3 Connecting the MS-A2 to the Grid A) Insert the MS Plug-and-Play Cable into the AC On-Grid cable entry of the MS-A2. Listen for a click to ensure proper engagement. B) Plug the other end of the MS Plug-and-Play Cable into the socket.
- Page 7 • The screenshots provided here are for reference only. The actual screens may vary. • Install the S-Miles Balcony app on your phone before using the MS-A2. There are two ways to download it: - Scan the QR code, or - Search for "S-Miles Balcony"...
- Page 8 A) Launch and log in to the app using your credentials. B) Go to Devices > Add Devices. A pop-up dialog will prompt you to enable your phone's Bluetooth. C) Follow the on-screen instructions to connect the MS-A2 to the S-Miles Cloud. B) -1.
- Page 9 4.4 Setting the MS-A2 A) On the Devices screen, tap the device. You will be directed to the device homepage. B) On the device homepage, tap the setting icon B)-1. B)-2. o set the output power, C) T 1) Go to Device settings > Additional Settings.
- Page 10 o set the load power curve, D) T 1) Go to Device settings > Home Load Setting > Load Power Curve. 2) Tap the Create button. 3) Follow the on-screen instructions to set the specific amount of power that the device is required to supply to the load for each day and specific period within that day.
- Page 11 Hoymiles Power Electronics Inc. Germany service.de@hoymiles.com Headquarters Spain Floor 6, Building 5, Housheng 99 Road, service.es@hoymiles.com Gongshu District, Hangzhou 310015 P. R. China Italy service.it@hoymiles.com Europe Sales and Support Center High Tech Campus 9, Unit BK3.28, 5656AE France Eindhoven, the Netherlands service.fr@hoymiles.com...
