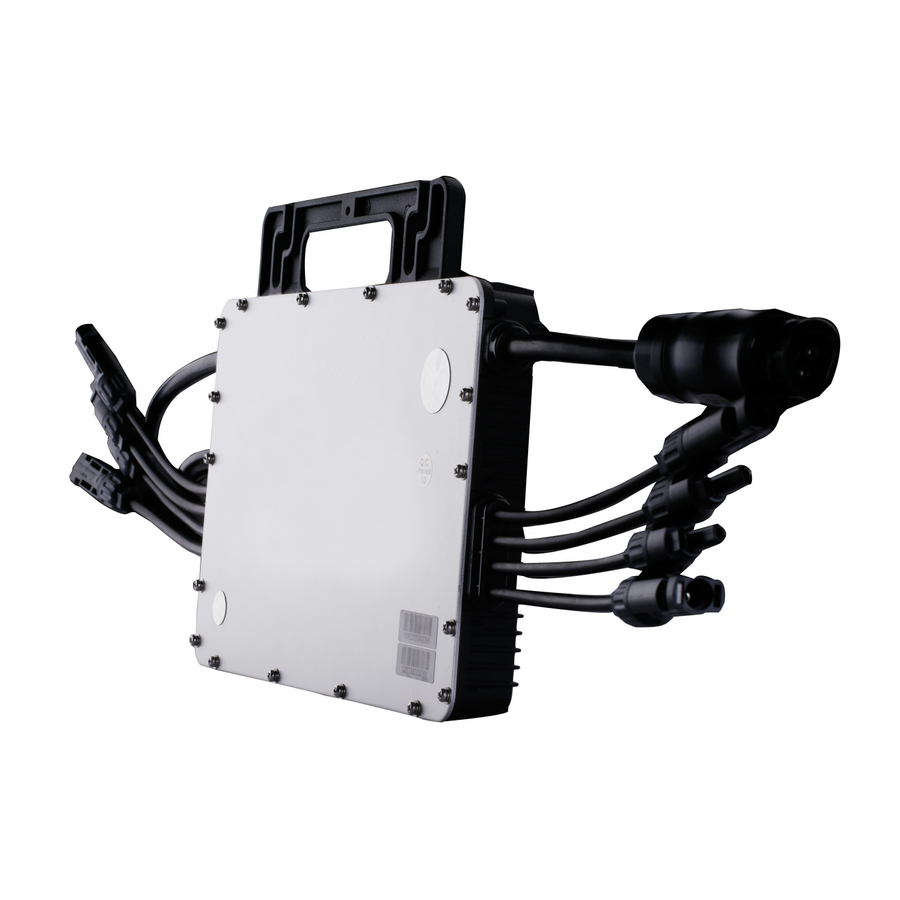

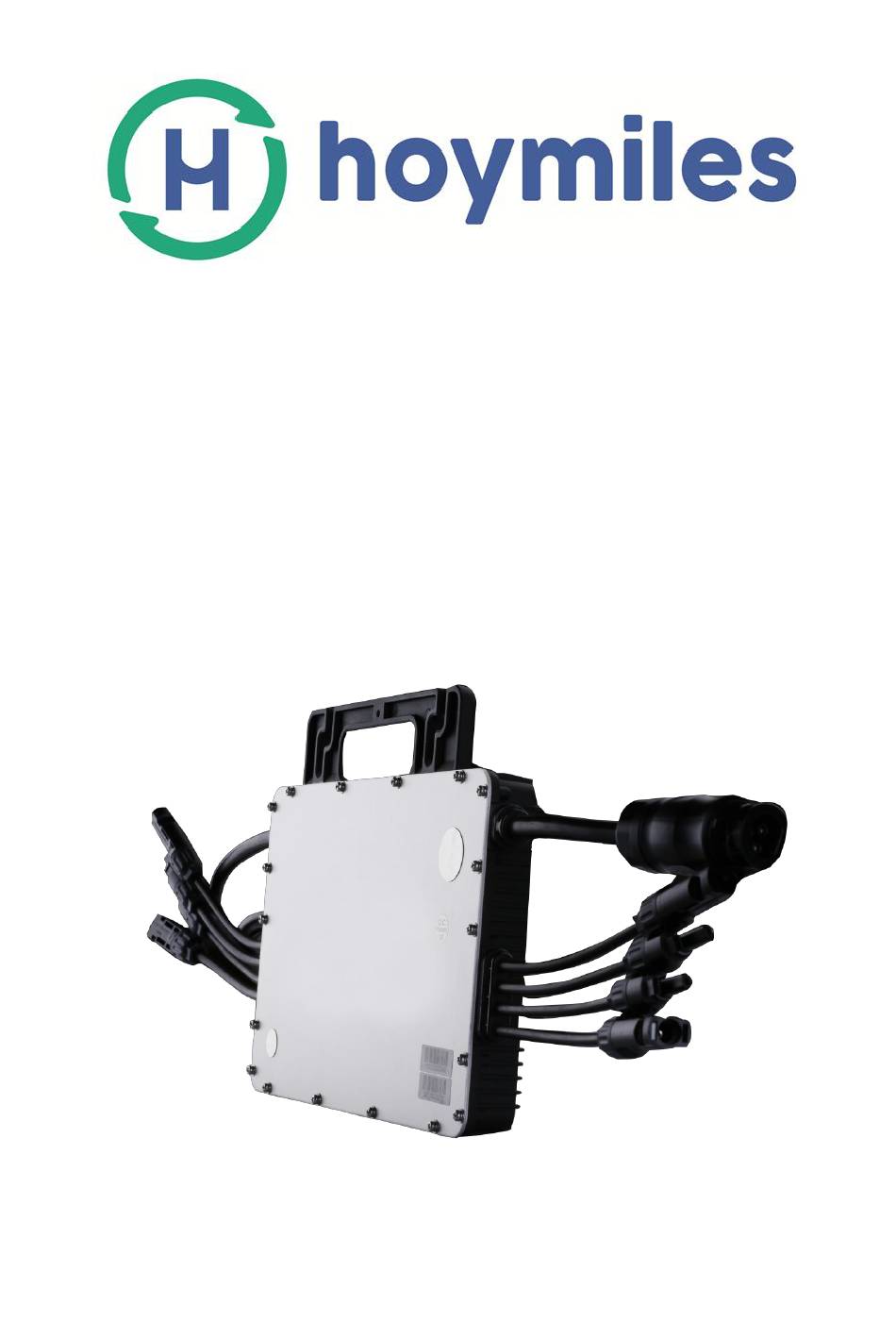

- Page 1 MICROINVERTER User Manual (Model: MI-1000/MI-1200)
-
Page 2: Table Of Contents
User Manual INTRODUCTION ......................3 SAFETY ............................4 SYMBOL ILLUSTRATION ..................4 INSTALLATION WARNINGS ..................5 PREPARE FOR INSTALLING ....................6 TRANSPORT AND INSPECT ..................6 CHECK INSTALLATION ENVIRONMENT ..............7 INSTALLATION POSITION ..................... 7 MOUNTING AND WIRING ......................8 INSTALLING DIAGRAM .................... -
Page 3: Introduction
Microinverter under the guide of this document. Contact Information Hoymiles Power Electronics Technology Co. , Ltd. No.18 Kangjing Road, Hangzhou, Zhejiang Province, China Phone: +86-571-28056101 Fax: +86-571-28056137 http://www.hoymiles.com Hoymiles can provide commissioning. Please contact Hoymiles customer service at 086-0571-89775158.More information at website: http://www.hoymiles.com... -
Page 4: Safety
SAFETY IMPORTANT SAFETY INSTRUCTIONS! PLEASE KEEP THIS INTRODUCTION IN A SAFE PLACE! SYMBOL ILLUSTRATION 1)The safety symbols used in this manual are list below and illustrated in detail. Symbol Usage Indicates a hazardous situation that can result in deadly electric shock hazards, other serious physical injury, or fire hazards. -
Page 5: Installation Warnings
2)The symbols on the microinverter are list below and illustrated in detail. INSTALLATION WARNINGS MI-1000/MI-1200 Microinverter is designed and tested according to international safety requirements (IEC62109-1/-2, VDE4105, VDE0126, AS 4777.1 /.2& AS 3000). However, certain safety precautions must be taken when installing and operating this inverter. -
Page 6: Prepare For Installing
Prior to touching any part of the inverter use care to ensure surfaces and equipment are at touch safe temperatures and voltage potentials before proceeding. Hoymiles accepts No liability for damage from incorrect or careless operation. ... -
Page 7: Check Installation Environment
CHECK INSTALLATION ENVIRONMENT Installation of the equipment is carried out based on the system design and the place in which the equipment is installed. The installation must be carried out with the equipment disconnected from the grid (power disconnect switch open) and with the photovoltaic modules shaded or isolated. -
Page 8: Mounting And Wiring
(a) Single phase wiring diagram (b) Three phase wiring diagram Fig.2. MI-1000/MI-1200 Microinverter wiring diagram Note 1: DTU connects the power production of each microinverter. If the asymmetry current is going to exceed 16 A, DTU will send stop signal to one or more microinverters to let the asymmetry current lower than 16A. -
Page 9: Assembly Instruction
Assembly Diagram Fig.3. Assembly Illustration ASSEMBLY INSTRUCTION Step 1. Install Microinverter a. Mark the approximate center of each panel on the frame. b. Install the microinverter shown as below. The silver cover side should be up. Observe the certification documents concerning the maximum number of Micro- inverters permitted for installation at each cable section! The Microinverter must be under the module, out of long-term exposure to direct sunlight or rain. -
Page 10: Step 2. Install Ac Junction Box
Blue Wire: N Yellow/Green Wire: Ground To prevent electrical hazards, all the connection operations must be carried out with the equipment disconnected from the grid All the external connections to the insulated junction box (caps, adapters,etc.) must be made with securely-sealed Hoymiles... -
Page 11: Step 5. Create An Installation Map
components. Pay special attention and ensure not to reverse the phase with the neutral! The installation technician is responsible for selecting a junction box with the appropriate dimensions and insulation. The installation technician is responsible for selecting a cable running between the junction box and the load distribution panel with the appropriate length and cross section. -
Page 12: Step 6. Connect Pv Modules
Note: The serial number of MI-1000 microinverter needs to be placed in the middle of 4 blanks, and it is marked 1, 2, 3 and 4, and the micro-inverse dc port connected to the four pv panels. Step 6. Connect PV Modules a. -
Page 13: Step 7. Energize The System
The recommended installation need keeping the Microinverters underneath the photovoltaic modules, so that the Microinverters can operate in the shade. Direct sunlight may cause damage to the Microinverters. Each module must be connected to the Microinverters with a DC cable having a length of less than 3m. Step 7. -
Page 14: Troubleshoot An Inoperable Microinverter
5. Check the DC connections between the microinverter and the PV module. 6. Verify the PV module DC voltage is within the allowable range shown in appendix Technical Data of this manual. 7. If the problem persists, please call Hoymiles customer support. -
Page 15: Maintenance Guide
MAINTENANCE GUIDE ROUTINE MAINTENANCE Only authorized personnel are allowed to carry out the maintenance operations and are responsible to report any anomalies. Always use the personal protective equipment provided by the employer when carry out the maintenance operation. ... -
Page 16: Storage And Dismantling
STORAGE AND DISMANTLING If the equipment is not used immediately or is stored for long periods, check that it is correctly packed. The equipment must be stored in well-ventilated indoor areas that do not have characteristics that might damage the components of the equipment. -
Page 17: Appendix
APPENDIX GIRD FRIENDLY FUNCTIONS 1. Protection Settings against electricity system faults Protective function Symbol Setting Trip time Overvoltage (step 2) U>> 264.5 Overvoltage (step 1) U> 253.0 Undervoltage (step 1) U< 195.5 Undervoltage (step 2) U<< 184.0 Overfrequency f> Underfrequency f<... -
Page 18: Technical Data
TECHNICAL DATA Model MI-1000 Input data(DC) Recommended input power (W) 200~310 MPPT voltage range (V) 27~48 Operating voltage range (V) 16~60 Maximum input voltage (V) Maximum input current (A) 10.5 Output Data (AC) Rated output power (W) 1000 Rated output current (A) 4.35... -
Page 19: Installation Map
Model MI-1200 Input data(DC) Recommended input power (W) 200~380 MPPT voltage range (V) 32~48 Operating voltage range (V) 16~60 Maximum input voltage (V) Maximum input current (A) 10.5 Output Data (AC) Rated output power (W) 1200 Rated output current (A) 5.22 Nominal output voltage/range (V) 230/180-275...
