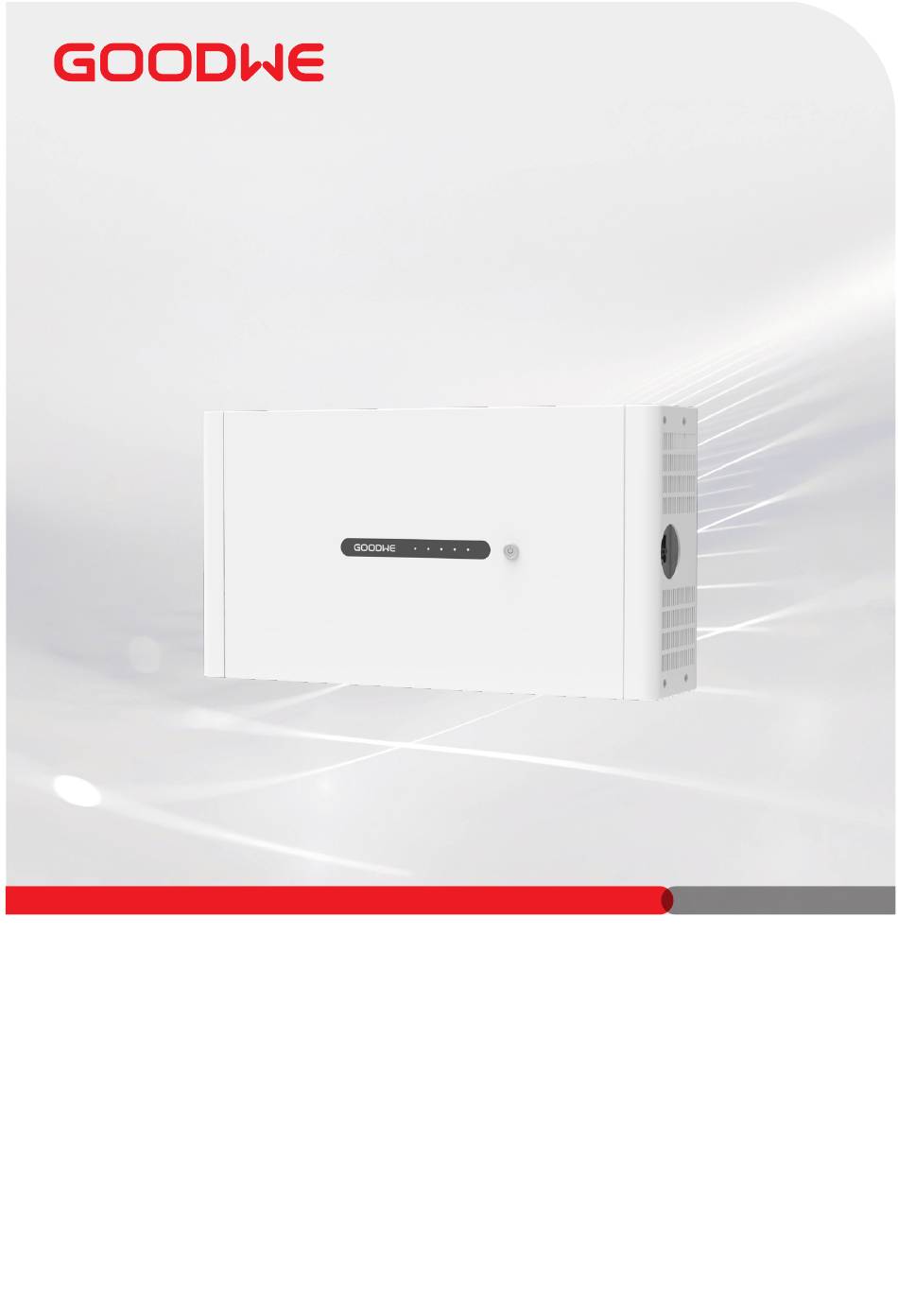

- Page 1 Quick Installation Guide Rechargeable Li-ion Battery System Lynx Home D Series (LX D5.0-10) V1.0-2023-09-14...
- Page 2 • Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/ warranty. Safety Disclaimer Instructions during Installation •...
- Page 3 • Consider the weight of the equipment before moving it. Assign enough personnel to move the equipment to avoid personal injury. • Contact after-sale service immediately if the battery is not able to be started. Otherwise, the battery might be damaged permanently. •...
- Page 4 Label Description Potential risks exist. Wear proper Keep the equipment away Personnel Protective Equipment from open flame or ignition before any operations. source. HIGH VOLTAGE HAZARD High Keep the equipment away voltage exists when operating the equipment, make sure that the from children.
- Page 5 EU Declaration of Conformity GoodWe Technologies Co., Ltd. hereby declares that the equipment without wireless communication modules sold in the European market meets the requirements of the following directives: • Electromagnetic compatibility Directive 2014/30/EU (EMC) • Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD) •...
- Page 6 Product Overview Parts Front View Left View Right View Battery-to-battery Multi-functional button Battery SOC indicator fixing hole or ground- indicator light ing port Side protective cover Handle Battery-to-wall fixing hole fixing hole Side protective cover Fixing hole between Heat sink fixing hole batteries...
- Page 7 Battery positive elec- Battery negative elec- Ventilation valve trode connector trode connector Communication connec- Battery Power Switch tion port Dimensions 700mm 170mm 380mm Battery System Installation Deliverables Battery...
- Page 8 Base (optional) Wall-mount rack (optional)
- Page 9 Space Requirements Keep the equipment away from children. 300mm 300mm 300mm 300mm-600mm 300mm 300mm ALT: 4000m IP66 0%~95%RH Angle Requirments level bar...
- Page 10 Battery Quantity Requirements Battery 1 Battery n+m Battery n Battery n+1 1≤n≤4 n+m≤8 Install Wall-mount Rack (Optional) level bar D: 60mm Φ： 15mm 45N·m 45N·m...
- Page 11 Install Base (Optional) 5-20mm level bar 5N·m 5N·m (Optional) Multiple sets of batteries installation scenarios only.
- Page 12 Install Battery Pack 5N·m D: 60mm Φ： 8mm 5N·m 5N·m...
- Page 13 Wall-mount installation 2N·m Ground installation 2N·m...
- Page 14 Electrical Connection Single battery group Communication Cable Positive Power Cable Inverter Negative Power Cable Terminal resistor Earthing wire Battery 1 Battery 2 Battery n Terminal resistor Seal the unused end 1≤n ≤ 4...
- Page 15 Two battery groups Communication Cable Inverter Positive Power Cable Negative Power Cable Terminal resistor Earthing wire Seal the unused Terminal resistor Battery 1 Battery n+m Battery 2 Battery n+2 Battery n Battery n+1 Battery group 1 Battery group 2 1≤n≤ 4， n+m≤8...
- Page 16 PE Cable copper, S = 6mm 2N·m Power Cable Crimping power cable Φ： 8.6mm copper， S = 16mm...
- Page 17 Inverter power connection Power connection cable between two groups of cable batteries Connecting the Power Cable Connecting power cables between a group of batteries...
- Page 18 Connecting power cables between multiple groups of batteries Connecting power cables between batteries and inverter Inverter...
- Page 19 Communication Cable Color Definition Orange and White RS485A Orange RS485B Blue CAN_H Blue and White CAN_L Green and white , 3,6,7,8 green, brown and white, brown...
- Page 21 Installing protective cover 1N·m Only for wall-mount installtion 1N·m...
- Page 22 Power ON and OFF NOTICE Circuit breakers between inverter and battery shall be installed in accordance with local laws and regulations. (Optional) Battery Group 2 Battery Group 1 Inverter Circuit breaker ＜1s ＞5s Power ON Turn on For all batteries. Black Start Turn on For all batteries.
- Page 23 Monitoring via SEMS Portal App play SEMS Portal LAN/4G WIFI App Store SEMS Portal App For more information, please scan the following QR for User Manual. SEMS Portal SolarGo App Lynx Home D Series User Manual User Manual User Manual...
- Page 24 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts 340-01021-00...
