Goodwe GW8000-ES-C10 Quick Manual

Residential Smart Inverter Solutions
ES Uniq 8-12kW+Lynx Home A/Lead-acid battery
Quick Guide

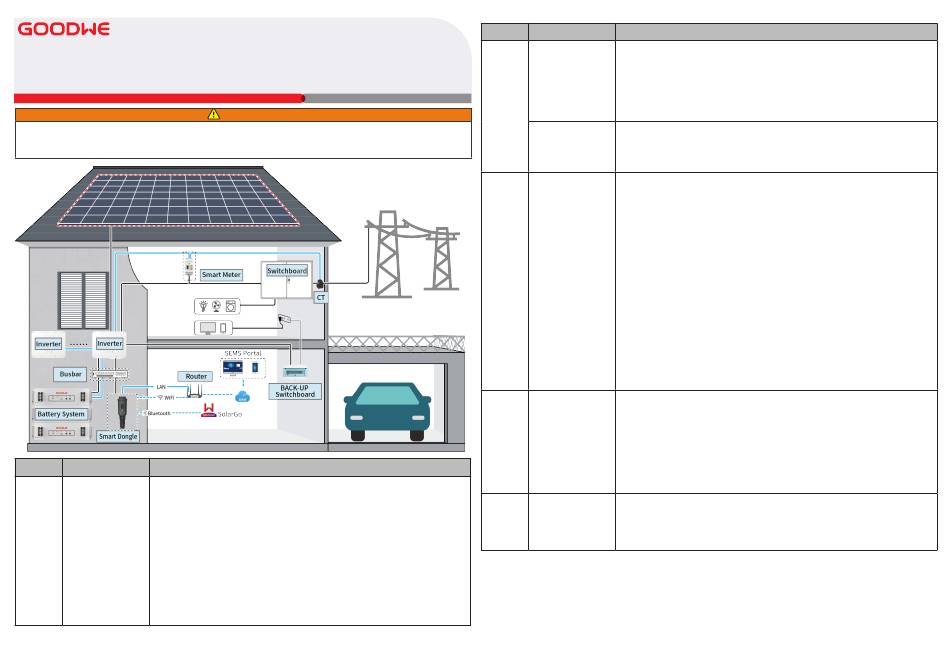

01 Networking
The information in this quick guide is subject to change due to product updates or other reasons. This guide cannot re-
place the product labels or the safety precautions in the user manual unless otherwise specified. All descriptions in the
manual are for guidance only.
Device Model Description
• When only one inverter is used in the system, it is supported to connect
generator.
• When multiple inverters are used in the system, it is not supported to connect
generator; a maximum of 16 inverters are supported to form a parallel system,
and the Ezlink3000 is required in the parallel system.
GW8000-ES-C10 • The complexity of the parallel system increases with the increase of the number
Inverter GW10K-ES-C10 of inverters in parallel. When the number of inverters in parallel system is ≥ 6,
GW12K-ES-C10 please contact the after-sales service to confirm the installation and application
environment of the inverters to ensure stable operation of the system.
Requirements for parallel system:
• The software version of all inverters in the system is the same.
• The ARM software version of the inverter is 08 (415) and above.
• The DSP software version of the inverter is 00(2525) and above.
WARNING
Device Model
LX A5.0-10
LX A5.0-30
V1.0-2024-07-30
Battery
system
Lead-acid Battery
BCB-11-WW-0
BCB-22-WW-0
Busbar BCB-32-WW-0
(Purchase from
GoodWe)
• Built-in Smart
Meter (Standard)
Smart Me-
• GMK110 (optional)
ter • GM330
(purchase from
GoodWe)
• WiFi/LAN Kit-20
(Standard)
Smart
• Ezlink3000
Dongle
(purchase from
GoodWe)
1
Description
Battery of different models cannot be mix used.
• LX A5.0-10: The nominal charging and discharging current of a single battery is
60A; a maximum of 15 batteries can be connected in parallel in one system.
• LX A5.0-30: The nominal charging current of a single battery is 60A, and the
discharging current is 100A; the maximum continuous charging current is
90A; the maximum continuous discharging current is 150A. A maximum of 30
batteries can be connected in parallel in one system.
• Supports connection to lead-acid batteries of AGM, GEL, and Flooded types.
• The number of batteries that can be connected in series is calculated based on
the voltage of lead-acid batteries, and the total voltage of batteries connected in
series is not allowed to exceed 60V.
• When the charging and discharging current between battery and inverter is less
than 160A, it supports direct connection between battery and inverter without
using a busbar. For example: It supports connecting GW8000-ES-C10 to LX A5.0-
30 without using a busbar. For detailed battery wiring methods, please refer to
6.6 Connecting the Battery Cable.
• When the charging and discharging current between battery and inverter is
≥160A, a busbar or busbar box must be used to connect the inverter. (Current ≥
M x IBat rated. (M: The quantity of batteries connected in parallel in the system,
IBat rated: The rated current of the battery).
• BCB-11-WW-0: Used with LX A5.0-10, the battery system supports a maximum
working current of 360A, working power of 18kW, and can connect to a
maximum of 3 inverters, and 6 batteries.
• BCB-22-WW-0: Used with LX A5.0-10, the battery system supports a maximum
working current of 720A, working power of 36kW, and can connect to a
maximum of 6 inverters, and 12 batteries.
• BCB-32-WW-0: Used with LX A5.0-30, the battery system supports a maximum
working current of 720A, working power of 36kW, and can connect to a
maximum of 6 inverters, and 15 batteries.
• Others: Please prepare busbar based on actual system power and current.
• Built-in smart meter: 10-meter wire CT, default CT ratio: 120A/40mA
• GMK110: When the length of the built-in CT cable of the inverter is not enough
for connection to the switchboard, it can be extended through an external
GMK110 smart meter. CT is not supported for changing to other type, CT ratio:
120A/40mA
• CM330: order the CT for GM330 from GoodWe or other suppliers. CT ratio:
nA/5A.
• nA: CT primary input current, n ranges from 200 to 5000.
• 5A: CT Secondary input current.
• Please use the WiFi/LAN Kit-20 module in single inverter system.
• In parallel system, the EzLink3000 must be connected to the master inverter.
Do not connect any smart dongle to slave inverter. Ezlink3000 requires a firm-
ware version of 04 or above.
