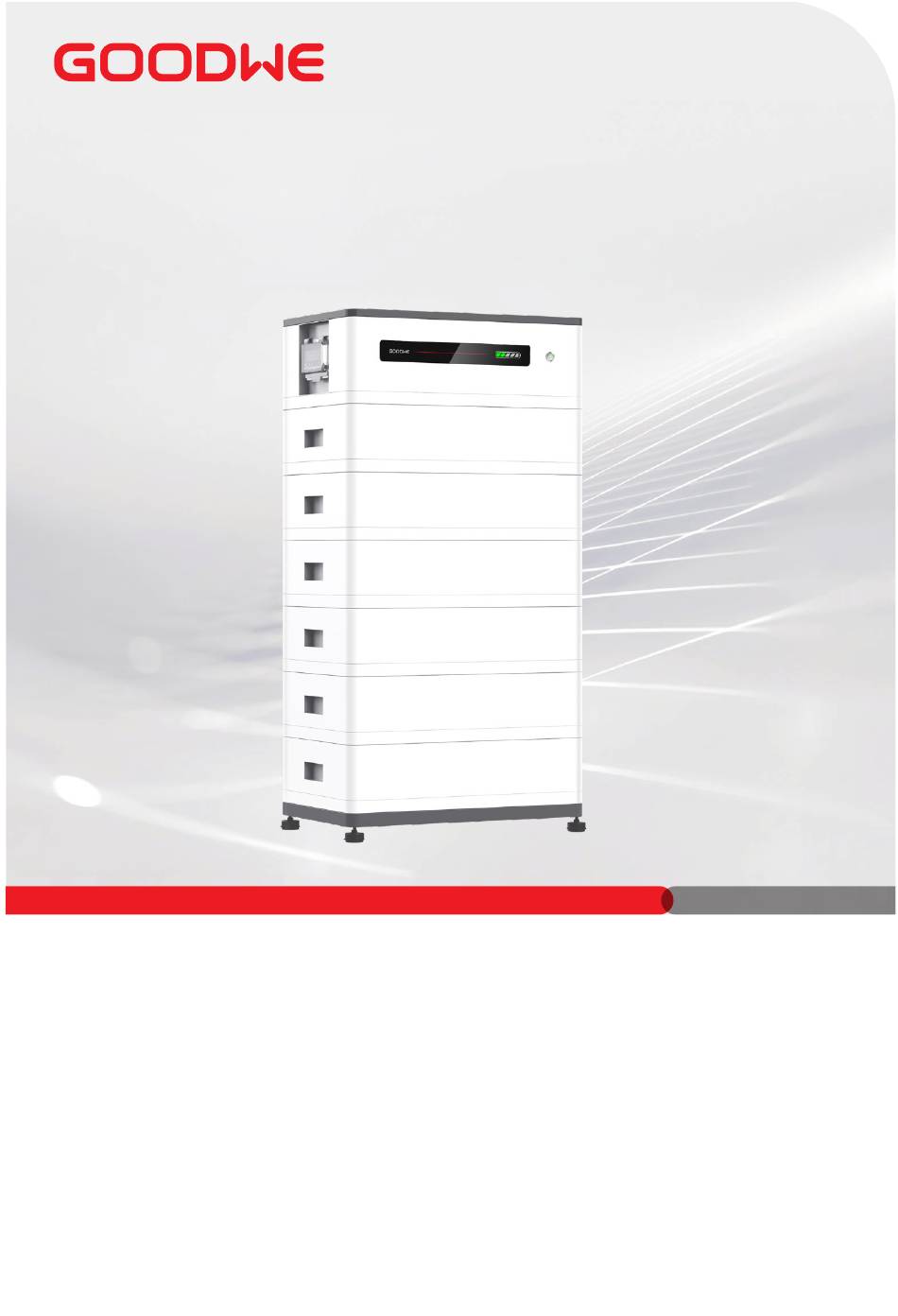

- Page 1 Quick Installation Guide Rechargeable Lithium Ion Battery System Lynx Home FH Series US (LX F9.6-30 LX F12.8-30 LX F16.0-30 LX F19.2-30) V1.0-2022-10-30...
- Page 2 The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit: https:// en.goodwe.com/warranty. Safety Disclaimer Instructions during Installation • The battery system is a high voltage system. High voltage exists when the equipment is running.
-
Page 3: Emergency Measures
Emergency Measures Battery Electrolyte Leakage If the battery module leaks electrolyte, avoid contact with the leaking liquid or gas. The electrolyte is corrosive. It will cause skin irritation or chemical burn to the operator. Anyone contacts the leaked substance accidentally has to do as following: •... -
Page 4: Check Before Power On
Check Before Power ON Check Item The battery is firmly installed in a clean place where is well-ventilated and easy to operate. The PE cable, power cable, communication cable, and the terminal resistors are connected correctly and securely. Cable ties are intact, routed properly and evenly. Unused ports and terminals are sealed. -
Page 5: Product Introduction
Product Introduction Parts Introduction (PCU) Right View Left View Front View Ventilation Valve Cable Hole 3. Circuit Breaker SOC Indicator Button Indicator 6. Rectangular Connector Parts Introduction (Battery) Parts Introduction (Battery Base) Limiting hole positioning pin 3. Rectangular Connector Adjustable feet installing hole... -
Page 6: Battery System Installation
Dimensions Battery System Installation Deliverables (PCU) - Page 7 Deliverables (Battery Module) Space Requirements Keep the equipment away from children.
- Page 8 Angle Requirements Battery Quantity Requirements Battery N Battery 4 3≤N≤6 Battery 3 Battery 3 Battery 2 Battery 2 Battery 2 Battery 1 Battery 1 Battery 1...
- Page 9 Battery System Installation Installation Requirement For Locking Bracket...
-
Page 12: Electrical Connection
Electrical Connection Wiring Diagram for parallized battery systems Battery System 1 Terminal resistor Battery System 2 Communication Cable Power Cable for Positive Pole Power Cable for Negative Pole Terminal resistor Ground Cable 2≤N≤8 Battery System N Terminal resistor... - Page 13 Cable Specifications Top View Terminal/Port Silkscreen Recommended Cable Specifications Grounding Point 105℃ (221°F) copper cables, 10AWG. DC Terminal (BAT) 105℃ (221°F) copper cables, 8AWG. COM1 Communication COM2 Terminal COM3 Installing the wiring conduit...
- Page 14 Connecting the PE cable Cooper, Connecting the Power cable Cooper,...
- Page 15 Connecting the Communication Cable COM1 COM2 COM3 Description CAN3H CAN3H CAN3H BMS communication for battery system parallel connection CAN3L CAN3L CAN3L Reserved COM1: connects to the inverter CAN2H BMS communication port to communication with the inverter CAN2L COM2, COM3: reserved ISO_GND ISO_GND PIN for grounding.
- Page 16 Installing the terminal resistor Installing the protection cover...
- Page 17 Power ON and OFF NOTICE Turn on the inverter in the system following the instructions in the user manual of the inverter. Single battery system DC Breaker Battery System (Optional) Inverter Power ON Power OFF Turn off Turn on Parallized battery systems Inverter 2≤N≤8 DC Breaker...
- Page 18 Commissioning Commissioning via PV Master APP Monitoring via SEMS Portal APP SEMS Portal WiFi/LAN/4G For more information, please scan the following QR for User Manual. Lynx Home FH Series PV Master SEMS Portal User US User Manual User Manual Manual...
- Page 19 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com 340-00856-01 Local Contacts...
