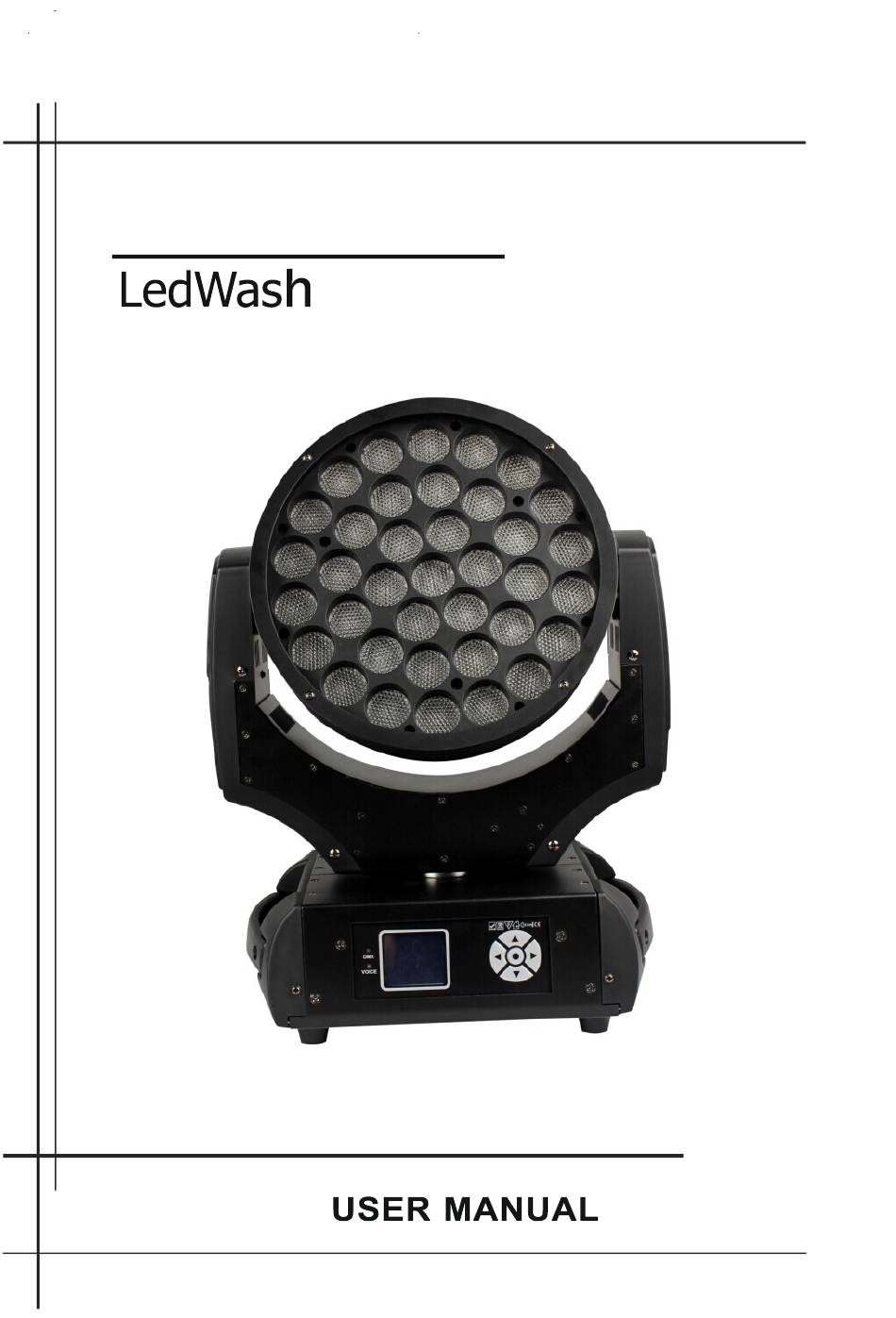

- Page 1 ROBIN 600...
- Page 2 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ROBIN 600 LEDWASH ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
- Page 3 or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the LEDs array with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.
- Page 4 2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - LCD screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - 3-pin DMX OUT 10 - 3-pin DMX IN 11 - 5-pin DMX OUT 12 - 5-pin DMX IN w w w w w w w w...
- Page 5 3. Installation Fixtures must be installed by a Quali ed electrician in accordance with all national and local electrical and construction codes and regulation. 3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The robin 600 LEDWash is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts.
- Page 6 3.2 Installing the eggcrate Switch off the fixture before top hat installation 1. Unscrew the four fastening screws (1) which securing top flange (2) to the head (7) and remove both flange and transparent plastic cover (3) from the head. 2.
- Page 7 3.3 Rigging the fxture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
- Page 8 Rigging via two Omega holders Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain The fixture can be also rigged by means of the mounting adapter (option) for one Omega holder:. In this case the fixture can hang on the truss in horizontal position only, not sideways .
- Page 9 3.4 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.
- Page 10 4. RO BI N -600 LED Wash - DMX chart Mode/Channel Value Function Type of control Pan (8 bit) 0-255 Pan movement by 450° proportional Pan Fine (16 bit) 0-255 Fine control of pan movement proportional Tilt (8bit) 0-255 Tilt movement by 300° proportional Tilt fine (16 bit) 0-255...
- Page 11 Mode/Channel Value Function Type of control White (8 bit) - all zones 13 10 0-255 White LEDs saturation control (0-100%) proportional White fine (16 bit) - all zones 0-255 Fine white LEDs saturation control proportional Red (8 bit) - zone 1 0-255 Red LEDs saturation control (0-100%) proportional...
- Page 12 Mode/Channel Value Function Type of control 31 15 11 No function step 1-255 Virtual Colour Wheel For detailed description see " Virtual colour wheel- colour mixing chart No function step White 2700 K step White 2700 K (Halogen lamp mode**) step White 3200 K step...
- Page 13 Mode/Channel Value Function Type of control Dimmer (8 bit) 36 20 15 10 10 0-255 Dimmer intensity from 0% to 100% proportional Dimmer fine (16 bit) 37 21 0-255 Fine dimming proportional **In the Halogen lamp mode the Dimmer channel imitates behaviour of the halogen lamp during dimming.
- Page 14 5. Technical Specifcations Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50/60Hz Fuse:........T 4 A@230V Power consumption:....430 VA /415W@230V, power factor=0.98 Optic Light source: 37 RGBW LED multichips 3 zones with individual colour control of each Typical Lumen Maintenance: 70% @ 60,000 hours LED life expectancy: 60.000 hours RGBW colour mixing Virtual colour wheel...
- Page 15 5 DMX modes (37, 21, 15, 10, 37 control channels) Wireless DMX module (only for Wireless DMX version) Compliance with USITT DMX-512 and 512-A Full DMX fidelity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Connection DMX data in/out: Locking 3-pin and 5-pin XLR AC power input: 1.5 m power cord without plug...
- Page 16 Mounting adapter for one Omega holder Accessories Omega holder (No.99010420)........2 pcs Optional accessories Top hat-black (No.10980101) Top hat-white (No.10980103) Top hat-silver (No.10980111) Mounting adapter for Omega holder in black (No.10980100) Mounting adapter for Omega holder in neutral - glazy aluminium (No.10980113) EggCrate Robin 600 LEDWash-transparent (No.
- Page 17 4) Replace the rear cover back to the base.. 12. ChangeLog This section summarizes all types of changes in the user manual. Version of the Date of issue Description of changes manual 14/12/2011 Changes on Power/spec.functions channel, new version of DMX proto- col.
- Page 18 13. Photometric diagrams...
