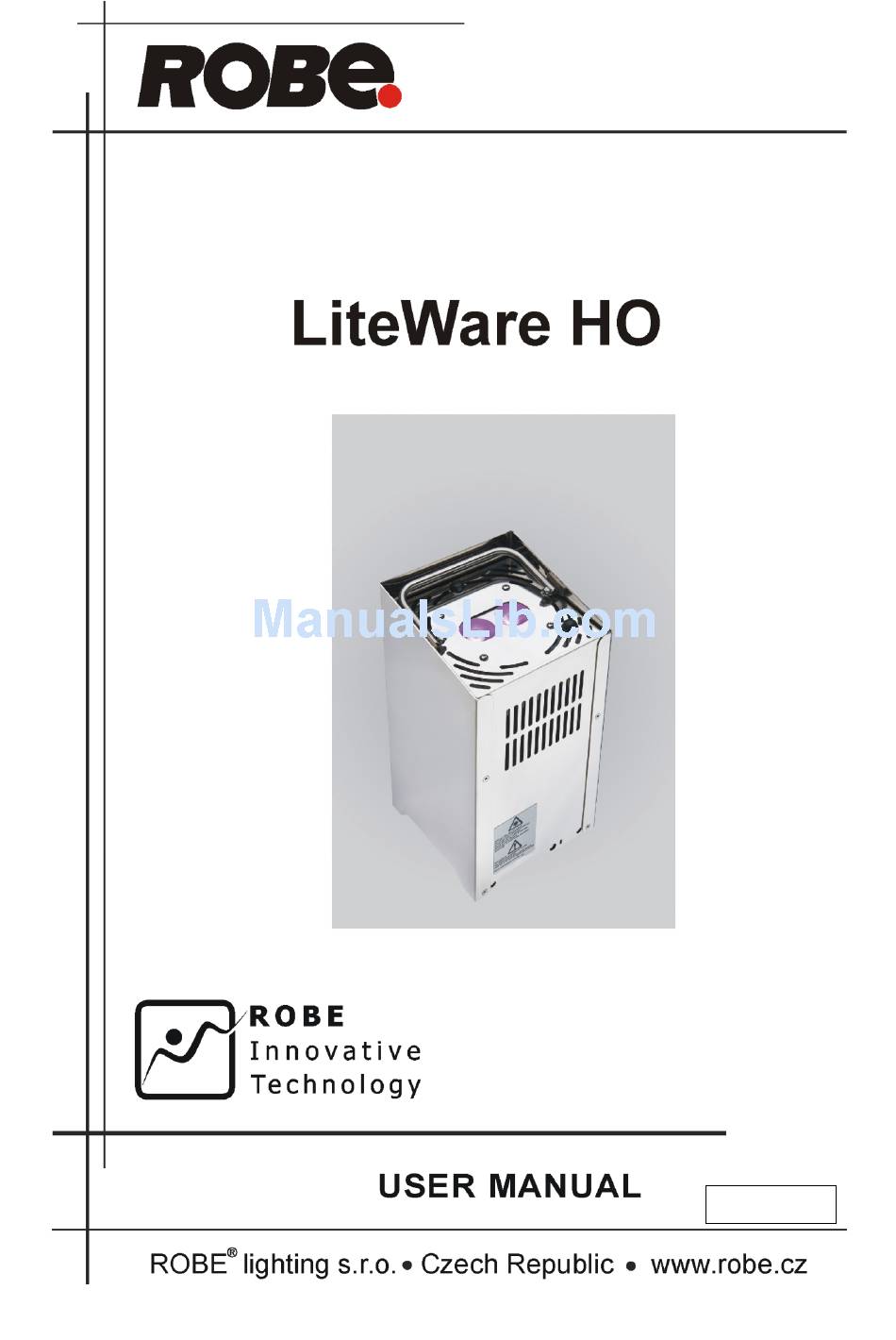

- Page 1 Version 1.1...
-
Page 2: Table Of Contents
LiteWare HO Table of contents 1.Introduction ................................. 3 1.1 Weights and dimensions ............................3 1.2 Accessories ................................3 1.3 Conformity ................................3 2. Charging the system ..............................4 2.1 Flight case charger system ............................ 4 2.2 Single unit charger ..............................4 2.3 Low battery ................................ -
Page 3: Introduction

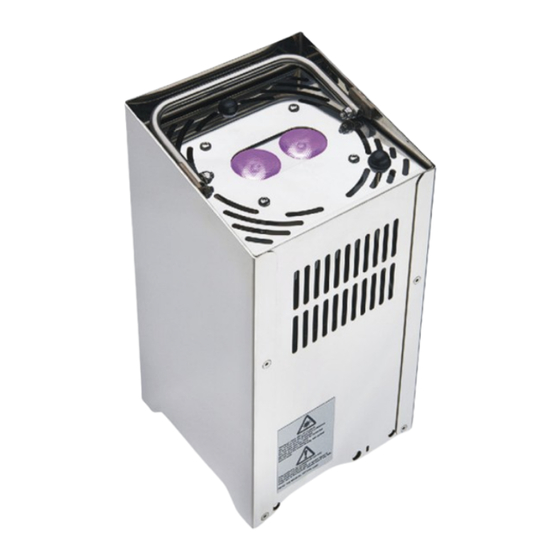

LiteWare HO 1.Introduction LiteWare HO with wireless DMX is a stand-alone light source. The unit can be controlled by DMX transmitted wirelessly and in stand-alone operation using 50 preset colours and 20 preset fade and snap sequences. Product features and specifications •... -
Page 4: Charging The System
Plug the supplied charger into the base of the battery base unit. During charging, the button LED is on constantly. The battery base unit is fully charged when the button LED flashes. Note: If you leave the LiteWare HO connected to the single charger without the charger connected to mains power the battery will flatten. -
Page 5: Operating The System
Wireless DMX mode (address 001-512) Wireless DMX mode uses addresses 001-512. Output level in wireless DMX mode is controlled by the wireless DMX controller that you use with the system; the LiteWare HO battery base unit responds to the DMX levels it receives. - Page 6 Wireless DMX linking and unlinking The link status is shown on the LED display on the base of the battery base unit when LiteWare HO is powered on. When the battery base unit is placed in a flight case the link status can be observed as follows: •...
-
Page 7: The Controls And Display
LiteWare HO Run times for HO when on full white Percentage of maximum output Number of pushes of top button Run time (hh:mm) 7:21 7:53 9:58 13:35 17:48 27:38 67:21 3.3 The controls and display On the bottom of the battery base unit are the UP and DN buttons, and the ADDRESS display panel. -
Page 8: Personalities
There are four personalities available, from P0 to P3: Personality ID Description Mimics the ‘Snap Off’ featured in LiteWare HO RevA. Calibrated (balanced white) 3-channel RGB control without snap off P2 Uncalibrated 3-channel RGB control without snap off 6-channel DMX mode. -
Page 9: Fixed Colour Table
LiteWare HO 3.5 Fixed colour table Address values and colours of the ‘fixed colours’ (addresses in the range 601-650): Address Colour LEE ref ROSCO ref GREEN BLUE YELLOW CYAN MAGENTA ORANGE GOLD PINK VIOLET AQUA SKY BLUE FULL WHITE COOL WHITE... -
Page 10: Safety Information
PROTECTION FROM FIRE Provide a minimum clearance of 0.1 m (4”) around fans and air vents. Do not modify the fixture or install other than genuine Robe parts. Do not stick filters, masks or other materials directly onto LEDs. Do not operate the fixture if the ambient temperature (Ta) exceeds 40 °C (104 °F). - Page 11 (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Robe Lighting products. Specifications are subject to change without notice.
