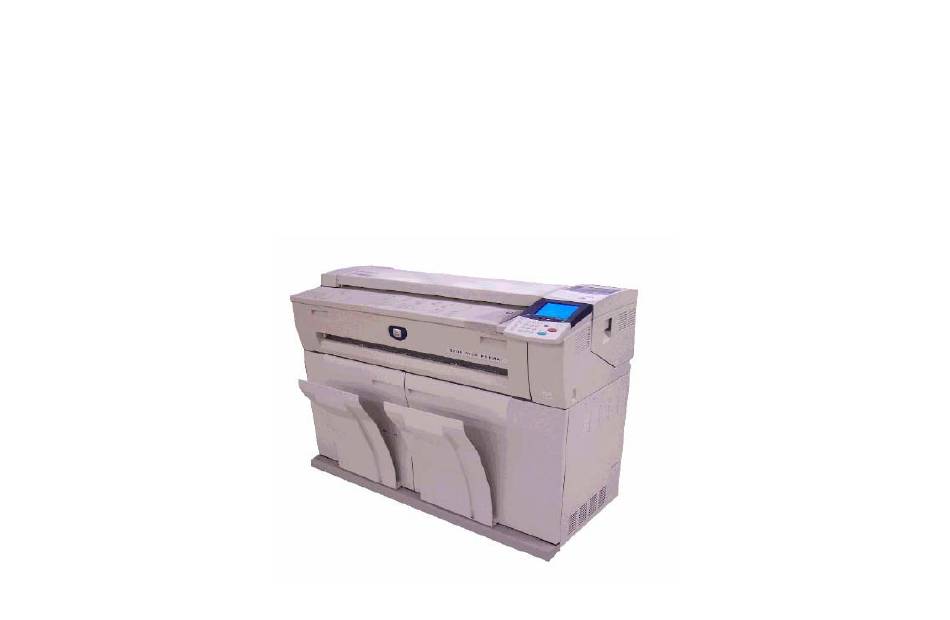

Xerox 6204 Wide Format
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xerox 6204

Summary of Contents for Xerox 6204

  • Page 1 Xerox 6204 Wide Format Installation Guide...
  • Page 3 1. Remove the tape, plastic, bubble wrap, foam pads and boxes. Check the contents of the boxes. （Fig. 2 and Fig. 3） 2. Verify that the following required parts and supplies were delivered with the machine: Xerox 6204 WF • Naturalization Kit……………….…..1 Fig. 2 Rear View...
  • Page 4 4. Open the Rear Top Cover and Remove the tape and foam pad.（Fig. 4） 6. Slide the Upper Document Transport forward to the front and lift up to remove it. Remove the foam pads. Clean the platen glass with Xerox Platen Glass Lens and Mirror Cleaner.（Fig.6） （Fig. 6) （Fig.
  • Page 5 10. Remove the sheet with tabs (3x8 mm) inserted in the Photoreceptor and Developer unit. Hold the 8. Reinstall the Upper Document Transport. tabs on both ends of the roll and pull out the long sheet. (Fig. 9) 9. Open the Clam Shell and remove the tape and white papers (3 locations). (Fig.8) Also remove the tape and foam from the clam shell latch.
  • Page 6 12. Viewing from the rear of the machine, remove the tape and foam from the Fuser Entrance Baffle. 14. Remove the cushion pads between BTR and the baffle. (Fig.13) Also remove the foam block under the Fuser Nip Lever. (Fig.13a) (Fig.11) （Fig.
  • Page 7 15. Lift the Transport Baffle and remove the foam pad. (Fig. 14) 17. Remove the Waste Toner Bottle. Remove the two screws behind the bottle holding the Fuser Nip Bracket. Rotate the brackest to the position as shown in Figure 15 and reinstall the bracket. Waste Toner Bottle （Fig.
  • Page 8 19. Remove and discard the Edge Guide. Close the ClamShell Unit. (Fig. 16) 21. Open the Front Door and remove the shipping brackets that hold the drawer in place. Also remove the tape from the drawer latches. Ensure that the drawer moves in and out easily. (Fig.18) （Fig.
  • Page 9 22. Open the upper drawer and remove the twisted wire and tapes. (Fig. 19) 24. Open the Front Doors and install the trim piece in the lower front of the machine. (Fig. 21.) （Fig. 19）Machine is shown with optional second drawer. 23.
  • Page 10 26. Install the Print Catch Guides. (Fig. 22) 27. Add 2 packs of the toner cartridge. （Fig. 23） NOTE: Shake the toner cartridge well before adding the toner. a. Align the notch of the toner cartridge with the right side of the toner supply port. b.
  • Page 11 28. Attach the clear curved Document Turn Guides on scanner exit guide. （Fig. 24） 30. Check the voltage at the wall socket for the proper voltage. Connect the power plug. CAUTION Ensure that the AC voltage is properly grounded. 31. Turn on the Circuit Breaker Switch and then the Standby Switch. 32.
  • Page 12 • ADJ 9.2 LED Print Head Adjustment • ADJ 7.1 Cut Length Adjustment for Roll Paper • ADJ 8.2 Lead Edge Registration Adjustment for Cut Sheet • ADJ 8.3 Lead Edge Registration Adjustment for Roll Feed • ADJ 8.1 Side Registration Adjustment •...
