LOVATO ELECTRIC DME D122 Installation Manual

LOVATO ELECTRIC DME D122 Installation Manual

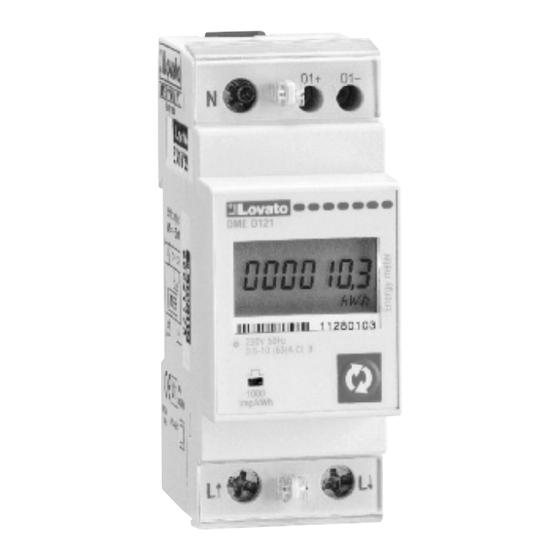

Single-phase direct connection energy meter with m-bus interface

Advertisement

Quick Links

LOV TO ELECTRIC S.P. .
24020 GORLE (BERG MO) IT LI
VI DON E. M ZZ , 12
TEL. 035 4282111
TELEF X (Nazionale): 035 4282200
TELEF X (International): +39 035 4282400
L
E
E-mail info@
ovato
lectric.com
L
E
Web
www.
ovato
lectric.com
W RNING!
– Carefully read the manual before the installation or use.
– This equipment is to be installed by qualified personnel, complying to current standards, to avoid damages or safety
hazards.
– Remove eventual dangerous voltage from the product before any maintenance operation on it.
– The manufacturer cannot be held responsible for electrical safety in case of improper use of the equipment.
– Products illustrated herein are subject to alteration and changes without prior notice. Technical data and descriptions
in the documentation are accurate, to the best of our knowledge, but no liabilities for errors, omissions or
contingencies arising therefrom are accepted.
circuit breaker must be included in the electrical installation of the building. It must be installed close by the
equipment and within easy reach of the operator.
It must be marked as the disconnecting device of the equipment: IEC/EN 61010-1 § 6.11.
– Fit the instrument in an enclosure or cabinet with minimum IP51 degree protection.
– Clean the instrument with a soft dry cloth, do not use abrasives, liquid detergents or solvents.
INTRODUCTION
The DME D122 is a single-phase active and reactive energy meter for direct connection, for currents up to 63 , equipped
with a built-in M-BUS serial interface.
The energy accuracy is compliant with standard IEC/EN 62053-21 class 1.
part from energy metering, it can measure additional indications, for a total of 14 measurements that can be visualized on
the backlighted LCD display.
The DME D122 has a standard 2U (36mm wide) modular housing and is supplied with sealable terminal blocks.
DESCRIPTION
– Modular DIN-rail housing, 2U (36mm wide).
– Direct connection for currents up to 63 .
ctive energy measure complies IEC/EN 62053-21 class 1.
– LCD display with backlight.
– Counter with 6+1 digits.
– Button for measure selection and programming.
– Total active and reactive energy meters.
– Partial active and reactive energy meters, resettable.
– Hour counter, total and partial.
– Pulse LED for active energy consumption.
– Indication of instantaneous consumption (active power).
– M-BUS interface.
SELECTION OF RE DINGS
– Pressing briefly the
button it is possible to select the readings on the display, following the sequence in the table
reported below.
– Each measure is indicated by the correspondent icon in the lower part of the display.
fter one minute has elapsed after the last keystroke, the display moves automatically back to the total active energy
screen.
Icon
Measurement
kWh
Total active energy
kWh + Part
Partial active energy
kvarh
Total reactive energy
kvarh + Part
Partial reactive energy
V
Voltage
Current
kW
ctive power
kvar
Reactive power
PF
Power factor
Hz
Frequency
h ∂
Hour counter (hhhhh.mm)
h + Part ∂
Partial hour counter (hhhhh.mm)
kW +d ∑
verage active power (15 min demand)
kW+d+ ∑
Max avg. active power (max demand)
∂ These measurements are shown only enabling parameter P-08
∑ These measurements are shown only enabling parameter P-09
METROLOGIC L LED
– The red LED on the front emits 1000 pulses for every kWh of consumed Energy (that is, one pulse every Wh).
– The pulsing frequency of the LED gives an immediate indication of the energy flowing in every moment.
– The pulse duration, LED colour and intensity are compliant with the reference standards that define its utilization in
order to verify the accuracy of the energy meter.
ENERGY FLOW INDIC TION
– When the device detects a flow of active energy to the load, it shows a rotating icon in the top-right part of the display.
– When there is no active energy consumption or when the load draws less than the starting current the rotating icon
disappears.
M-BUS
– DME D122 supports two addressing ways: primary address from 1 to 250 and secondary address from 00000000 to
99999999.
– Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 bps.
– Refer to the electrical schemes at the end of the manual to connect DME D122 to the bus in the proper way.
– For reference tables and application notes go to www.lovatoelectric.com to get the M-BUS guide (instruction number:
I513).
PROGR MM BLE LIMIT THRESHOLD
– Through parameters from P-02 to P-07 it is possible to define the behaviour of a programmable limit threshold, whose
status can be read from the communication protocol (see modbus addresses table).
– The activation of the programmable limit threshold is shown on the display through the
– Note: During parameter setting (setup) the status of the programmable limit threshold is not updated.
INCORRECT WIRING INDIC TION
– In case of incorrect wiring, when the device detects a reverse energy flow, the display shows the blinking code Err 3.
– This error is caused by either reverse connection of current wires (terminals L and L ) or reverse voltage wiring
(terminals N - L ).
– In these conditions, the energy is not counted.
GB
SINGLE-PH SE DIRECT CONNECTION ENERGY METER WITH M-BUS INTERF CE
Installation manual
D
EINPH SIGER ENERGIEZÄHLER MIT DIREKT NSCHLUSS MIT M-BUS-SCHNITTSTELLE
Installationshandbuch
DME D122
CHTUNG!!
– Diese Betriebsanleitung vor Gebrauch und Installation aufmerksam lesen.
– Zur Vermeidung von Personen- und Sachschäden dürfen diese Geräte nur von qualifiziertem Fachpersonal und unter
– Vor jedem Eingriff eventuell am Gerät anliegende gefährliche Spannungen trennen.
– Bei zweckwidrigem Gebrauch der Vorrichtung übernimmt der Hersteller keine Haftung für die elektrische Sicherheit.
– Die in dieser Broschüre beschriebenen Produkte können jederzeit weiterentwickelt und geändert werden. Die im
– In die elektrische nlage des Gebäudes ist ein usschalter oder Trennschalter einzubauen. Dieser muss sich in
– Das Instrument in einem Gehäuse und/oder in einer Schalttafel mit Mindestschutzart IP51 installieren.
– Das Instrument mit einem weichen Tuch reinigen, keine Scheuermittel, Flüssigreiniger oder Lösungsmittel verwenden.
VORWORT
Der DME D122 ist ein einphasiger Energiezähler mit Direktanschluss für Ströme bis zu 63 und serieller
M-Bus-Schnittstelle.
Die Energiemessung erfüllt die Bestimmungen der Norm IEC/EN 62053-21 Klasse 1.
Neben der Energiemessung liefert das Gerät weitere ngaben für insgesamt 14 Messungen, die auf dem großen
LCD-Bildschirm mit Hintergrundbeleuchtung angezeigt werden können.
Der DME D122 hat ein modulares Standardgehäuse der Breite 2PE (36 mm) und ist serienmäßig mit plombierbaren
Klemmenabdeckungen ausgestattet.
BESCHREIBUNG
– Modulare usführung 2U (36mm) für DIN-Schiene.
– Direktanschluss für max. Ströme 63 .
– Wirkenergiemessung gemäß IEC/EN 62053-21 Klasse 1.
– LCD-Bildschirm mit Hintergrundbeleuchtung.
– Zähler mit 6+1 Ziffern.
– Taste für die Wahl der Messungen und Programmierung.
– Wirk- und Blindenergiezähler (Gesamt).
– Energiezähler (Teil, rücksetzbar).
– Gesamt- und Teilstundenzähler.
– Impulsgesteuerte, frontseitige LED für die verbrauchte Wirkenergie.
– M- BUS-Schnittstelle.
W HL DER MESSUNGEN
– Durch kurzes Drücken der Taste
– Jede Wahl wird mit der jeweiligen Maßeinheit vom entsprechenden Symbol im unteren Bildschirm- bschnitt angezeigt.
– Nachdem die Taste an der Vorderseite eine Minute lang nicht gedrückt wurde, wechselt die Messung wieder auf den
Format
000000,0
kWh
000000,0
kWh + Part
000000,0
kvarh
000000,0
kvarh + Part
000,0
V
00,00
00,00
kW
00,00
kvar
0,00
PF
00,0
Hz
h ∂
00000,00
00000,00
h + Part ∂
kW +d ∑
00,00
00,00
kW+d+
∂ Diese Messungen sind nur sichtbar, wenn der Parameter P-08 aktiviert wird
∑ Diese Messungen sind nur sichtbar, wenn der Parameter P-09 aktiviert wird
METROLOGISCHE LED N DER VORDERSEITE
– Die rote LED an der Vorderseite gibt 1000 Impulse pro kWh verbrauchte Energie ab (d.h. 1 Impuls pro Wh).
– Die Blinkfrequenz der LED liefert eine unmittelbare ngabe über den Umfang der in einem bestimmten ugenblick
– Die Dauer des Blinkimpulses sowie die Farbe und Leuchtstärke der LED entsprechen den Normen, die ihre
ENERGIEFLUSS NZEIGE
– Wenn das Instrument einen Energiefluss zur Last misst, erscheint auf dem Bildschirm in der rechten oberen Ecke ein
– Wenn die Last keine Wirkenergie erfordert, oder wenn die Stromaufnahme geringer als der nlaufstrom ist,
M-BUS
– DME D122 unterstützt zwei rten der dressierung: Primäradresse von 1 bis 250 und Sekundäradresse von 00000000
– Einstellbare Geschwindigkeiten: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 bps.
– Für den korrekten nschluss des DME D122 an den Bus bitte die nschlusspläne am Ende des Handbuchs beachten.
– Für die Bezugstabellen und Hinweise wird auf die M-Bus- nleitung verwiesen, die auf der Website
PROGR MMIERB RER GRENZWERT
– Über die Parameter von P-02 bis P-07 kann das Verhalten eines programmierbaren Grenzwerts festgelegt werden,
icon.
– Die ktivierung des programmierbaren Grenzwerts wird mit dem Symbol
– Hinweis: Während der Parametereinstellung (Setup) wird der Status des programmierbaren Grenzwerts nicht
NZEIGE F LSCHER NSCHLUSS
Befolgung der einschlägigen Vorschriften installiert werden.
Katalog enthaltenen Beschreibungen und Daten sind daher unverbindlich und ohne Gewähr.
unmittelbarer Nähe des Geräts befinden und vom Bediener leicht zugänglich sein. Er muss als Trennvorrichtung für das
Gerät gekennzeichnet sein: IEC/ EN 61010-1 § 6.11.
nzeige Momentanverbrauch (Wirkleistung).
können die Messungen auf dem Bildschirm des Instruments gemäß der in der
nachstehenden Tabelle angegebenen Sequenz gewählt werden.
Gesamt-Wirkenergiezähler.
Symbol
Messung
Gesamtwirkenergie
Teilwirkenergie
Gesamtblindenergie
Teilblindenergie
Spannung
Strom
Wirkleistung
Blindleistung
Leistungsfaktor
Frequenz
Stundenzähler (hhhhh.mm)
Teilstundenzähler (hhhhh.mm)
Durchschn. Wirkleistung (Leistung in 15 Min.)
Max. durchschn. Wirkleistung (max. Leistung)
angeforderten Leistung.
Verwendung zwecks metrologischer Überprüfung der Genauigkeit des Energiezählers vorschreiben.
drehendes Symbol.
verschwindet das drehende Symbol.
bis 99999999.
www.lovatoelectric.com eingesehen werden kann (Nummer der nleitung: I513).
dessen Status über das Kommunikationsprotokoll abgelesen werden kann (siehe Tabelle der Modbus- dressen).
aktualisiert.
Wenn das Gerät falsch angeschlossen wurde und ein Energiefluss in die falsche Richtung erfasst wird, wird die
blinkende nzeige Err 3 aktiviert.
Dieser Fehler kann durch Vertauschen des Stromanschlusses (Klemmen L und L ) oder durch Vertauschen der
Spannungsklemmen (N - L ) verursacht werden.
Unter diesen Bedingungen wird die Energie nicht gezählt.
Format
000000,0
000000,0
000000,0
000000,0
000,0
00,00
00,00
00,00
0,00
00,0
00000,00
00000,00
00,00
00,00
auf dem Bildschirm angezeigt.
