Item #70100202BN
70100102BL
Model #PCPG-CF-268-BN
PCPG-CF-268-MBK
USE AND CARE GUIDE

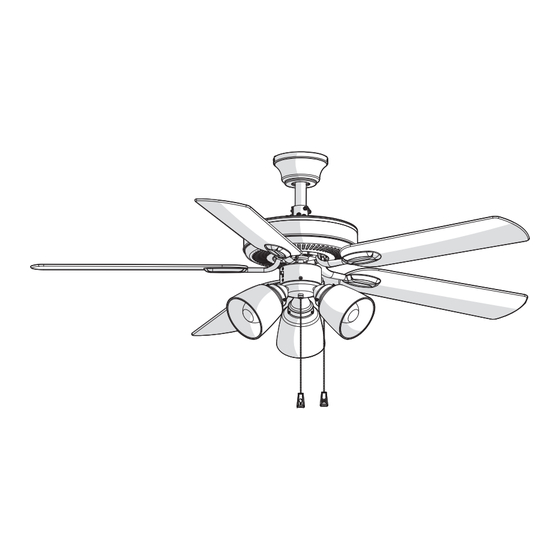

Castleton 52" (3 LIGHT DOWN MODEL)
CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Precision Consumer Products Group
1-866-237-9983
SERVICE@PRECISIONCPG.COM
THANK YOU
We appreciate the trust and con dence you have placed in Precision Consumer Products Group through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Precision Consumer Products Group !
Advertisement
Related Manuals for HAMPTON BAY Castleton PCPG-CF-268-BN
Summary of Contents for HAMPTON BAY Castleton PCPG-CF-268-BN
- Page 1 Item #70100202BN 70100102BL Model #PCPG-CF-268-BN PCPG-CF-268-MBK USE AND CARE GUIDE Castleton 52" (3 LIGHT DOWN MODEL) CEILING FAN Questions, problems, missing parts? Before returning to the store, call Precision Consumer Products Group 1-866-237-9983 SERVICE@PRECISIONCPG.COM THANK YOU We appreciate the trust and con dence you have placed in Precision Consumer Products Group through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home.
- Page 2 Table of Contents Table of Contents ........Assembly .
- Page 3 Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of 15 years after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned.
- Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw and ber washer Blade arm screw and lock washer 9 watt LED bulb Pull chain and fob Light holder thumbscrew (additional)
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy Blade arm Canopy bottom cover (preassembled) Light kit Hanger ball/downrod assembly Glass shade Fan motor assembly SERVICE@PRECISIONCPG.COM Please contact 1-866-237-9983 for further assistance.
- Page 6 Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
- Page 7 Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ Remove the cotter pin (JJ), and clevis pin (KK), and □ Remove the two non-slotted canopy mounting screws loosen the two collar setscrews (LL) from the motor with lock washers (II) from the canopy (B), and loosen the collar.
- Page 8 Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ Remove the mounting bracket (A) from the canopy (B) by □ Remove the cotter pin (JJ), clevis pin (KK) and the loosening the four canopy mounting screws with lock two collar setscrews (LL) from the motor collar.
- Page 9 Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of re, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Neutral conductor WARNING: To avoid possible electrical shock, be sure Black White electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 11 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections □ □ On a single switch the fan and light can be turned on or On a dual switch the fan and light can be turned on or off off together.
- Page 12 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (B) are provided properly sits in the groove in the hanger ball (D) before only as an aid to mounting.
- Page 13 Assembly — Attaching the Fan Blades Installation Removing the rubber Attaching the blades to the packing mounts blade arms □ The fan motor assembly (E) is shipped with rubber NOTE: Your fan blades are reversible. Select the blade side packing mounts (NN) to prevent movement during trans- nish which best accentuates your decor.
- Page 14 Assembly — Attaching the Fan Blades (continued) Fastening the blade assemblies to the motor WARNING: To reduce the risk of personal injury, do not bend the blade arms (G) while installing, balancing the blades (F), or cleaning the fan. Do no insert foreign objects between rotating fan blades (F).
- Page 15 Assembly — Installing the Light Kit Attaching the light kit to Mounting the glass shades and the switch housing installing the light bulbs □ Mount the glass shades (I) to the light sockets by CAUTION: Before starting the installation, disconnect the partially unscrewing the three light holder power by turning off the circuit breaker or removing the fuse thumbscrews (PP) on each glass holder, inserting the...
- Page 16 Operation PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (EE) onto the pull chains located in the switch housing and light kit (H). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
- Page 17 Care and Cleaning Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
- Page 18 Troubleshooting (continued) Problem Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
- Page 19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modi cations to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
