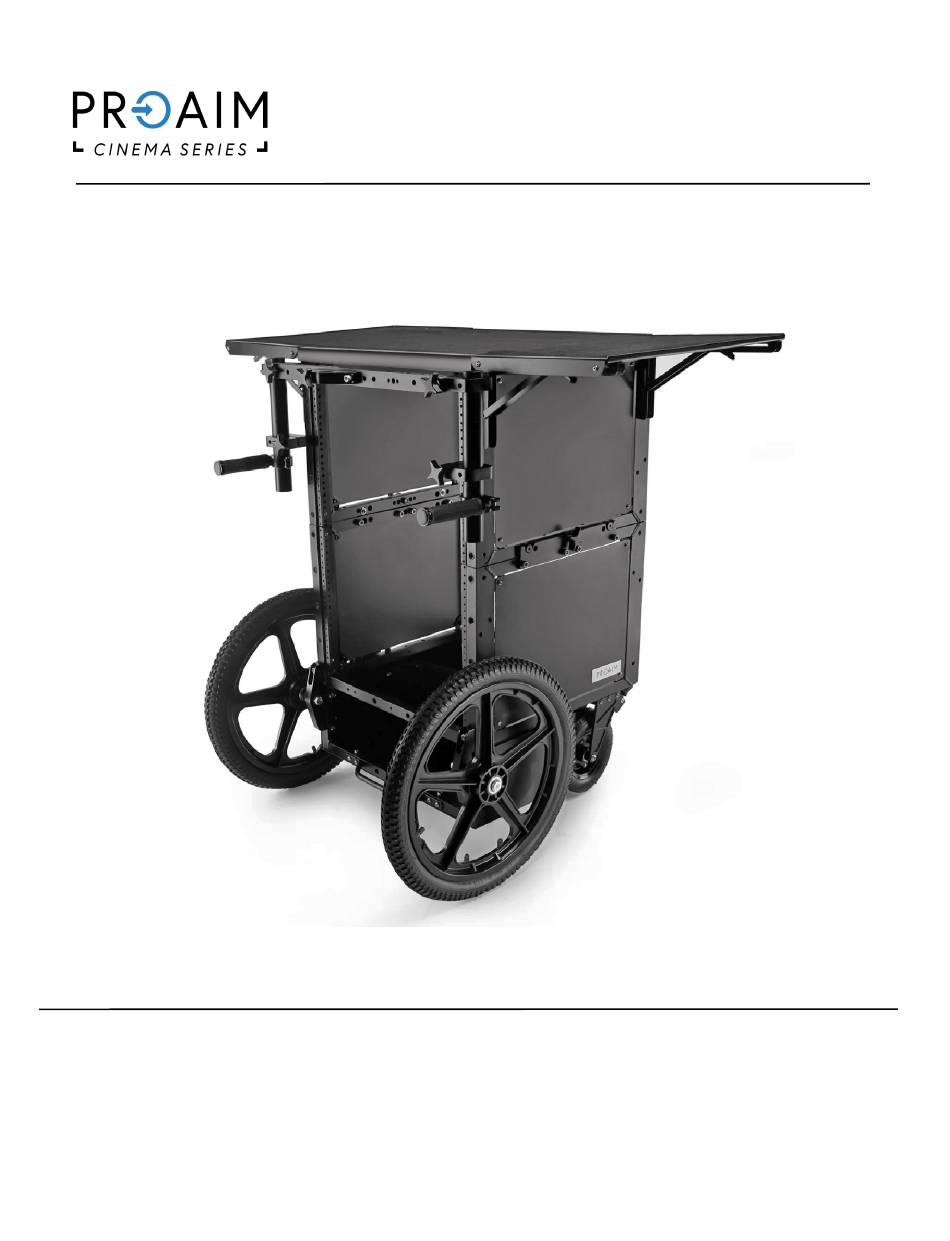

Soundchief Cart | Vertical Workstation
(CT-SDCF-01)
A s s e m b l y M a n u a l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA CT-SDCF-01
Summary of Contents for PROAIM CINEMA CT-SDCF-01
- Page 1 Soundchief Cart | Vertical Workstation (CT-SDCF-01) A s s e m b l y M a n u a l All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Bottom Shelf Top Shelf 4 x Speed Rail Clamps 9” Dovetail Wheels 20” Pneumatic Wheels 3 x Side Plates 2 x Handles 2 X Side Wings...
- Page 3 Center Support plate Handle 2 x Speed Rails Crossbar 4 x Knobs & washers 2 x Wheel Shaft 3 x Shelf knobs with washers 3 x Spanners 5 x Button Head Screw (10mm,17mm,19mm) 3 x T-Type Allen Keys (Size: 8 x 16mm) 1 x L-Type Allen Key (4mm,6mm,5/16”) (4mm)
- Page 4 Soundchief Cart Setup Side Plate Assembly • Loosen all bolts using the 4mm Allen key and remove them. • Attach the side plate to the bottom shelf and insert the bolts. • Retighten all the bolts using the 4mm Allen key.
- Page 5 • The handle is securely attached to the bottom shelf. Center Support Plate Mounting • Attach center support plate to the bottom shelf. • Insert the bolts ensuring thread match. • Tighten the bolts using the 5mm Allen key. • Repeat the same process to attach the other center support plate.
- Page 6 • Repeat the same process for the second 9” dovetail wheel. 20” Pneumatic Wheels Assembly • Remove nut bolt and bush from the wheel shaft. • Insert the wheel shaft into the bottom shelf and insert the bush from the other end. •...
- Page 7 Top Shelf Assembly • Assemble the top shelf onto the bottom shelf ensuring a proper fit. • Insert the shelf knobs from both sides and tighten them securely. Feature: Top shelf can be mounted onto the bottom shelf from both sides. •...
- Page 8 Side Wings Assembly • Loosen and remove bolts from the Top shelf using the 4mm Allen key. • Carefully open the sliding bar of the Side wing. • Attach the Side wing to the Top shelf and insert the bolts. •...
- Page 9 • Slide the Speed Rail Clamp onto the crossbar and insert the knob and washer. NOTE: Ensure that you slide the Speed Rail Clamp from the flat side. • Tighten the knob to secure it. • Repeat the same process to attach the Speed Rail Clamp to the other end of the crossbar.
- Page 10 Speed Rail Mounting • Loosen the knobs of both the Top and bottom clamp. • Now, insert the Speed rail into the clamps. • Retighten both the top and bottom knobs to secure it. • Repeat the same process to insert the second Speed rail.
- Page 11 Rotation of Top Shelf Towards Dovetail wheels • Loosen and remove all the shelf knobs. • Repeat the same process to remove the knobs from the other side of the shelf. • Now, rotate the Top shelf and mount it on the bottom shelf.
- Page 12 YOUR PROAIM SOUNDCHIEF CART VERTICAL WORKSTATION ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage.
