Soundchief Channel Cart
(CT-SDCF-CV4)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
1 x Sliding Shelf
Bottom self
2 x 16'' Wheels

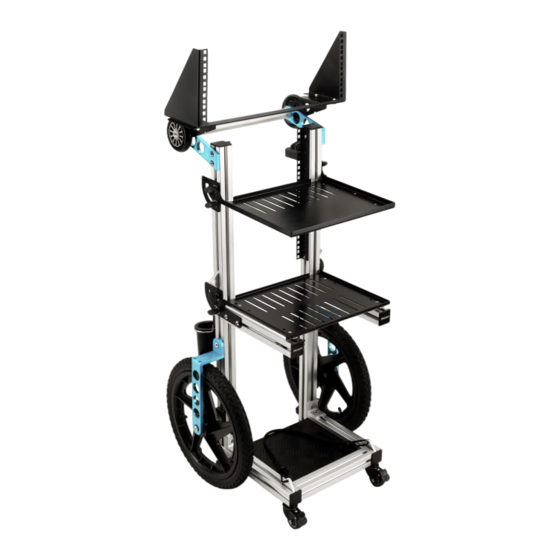

Proaim Soundchief CV4 Cart with
1 x Height Adjustable Shelf and
1 x Headphone Holder
Wrench (10-11) & Allen key
1 x Boom Pole Holder Kit
1 x Cup Holder
(4mm, 5mm, 5/16")
Tablet
2 x Antenna holder
1 x 4u 19'' Rack Adapter Kit
Holder
2 x Safety Hook
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
