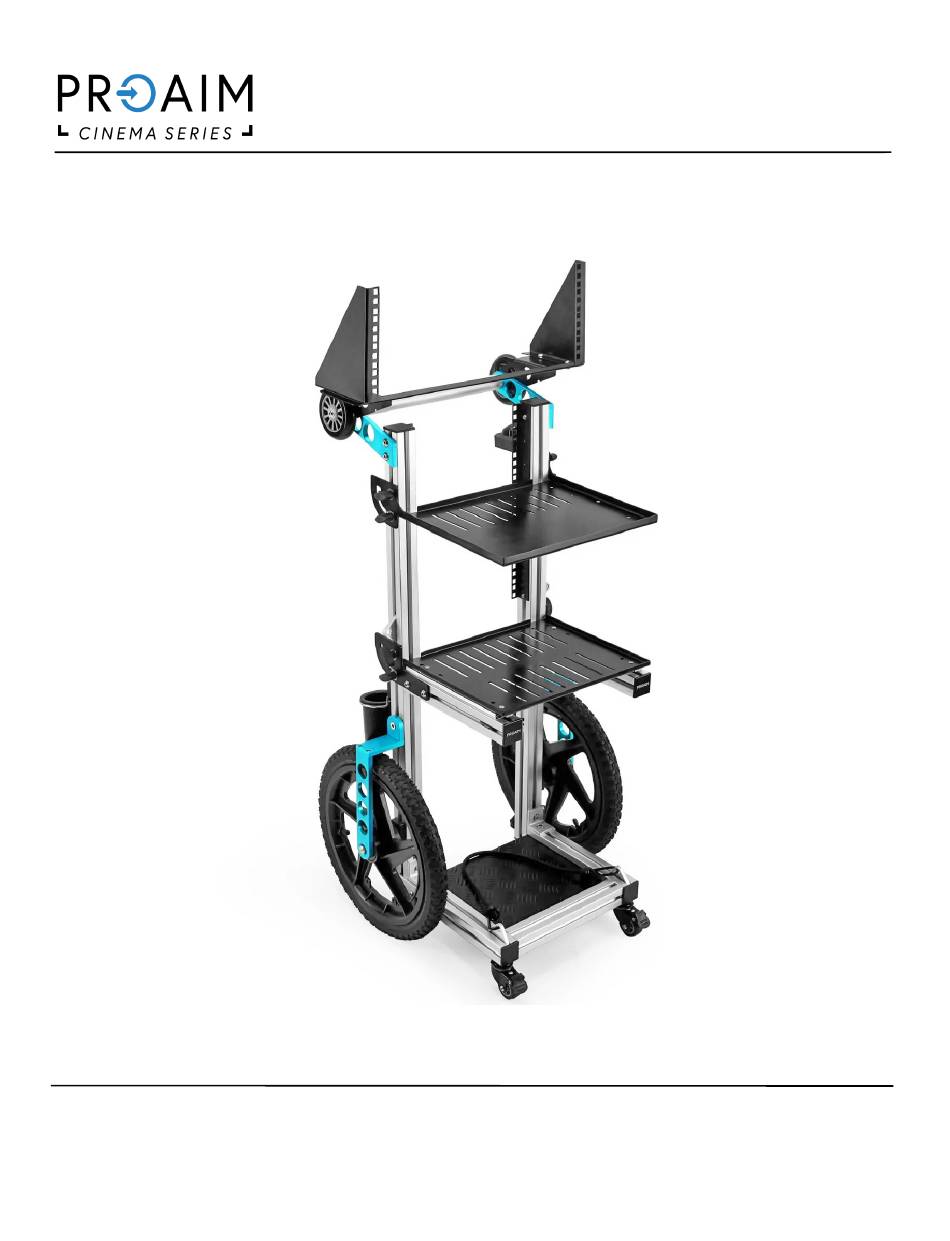

Soundchief Channel Cart
(CT-SDCF-CV4)
A s s e m b l y M a n u a l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM Soundchief CT-SDCF-CV4
Summary of Contents for PROAIM Soundchief CT-SDCF-CV4
- Page 1 Soundchief Channel Cart (CT-SDCF-CV4) A s s e m b l y M a n u a l All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Channel Frame Bottom Shelf Top Shelf Wheel Bracket Sliding Shelf 2x16'' Wheels Bracket for caster wheel Handle Rod 2 x caster Wheels Corner Plate with 4 CSK Bolts(8x16mm)
- Page 3 5 x T-Nut (1/4”) 5 x T-Nut (6mm) 5 x T-Nut (8mm) 20 x Cage Nuts 3 x T-Type Allen Keys (6x16mm) 2 x L-Type Allen Keys (4mm,5mm,5/16”) (4mm,5mm) 2 x Button Heads (8x20mm) 2 x Button Heads (8x16mm) Wrench (10-11) INDEX Sr.
- Page 4 Soundchief Channel Cart Setup Bottom Shelf Assembly • Insert the knob into the Soundchief channel frame. • Then, attach the bottom shelf to the Soundchief channel frame. • Now, tighten the knob securely. • Repeat the same process to attach the bottom shelf to the other channel frame.
- Page 5 • Loosen the bolt using a 5mm Allen key and remove it. • Now, slide the plate forward and insert the bolt. • Then, tighten the bolt again using a 5mm Allen key. • Repeat the same process on the other side. Wheel Bracket Assembly •...
- Page 6 2 x 16'' Wheels Assembly • Remove both bushes from the caster wheel shaft. • Now, insert the bushes into the wheel on both sides. • Now, attach the wheel to the cart and insert the bolt by aligning the holes. •...
- Page 7 Sliding Shelf Assembly • Now, attach the sliding plate to the cart and insert the knob by aligning the holes. • Then, insert the other knob. Repeat the same process on the other side. • The sliding shelf is now properly attached to the cart.
- Page 8 Bottom Shelf Assembly • Now, attach the bracket to the cart and insert the bolts. • Then, tighten both bolts using a 5mm Allen key. • Follow the same process to attach the other plate. Rack Mount Bracket Assembly • Remove both bolts, nut bolts, and washers from the rack mount using a 10mm spanner.
- Page 9 • Follow the same process to attach the rack mounting bracket to the other holder. • Now, attach the rack mount to the bracket and insert the handle rod. Caster Wheels Mounting • Remove one bush from the small caster wheel shaft and insert the bolt into the wheel.
- Page 10 Boom Pole Cup Holder Mounting • Now, attach the boom pole cup holder to the cart and tighten the bolt using a 5mm Allen key. • Then, insert the cup into the boom pole cup holder . Boom Pole Holder Mounting •...
- Page 11 Tablet Holder Mounting • Attach the tablet holder to the cart and tighten the button head (8x16mm) using a 5mm Allen key. • Repeat the same process to attach the other tablet holder. Antenna Holder Mounting • Open the antenna holder and remove the bush from it.
- Page 12 Follow the same process to attach the other holder. • Your cart is now ready to use. YOUR PROAIM SOUNDCHIEF CHANNEL CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
