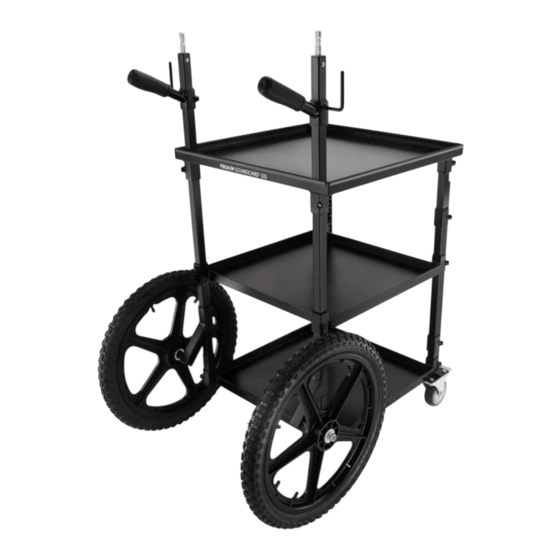

Soundchief OG Professional Sound Cart
(CT-SDCF-OG)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Bottom Tray
Top Tray
Middle Tray
(With Wheels)
2 x Rods
2 x Baby Pin Rods
2 x Rack Mounts
2 x Wheels
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM CINEMA CT-SDCF-OG
Summary of Contents for PROAIM CINEMA CT-SDCF-OG
- Page 1 Soundchief OG Professional Sound Cart (CT-SDCF-OG) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 2 x Sanks 2 x Handles 2 x Spanners (Sizes: 13mm & 19mm) Sound chief Cart Setup Assembling of Rods Loosen the bolt with the help of an Allen key and then insert the baby pin rod. Tighten the bolt using the allen key and repeat the same process for the second rod.
- Page 3 NOTE: The front wheels come with specially designed foot brakes to keep it completely steady, stable, and secure for reliable parking, even when you can not be close to the Cart. Assembling of Wheels Loosen the bolts of the shank and insert it into baby pin rod.
- Page 4 Assembling of Middle Tray NOTE: It is a fully collapsible cart for Audio/Sound Recordists, Production Sound Mixers, and other professionals. Loosen the bolt with the allen key and insert the Rack Mount rod. Tighten the bolt using the allen key. Repeat the same process for the second rod.
- Page 5 Assembling of Top Tray Insert the top tray and tighten the bolts using the allen key. NOTE: The cart is connected to Bottom, Middle, and Top tray and has a sturdy rubber coating on its edges to avoid scratches and damage to your sound equipment.
- Page 6 Height Adjustable of Middle Shelf YOUR PROAIM SOUNDCHIEF OG PROFESSIONAL SOUND CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
