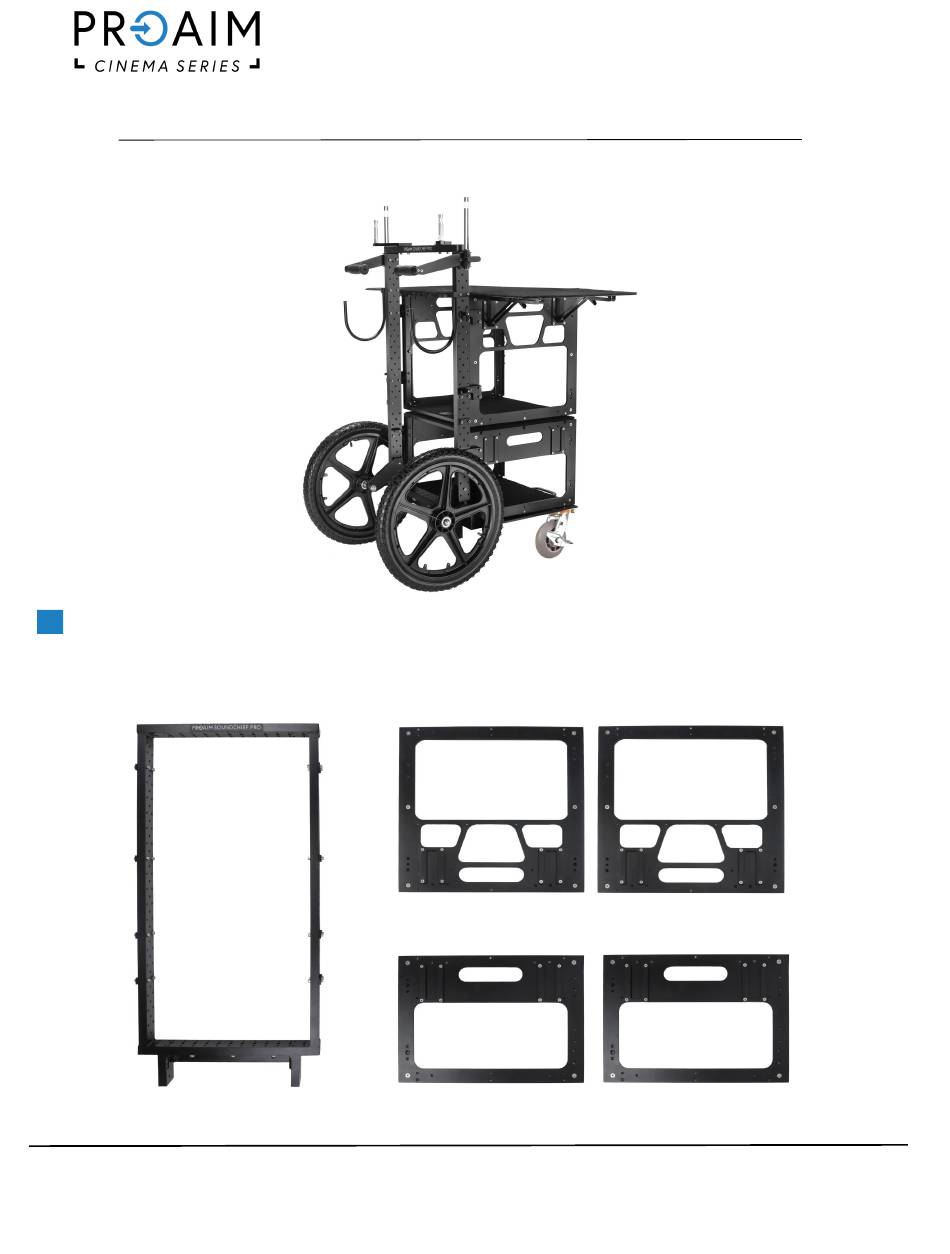

Soundchief Pro Cart
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that are
listed below.
Main section
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
(CT-SDCF-PRO)
A s s e m b l y M a n u a l
Bottom side panel
All rights reserved.
statutes or in writing by the Publisher.
Top side panel
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA CT-SDCF-PRO
Summary of Contents for PROAIM CINEMA CT-SDCF-PRO
- Page 1 Soundchief Pro Cart (CT-SDCF-PRO) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that are listed below. Top side panel Bottom side panel Main section...
- Page 2 Foldable & Detachable Side Wings Wheels 5/8” baby pin mount Top side panel Top & Bottom shelves Countersunk bolts Bottom side panel Top & Bottom shelves Caster wheels with brakes Handles Cable hooks Panel connector Wheel axel...
- Page 3 5/8” baby pin Bottom plate L– Type Allen key (5/16”) T– Type Allen Key (6mm, 3/16mm, 5mm, 4mm, 2.5mm) (10-11, 17, 19) Spanner Cart Setup • Loosen the bolt of the Bottom Plate With The help of 5/16”L-type a Allen key and (19) spanner.
- Page 4 • Match the holes of the main section with the bottom plate and insert the bolt. • With the help of the (5/16") L-Type Allen key, insert the Nyloc nut by holding the bolt. • Now properly tighten the nut with the help of (19) spanner and (5/16") L–...
- Page 5 • To attach the wheel axle with the main sec- tion, Insert the Nyloc nut by inserting the bolts manually. • Then tighten it properly with the help of (10- 11) spanner and 3/16mm Allen key. • Remove the Nyloc nut from the wheel axle, as shown in image.
- Page 6 • 1st wheel is now attached to the main sec- tion, follow the same process for the other side wheel. • Finally both the wheels are properly attached to the Main section. • Remove the caster wheel bolts with the help of a 6mm Allen key and (17) spanner key.
- Page 7 • After inserting the bolt, insert the washer and Nyloc nut. • Now properly tighten them with the help of a 6mm Allen key and (17) spanner. • Attach the panel connector to the bottom side panel with the help of a 3/16mm Allen key.
- Page 8 • Remove all bolts on the bottom shelves. • Insert the bolts by attaching the bottom shelves to the bottom side panels. • Tighten them with the help of a 2.5mm Allen key. • Follow the same process for another Bottom side panel.
- Page 9 • Attach the bottom side panels to the main section of the cart by aligning with it. • Same as shown in the image. • Insert the ratchet knob to attach the bottom side panel with the bottom sleeve. • Secure the bottom side panel with bottom shelves properly with the help of the Rachet knob.
- Page 10 • Then manually place the bottom shelves of the main section on top of the bottom side panels. • Tighten them properly with the help of all three knobs. • Attach the panel connector along the top side panel and tighten it with a 3/16mm Allen key. •...
- Page 11 • Remove the side bolts of the Top Side Panel Top & Bottom Shelves with the help of a 2.5mm Allen key. • Then align with Top side panel. • Align the top side panel with bottom shelves and secure them properly with a 2.5mm Allen key by inserting the bolt.
- Page 12 • After attaching the Top Side Panel with Top Bottom Shelves, align with the cart manually. • Secure it from both sides with the help of the Rachet knob. • The Top Side Panel Top & Bottom Shelves are attached to the Soundchief Cart. •...
- Page 13 NOTE: The side wings can be folded by pushing the lock lever. • Both the side wings are now properly setup, as shown in the image. • Remove the bolts of the 5/8" baby pin mount. • Mount the 5/8" baby pin mount to the top of the Soundchief cart.
- Page 14 • Properly remove the handle bolts. • Align the handle & insert the bolt by matching the handle to the side threads of the main section of the Soundchief cart. • Then properly tight with the help of a 3/16mm Allen key and (10-11) spanner and follow the same process on the other side handle.
- Page 15 • Then insert the bolt by attaching the cable hooks to the cart's main section. • Insert both the bolts of the cable hooks and tighten them properly with the help of a 3/16mm Allen key and (10-11) spanner. • Finally, both the cable hooks are properly attached to the Soundchief cart.
- Page 16 YOUR PROAIM SOUNDCHIEF PRO CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
