Operating instructions
Dials GAS311/321/731
Gas hob

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dials GAS311 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG Dials GAS311

Summary of Contents for V-ZUG Dials GAS311

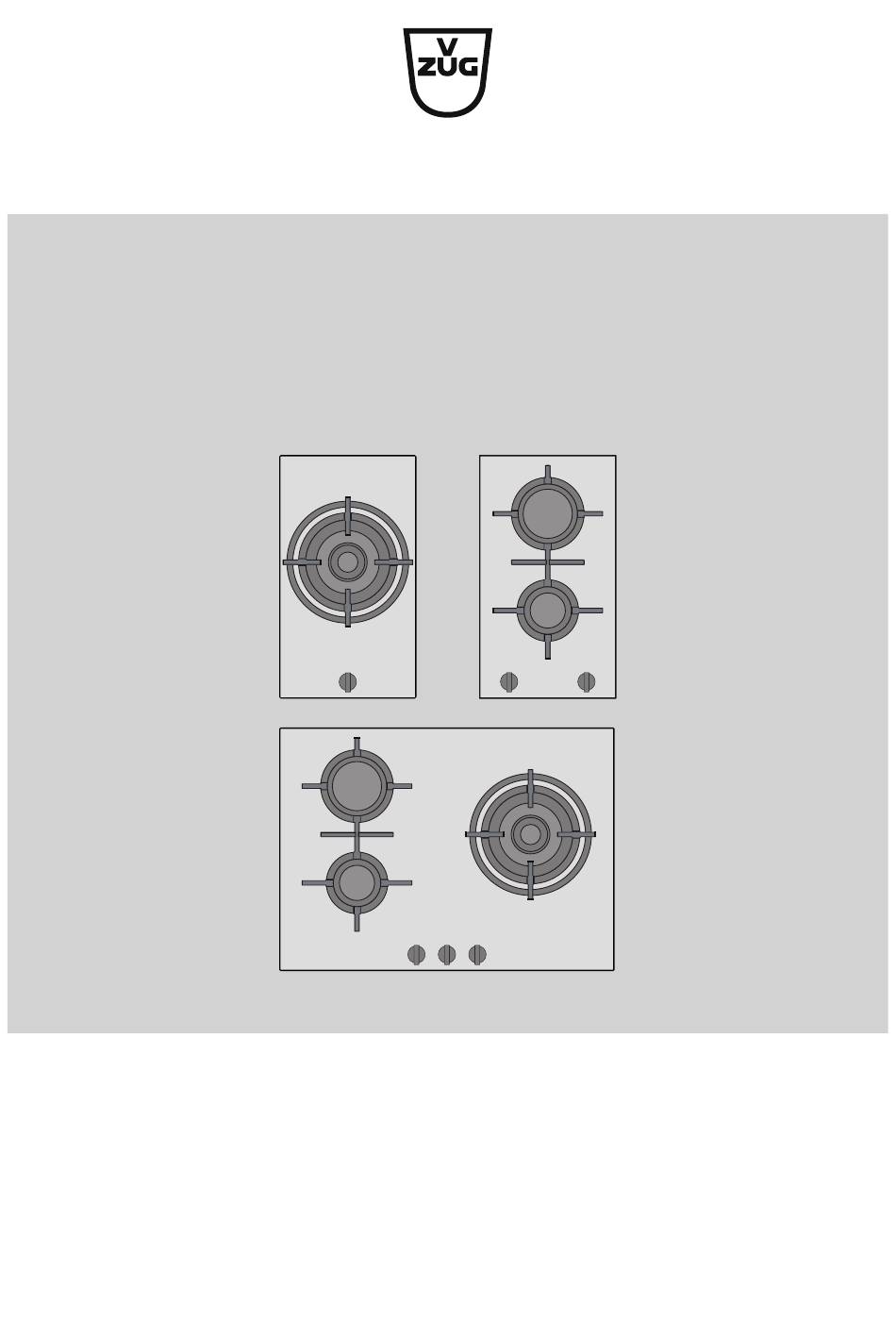

  • Page 1 Operating instructions Dials GAS311/321/731 Gas hob...
  • Page 2 These operating instructions apply to: Type Model number Appliance class GAS311EKBZ 31046 Class 3 DIN EN 30-1-1 GAS311GKBZ 31073 GAS321EKBZ 31050 GAS321GKBZ 31074 GAS731EKBZ 31056 GAS731GKBZ 31075 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2025...
  • Page 3 Contents Safety precautions  4 Symbols used ............ 4 General safety precautions ........ 4 Appliance-specific safety precautions.... 4 Instructions for use .......... 5 Warnings.............. 7 Using for the first time  8 Appliance description  8 Appliance overview.......... 8 Operating elements .......... 9 Gas burners ............ 10 Safety system............ 10 Cookware .............
  • Page 4 Safety precautions Symbols used with the appliance. Cleaning and user maintenance shall Denotes important safety precau- tions. not be undertaken by children Failure to observe said precautions without supervision. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 5 1 Safety precautions not touch the surface of the ▪ Under no circumstances use appliance or use the appli- a steam cleaner to clean this ance. appliance. ▪ WARNING: If the surface is ▪ All gas tightness tests should cracked, switch off the appli- be performed with a soap ance, turn off the stop-cock solution.
  • Page 6 1 Safety precautions ▪ Retain these operating instructions for Caution: Fire hazard! future reference. If you sell the appli- ▪ The cooking zones become very hot. ance or pass it on to a third party, Do not rest any objects on the hob. please ensure these operating instruc- ▪...
  • Page 7 1 Safety precautions Caution: Risk to life! Warnings ▪ Packaging materials, e.g. plastic film Please observe the notes on use in and polystyrene, can be dangerous for the «Cookware» (see page 11) children. Danger of suffocation! Keep section. packaging material away from children. ▪...
  • Page 8 Using for the first time The appliance must be installed and connected to the electricity and gas supply in accordance with the separate installation instructions. Have a certified installer carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances.
  • Page 9 3 Appliance description GAS321EKBZ/GKBZ ▪ 1 rapid burner (top) ▪ 1 standard burner (bottom) GAS311EKBZ/GKBZ ▪ 1 wok burner Operating elements Dial Wok burner Off position Ignition position Burner power: inside max. / outside max. Burner power: inside max. / outside min. Burner power: inside max.
  • Page 10 3 Appliance description Gas burners A symbol next to each control knob indicates which cooking zone is being operated. Wok burner Standard/Rapid burner The pan supports and all the parts of the burners must be positioned correctly in order that the appliance can be operated correctly. Do not swap the burner caps around. Standard/Rapid burner 1 Burner cap 2 Pan support...
  • Page 11 3 Appliance description Cookware Suitable cookware Burner Top rim diameter Min. Max. Recommended Wok burner with wok extension ring 26 cm 40 cm 35 cm Burner Base diameter Min. Max. Recommended Rapid burner 18 cm 26 cm 24 cm Standard burner 12 cm 20 cm 18 cm...
  • Page 12 3 Appliance description Take care that the burner flame only reaches as far as the base of the mocha pot. The mocha pot handle could otherwise get hot. We recommend the mocha support be used on the wok, economy or standard burners.
  • Page 13 4 Operating the appliance Operating the appliance Electronic ignition All hobs have electronic ignition. ▸ Press down the control knob for the required burner and turn it anti-clockwise to the ignition position. ▸ Press the control knob. – The flame ignites. ▸...
  • Page 14 4 Operating the appliance ▪ Outer flame at minimum power and inner flame at maximum power. ▪ Inner flame at maximum power and outer flame off. ▪ Inner flame at minimum power and outer flame off. Standard/Rapid burner ▪ Flame at maximum power.
  • Page 15 5 Care and cleaning Cooking guidelines Burner Max. position Medium position Min. position Wok burner Cooking and flash-frying Stewing, reducing and Heating up and continued cooking keeping food warm Rapid burner Frying and deep frying Steaming Standard burner Cooking, steaming and Reheating and keeping food warm braising Care and cleaning...
  • Page 16 6 Trouble-shooting Trouble-shooting What to do if … … the ignition is not working? Possible cause Solution ▪ Food or cleaning product ▸ Clean the area between the ignition sparker and the residue stuck between the ig- burner. nition sparkers and the burn- ers.
  • Page 17 7 Accessories and spare parts ... a burner immediately switches off after releasing the control knob? Possible cause Solution ▪ The control knob was not ▸ When the burner ignites, still keep the control knob pressed for long enough. depressed for a few seconds. ▪...
  • Page 18 8 Technical data Technical data Product information In accordance with EU Regulation No. 66/2014 Brand V-ZUG Type of appliance Built-in hob Model number 31046, 31073 Type designation GAS311EKBZ, GAS311GKBZ Heating technology Gas burner Type of burner Nominal heat input Singapore...
  • Page 19 8 Technical data In accordance with EU Regulation No. 66/2014 Brand V-ZUG Type of appliance Built-in hob Model number 31056, 31075 Type designation GAS731EKBZ, GAS731GKBZ Heating technology Gas burner Type of burner Rapid Standard Total Nominal heat input Singapore 1.75 9.45...
  • Page 20 9 Disposal Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an envir- onmentally friendly way. Disconnection Safety ▪ Disable the appliance to prevent accidents caused by improper use, especially through children playing.
  • Page 21 989 Siam Piwat Tower, 12 A Floor, London W1U 1PN TT25, GREAT BRITAIN Rama1 Road, Pathumwan Pathumwan, Bangkok 10330 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A...
  • Page 22 Index Type............... 2 Addresses of the importers ......21 Appliance overview ..........9 Using for the first time ........8 Appliance-specific safety precautions ................ 5 Validity..............2 Care..............15 Cleaning............. 15 Warranty extensions ........23 Cooking guidelines.......... 15 Where is the identification plate?..... 8 Cookware ............
  • Page 23 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 24 ▸ Hold the control knob depressed until the flame ignites. ▸ Select the desired power level. Switching a cooking zone off ▸ Turn the control knob for the burner in a clockwise direction as far as the position. 1058589-06 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
