Page 1

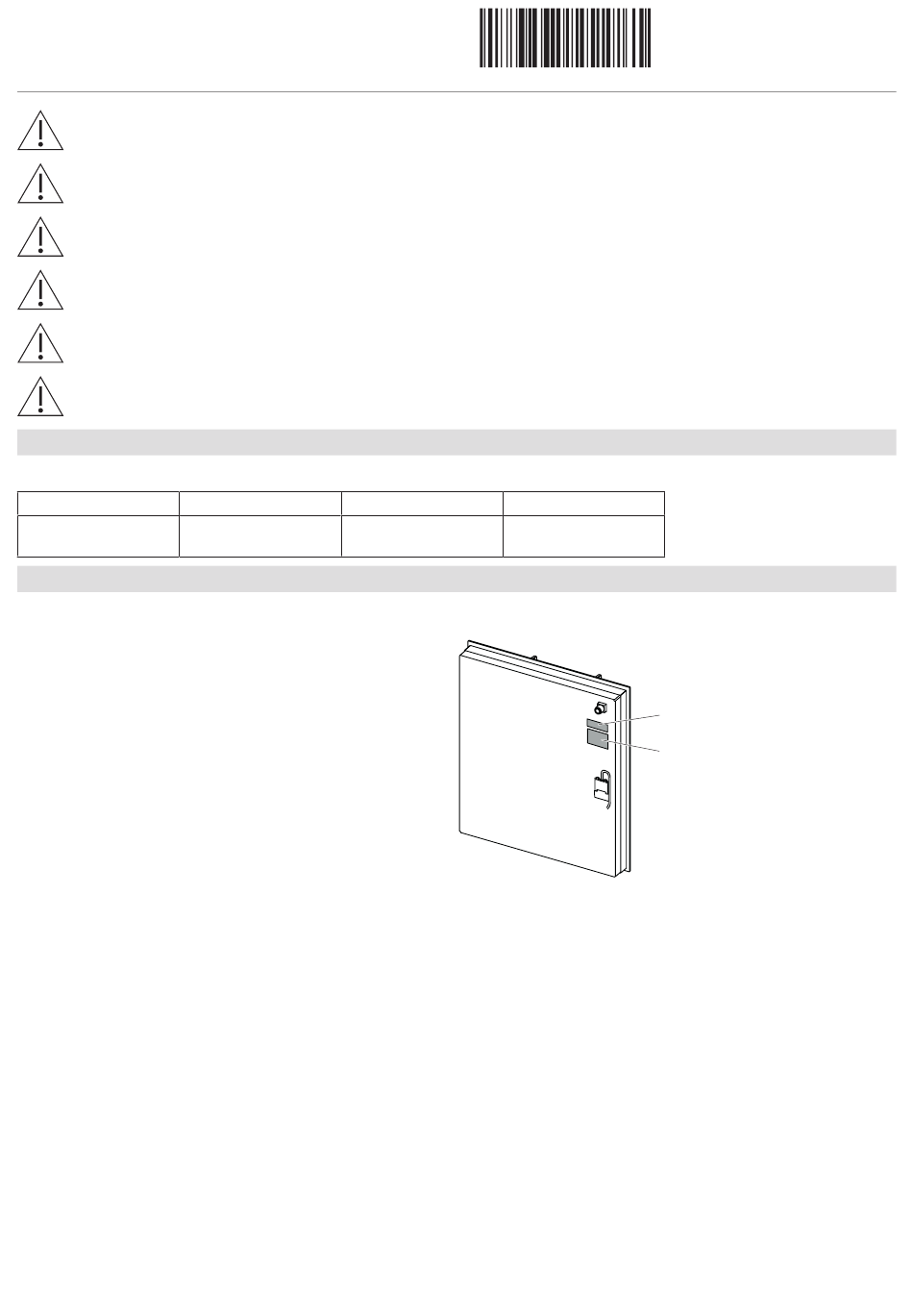

1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 The appliance must be installed by qualified personnel only. Each step must be carried out and checked in full in the order specified. Check that the local connection conditions (gas type and gas pressure) and the appliance setting match before con- necting the appliance.
Page 2
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Installation accessories provided For all installation variants: Designation Art. no. 4 adjusting braces H61561 Sealing ring for gas connection 18 × 13 × 1.5 mm H64006 Flush installation: Designation Art.
Page 3
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Surface-mounted installation The layout of the hob to be fitted may differ from the hob illustrated! GAS731GKBZ (31075) Y – Y T ≥90 Drawer/ cabinet Side panel * The required clearance must be observed!
Page 4
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Flush installation The layout of the hob to be fitted may differ from the hob illustrated! GAS731GKBZ (31075) Detail Z R0–5 Steel angle bonded or screw mounted Y – Y T ≥90...
Page 5
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Electrical connection Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards for low-voltage installations and the specifications of the local electricity supply companies.
Page 6
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Minimum distances and installation conditions The distance from the appliance cut-out to the back wall must be ≥50 mm and to the side walls ≥200 mm. Parts such as side walls and reinforcing strips which protrude into the installation space under the cooking zone must be made of fire-resistant material.
Page 7
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Thread length The thread length of the gas connection on the appliance (external thread) So is 16 mm. If the thread length of the on-site counterpart (internal thread) Si is longer than 17 mm, the front-end seal is no longer guaranteed through the supplied green sealing ring H64006 with a height of 1.5 mm.
Page 8
1094429-05 Installation instructions 14/11/2024 Built-in variants of gas hob Dial GAS731 1094429-05 Flush mounted Surface mounted Place the appliance tray in the kitchen cabinet and up Lift the base plate back onto the base. and over the threaded rods. First tighten the two knurled nuts in the corners.
