Installation instructions

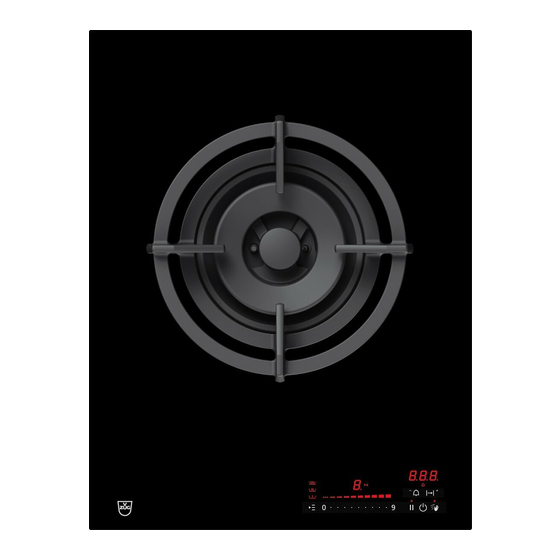

Built-in variants of gas hob
Multi-sliders GAS411/421
The appliance must be installed by qualified personnel only. Each step must be carried out and checked in full in the
order specified.
Check that the local connection conditions (gas type and gas pressure) and the appliance setting match before con-
necting the appliance.
The default values for this appliance are provided on the information plate (or on the identification plate).
This appliance is not connected to a combustion by-product outlet. It must be set up and connected according to the
applicable installation conditions. Particular attention must be paid to the relevant ventilation requirements.
If installing into a combustible material, the guidelines and standards for low voltage installations and fire protection
must be strictly observed.
Validity
These installation instructions apply to the following models:
Product family
31063
31064
General notes
Identification plate
The identification plate is located on the underside of the
hob.
▸
Affix the second identification plate (supplied) in an accessible position behind the front of the fitted cabinet beneath the appliance.
Care and maintenance
▸
Follow the care and cleaning advice in the operating instructions.
▸
Follow the basic maintenance advice in the operating instructions.
Type
GAS411GSBZ
GAS421GSBZ
1
1009436-R07
Appliance class
Class 3
DIN EN 30-1-1
Identification plate
Depending on
appliance, plate
with additional
information
1009436-R07
22/02/2018
Advertisement
Related Manuals for V-ZUG GAS411
Summary of Contents for V-ZUG GAS411
- Page 1 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 The appliance must be installed by qualified personnel only. Each step must be carried out and checked in full in the order specified. Check that the local connection conditions (gas type and gas pressure) and the appliance setting match before con- necting the appliance.
- Page 2 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Installation accessories provided For all installation variants: Designation Art. no. 4 adjusting braces H61561 Sealing ring gas connection 18 × 13 × 1.5 mm H64006 Flush installation: Designation Art.
- Page 3 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Surface-mounted installation The layout of the hob to be fitted may differ from the hob illustrated! GAS411GSBZ, GAS421GSBZ Y – Y T ≥90 Drawer/ cabinet Side panel * The required clearance must be observed!
- Page 4 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Flush installation The layout of the hob to be fitted may differ from the hob illustrated! GAS411GSBZ, GAS421GSBZ Detail Z Y – Y R0–5 T ≥90 Drawer/ cabinet...
-
Page 5: Electrical Connection
1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Electrical connection Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards for low-voltage installations and the specifications of the local electricity supply companies. - Page 6 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Minimum distances and installation conditions The distance from the appliance cut-out to the back wall must be ≥50 mm and to the side walls ≥200 mm. Parts such as side walls and reinforcing strips which protrude into the installation space under the cooking zone must be made of fire-resistant material.
- Page 7 Hold both sliders to the left of the button depressed at the same time for 4 seconds. – An acoustic signal is emitted. For appliance GAS411, simply press the single slider ▸ Use the button to select the next highest and the button the next lowest user setting.
- Page 8 1009436-R07 Installation instructions 22/02/2018 Built-in variants of gas hob Multi-sliders GAS411/421 1009436-R07 Cancelling user settings ▸ Press the button. – Any changes made to the default values are not saved. – The «Service menu» mode is ended. Conversion to another gas type The appliance is set up for a certain gas type, which is also recorded on the identification plate.
