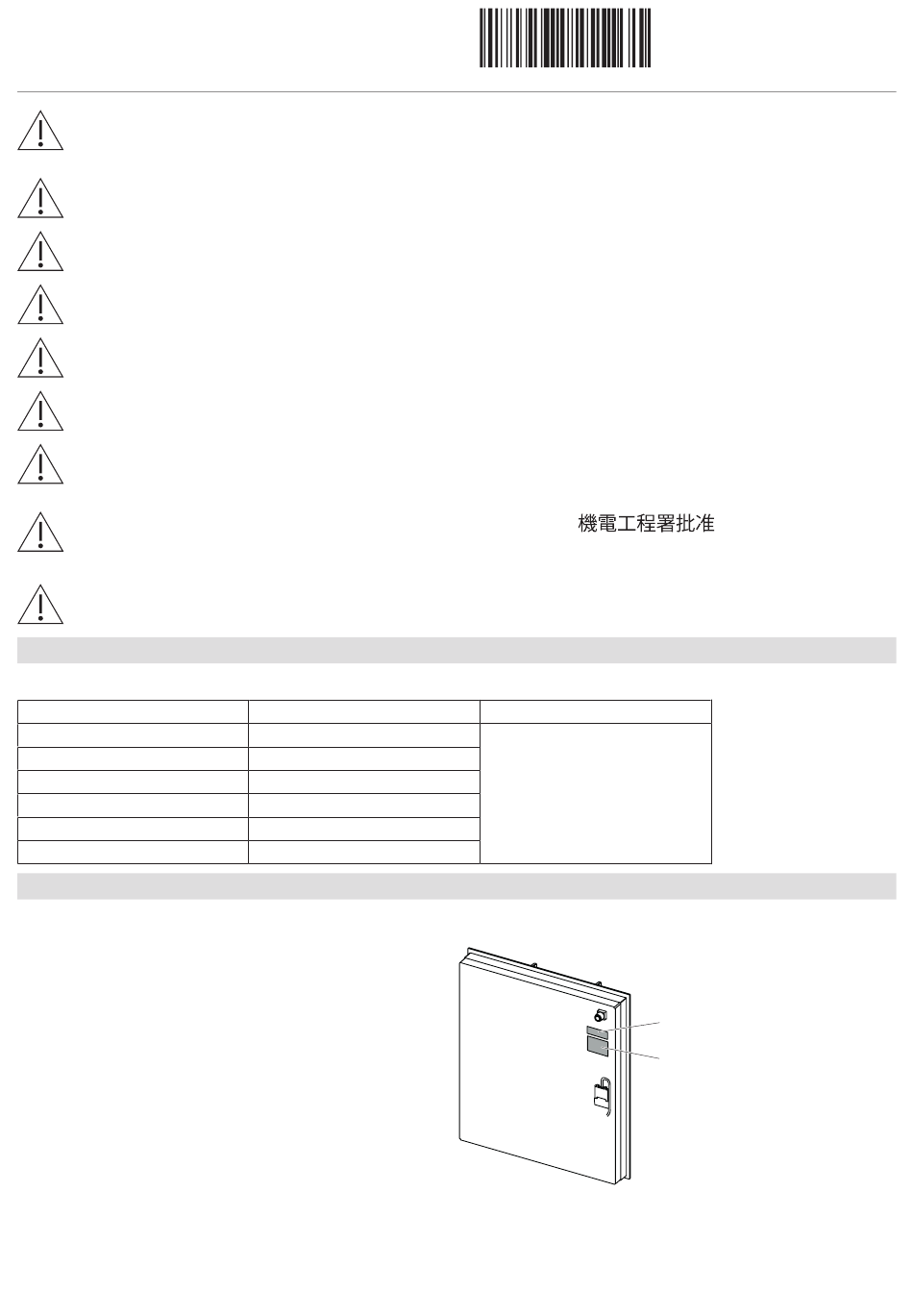

Installation instructions
Built-in variants of gas hob
Dials GAS311/321/731
According to the Gas Safety Ordinance of Hong Kong, any gas installation works, including the installation of appli-
ances and connection tubing, must be undertaken by registered gas installers who are registered for the appropriate
classes and are employed by registered gas contractors.
Check that the local connection conditions (gas type and gas pressure) and the appliance setting match before con-
necting the appliance.
The default values for this appliance are provided on the information plate (or on the identification plate).
This appliance is not connected to a combustion by-product outlet. It must be set up and connected according to the
applicable installation conditions. Particular attention must be paid to the relevant ventilation requirements.
If installing into a combustible material, the guidelines and standards for low-voltage installations and fire protection
must be strictly observed.
All leak tests should be done with a soapy water solution. Never use an open flame to check for leaks!
When installing a built-in gas hob on top of a stove cabinet, please check that there is provision for ventilation at the
cabinet to ensure proper operation of the gas hob.
Use approved gas tubing bearing the EMSD approval marking (such as:
GTXXXX) for connection to appliances.
Do not store any flammable materials, sprays or pressurized containers inside the stove cabinet.
Validity
These installation instructions apply to the following models:
Model number
31046
31050
31056
31073
31074
31075
General notes
Identification plate
The identification plate is located on the underside of the
hob.
Affix the second identification plate (supplied) in an accessible position behind the front of the fitted cabinet beneath the appliance.
Type
GAS311EKBZ
GAS321EKBZ
GAS731EKBZ
GAS311GKBZ
GAS321GKBZ
GAS731GKBZ
1
1037455-07
Appliance class
Class 3
DIN EN 30-1-1
Identification plate
Depending on
appliance, plate
with additional
information
1037455-07
11/11/2024
EMSD APPROVAL
