CombiSteel 7489 Series Installation Manual

Wall-mounted straddle-type unit

Advertisement

Quick Links

WALL-MOUNTED STRADDLE-TYPE UNIT
7489 series
Step-by-step guide to install your unit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7489 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CombiSteel 7489 Series

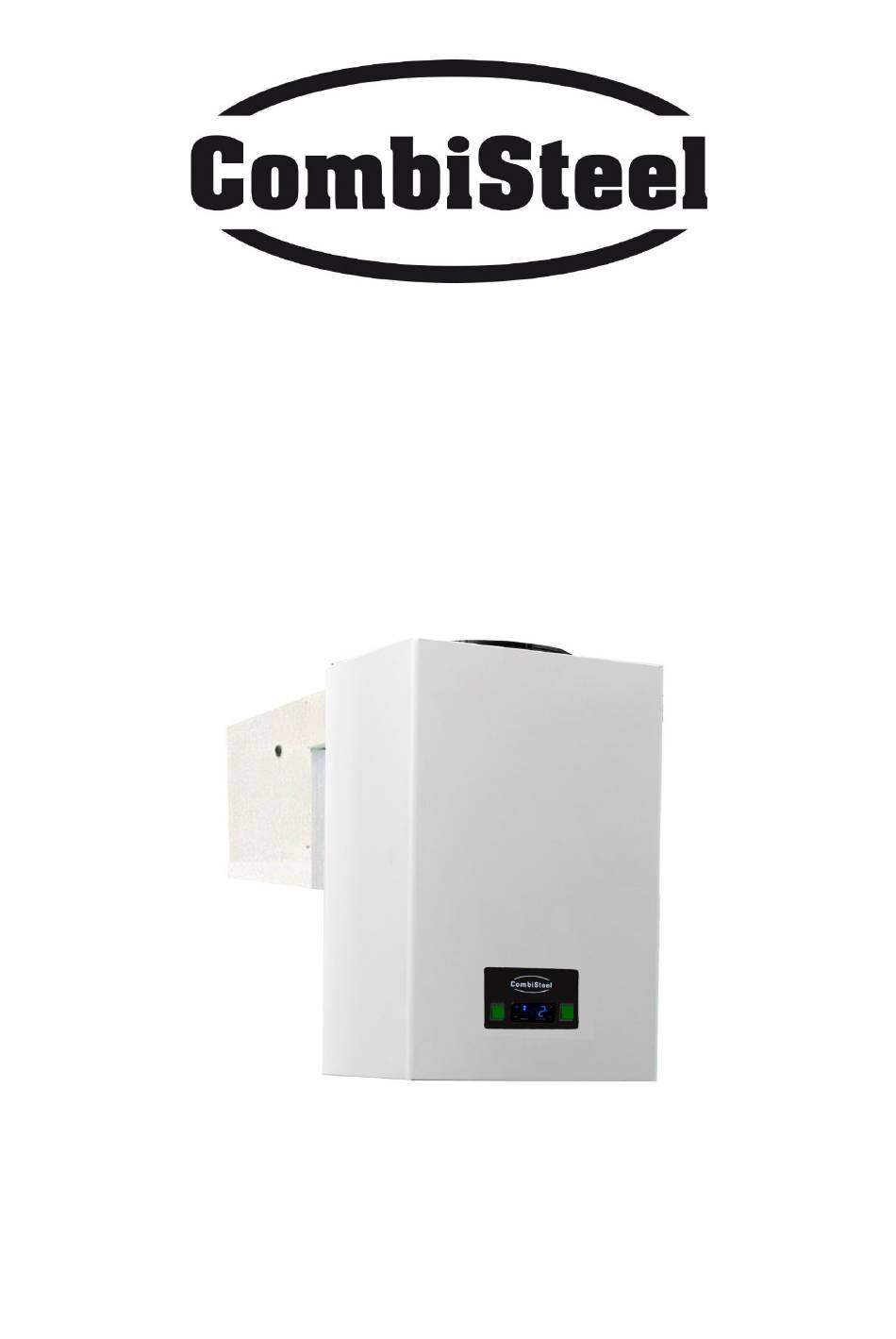

  • Page 1 WALL-MOUNTED STRADDLE-TYPE UNIT 7489 series Step-by-step guide to install your unit...
  • Page 2 Inhoud Step 1 – Making the gaps to place the unit .................... 3 Step 2 – Placing the unit ......................... 5 Step 3 – Placing the drain pipe ....................... 6 Step 4 – Close-up the cutted edges for insulation .................. 8 Step 5 –...
  • Page 3 Step 1 – Making the gaps to place the unit Place your template to your cold room, mark the gaps and cut out the marked gaps using a grinder for the gaps on top and a drill for the hole on the bottom.
  • Page 5 Step 2 – Placing the unit After the gaps have been made, you can place the cooling/freezing group. This requires a multiple set of hands. Tighten the 2 screws to fix the evaporator.
  • Page 6 Step 3 – Placing the drain pipe Open the compressor section on the front of the unit to place the drain pipe. Remove the 2 screws on top of the unit and 2 screws on the bottom. After that you can remove the front cover. Fix the unit to the wall by screwing 3 screws on the bottom of the unit so it is correctly aligned with the drain exit hole as seen on the right picture below.
  • Page 7 Next step is to take out the drain pipe from the hole and to place the drain hose in the drain tray that is inside the unit. After this is finished, you can close the front cover by putting back all 4 screws; 2 on top of the unit and 2 on the bottom side.
  • Page 8 Step 4 – Close-up the cutted edges for insulation Place the putty to the cutted edges where the gaps on top were made for insulation. Step 5 – Connecting the last wires The final step for installing the unit is to connect the last wires.
  • Page 9 Step 6 – Close the top Now you can close the top. Lock the holes and fix the ceiling. Lock the holes in the top itself and the top holes on the sides. Step 7 – Fix the door switch The last step is to fix the door switch.
