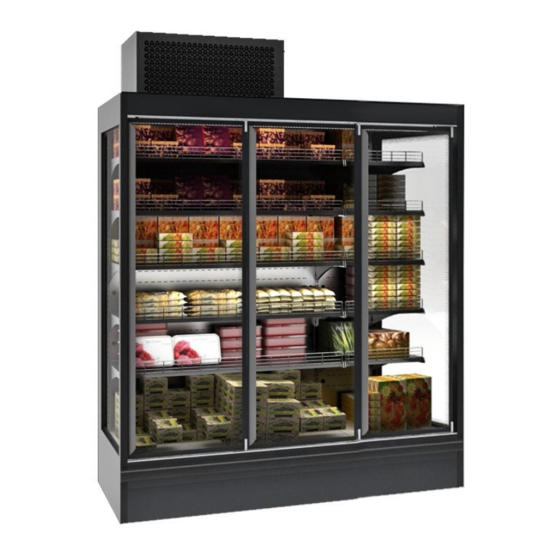

Wall Mounted Unit Max
7469.0100 - 7469.0105 - 7469.0110
User Manual
Gebruikershandleiding
Gebrauchsanweisung
Le mode d'emploi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7469.0100 and is the answer not in the manual?

Questions and answers

Summary of Contents for CombiSteel 7469.0100

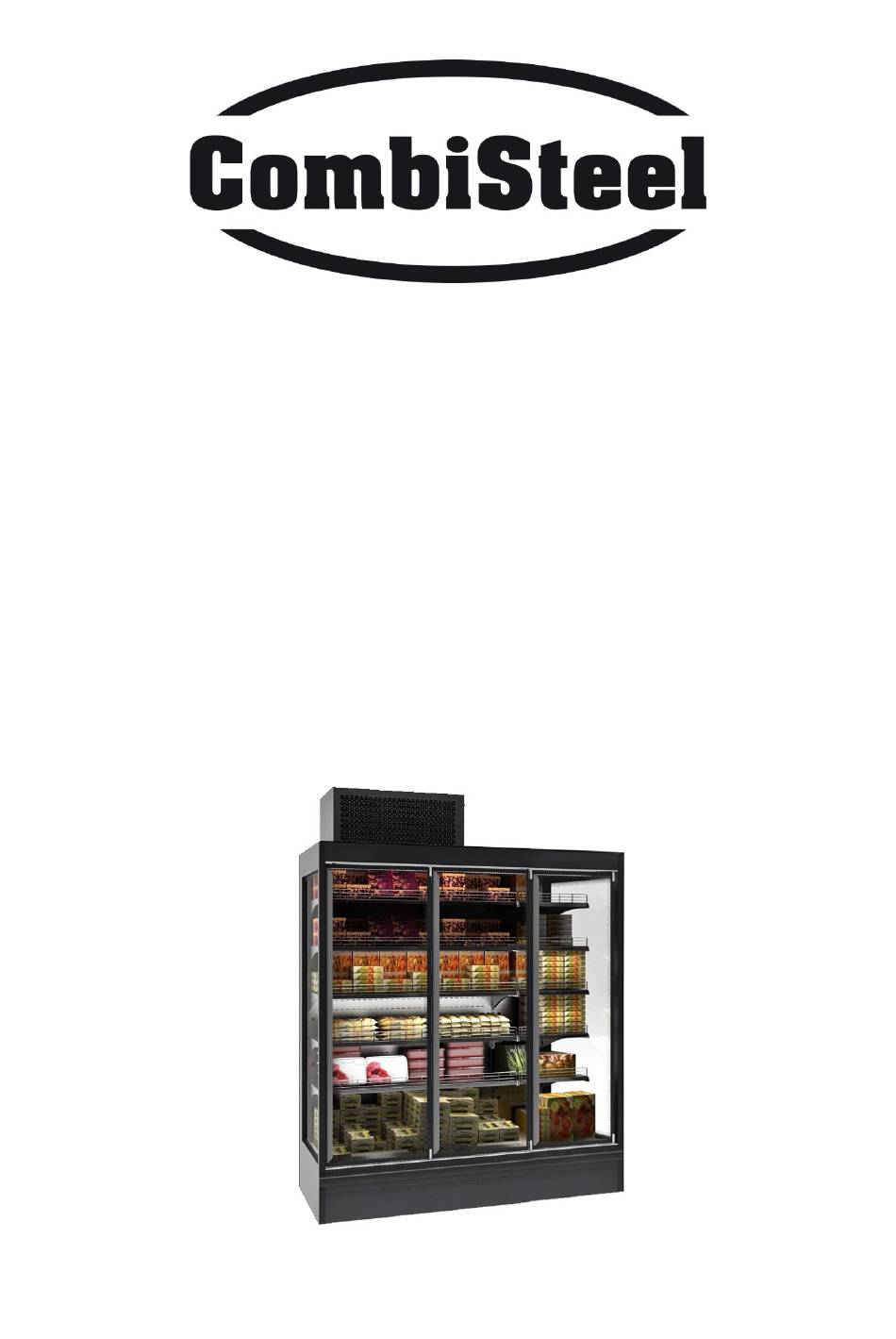

  • Page 1 Wall Mounted Unit Max 7469.0100 - 7469.0105 - 7469.0110 User Manual Gebruikershandleiding Gebrauchsanweisung Le mode d’emploi...
  • Page 2: Table Of Contents

    4 Maintenance ..............................10 5 Storage ................................11 6 Transportation ..............................11 7 Environmental protection ..........................11 8 Disposal ................................12 Appendix A................................13 Appendix B ................................14 Appendix C ................................15 Appendix D ................................17 Appendix E ................................20 www.combisteel.com...
  • Page 3: Introduction

    Monte (hereinafter referred to as the "Display Case" or the "Product") and its installation and operation procedures. The display cases should be installed, put into operation and maintained by the Service Centers of Combisteel commercial refrigerating equipment suppliers or sellers or other maintenance companies on behalf of Combisteel.
  • Page 4 The shelf load should not exceed 120 kg/m² for a five-row display case, and 100 kg/m² for a six-row display. The power supply parameters are as follows: V/phase/ Hz - 230/1/50. The display cases shall remain functional at supply voltage deviations in the range of minus 10% to plus 10% from the rated voltage according to GOST 13109. www.combisteel.com...
  • Page 5: Display Case Design And Operation

    Height-adjustable support feet. Load-bearing posts with perforated panels. Shelves with guides and stoppers. Decorative color panels Control panel (controller) Protective bumper. Figure 1 - Main units of the display case Figure 2 – Monte S(SH), Monte M(MH), Monte L(LH) display cases www.combisteel.com...
  • Page 6 (Fig.4). In order to prevent the refrigeration loss, as well as to ensure perfect sanitary conditions, the display case can be closed with a night cover, available on request as an option, for the night time. Figure 4 - Night cover www.combisteel.com...
  • Page 7: Datasheet Specifications

    (Fig.4) via an automatic circuit breaker of combined (thermal and electromagnetic) protection with a rated current value of: a) 6.3A - for Monte 1250, Monte 1875, Monte 2500; b) 10А - for Monte 3750. www.combisteel.com...
  • Page 8: Display Case Installation

    Before using the display cases: carefully remove the protective film from the outer and inner panel surfaces; wash them with warm water and neutral detergent; rinse; dry. When washing, prevent moisture ingress in electrical items. www.combisteel.com...
  • Page 9: Pre-Starting Procedure Of Display Cases

    Warning: Do not wash the product under running water, because accidental ingress of moisture to electrical components can result in the product and the electrical safety system malfunction. www.combisteel.com...
  • Page 10: Troubleshooting

    (no water inside the display case). The display case should be kept clean during operation. Avoid using abrasive or corrosive detergents when disinfecting. Warning: Disconnect the display case from the power supply and remove the products from the interior before sanitizing. www.combisteel.com...
  • Page 11: Storage

    (oiled rags, waste oil). Operating personnel is responsible for the environmental safety of display cases during commissioning, operation and disposal. www.combisteel.com...
  • Page 12: Disposal

    The fire safety, electrical safety, environmental safety and handling safety requirements shall be met during disassembly. Before disposal of the display case, disassemble and sort its components according to the materials from which they are made. Metal structures are subject to scrapping. www.combisteel.com...
  • Page 13 The display case is accepted for service by engineer |___________________________________________________________________ (name of organization, |___________________________________________________________________ full name) | certificate for installation and maintenance of commercial refrigerating | equipment No._________, issued on ______________201 |___________________________________________________________________ (name of organization) Owner (signature) Full name Representative of the center (signature) Full name L.S. www.combisteel.com...
  • Page 14 Number of fans Number of lamps length, mm power units lights 1250 1 (18W) 1x100W 4(L) / 5(H) 1875 2 (9W and 18W) 1x150W 8(L) / 10(H) 2500 2 (18W) 2x100W 8(L) / 10(H) 3750 3 (18W) 3x100W 12(L) / 15(H) www.combisteel.com...
  • Page 15 Appendix C (normative) Refrigerating unit and melt water drain pipeline connection diagram www.combisteel.com...
  • Page 16 www.combisteel.com...
  • Page 17 Set value adjustment procedure:  press the key (3) until the temperature set value appears on the display;  select the desired value by pressing the keys (1) or (2) ;  press the key (3) to record the value. www.combisteel.com...
  • Page 18 30, 15*** Displacement of time on cutin of defrost at start-up (0 – 240 min) Drip off time (0 – 60 min) Delay for fan start after defrost (0 -65 min) Fan start temperature (-15 – 0 °С) °С www.combisteel.com...
  • Page 19 Note: Parameter values: - for low temperature cabinets, monoblocks and split systems; * - for medium temperature monoblocks and split systems; ** - for DP102 cabinet. *** - for medium temperature cabinets. **** - for refrigerated wall display cases www.combisteel.com...
  • Page 20 Appendix E Night cover installation instructions Step 1 Step 2 Step 3 www.combisteel.com...
  • Page 21 Step 4 Step 5 www.combisteel.com...
