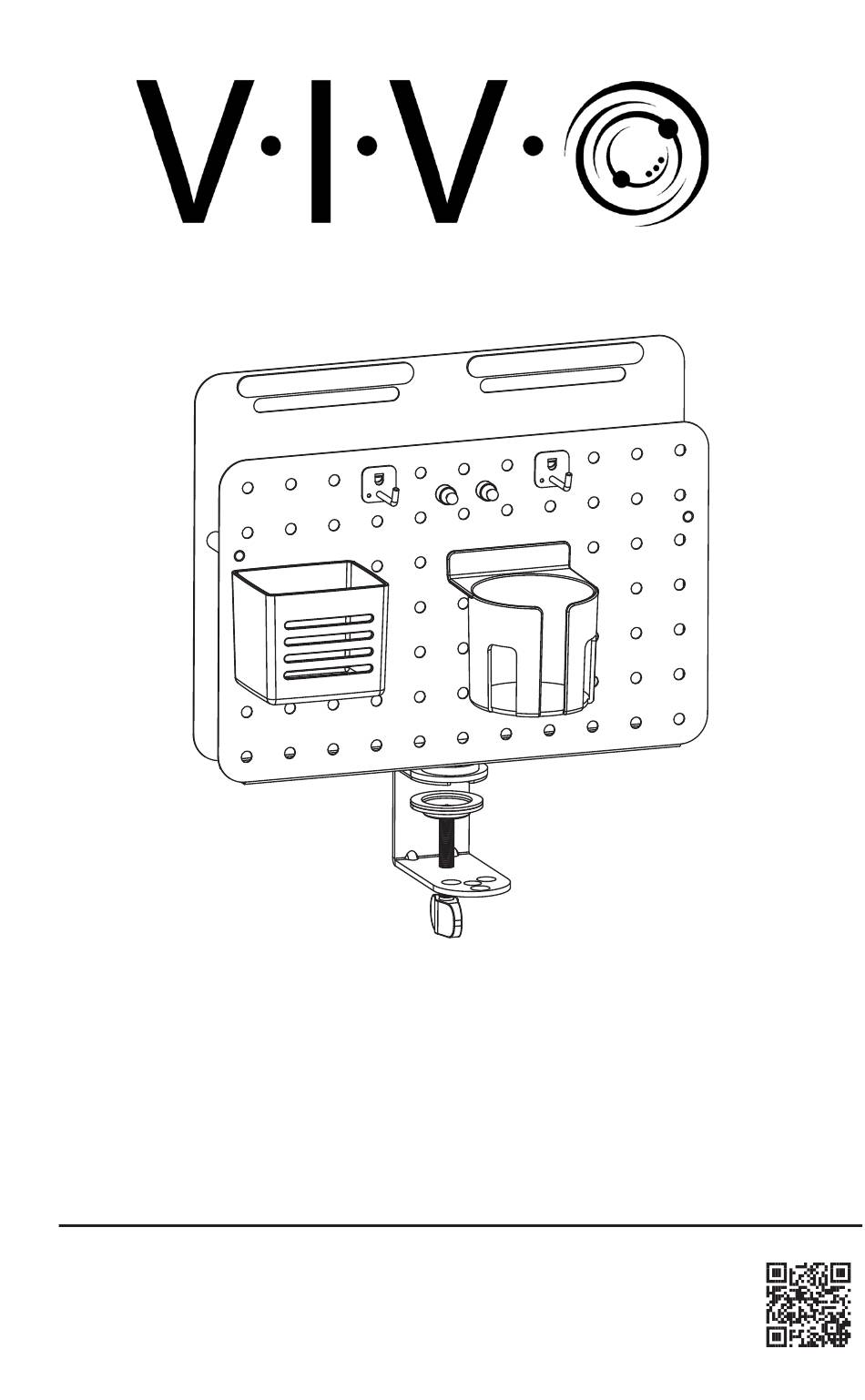

- Page 1 Black Clamp-on Rotating Pegboard with Laptop Holder SKU: PP-DK02L Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/pp-dk02l...
- Page 2 Package Contents A (x1) B (x1) C (x1) D (x1) Pegboard Back Panel Clamp E (x1) F (x2) G (x2) H (x4) Cup Holder Small Hook Magnet I (x2) Bushing Included Hardware & Tools S-A (x3) S-B (x2) S-C (x2) S-D (x2) M6x8mm Flat M6x8mm Round...
- Page 3 ASSEMBLY STEPS STEP 1 Remove the protective film off the two Pads (H) and apply them to the top of the Pegboard (A). STEP 2 Slide the M8 Washers (S-D) over the studs on Pegboard (A) and thread on Bushings (I).
- Page 4 Step 2 - Cont’D Slide the Back Panel (B) in between the Bushings (I) and the Pegboard Lip making sure the tabs are secured onto the pegboard. Secure the Back Panel using the M6 Washers (S-C), M6x8mm Round Head Screws (S-B), and 4mm Allen Wrench (T-A).
- Page 5 STEP 3 Loosen the knob on Clamp (C) and secure the clamp onto the bottom of the Pegboard (A) using the M6x8mm Flat Head Screws (S-A) and 4mm Allen Wrench (T-A).
- Page 6 STEP 4 Remove the protective film off of the remaining Pads (H) and attach them onto the top of the Back Panel (B).
- Page 7 STEP 5 Attach the Accessories (D-G) as desired. The pegboard can be swiveled by pushing on the sides of the pegboard. Accessories D (x1) E (x1) F (x2) G (x2) Cup Holder Small Hook Magnet...
- Page 8 LAST UPDATED: 03/27/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
