Summary of Contents for Vivo PP-DK30B-2

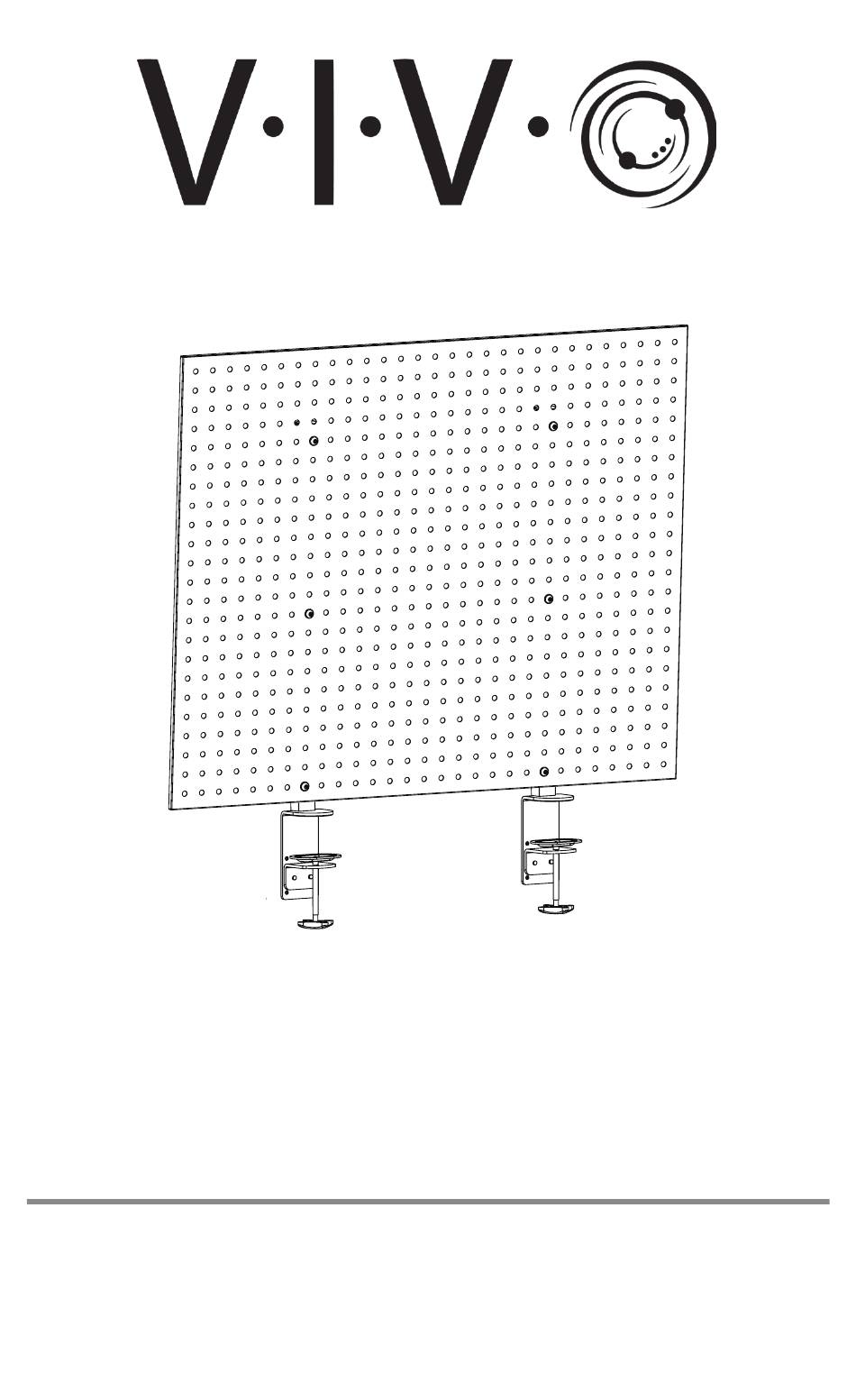

- Page 1 Clamp-on Pegboard Panel PP-DK30B-2 Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x4) B (x2) Support Pegboard C (x2) D (x4) E (x8) F (x2) Shelf Clamp Pad Zip Tie Clip G (x2) H (x2) I (x8) Loop Hook Magnet Included Hardware & Tools T-A (x1) S-A (x12) S-B (x12) 4mm Allen Wrench M6x16mm M6 Washer... - Page 4 Select Assembly Option Select the desired mounting application and proceed to the appropriate instructions. - Option 1 - Above Desk Mounting Proceed to Next Page [For storing accessories] - Option 2 - Below Desk Mounting Proceed to Page 9 [For cable management]...
- Page 5 - Option 1 - Above Desk Mounting For Desktops Less Than 2” (51mm) Thick Proceed to STEP 1 on Page 6 For Desktops 1.1 - 3” (28 - 77mm) Thick Follow Pre-Assembly Steps below Pre-Assembly Steps Use 4mm Allen Wrench (T-A) to remove the screws from the back of Supports (A) and separate Lower Clamps (A1).
- Page 6 STEP 1 Attach Pegboards (B) to Supports (A) using M6x16mm Screws (S-A) with M6 Washers (S-B). Tighten using 4mm Allen Wrench (T-A). The Pegboards can be attached in either orientation shown below. Portrait Landscape...
- Page 7 STEP 2 Remove adhesive backing from Clamp Pads (D) and apply to the underside of Clamps (A1). Tighten the Clamps to secure to the desired location. Use Zip Ties (E) to organize cables.
- Page 8 STEP 3 Hook the Shelves (C), Loops (G) and Hooks (H), then attach Clips (F) and Magnets (I) onto Pegboards (B) where desired. Assembly Complete...
- Page 9 - Option 2 - Below Desk Mounting STEP 1 Remove the Lower Clamps (A1) by removing the M6x8mm Screws (A2) using 4mm Allen Wrench (T-A). Remove the M6x6mm Screws (A3) and set aside. Remove the M6x16mm Screws (A4) from the underside of Supports (A) using 4mm Allen Wrench (T-A) and detach the Clamp Braces (A5).
- Page 10 STEP 2 Attach the Lower Clamps (A1) to the Clamp Braces (A5) using previously removed M6x8mm Screws (A2) and 4mm Allen Wrench (T-A). STEP 3 Attach the Pegboards (B) to the Clamps (A1) using previously removed M6x6mm Screws (A3) and 4mm Allen Wrench (T-A).
- Page 11 STEP 4 Clamp the assemblies onto the desktop surface. Use Zip Ties (E) to organize cables. Assembly Complete...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
