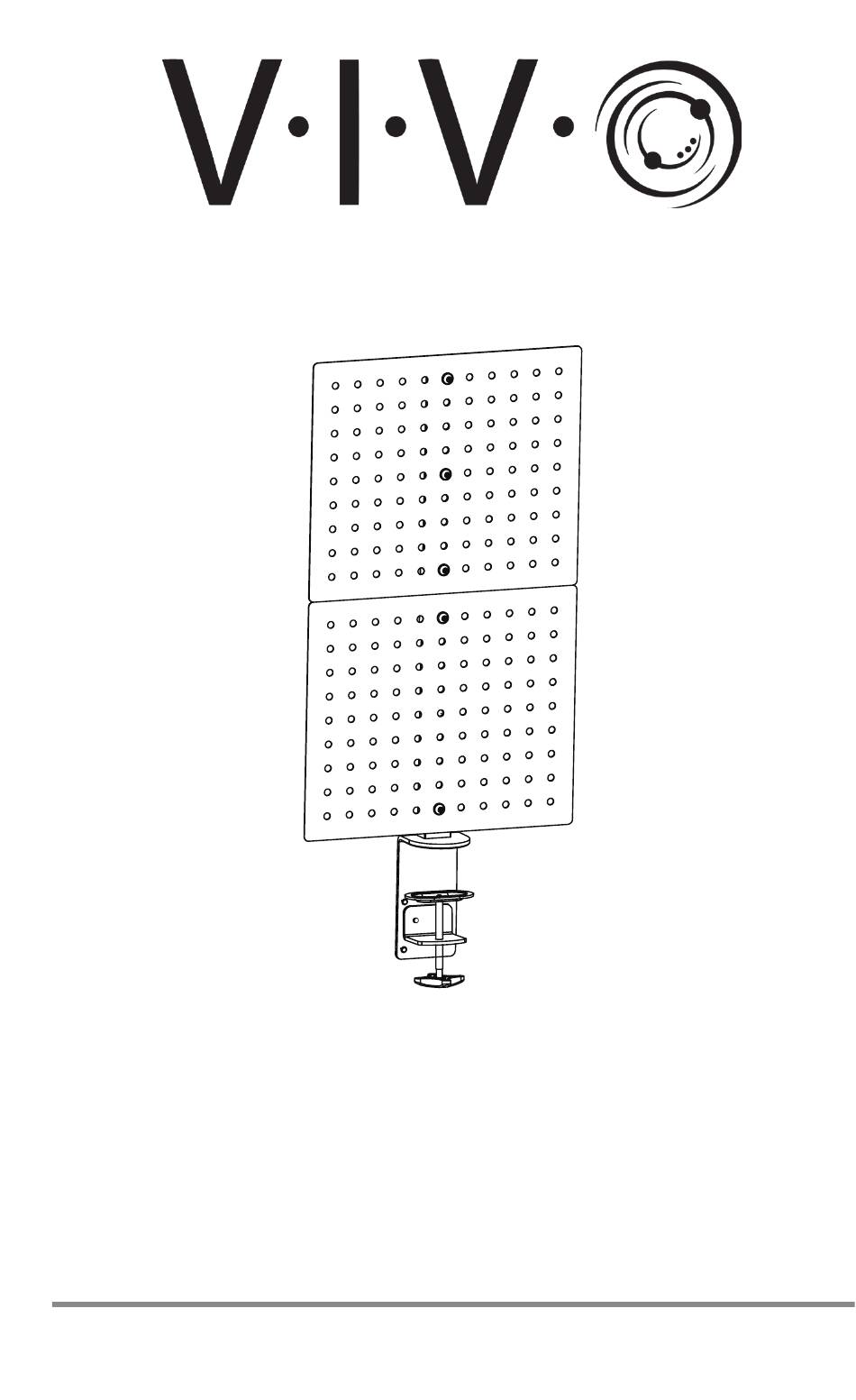

- Page 1 Black Clamp-on Desk Back Panel & Accessory Holder PP-DK12B Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Pre-Assembly
Preassembly Determine your desktop thickness and follow the instructions below. 1.1-3.0” ≤2.0”(51mm) (28-77mm) Thinner Desktops Thicker Desktops For Desktops 2.0” thick or less (≤51mm) For Desktops 1.1-3.0” thick (28-77mm) Proceed to Assembly Options on Page 4 Follow instructions below to Adjust Clamp Adjusting the Clamp (F) for Thicker Desktops For Desktops 1.1-3.0”... -
Page 4: Assembly Options
Assembly Options Choose the option that aligns with your desired mounting preference. For Accessories Guide, go to Page 12... -
Page 5: Assembly Steps
Assembly Steps - Assembly Option 1 - Above Desk Mounting STEP 1 Connect Lower Pole (B) and Pad (I) to Clamp Brace (E) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-A). Make sure the pegboard holes on the Lower Pole (B) are facing forward. - Page 6 STEP 3 Single Panel Assembly Choose horizontal or vertical installation orientation and connect Peg Board (A) and Connecting Bracket (D) to front of Lower Pole (B) using M6x25mm Screws (S-C), M6 Washers (S-D), and 4mm Allen Wrench (T-A). Place Pole Cap (H) on top of Lower Pole (B). Use the top hole on Connecting Bracket (D), the bottom hole remains unused.
- Page 7 Step 3 - Double Panel Assembly - Cont’d VERTICAL ORIENTATION HORIZONTAL ORIENTATION Slide Upper Pole (C) into Connecting Connect Upper Pole (C) to Peg Board Bracket (D). (A) and Connecting Bracket (D) using M6x25mm Screws (S-C), M6 Washers (S-D) and 4mm Allen Wrench (T-A). Connect second Peg Board (A) to Upper Pole (C) using M6x25mm Screws (S-C), M6 Washers (S-D), and 4mm Allen Wrench (T-A).
- Page 8 - Assembly Option 2 - Above & Below Desk Mounting STEP 1 Connect Lower Pole (B) and Pad (I) to Clamp Brace (E) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-A). Make sure the pegboard holes on the Lower Pole (B) are facing forward.
- Page 9 STEP 3 Connect Peg Board (A) and Connecting Bracket (D) to Lower Pole (B) using M6x25mm Screws (S-C), M6 Washers (S-D), and 4mm Allen Wrench (T-A). Attach other Peg Board to back of Clamp Brace (E) using M6x5mm Screws (S-E) and a Phillips screwdriver. Place Pole Cap (H) on top of Lower Pole.
- Page 10 STEP 2 Single Panel Assembly Connect Peg Board (A) to front of Clamp Brace (E) using M6x5mm Screws (S-E) and a Phillips screwdriver. Use provided Zip Ties (T-B) for managing under desk cables. Double Panel Assembly Connect Peg Boards (A) to front of Clamp Brace (E) using M6x5mm Screws (S-E) and a Phillips screwdriver, as shown.
- Page 11 Accessories Place Shelf (G) at desired height on Peg Board (A). Place Clip (J) and Magnets (M) on Peg Board (A) as desired. Attach Straight Hook (K) and Square Hook (L) at desired locations on the Peg Board.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
