The locator must now be held at this height for accurate depth
readings.
HAG must be turned on manually each time after the locator is
powered on or calibrated.
LOCATING THE TRANSMITTER
STEP 1 OF 12
Find the Rear Locate Point (RLP)
After the first rod has been drilled in, start at the entry point and face the
direction of the bore.
STEP 2 OF 12

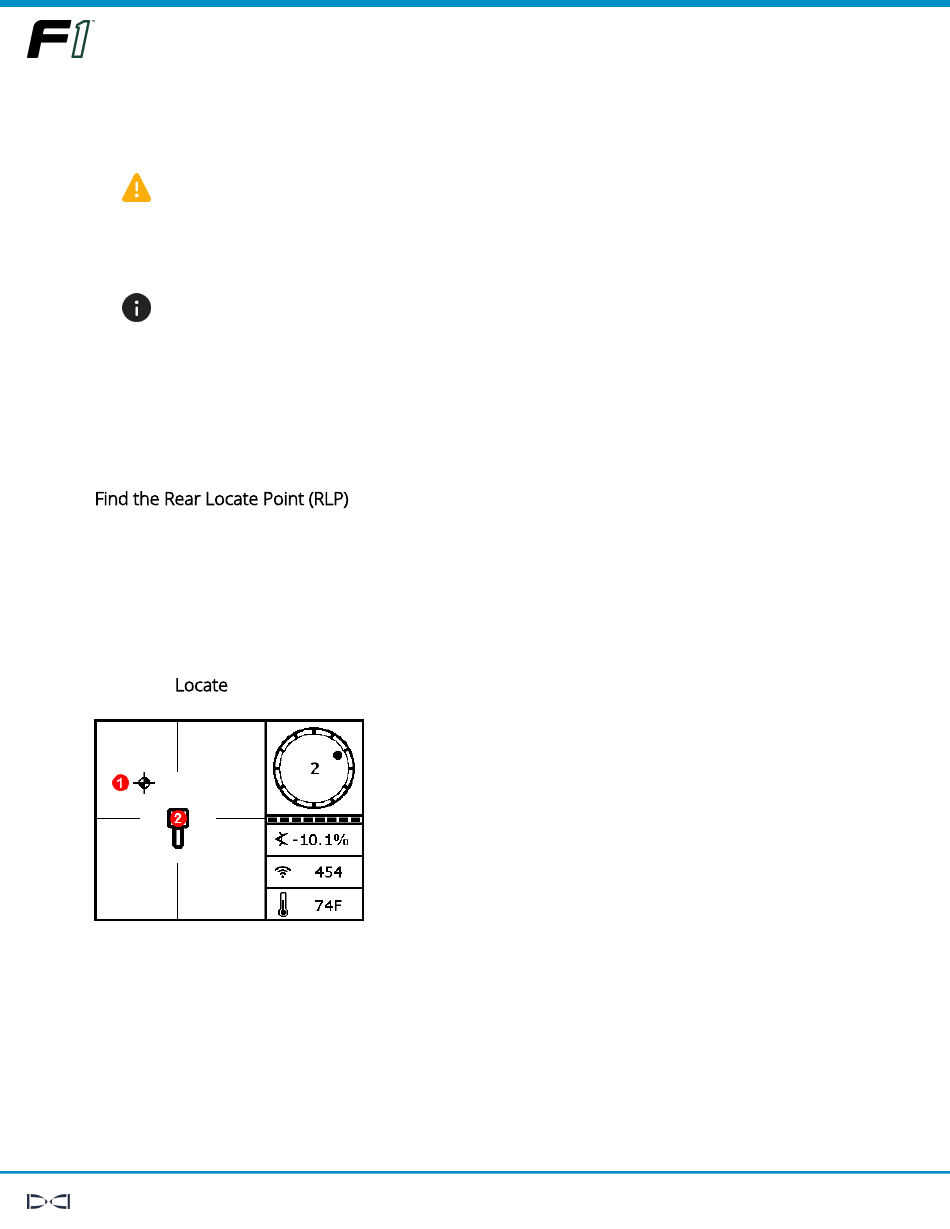

Using the Locate screen, move the locator to put the ball in the box.
1. Ball
2. Box
STEP 3 OF 12
Mark this position on the ground as the Rear Locate Point (RLP).
