Zzipp ZZODIAC Series User Manual

7 x 40w wash moving head
Hide thumbs Also See for ZZODIAC Series:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
USER MANUAL
MANUALE D'USO
TESTA MOBILE WASH 7 x 40W - 7 x 40W WASH MOVING HEAD

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZZODIAC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zzipp ZZODIAC Series

Summary of Contents for Zzipp ZZODIAC Series

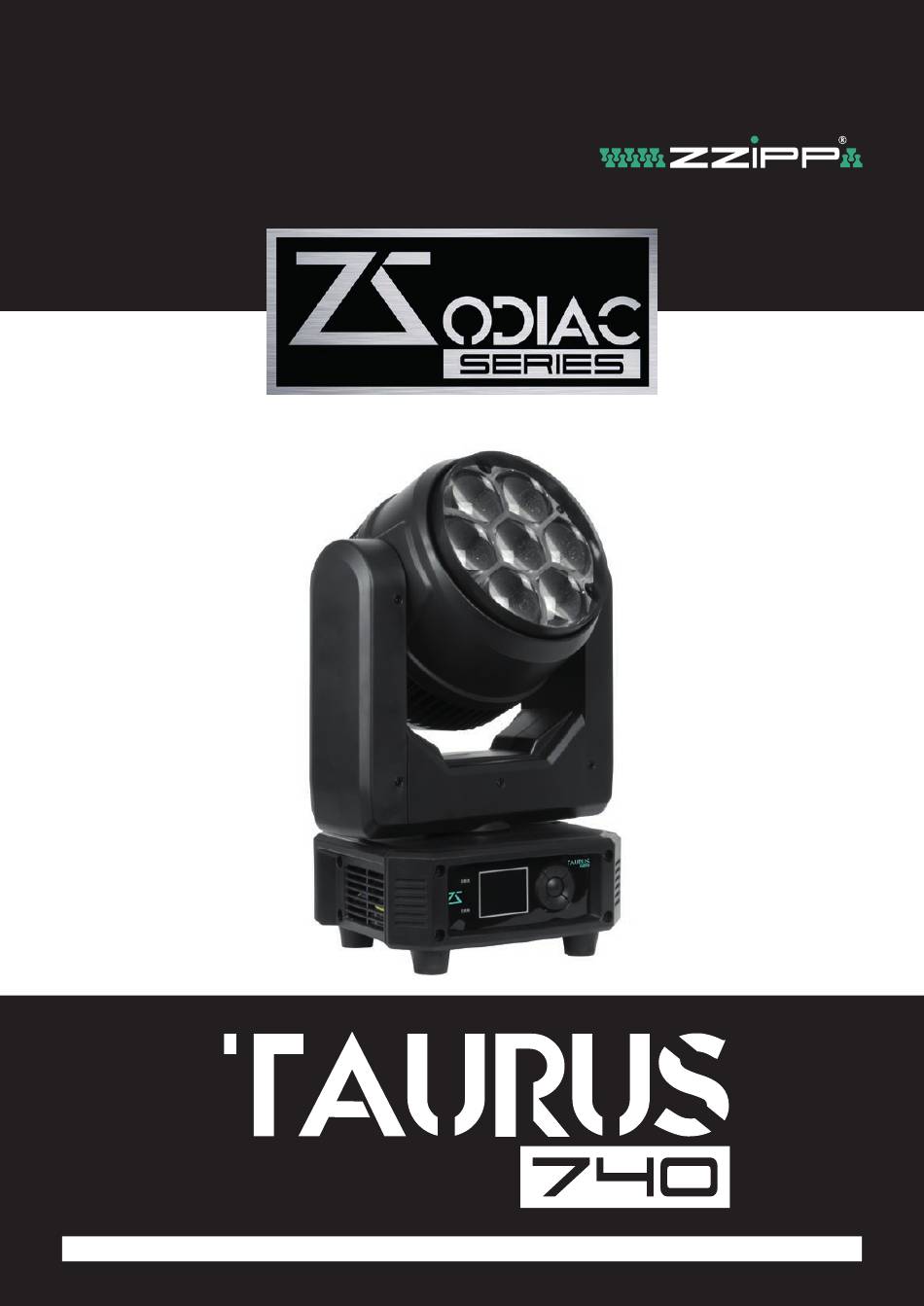

  • Page 1 USER MANUAL MANUALE D’USO TESTA MOBILE WASH 7 x 40W - 7 x 40W WASH MOVING HEAD...
  • Page 2 DISCLAIMER For your safe and effective use of this product, please read this instruction carefully and completely before you use this product. This instruction manual contains important information for installation and use. Please install and operate in accordance with the instructions.
  • Page 3 PRODUCT INTRODUCTION • Voltage: AC90-250V50/60Hz • Power consumption: 280W • Light source: 7 x 40W four-in-one LED Osram light source • Ballast: electronic ballast • Lamp life: 50000 hours • Color: red, green, blue and white multi-color • Focusing: 5 ° - 50 ° DMX linear focus, with automatic focus function •...
  • Page 4 SIGNAL CABLE CONNECTION Light fixtures feature standard DMX input and output 3-core or 5-core XLR sockets. Use a shielded twisted-pair signal cable designed for DMX 512; The signal line is generally connected at 150 meters, and the DMX512 signal amplifier must be added for long distance signal transmission.
  • Page 5 LUMINAIRE INSTALLATION Light fixtures can be placed horizontally, slanted, and hung upside down. Be sure to pay attention to the installation method when hanging diagonally and upside down. As shown in Figure 2, before positioning the lamp, it is necessary to ensure the stability of the installation site.
  • Page 6 CONTROL PANEL The following takes “Modify DMX address code” as an example to describe the use of keys: if the current is not the main interface, press the “left” key (one or more times) to return to the main interface in the home screen, press the “up”...
  • Page 7 MENU’ SETTINGS OPTIONS INSTRUCTIONS 001-512 Set the DMX address Run Mode DMX/Auto 1/Auto 2/Sound Channel Mode 22CH/34CH/50CH Invert Pan ON/OFF Invert Tilt ON/OFF Hall Crct ON/OFF Encoder Crct ON/OFF Signal Keep ON/OFF System Setup Screen Saver ON/OFF Invert Screen Auto/ON/OFF Update slave ON/OFF Language...
  • Page 8 DMX CHANNELS (22 CH) CHANNEL FUNCTION CH VALUE EFFECTS 000-255 Pan movement from 0-540° PAN FINE 000-255 Pan fine adjust TILT 000-255 Tilt movement from 0-240° TILT FINE 000-255 Tilt fine adjust Pan/Tilt speed 000-255 Pan/Tilt speed regulation Zoom 000-255 5 - 50°...
  • Page 9 DMX CHANNELS (34 CH) CHANNEL FUNCTION CH VALUE EFFECTS 000-255 Red 0-100% linear dimming R fine 000-255 Red fine 0-100% linear dimming 000-255 Green 0-100% linear dimming G fine 000-255 Green fine 0-100% linear dimming 000-255 Blue 0-100% linear dimming B fine 000-255 Blue fine 0-100% linear dimming...
  • Page 10 Shape fade 000-255 Pattern effect fade Shape R 000-255 Pattern effect R Shape G 000-255 Pattern effect G Shape B 000-255 Pattern effect B Shape W 000-255 Pattern effect W Shape Dimm 000-255 Pattern dimmer Back Dimm 000-255 Background dimmer Shape Trans 000-255 Pattern change control...
  • Page 11 Shape 000-255 Dynamic pixel macro 000-063 Pattern Index 064-158 Reverse from fast to slow Shape speed 159-160 Pattern freeze 161-255 Forward from slow to fast Background R 000-255 Red background color Background G 000-255 Green background color Background B 000-255 Blue background color Background W 000-255...
  • Page 12 Imported and distribuited by: ZZIPP Group S.p.A. Via Caldevigo 23/d, 35042 Este (PD) 0429 617 888 info@zzippgroup.com zzippgroup.com...
  • Page 13 DISCLAIMER Per un utilizzo sicuro ed efficace di questo prodotto, leggere attentamente e completamente queste istruzioni prima di utilizzare questo prodotto. Questo manuale di istruzioni contiene informazioni importanti per l’installazione e l’uso. Si prega di installare e utilizzare secondo le istruzioni. Allo stesso tempo, conservare correttamente questo manuale di istruzioni per utilizzarlo in qualsiasi momento.
  • Page 14 CARATTERISTICHE • Voltaggio: AC90-250V50/60Hz • Consumo energetico: 600 W • Sorgente luminosa: sorgente luminosa Osram LED 4 in 1 da 12 x 40 W • Alimentatore: alimentatore elettronico • Durata della lampada: 50000 ore • Colore: multicolore rosso, verde, blu e bianco •...
  • Page 15 COLLEGAMENTO CAVO SEGNALE Gli apparecchi di illuminazione sono dotati di prese XLR standard a 3 pin con ingresso e uscita DMX. Utilizzare un cavo di segnale specifico per DMX 512. Per linee superiori a 150m inserire un rigeneratore di segnale DMX. Collegare il segnale DMX all’uscita del controller all’ingresso del primo dispositivo e dall’uscita DMX del primo dispositivo all’ingresso DMX del secondo dispositivo e così...
  • Page 16 INSTALLAZIONE Le lampade hanno la possibilitò di essere installate in posizione orizzontalmente, inclinata e appese a testa in giù. Prestare attenzione al metodo di installazione. Come mostrato in Figura, prima di posizionare la lampada è necessario accertarsi della stabilità del luogo di installazione. Quando si installa la sospensione inversa è necessario assicurarsi che la lampada non cada sul supporto.
  • Page 17 PANNELLO DI CONTROLLO Esempio “Modifica indirizzo DMX” per descrivere l’uso dei tasti: se quella corrente non è l’interfaccia principale, premere il tasto “sinistra” (una o più volte) per tornare all’interfaccia principale nella schermata iniziale, premere il tasto “su” o “giù” per selezionare il pulsante “Impostazioni”.
  • Page 18 MENU’ SETTINGS OPZIONI ISTRUZIONE 001-512 Imposta l’indirizzo DMX Run Mode DMX/Auto 1/Auto 2/Sound Channel Mode 22CH/34CH/50CH Invert Pan ON/OFF Invert Tilt ON/OFF Hall Crct ON/OFF Encoder Crct ON/OFF Signal Keep ON/OFF System Setup Screen Saver ON/OFF Invert Screen Auto/ON/OFF Update slave ON/OFF Language Chinese/EN...
  • Page 19 DMX CHANNELS (22 CH) CHANNEL FUNCTION CH VALUE EFFECTS 000-255 Movimento PAN da 0-540° PAN FINE 000-255 Pan fine TILT 000-255 Movimento TILT da 0-240° TILT FINE 000-255 Tilt fine Pan/Tilt speed 000-255 Pan/Tilt speed Zoom 000-255 5 - 50° Dimmer 000-255 0-100% Dimmer lineare...
  • Page 20 DMX CHANNELS (34 CH) CHANNEL FUNCTION CH VALUE EFFECTS 000-255 Rosso 0-100% Dimmer Lineare R fine 000-255 Rosso Fine 0-100% Dimmer Lineare 000-255 Verde 0-100% Dimmer Lineare G fine 000-255 Verde Fine 0-100% Dimmer Lineare 000-255 Blu 0-100% Dimmer Lineare B fine 000-255 Blu Fine 0-100% Dimmer Lineare...
  • Page 21 000-063 Pattern Index 064-158 Pattern Inverso da veloce a lento Shape speed 159-160 Pattern freeze 161-255 Pattern Diritto da lento a veloce Shape fade 000-255 Pattern effect fade Shape R 000-255 Pattern effect R Shape G 000-255 Pattern effect G Shape B 000-255 Pattern effect B...
  • Page 22 000-255 Red 0-100% linear dimming 000-255 Green 0-100% linear dimming 000-255 Blue 0-100% linear dimming 000-255 White 0-100% linear dimming Color temp. 000-255 Color temperature regulation Color macro 000-255 Single color selection Static effect 000-255 Static color pixel Shape 000-255 Dynamic pixel macro 000-063 Pattern Index...
  • Page 23 Importato e Distribuito da: ZZIPP Group S.p.A. Via Caldevigo 23/d, 35042 Este (PD) 0429 617 888 info@zzippgroup.com zzippgroup.com...

This manual is also suitable for:

Taurus740
