LEGRAND CB0433 Manual page 2

Wireless and batteryless control for roller shutters

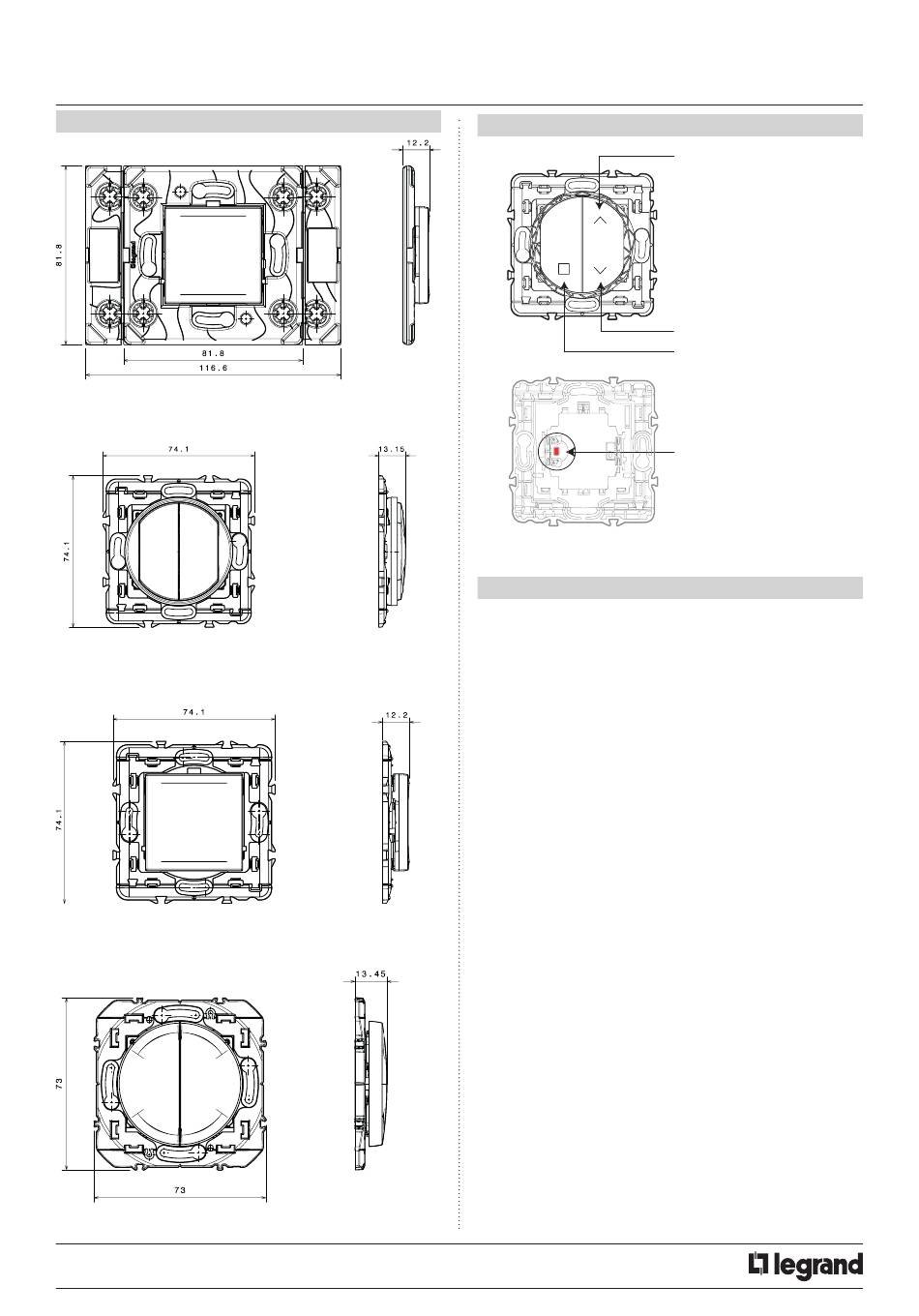

3. DIMENSIONS (MM)
ARTEOR
CELIANE
MOSAIC/VALENA NEXT
DOOXIE
Fiche technique : S000112531EN-01
Catalog number(s) : CB0433 - CN0433 - CT0433
4. OPERATION
5. TECHNICAL CHARECTERISTICS
5.1 Mechanical characteristics
Impact protection : IK 02
Protection again solid/liquid bodies : IP 20 without plate
Mechanical handling: 1 000 000 operations
5.2 Material characteristics
Rocker :
white : ABS
Black/Titanium/Aluminium/Champagne/Magnesium : painted ABS
Halogen free
Mechanism box charged PBT 10 % fiberglass with support charged PC
10% fiberglass
5.3 Electrical characteristics
Autonomous wireless and batteryless control
Radio technology zigbee frequency 2,4 GHz to 2,4835 GHz
Radio performance : Minimum range 150 m in point-to-point link and
free field.
Radio performance with metallic finish : Minimum range 75 m in point-
to-point link and free field.
Power level : < 10 mW
Zigbee channel by default : 11
Technology: Zigbee PRO Certified, Green Power feature (bidirectional
communication : not supported).
IEEE 802.15.4 (LR-WPAN).
5.4 Climatic characteristics
Use temperature (excep external conditions) : - 10° C to + 50° C
Storage temperature : - 10° C to + 50° C
Mise à jour le : 27/10/2021
0 676 46L/47L - 0 677 64L
0 770 55L - 6 000 87L
5 744 20/21/22/23 - 7 418 08L/38L/68L
Up when pressed at the top
by short press
Down when pressedat the bottom
by short press
STOP at the bottom
with a short press
CONFIGURATION button
used for programming:
- association
- channel change
- return to factory mode
(by simultaneous presses with the rocker
on the front of the product)
IP 40 assembled product
Créée le : 28/10/2020
2/4
