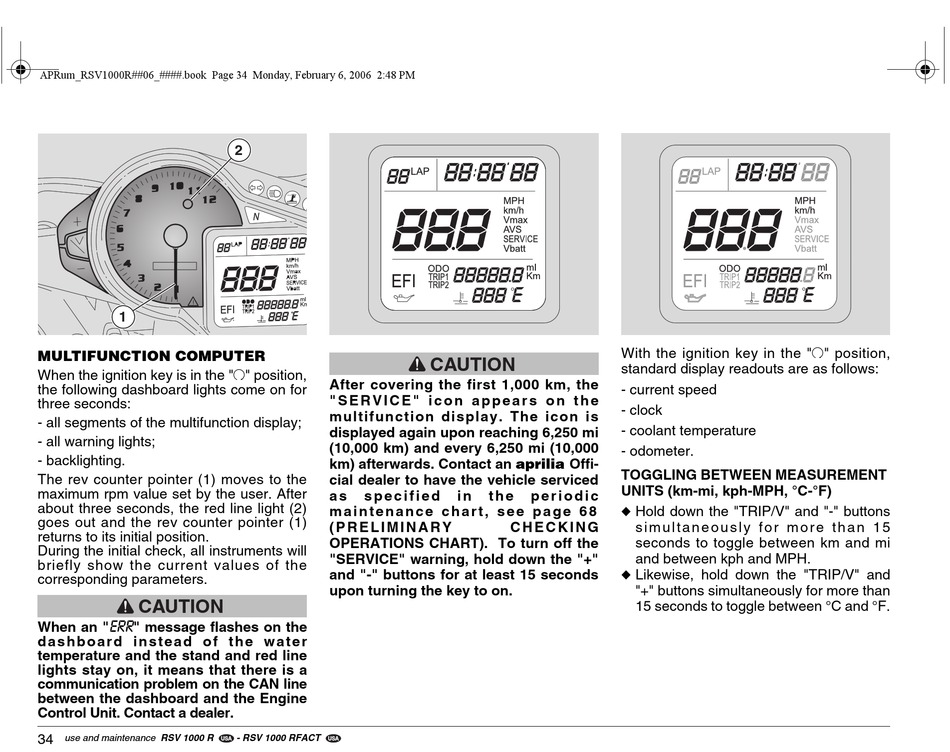

MULTIFUNCTION COMPUTER

When the ignition key is in the "" position,
the following dashboard lights come on for
three seconds:
- all segments of the multifunction display;
- all warning lights;
- backlighting.
The rev counter pointer (1) moves to the
maximum rpm value set by the user. After
about three seconds, the red line light (2)
goes out and the rev counter pointer (1)
returns to its initial position.
During the initial check, all instruments will
briefly show the current values of the
corresponding parameters.
CAUTION
ERR
When an " " message flashes on the
d a s h b o a r d i n s t e a d o f t h e w a t e r
temperature and the stand and red line
lights stay on, it means that there is a
communication problem on the CAN line
between the dashboard and the Engine
Control Unit. Contact a dealer.
34
use and maintenance RSV 1000 R
2
After covering the first 1,000 km, the
" S E R V I C E " i c o n a p p e a r s o n t h e
multifunction display. The icon is
displayed again upon reaching 6,250 mi
(10,000 km) and every 6,250 mi (10,000
km) afterwards. Contact an aprilia Offi-
cial dealer to have the vehicle serviced
a s s p e c i f i e d
m a i n t e n a n c e c h a r t , s e e p a g e 6 8
( P R E L I M I N A R Y
OPERATIONS CHART). To turn off the
"SERVICE" warning, hold down the "+"
and "-" buttons for at least 15 seconds
upon turning the key to on.
- RSV 1000 RFACT
USA USA
CAUTION
i n t h e p e r i o d i c
C H E C K I N G
With the ignition key in the "" position,
standard display readouts are as follows:
- current speed
- clock
- coolant temperature
- odometer.
TOGGLING BETWEEN MEASUREMENT
UNITS (km-mi, kph-MPH, °C-°F)
u Hold down the "TRIP/V" and "-" buttons
s i m u l t a n e o u s l y f o r m o r e t h a n 1 5
seconds to toggle between km and mi
and between kph and MPH.
u Likewise, hold down the "TRIP/V" and
"+" buttons simultaneously for more than
15 seconds to toggle between °C and °F.
