Alamo Industrial BUILT SHARPER RX60-3 Operator's Manual

page of 142

/ 142
Bookmarks

Quick Links

Download this manual

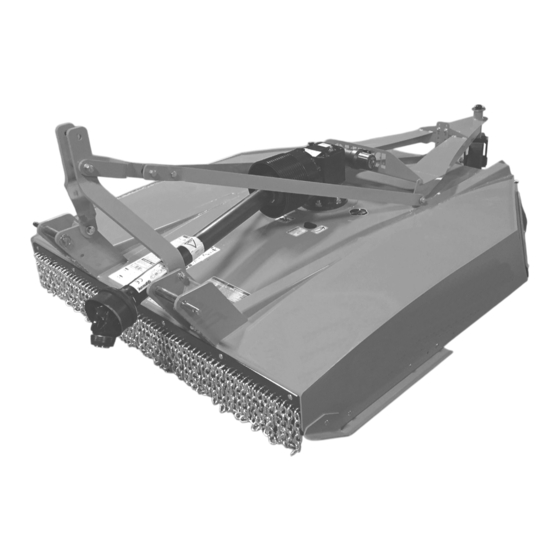

RX60-3

RX72-3

RX84-3

ROTARY MOWER

Published 10/19

This Operator's Manual is an

integral part of the safe operation of

this machine and must be

maintained with the unit at all times.

READ, UNDERSTAND, and

FOLLOW the Safety and Operation

Instructions contained in this

manual before operating the

equipment. C01-Cover_A

ALAMO INDUSTRIAL

1502 E. Walnut

Seguin, Texas 78155

830-372-3551

E-mail: parts@alamo-industrial.com

OPERATOR'S MANUAL

Important Operating

and Safety

Instructions are found

in the Mower Safety

Video that can be

instantly accessed on

the Internet at:

www.algqr.com/ave

Part No. 00792529C

$0.00

Need help?

Do you have a question about the BUILT SHARPER RX60-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alamo Industrial BUILT SHARPER RX60-3

Page 1 Video that can be FOLLOW the Safety and Operation instantly accessed on Instructions contained in this the Internet at: manual before operating the www.algqr.com/ave equipment. C01-Cover_A ® ALAMO INDUSTRIAL 1502 E. Walnut Seguin, Texas 78155 830-372-3551 E-mail: parts@alamo-industrial.com $0.00 ©2020 Alamo Group Inc.
Page 3 Your Authorized Alamo Industrial Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator’s Manual, and Complete the Video Guidebook before operating your new mower.
Page 4 Alamo Industrial Division is willing to provide one (1) AEM Mower Safety Practices Video Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video DVD Format – AEM/FEMA Mower Operator Safety Video Mower Operator’s Manual AEM Mower Operator’s Safety Manual...
Page 5 A Manual canister is provided on the implement where this manual can be properly stored. If you lose or damage this manual a free replacement manual can be obtained from an authorized Alamo Industrial dealer or by down loading the manual from the Alamo Industrial website www.www.alamo-industrial.com...
Page 6 DEALER to CUSTOMER Pre-Delivery/ Operation Instructions Dealer should inform the Purchaser of this product of Warranty terms, provisions, and procedures that are applicable. Dealer should inform Purchaser to review the contents of the Operator’s Manual including safety equipment, safe operation and maintenance, to review the Safety Signs on the implement (and tractor if possible) and of Purchaser’s responsibility to train his/her operators of safe operation procedures.
Page 7 Table of Contents SAFETY SECTION ......................1-1 GENERAL SAFETY INSTRUCTIONS AND PRACTICES ................1-2 OPERATOR SAFETY ............................1-3 CONNECTION OR DISCONNECTING IMPLEMENT SAFETY ............... 1-4 CRUSHING HAZARDS ............................. 1-5 THROWN OBJECTS HAZARDS ........................1-6 RUN OVER HAZARDS ............................. 1-8 PTO ENTANGLEMENT HAZARDS ........................1-9 MOWER BLADE CONTACT HAZARDS ......................
Page 8 SETTING THE MOWER ..........................4-12 Setting Mower Height- Lift Type - (Standard or Quick Hitch) ................4-12 Connecting the Mower-Pull Type ........................4-14 Setting Mowing Height-Pull Type ........................4-15 Setting Deck Pitch ............................4-16 DRIVELINE ATTACHMENT ........................... 4-16 Driveline Length Check ........................... 4-17 PRE-OPERATION INSPECTION AND SERVICE ..................
Page 12 SAFETY GENERAL SAFETY INSTRUCTIONS AND PRACTICES A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions.
Page 13 SAFETY OPERATOR SAFETY TO AVOID DEATH OR SERIOUS INJURY DO THE FOLLOWING: • READ, UNDERSTAND and FOLLOW Operator's Manual instructions, Warnings and Safety Messages. WEAR SAFETY GLASSES with side shields (marked with ANSI Z87), safety shoes, hard hat, hearing • protection and gloves when operating or repairing equipment •...
Page 14 SAFETY CONNECTION OR DISCONNECTING IMPLEMENT SAFETY TO AVOID DEATH OR SERIOUS INJURY FROM BEING CRUSHED BY TRACTOR OR IMPLEMENT: WHEN BACKING tractor to implement hitch: • DO NOT ALLOW BYSTANDERS between tractor and implement BEFORE connecting and disconnecting implement hitch: STOP TRACTOR ENGINE, place transmission into park, engage parking brake and remove key.
Page 15 SAFETY CRUSHING HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM FALLING OFF TRACTOR, EQUIPMENT RUN OVER, ROLLOVER AND CRUSHING BY FALLING WING OR IMPLEMENT: • USE ROPS and SEAT BELT equipped tractors for mowing operations. KEEP ROPS lock in up position. •...
Page 16 SAFETY THROWN OBJECTS HAZARDS ROTARY MOWERS CAN THROW OBJECTS 300 FEET OR MORE UNDER ADVERSE CONDITIONS. TO AVOID DEATH OR SERIOUS INJURY TO OPERATOR OR BYSTANDERS FROM THROWN OBJECTS: • KEEP bystanders 300 feet away STOP MOWING IF PASSERSBY ARE WITHIN 300 FEET UNLESS: •...
Page 17 SAFETY THROWN OBJECTS HAZARDS (CONTINUED) MOWER OPERATION: • DO NOT exceed mower's rated Cutting Capacity or cut non-vegetative material. • USE ENCLOSED TRACTOR CABS when two or more mowers are operating in mowing area. ADJUST mower sections or wing close and parallel to ground without exposing blades •...
Page 18 SAFETY RUN OVER HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM FALLING OFF TRACTOR OR EQUIPMENT RUN OVER: • USE ROPS and SEAT BELT equipped tractors for mowing operations. • KEEP ROPS locked in UP position. • ONLY start tractor while seated in tractor seat. ALWAYS BUCKLE UP seat belt when operating tractor and equipment.
Page 19 SAFETY PTO ENTANGLEMENT HAZARDS KEEP AWAY FROM ROTATING DRIVELINES AND ELEMENTS TO AVOID DEATH OR SERIOUS INJURY: hands, feet and body AWAY from rotating blades, drivelines and parts until all moving STAY AWAY KEEP elements have stopped. • STOP, LOOK and LISTEN before approaching the mower to make sure all rotating motion has stopped. ROTATING COMPONENTS CONTINUE to ROTATE after the PTO is shut off.
Page 20 SAFETY MOWER BLADE CONTACT HAZARDS KEEP AWAY FROM ROTATING BLADES TO AVOID DEATH OR SERIOUS INJURY FROM BLADE CONTACT: • STAY AWAY and KEEP HANDS, FEET and BODY AWAY from rotating blades, drivelines and parts until all moving elements have stopped. •...
Page 21 SAFETY HIGH PRESSURE OIL LEAK HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM HIGH PRESSURE HYDRAULIC OIL LEAKS PENERATING SKIN: • equipment with oil or fuel leaks. DO NOT OPERATE • all hydraulic hoses, lines and connections in before applying system KEEP GOOD CONDITION TIGHT...
Page 22 SAFETY ELECTRICAL & FIRE HAZARDS TO AVOID DEATH OR SERIOUS INJURY FROM ELECTRICAL CONTACT WHEN WORKING AROUND ELECTRICAL POWER LINES, GAS LINES AND UTILITY LINES: INSPECT mowing area for overhead or underground electrical power lines, obstructions, gas lines, • cables and Utility, Municipal, or other type structure. •...
Page 23 SAFETY TRANSPORTING HAZARDS TO AVOID DEATH OR SERIOUS INJURY WHEN TOWING OR TRANSPORTING EQUIPMENT: • KEEP transport speed BELOW 20 mph to maintain control of equipment. REDUCE SPEED on inclines, on turns and in poor towing conditions. • • DO NOT TOW with trucks or other vehicles •...
Page 24 SAFETY HAZARDS WITH MAINTENANCE OF IMPLEMENT AVOID DEATH OR SERIOUS INJURY FROM COMPONENT FAILURE BY KEEPING IMPLEMENT IN GOOD OPERATING CONDITION PERFORMING PROPER SERVICE, REPAIRS AND MAINTENANCE. BEFORE PERFORMING SERVICE, REPAIRS AND MAINTENANCE ON THE IMPLEMENT: SECURE EQUIPMENT FOR SERVICE BLOCK OUT POTENTIAL ENERGY HAZARDS;...
Page 25 SAFETY PARTS INFORMATION PARTS INFORMATION Alamo Industrial mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Alamo Industrial specifications. Non-genuine "will fit" parts do not consistently meet these specifications.
Page 26 NOTE: Alamo Industrial supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Alamo Industrial cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 27 Multi-Language General Safety 00756004 DANGER Shield Missing D816 WARNING Genuine Parts 00792180 ----------------- Flag - Made in USA 00785564 LOGO/NAME Alamo Industrial 00771283 WARRANTY Gearbox- 5 Year SERIAL PLATE Serial Plate 32121067 LOGO/NAME RX60-3 Model 32121068 LOGO/NAME RX72-3 Model 32121069...
Page 34 SAFETY FEDERAL LAWS AND REGULATIONS This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.
Page 36 INTRODUCTION We are pleased to have you as an Alamo Industrial customer. Your Rotary Cutter has been carefully designed with care and built with quality materials by skilled workers to give maximum service with minimum down time. This manual is provided to give you the necessary operating and maintenance instructions for keeping your rotary cutter in top operating condition.
Page 37 INTRODUCTION The RX60-3, 72-3, 84-3 Rotary Mower is designed for medium duty applications such as weed, grass, corn stalks, and light brush to 3" diameter. These mowers are single spindle with two free-swinging blades. Free swinging blades reduce the shock of impact when a stationary object is hit.
Page 38 A. Warranty is ONE-YEAR (12 MONTHS) for Seals (After one year, seals are considered to be WEARING PARTS and replacement is the users' responsibility.) B. Users' Gearboxes may be rebuilt by Alamo Industrial or replaced by new or rebuilt Gearboxes at the option of Alamo Industrial.
Page 39 LIMITED WARRANTIES 1.01. Alamo Industrial warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
Page 42 ASSEMBLY DEALER SETUP INSTRUCTIONS Set up mower as received from factory with these instructions. This mower is shipped partially assembled. Assembly will be easier if components are aligned and loosely assembled before tightening hardware. Refer to bolt torque chart in Maintenance Section. All bolts are Grade 5 unless otherwise specified.
Page 43 ASSEMBLY SINGLE TAIL WHEEL INSTALLATION NOTE: RX60-3 tailwheel installed from factory. 1. For RX72-3, remove tailwheel weldment (1) from the top of the deck and the caster wheel assembly (2) from underside of deck. 2. Discard carriage bolt and nut that held the caster wheel assembly to the underside of the deck.
Page 44 ASSEMBLY A-FRAME INSTALLATION 3. Untie ramp link (1) from gearbox shield. 4. Rotate A-Frames (2) up and attach rear lift strap bars (3) to ramp link (1) using 5/8” x 2-3/4” bolts (4), hardened bushing (5), and flanged Spiralock nuts (6). Place top bushing (5) in slot in ramp link (1) and lower bushing under ramp portion.
Page 45 ASSEMBLY CHAIN GUARDS (Standard Equipment - All Models) Front and Rear Dual Chain Guards are standard equipment and will provide protection from thrown objects with careful operation. Chain Guards must be maintained in good repair by replacing missing or worn sections or by being replaced when seriously worn or damaged.
Page 46 ASSEMBLY Front and Rear Deflectors (Optional Equipment Outside the US Only) Front and Rear Deflectors (Optional Equipment) are recommended for agricultural purposes only, in areas where persons, vehicles, livestock, or other property will not be endangered and will provide protection from thrown objects with proper operation under normal conditions.
Page 50 ALAMO INDUSTRIAL RX60-3, RX72-3, & RX84-3 ROTARY MOWER OPERATION INSTRUCTIONS Alamo Industrial rotary mowers are manufactured with quality material by skilled workers. These mowers are designed to cut grass, weeds, small brush and other vegetative material up to 3” diameter in areas such as pastures, industrial areas, and roadsides.
Page 51 OPERATION 1. OPERATOR REQUIREMENTS Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor.
Page 52 OPERATION 2. TRACTOR REQUIREMENTS The tractor used to operate the mower must have the power capacity to lift, pull, and operate the Power Take Off (PTO) at the mower’s rated speed while traveling at a ground speed between 2 and 5 MPH. Operating the mower with a tractor that does not meet the following requirements may cause tractor or mower damage and be a potential danger to the operator and passersby.
Page 53 OPERATION 2.3 Tractor Horsepower The power required to operate a mower is determined by the tractor PTO horsepower. For most mowing conditions, the RX60-3 mower requires a tractor with at least 35 HP, the RX72-3 mower requires a tractor with at least 45 HP and the RX84-3 requires 60 HP.
Page 54 OPERATION Drawbar-Pull Type Mower For equipment operating at 540 RPM, the tractor draw- bar must be positioned at a 14” distance from the hitch point to the PTO shaft end for proper operation and min- imal wear to the driveline. 1000 RPM Models require 16 inch drawbar length.
Page 55 OPERATION DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas.
Page 56 OPERATION Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death. (SG-10) 3.2 Dismounting the Tractor Before dismounting, park the tractor and implement on a reasonably level surface, apply the parking brake, idle the engine down, disengage the PTO, and lower the implement to the ground.
Page 57 OPERATION Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions. (SG-13) 5. CONNECTING THE MOWER TO THE TRACTOR Use extreme caution when connecting the mower to the tractor. The mower should be securely resting at ground level or setting on blocks.
Page 58 OPERATION 4. Turn off the tractor engine and dismount. 5. One lift arm at a time, align arm end hole between the set of A-frame lift lugs. Insert hitch pin through the lug and arm holes and insert retaining pin into hitch pin. 6.
Page 59 OPERATION 5.3 Connecting Mower - Lift Type (Quick Hitch) Crushing Hazard between Quick-Hitch and Implement. Do not allow anyone to stand between the Quick-Hitch and implement during hook-up operations. Never operate the hydraulic 3-point lift controls while someone is directly behind the tractor. 1.
Page 60 OPERATION IMPORTANT: Scan this QR Code with your smart phone to link to the PAMI Safe Implement Hitching Manual for more information on correctly connecting agricultural tractors to implements. Or type in your internet browser the following web address: www.algqr.com/hme Ops-0008-MISC 6.
Page 61 OPERATION 5. Level the mower side to side by manipulating one lower lift arm length. On most tractors, at least one of the lift arms is designed to allow for manipulation of its length. Shortening or extending will allow for deck leveling from side to side.
Page 62 OPERATION 6.2 Connecting the Mower-Pull Type 1. Make sure the tractor is equipped with the correct PTO shaft and the drawbar is extended 14” from the end of the PTO shaft to the hitch point. 2. Block the mower wheels in place and use the attached parking jack to raise or lower the tongue clevis to the height of the tractor drawbar.
Page 63 OPERATION 6.3 Setting Mowing Height-Pull Type 1. Park the tractor and mower on level ground. 2. Using the tailwheel ratchet jack or hydraulic cylinder, position the mower so the skid shoes are 1” less off the ground than the desired final cut height.
Page 64 OPERATION 6.4 Setting Deck Pitch Lower Horse Power - Better Fuel Efficiency To increase fuel efficiency and lower horsepower requirements for mower operation, the mower should be operated with the deck approximately 3/4" LOWER IN THE FRONT THAN THE REAR. Operating the mower at this pitch will allow the mower to cut the grass only once and requires less work from the tractor.
Page 65 OPERATION When attaching the Implement input driveline to the Tractor PTO, it is important that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. Push and pull the driveline back and forth several times to ensure it is securely attached.
Page 66 OPERATION Shorten the driveline profiles as follows: • Remove the driveline from the tractor. • Raise and lower the mower to find the position with the shortest distance between the tractor PTO shaft and cutter gearbox. Shut down the tractor and securely block the mower in this position.
Page 67 OPERATION Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.
Page 68 OPERATION The operator’s manual and safety signs affixed on the unit contain important instructions on the safe and proper use of the equipment. Maintain these important safety features on the implement in good condition to ensure the information is available to the operator at all times.
Page 69 OPERATION All Safety Shields, Guards and Safety devices including (but not limited to) - the Deflectors, Chain Guards, Steel Guards, Gearbox Shields, PTO integral shields, and Retractable Door Shields should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components.
Page 70 OPERATION • Inspect the gearbox oil level. A low oil level is a warning sign that the gearbox may be cracked or its seal is damaged and needs replacement. Ensure the gearbox vent is in place and free • from clogs. OPS-R-0040_B •...
Page 71 OPERATION 8.3 Cutting Component Inspection Inspect blade pan and blade assembly for the following: OPS-U-0031_C RX60-3, 72-3, 84-3 10/19 Operation Section 4-23 © 2020 Alamo Group Inc.
Page 72 OPERATION Operating the mower with loose blade hardware will damage the blade holder or blades and can result in blade breakage or blade fastener failure. Broken blades or bolts can be thrown out from under the mower for distances up to 300 feet. When the blades are replaced, the fastening hardware must be replaced.
Page 73 OPERATION 8.4 Blade Bolt Inspection Inspect Blade Bolt Head daily for wear as followed: Inspect the Blade Bolt Heads daily for abnormal wear. REPLACE BOTH BLADE BOLTS on the Blades IMMEDIATELY if either blade bolts has: • Visible cracks or •...
Page 74 OPERATION Tractor PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 75 OPERATION Rotary Mower PRE-OPERATION Inspection IMPORTANT: Scan this QR Mower ID#___________________ Code for an electronic copy of this inspection sheet. Date:________________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 76 OPERATION 9. DRIVING THE TRACTOR AND IMPLEMENT Safe tractor transport requires the operator possess a thorough knowledge of the model being operated and precautions to take while driving with an attached implement. Ensure the tractor has the capacity to handle the weight of the implement and the tractor operating controls are set for safe transport.
Page 77 OPERATION 9.1 Starting the Tractor The procedure to start the tractor is model specific. Refer to the tractor operator’s manual for starting procedures for your particular tractor. Consult an authorized dealer if the starting procedure is unclear. Ensure the 3-point control lever is in the lowered position and the PTO is disengaged before starting the tractor.
Page 78 OPERATION 9.3 Raising the Mower Using the tractor 3-point hitch control lever, raise the mower off the ground about 6”, or just high enough to clear any ground obstacles. When raising the mower, make sure all connection points are securely attached and at least 1” clearance is maintained between the driveline and the deck.
Page 79 OPERATION 9.5 Crossing Ditches and Steep Inclines When crossing ditches with steep banks or going up sharp inclines, it is possible that the main driveline inner profile will penetrate into the outer housing to its maximum depth until the assembly becomes solid (driveline is at its extreme shortest length).
Page 80 OPERATION Inclines and ditches should be approached along a line which is at an angle as shown. This type of path will reduce the possibility of over-collapse of the driveline and resulting damage. If the gradient is so steep that such an approach increases the possibility of a tractor roll-over, select an alternate crossing path.
Page 81 OPERATION Many varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result in serious injury or even death.
Page 82 OPERATION Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 ft (100 m) or more) and causing serious injury or death. Follow safety messages carefully. STOP MOWING IF PASSERSBY ARE WITHIN 300 Feet (100 m) UNLESS: -Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;...
Page 83 OPERATION 10.4 PTO RPM and Ground Speed Ground speed for mowing will depend upon the height, type, and density of vegetation to be cut. Recommended speed for efficient mower performance is between 2 and 5 mph(3-8 kph). Operate the mower at its full rated PTO speed to maintain blade speed for a clean cut.
Page 84 OPERATION Do not mow with two machines in the same area except with Cab tractors with the windows closed. (SGM-11) Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 300 feet (90 m) in front and to the sides of the tractor and mower.
Page 85 OPERATION Do not let the Blades turn when the Mower Deck is raised for any reason, including clearance or for turning. Raising the Mower deck exposes the Cutting Blades which creates a potentially serious hazard and could cause serious injury or even death from objects thrown from the Blades.
Page 86 OPERATION Do not mow, or drive the tractor into material that is burning, or areas that recently burnt and may contain hot spots. Burning material, sparks, and coals could be thrown from the mower to areas of vegetation that might ignite.
Page 87 OPERATION 10.6 Shutting Down the Implement To shut down attached mower head, first bring the tractor to a complete stop. Decrease engine RPM to idle then disengage cutterhead. The mower head will come to a complete stop within a suitable amount of time.
Page 88 OPERATION Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches. (S3PT-15) To disconnect the mower, first extend the tractor 3- point hitch top link to remove tension on the top link hitch pin.
Page 89 OPERATION 12. MOWER STORAGE Properly preparing and storing the mower at the end of the season is critical to maintaining its appearance and to help ensure years of dependable service. The following are suggested storage procedures: • Thoroughly clean all debris off the mower to prevent damage from rotting grass and standing water.
Page 90 OPERATION Before transporting the tractor and mower, idle the tractor engine, disengage the PTO and wait for all mower moving parts to come to a complete stop. Once all mower parts are completely stopped, raise the mower to transport height. NOTE: When raising the mower, maintain 1”...
Page 91 OPERATION The SMV (Slow-Moving Vehicle) emblem is universal symbol used to alert drivers of the presence of equipment traveling on roadways at a slow speed. SMV signs are a triangular bright orange with reflective red trim for both easy day and night visibility.
Page 92 OPERATION Reduce speed before turning or applying the brakes. Ensure that both brake pedals are locked together when operating on public roads. OPS-U- 0023 13.2 Hauling the Tractor and Implement Before transporting a loaded tractor and implement, measure the height and width dimensions and gross weight of the complete loaded unit.
Page 93 OPERATION 14. TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Uneven Cut Excessive ground speed. Reduce ground speed. Blades worn, dull, or bent. Replace blades. (Refer to "Maintenance" section). Mower not level side to side. Adjust. (Refer to "Assembly" section) Improper height adjustment. Adjust Mower height.
Page 94 OPERATION Blade Bolts Working Loose Bolts not tightened. Tighten Bolts to 300 ft./lbs. Bolt hole elongated or oversized. Replace Blade Carrier. Locknut worn out. Replace Locknut. Gearbox Noisy Low Lubricant. Check lubricant level. Rough gears. Run in or change Gears. Worn Bearing.
Page 96 MAINTENANCE HAZARDS WITH MAINTENANCE OF IMPLEMENT AVOID DEATH OR SERIOUS INJURY FROM COMPONENT FAILURE BY KEEPING IMPLEMENT IN GOOD OPERATING CONDITION PERFORMING PROPER SERVICE, REPAIRS AND MAINTENANCE. BEFORE PERFORMING SERVICE, REPAIRS AND MAINTENANCE ON THE IMPLEMENT: SECURE EQUIPMENT FOR SERVICE BLOCK OUT POTENTIAL ENERGY HAZARDS;...
Page 97 MAINTENANCE PARTS INFORMATION PARTS INFORMATION Alamo Industrial mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Alamo Industrial specifications. Non-genuine "will fit" parts do not consistently meet these specifications.
Page 99 MAINTENANCE GEARBOX (All Models) The gearbox should be full (3.25 quarts) and not require additional lubricant unless the box is cracked or a seal is leaking. It is recommended that the oil level dipstick be removed to check oil level after every 8 hours of operation.
Page 100 MAINTENANCE DRIVELINE LUBRICATION Grease Fittings are located on the Cross Assembly of each U-Joint and on the telescoping tubes. Grease the U-Joint after each 8 hours of use. Figure Mnt-R-0283. Do not force grease through the Needle Cup Assemblies. Grease the telescoping tubes after every 8 hours use. Some PTO-to-Hitch connections may necessitate cutting a hole in the shields to be able to align the Grease Fitting holes for lubrication.
Page 101 MAINTENANCE JACKSHAFT SHIELDS To remove the main inner driveline shield, Remove the locking screws. Align the bearing tabs with the cone pockets. FIGURE Mnt-0026. Remove the half-guard and remove the bearing ring. FIGURE Mnt-R-0012. Inspect the driveline shield for worn areas or cracks. If the shield has any dents or cracks, replace the Shield. While the Shields are off, examine the Driveline for signs of abnormal wear, bent or twisted shafts, or cracks in the shafts or tubes.
Page 103 MAINTENANCE MAIN CV DRIVELINE SAFETY SHIELD 1. To remove the outer CV cone, remove the locking screws from shield cone. Remove cone over yoke. Remove bearing ring and remove the locking screws from inner shield cone. Turn inner cone to assembly position and remove half shield.
Page 104 MAINTENANCE BLADE SERVICING Inspect blades before each use to determine that they are properly installed and in good condition. Replace any blade that is bent, excessively nicked, worn, or has any other damage. Small nicks can be ground out when sharpening. Use only original equipment blades on this cutter.
Page 105 MAINTENANCE BLADE SHARPENING When sharpening blades, grind each blade the same amount to maintain balance. Follow original sharpening pattern as shown in Figure Mnt-R-0008. Always sharpen blades by grinding. Always sharpen both blades at same time to maintain balance. The difference in blade weights should not exceed 1 ounce.
Page 106 MAINTENANCE CAST BLADE PAN INSPECTION Blade bolt fit into carrier should be checked every time blades are changed. The blade bolt should fit into carrier as a snug slip fit. If the blade bolt fit appears to be loose or sloppy, measure the square hole in carrier. If the bottom of the square hole is 1/16”...
Page 107 MAINTENANCE BLADE CARRIER INSTALLATION Clean the splines on both the blade carrier and output shaft. Position carrier on the gearbox output shaft and install special washer nut. Tighten nut holding blade carrier to minimum 600 ft. pounds, strike the carrier near the hub several times with a heavy hammer to seat the hub.
Page 108 MAINTENANCE SLIP CLUTCH If a slip clutch is incorporated in the PTO driveline, it is designed to slip, absorb the shock load, and protect the driveline. This clutch has single disc spring with 6 adjusting nuts. After the first hour of operation, the slip clutch should be checked for overheating. After this first check, the slip clutch should be checked weekly or anytime there is overheating.
Page 109 MAINTENANCE SEASONAL CLUTCH MAINTENANCE It is important that the clutches slip when an obstacle or load heavier than the clutch setting is encountered. Therefore, if the machine sits outside longer than 30 days and is exposed to rain and/or humid air it is important to make sure that the clutch lining plates are not rusted/corroded together.
