Valcom VE4002A Manual

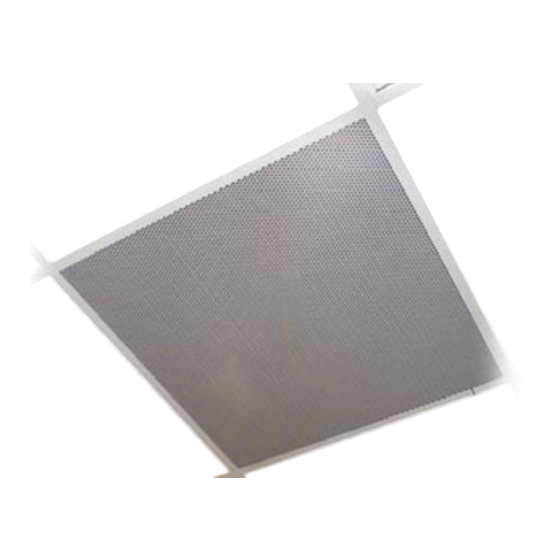

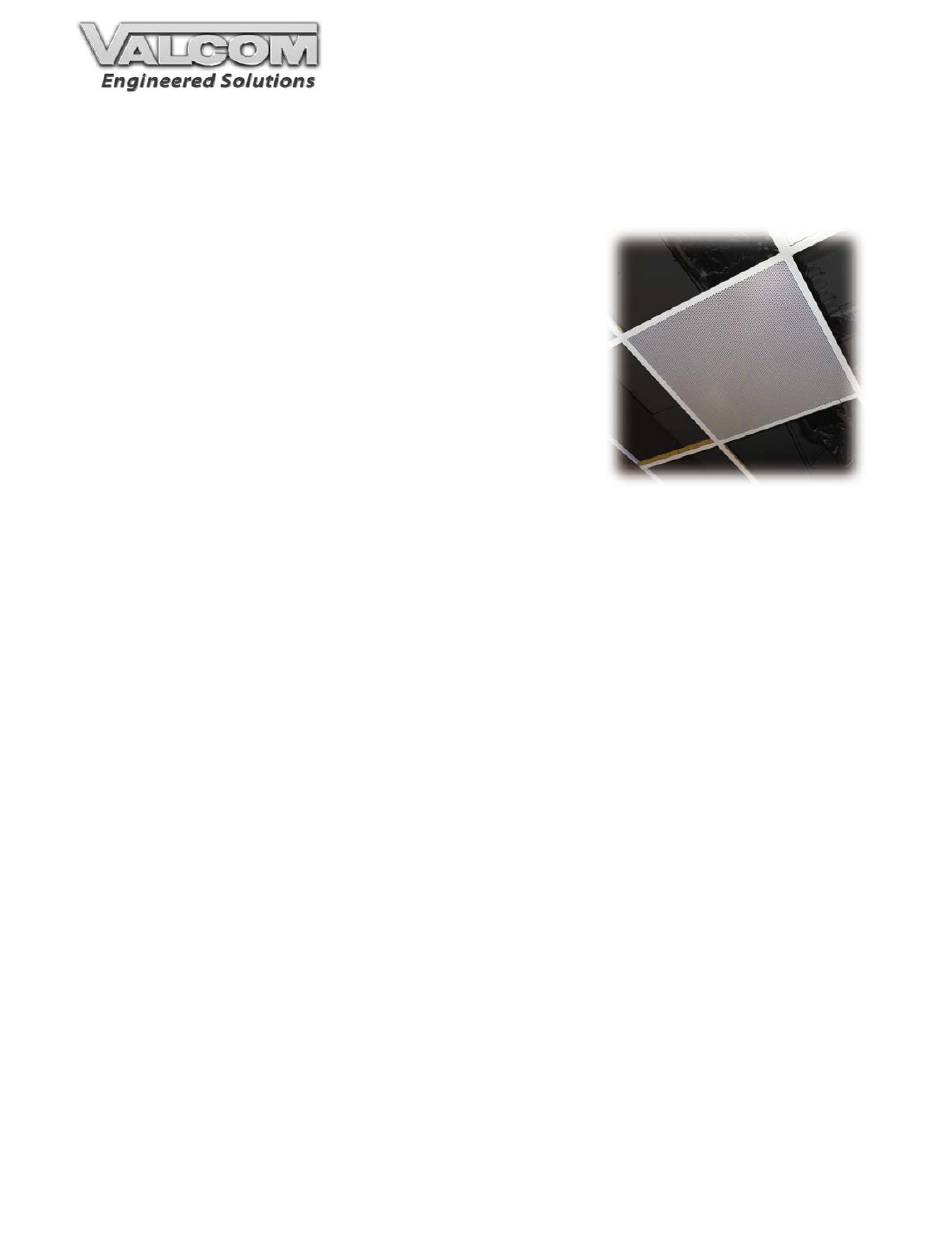

LAY-IN ONE-WAY IP CEILING SPEAKER
INTRODUCTION
The VE4002A and VE4002A-EC Lay-In One-way IP
Ceiling Speaker enables voice access to a single
zone of paging over an IP-based network. This
allows a page zone extension anywhere on the
network. The speaker output level is electrically
adjusted during setup. The lay-in ceiling speaker
grille is made of steel with a white baked enamel
finish. The VE4002A replaces a 2' x 2' ceiling tile
and the VE4002A-EC replaces a 600MM X 600MM
ceiling tile. Power is provided to the unit via a
Power over an Ethernet (PoE) switch meeting the
802.3af specification.
SPECIFICATIONS
Access Methods
•
PBX, FXO Port w/VE801x
•
POTS telephone set w/VE801x
•
PBX, FXS Port w/VE802x
•
Valcom M Cast Page Group
•
SIP – enabled telephone system
Features
•
RJ-45 network connection
•
Power over Ethernet (PoE) 802.3af compliant
•
High Efficiency Class-D Amplifier
Environment
Temperature:
Humidity:
PSE: (Power Sourcing Equipment) to be compliant
IEEE 802.3af
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch:
VE4002A, VE4002A-EC
0 to +40° C
0 to 85% non-precipitating
Class 3
INSTALLATION
Dimensions/Weight
VE4002A:
•
23.75" L x 23.75" W x 3.75" D
(60.33cm) x (60.33cm) x(9.53cm)
•
Weight: 5.8 lbs. (2.63kg)
VE4002A-EC:
•
59.4cm L x 59.4cm W x 9.53cm D
•
Weight: 2.49 kg
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates uses,
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
1
Issue 4
947802
