Valcom VE4031A-D Manual

IP WALL MOUNT SPEAKER/CLOCK ASSEMBLY
INTRODUCTION

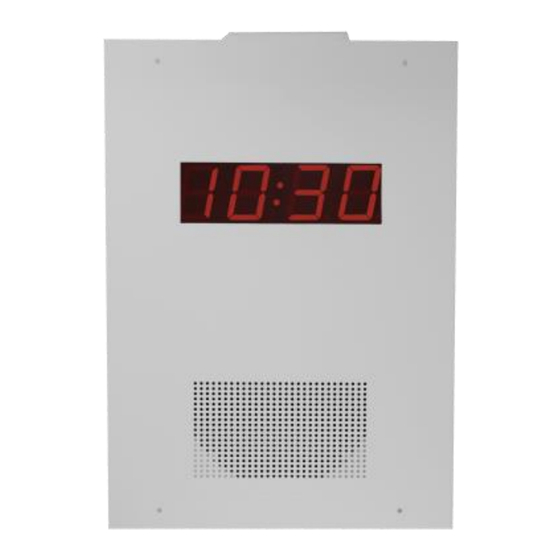

The VE4031A-D IP Wall Mount Speaker with Clock
enables voice access and visual time indication to a
single zone of paging over an IP-based LAN/WAN. This
allows page zone extension anywhere on the network.
The speaker level is adjusted via software during set up.
Clock synchronization is initiated via connection to any
Network Time Protocol (NTP) server accessible via the
network. The enclosure is made of steel with a durable
gray powder coated finish. The color of the enclosure
can easily be changed to match any decor. A detachable
black cloth grille is included. Power is provided to the
VE4031A-D via a Power over Ethernet (PoE) switch
meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
•
PBX, FXO Port using a VIP-811
•
POTS telephone set using a VIP-811
•
PBX, FXS Port using a VIP-821
•
Valcom M Cast Page Group
•
SIP–enabled telephone system
Features

RJ-45 network connection

802.3af compatible

High Efficiency Class-D Amplifier

Network Time Protocol (NTP) synchronization
DIMENSIONS/WEIGHT

20.28" H x 14.38" W x 3.40" D
(51.51cm x 36.53cm W x 8.64cm D)

Weight: 4.25 LBS (1.91 kg)
Environment
Temperature:
Humidity:
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
VE4031A-D
0 to +40° C
0 to 85% non-precipitating
Class 3
1
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
Issue 3
947528
