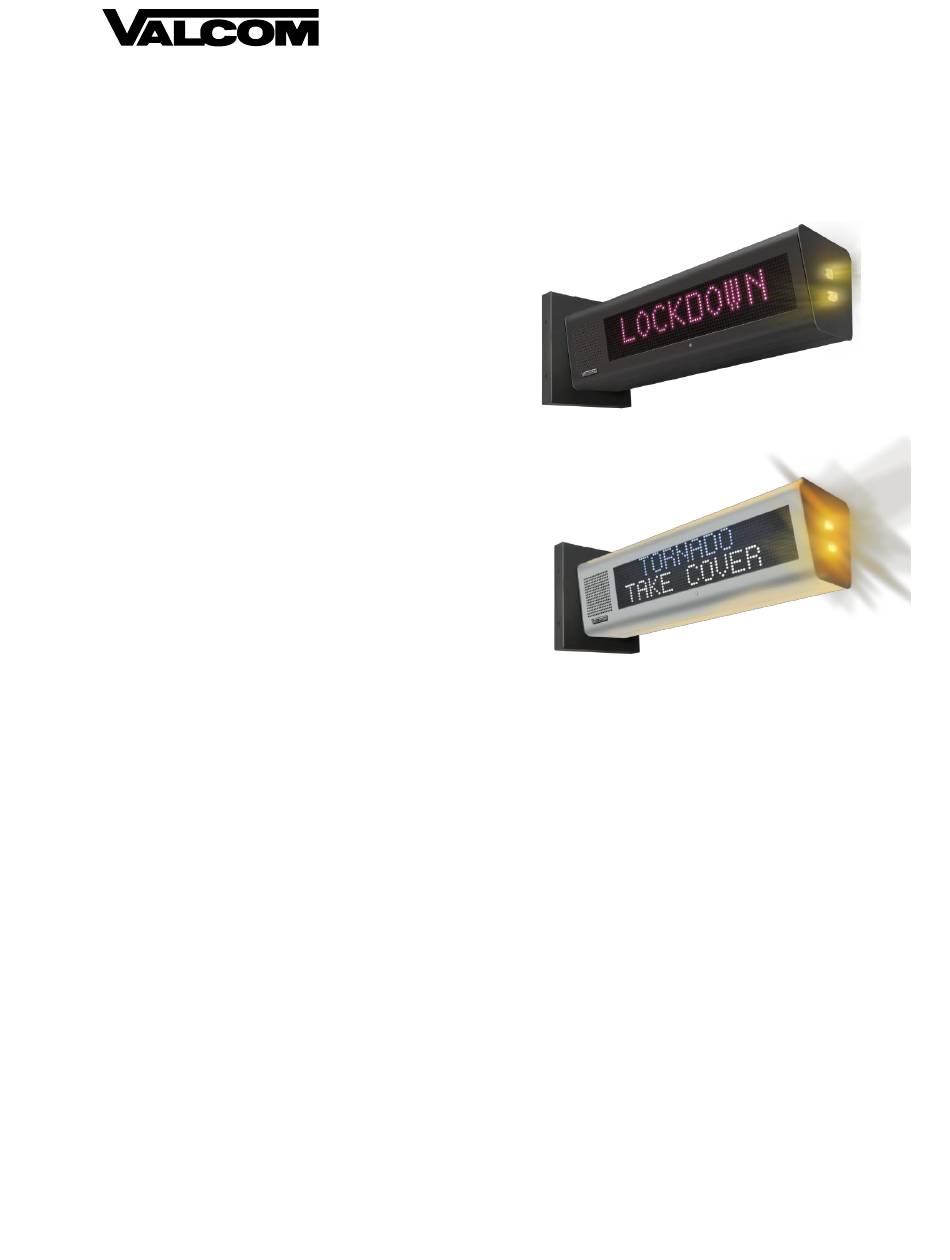

IP DOUBLE-SIDED WALL AND CEILING MOUNT
COMPACT SPEAKER WITH TEXT
INTRODUCTION

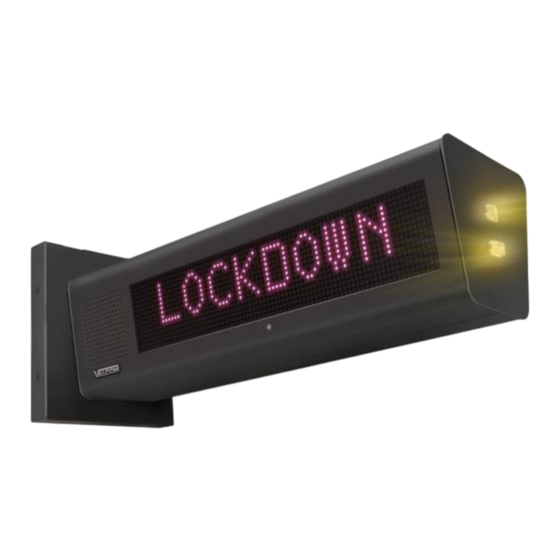

The VL522-F-FC IP Double-Sided Wall and
Ceiling Mount Compact Speaker with Text
provides highly visible message output and
audio paging over an Ethernet network. Audio
and Text messages are created and delivered
from an Engineered Solutions server. Audio
only messages can be created from any Valcom
IP Paging source.
SIP (Session Initiation Protocol) compatibility
allows flexibility for talkback/intercom
connections. An optional call switch can be
used to initiate intercom calls from the VL522-F-
FC to a Valcom or SIP destination.
SPECIFICATIONS
Features
SIP compatible
Easy to read, high visibility
Font size options
Seven LED color options
English and Spanish text support
Power over Ethernet:
(PoE+) 802.3at compatible
Speaker output and LED display can be
activated together or separately
Display can operate as a clock or provide
other message during idle periods
Text modes include adjustable-speed
scrolling or static display
Contact Closure input connection for
optional Call switch
Relay output connection for optional
equipment
Bright LED flashers that can be activated
based on page priority
Available in Black matte (VL522BK-F-FC) or
Metallic finish (VL522M-F-FC)
Dimensions / Unit Weight
22.5" L x 5.4" W (top) / 3.8" W (bottom) x
5.55" H (dimensions without bracket)
(57.2cm L x 13.7cm W (top) / 9.7cm W
(bottom) x 14.1cm H)
7.0 lb. (3.1kg)
Mounting Bracket:
7.25" W x 8.0" H x 1.4" D
VL522BK-F-FC, VL522M-F-FC
(18.4cm W x 20.3cm H x 3.6cm D)
Nominal Power Requirements
802.3at (PoE+)
Environment
Temperature:
Humidity:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building
Precautionary Designations
:
WARNING
To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
Apparatus shall not be exposed to
dripping or splashing and no objects
1
Issue 1
VL522BK-F-FC
VL522M-F-FC
Class 4
0 to +40° C
0 to 85% non-precipitating
947048

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL522BK-F-FC and is the answer not in the manual?

Questions and answers

Summary of Contents for Valcom VL522BK-F-FC

  • Page 1 Ethernet network. Audio and Text messages are created and delivered from an Engineered Solutions server. Audio only messages can be created from any Valcom IP Paging source. SIP (Session Initiation Protocol) compatibility VL522BK-F-FC allows flexibility for talkback/intercom connections.
  • Page 2: Installation

    filled with liquids, such as vases, shall be placed on the apparatus. • L’appareil ne doit pas être exposé à des FCC Information égouttements et éclaboussures et This equipment has been tested and found aucun Objet Rempli de liquide, comme to comply with the limits for a Class A digital vase, ne doit être placé...
  • Page 3: Relay Connection

    Valcom 24Vdc power main unit. Remove the cover plate from the top adapter may be connected to the barrel of the main unit and carefully pull the ethernet connector on the circuit board.
  • Page 4: Technical Assistance

    IP Address, Power Source status and website at http://www.valcom.com the last four digits of the MAC address. Valcom, Inc. equipment is not field repairable. Demo Mode Valcom maintains service facilities in Roanoke, While the Status display is active, pressing the button again will enable Demo Mode.
  • Page 5 Figure 2. Wall Mount 947048...
  • Page 6 Figure 3A. Ceiling Mount 947048...
  • Page 7 Figure 3B. Ceiling Mount 947048...
