Valcom VE4060A Manual

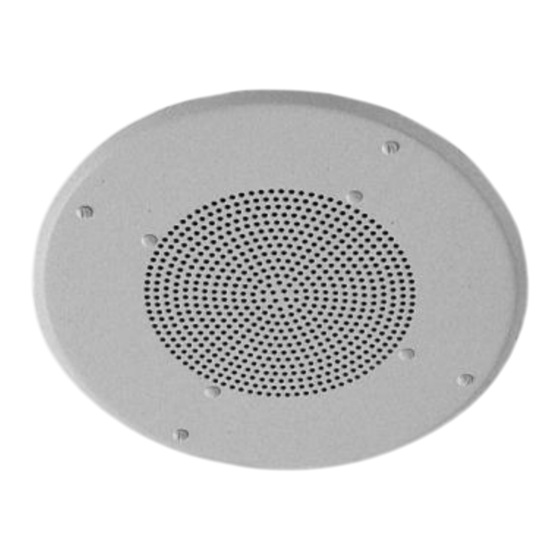

IP ONE-WAY/TALKBACK 8" CEILING SPEAKER
INTRODUCTION
The VE4060A IP One-Way/Talkback 8" Ceiling
Speaker enables handsfree talkback access to a
single location over an IP-based LAN/WAN. This
allows handsfree communication anywhere on the
network. The VE4060A levels are adjusted
electrically via software during setup. A call switch
input is provided for call in initiation. Power is
provided to the VE4060A via a Power over Ethernet
(PoE) switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods

PBX, FXO Port w/VE8011

POTS telephone set w/VE8011

PBX, FXS Port w/VE8021

Valcom M Cast Page Group

SIP – enabled telephone system
Features

RJ-45 network connection

802.3af compliant

High Efficiency Class-D Amplifier
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
VE4060A
DIMENSIONS/WEIGHT

13.0" Dia x 3.8" D
(33.0cm Dia. x 9.7cm D)

Weight: 2.5 lbs (1.13 kg)
Environment
Temperature:
Humidity:
Precautionary Designations
CAUTION: To reduce the risk of electric shock,
Refer servicing to qualified service personnel.
1
0 to 85% non-precipitating
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover (or back).
No user serviceable parts inside.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947468
Issue 4
0 to +40° C
