Valcom VE4022A Manual

IP PoE ONE-WAY/TALKBACK LAY-IN
INTRODUCTION

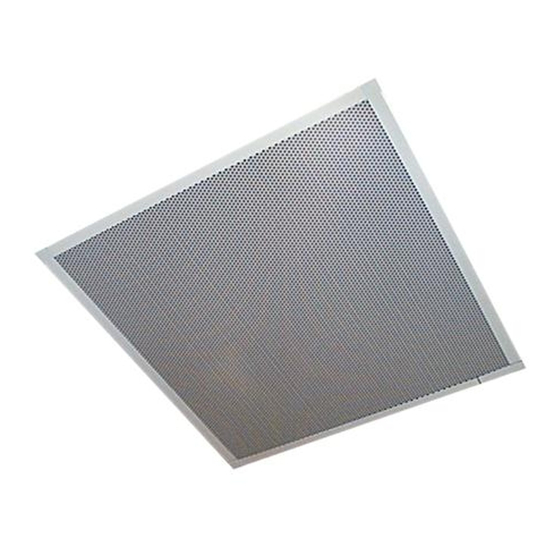

The VE4022A Lay-In Talkback IP Ceiling Speaker
provides for handsfree communication anywhere on
an IP-based LAN/WAN. The VE4022A volume
level is electronically adjusted via software. A call
switch input is provided for call in initiation. Power
is provided to the VE4022A via a Power over
Ethernet (PoE) switch meeting the 802.3af
specification.
SPECIFICATIONS
Access Methods

SIP telephone system

PBX, FXO Port w/VE801x

POTS telephone set w/VE801x

PBX, FXS Port w/VE802x

Valcom M Cast Page Group
Features

RJ-45 for network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
23.75" L x 23.75" W x 3.75" D
(60.33cm) x (60.33cm) x(9.53cm)
Weight: 5.8 lbs. (2.63kg)
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
PSE: (Power Sourcing Equipment) to be compliant
IEEE 802.3af
VE4022A
CEILING SPEAKER
Class 3
0 to +40° C
