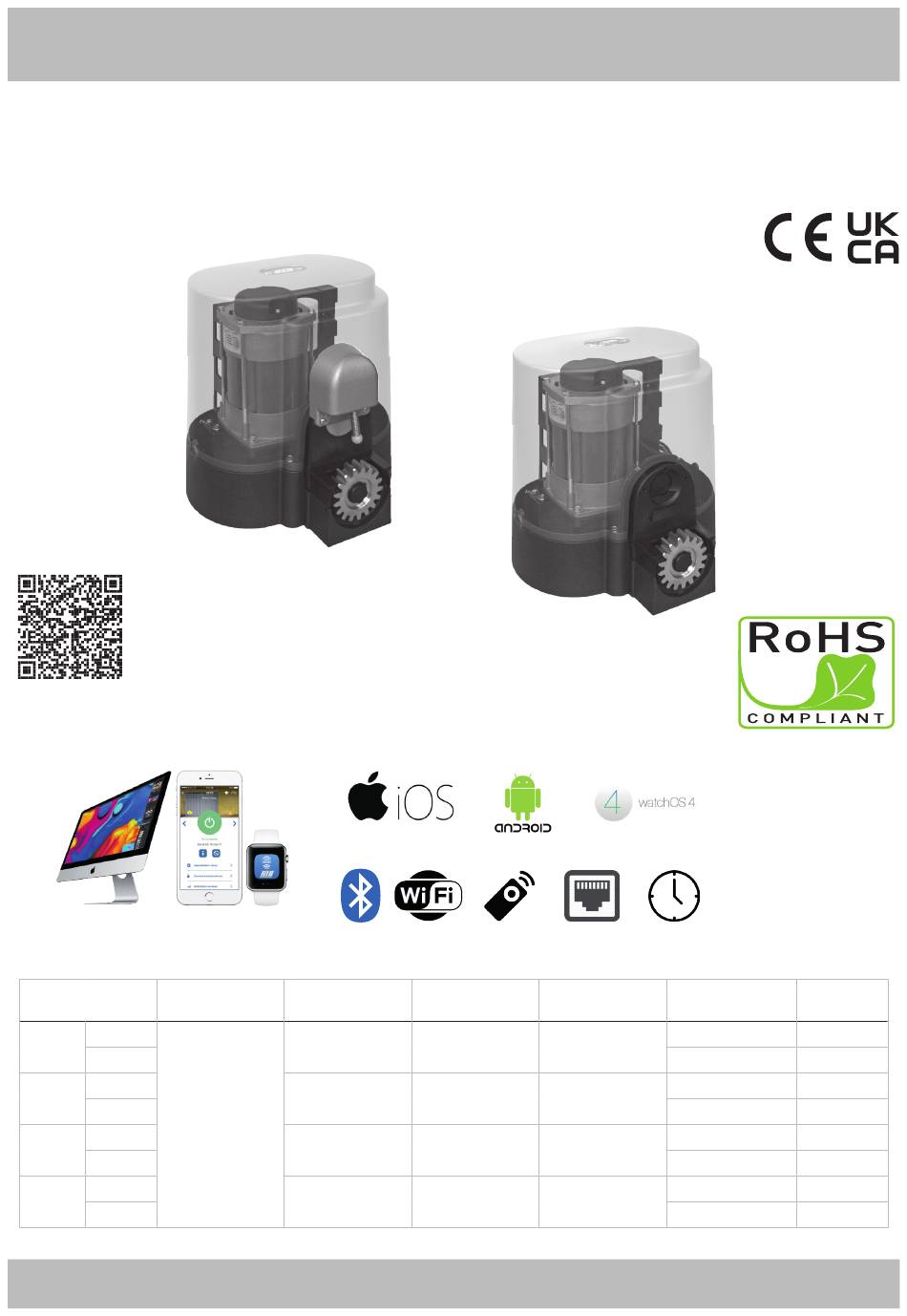

K800 - K1100 - K1400 - K2200
‫رسومات فنية للمشروعات‬
Technical drawings for projects
‫عامل‬
Operator
FCE
K800
FCM
FCE
K1100
FCM
FCE
K1400
FCM
FCE
K2200
FCM
K FCE
‫مزود الطاقة‬
‫ماكس بوابة الوزن‬
Power Supply
Max gate weight
800 kg / 1766 lbs
1100 kg / 2425 lbs
230V 50/60Hz
1400 kg / 3090 lbs
2200 kg / 4856 lbs
3 ‫ / الصفحة العربية‬ENGLISH page 5
‫ / مع‬with
K FCM
‫ماكس التوجه‬
‫االنفعال االقصى‬
Max Thrust
Max torque
60 kg / 132 lbs
20,4 Nm
73,5 kg / 162 lbs
25 Nm
79 kg / 173,8 lbs
27 Nm
115 kg / 253 lbs
39 Nm
L1-CRX
See page 40
‫مع جهاز استقبال السلكي‬
‫الشفرة‬
with radio receiver
Code
AA31130
AD31130
AA31136
AD31136
AA31128
AD31128
AA31129
AD31129
AA31140
AD31140
AA31142
AD31142
AA31150
AD31150
AA31152
AD31152

Advertisement

loading
Need help?

Need help?

Do you have a question about the K800 FCM and is the answer not in the manual?

Questions and answers

Summary of Contents for RIB K800 FCM

  • Page 1 K800 - K1100 - K1400 - K2200 L1-CRX ‫ / مع‬with K FCE K FCM ‫رسومات فنية للمشروعات‬ Technical drawings for projects See page 40 ‫عامل‬ ‫مزود الطاقة‬ ‫ماكس بوابة الوزن‬ ‫ماكس التوجه‬ ‫االنفعال االقصى‬ ‫مع جهاز استقبال السلكي‬ ‫الشفرة‬ Operator Power Supply Max gate weight...
  • Page 2 ‫ الحد األدنى و‬sqmm 1،5 ‫ مع‬H05RN -F ‫ برقية نوع‬RIB ‫2 ° - لل قسم ونوع من النصائح الستخدام الكابالت‬ 3° - Positioning of a possible couple of photoelectric cells: the radius of the photoelectric cells .‫...
  • Page 3 L1-CRX ‫ مع‬K800-1100-1400-2200 FCE-FCM ‫نص لدليل‬ )‫1 - توصيل املوتور واملفتاح الحدي ّ (يتم يف املصنع‬ K FCE K FCM ‫ - منظم إلكتروني لعزم دوران المحرك‬TORQUE TRIMMER TORQUE Trimmer ‫يتم ضبط عزم دوران المحرك باستخدام‬ ‫الذي يغير جهد الخرج إلى رأس / محركات المحرك (ق باتجاه‬ .)‫عقارب...
  • Page 4 .‫هام: يجب أن يتطا بق النظام مع كل ا ملعا يري والتوجيهات ا ملعمول بها حال ي ً ا‬ .L1 ‫ لالستفادة من جميع الوظائف املتقدمة التي ميكن أن يقدمها لك مجلس‬RIB GATE App ‫+ مع وحداتها) واستخدام هاتفك الذيك مع تطبيق‬APP ‫ (أو بطاقة‬APP ‫تنبيه: • قم بتثبيت بطاقة‬...
  • Page 5 SIMPLIFIED INSTRUCTIONS FOR K800-1100-1400-2200 FCE-FCM WITH L1-CRX 1° Connecting the motor and limit switch )done in the factory( COMMON STOP K FCE K FCM PHOTOCELL 1 PHOTOCELL 2 ENCODER EDGE 1 EDGE 2 TORQUE TRIMMER - Electronic regulator for motor torque COMMON Adjustment of motor torque is carried out using the LIMIT SWITCH...
  • Page 6 IMPORTANT: The system must comply with all the standards and Directives currently in force. ATTENTION: Install the APP card )or the APP+ card with its modules( and use your smartphone with the RIB GATE App to take advantage of all the advanced features that the L1 control board can...
  • Page 7 SYSTEM LAY-OUT 1 - K operating device 2 - External photocells 3 - Rack of Module 4 4 - Key selector 5 - Radio antenna K800 K1100 K1400 K2200 TECHNICAL DATA 6 - Blinker 7 - Limit switch plate (cams) Max.
  • Page 8 K800-K1400-K2200 INSTALLATION CHECKING BEFORE THE INSTALLATION !! THE GATE SHALL MOVE FRICTIONLESS !! N.B.: Gate features must be uniformed with the standards and laws in force. The door/gate can be automated only if it is in a good condition and its conditions comply with the BS EN 12604 norm.
  • Page 9 MOTOR AND RACK FITTING The holes for fixing the nylon rack must be made at 123,5 mm height from the motor support (at 130mm for the iron rack). The height of the rack can be adjusted thanks to the slots available on its right -angled bar. The height adjusting is necessary to prevent the gate leaning on the driving gear (5 and 6).
  • Page 10 ELECTRIC CONNECTIONS code AC08082 COMMON STOP PHOTOCELL 1 PHOTOCELL 2 ENCODER EDGE 1 EDGE 2 COMMON LIMIT SWITCH LIMIT SWITCH COMMON TIMER PEDESTRIAN SINGLE COMMAND CLOSE OPEN COMMON 24Vdc 0,4A ±15% A+TEST / A- PHOTOCELLS 24Vdc 0,4A ±15% AUTO-TEST 700 W MAX R=2,2K 1/4W COMMON BLINKER...
  • Page 11 + 24 Vdc photocells self-test power supply RADIO Connector for radio module ACG8069 COM A+ Common contacts / Positive 24 Vdc RADIO Connector for radio receiver RIB, 24 Vdc supply B.I.O. Contact (NO) dedicated to a clock 433 MHz Radio antenna PED. Pedestrian opening contact (NO) PROG.
  • Page 12 POINT B - SETTINGS LED WARNINGS DIP 1 MAINTENANCE CHECK )See Page 15( PROG programming activated (red) DIP 2 TIMES PROGRAMMING )See Point C( Gate opening (green) DIP 2-1 PROGRAMMING OF PEDESTRIAN OPENING )See Point D( Gate closing (red) DIP 1-2 SAVE/DELETE RADIO CODES FOR COMPLETE OPENING )DIP 1 ON followed by DIP 2 ON( Opening limit switch LSO (green)
  • Page 13 ATTENTION: before storing the radio codes, use DIP 12 to select which transmitters to use: 2 - Press and hold the PROG button for 5 s. Memory cancellation is indicated by two red flashes DIP 12 OFF: SUN-PRO variable code transmitters can be memorized: of LED DL12 and two tones of the buzzer.
  • Page 14 CLOSE BUTTON )COM A+/CLOSE( EDGES )SAFETY STRIPS( )COM A+/EDGE 1, COM A+/EDGE 2( Controls the closing movement when the gate is stationary. If engaged when closing, EDGE 1 reverses the motion in opening. If edge remains engaged, it doesn’t permit the closing. TRANSMITTER If engaged during opening, EDGE 2 reverses the motion in closing.
  • Page 15 TECHNICAL SPECIFICATIONS TROUBLE SHOOTING - Humidity < 95% without condensation - Power voltage 230V~ ±10% (120V/60Hz upon request) After having carried out all connections, by carefully following the layout and having positioned - Frequency 50/60Hz the gate in intermediate position, check the correct ignition of red LEDS DL6, DL7, DL8, DL9 - Maximum board absorption 30mA and DL10.
  • Page 16 TABLE SUMMARISING VISUAL AND SOUND ALARMS SIGNALS DURING PROGRAMMING SEQUENCE EVENT BUZZER STATUS FLASHER STATUS DL1 LED STATUS DIP 1 ON (hold-to-run mode) Flashes ON/OFF 250 ms Or failure of a safety device DIP 2 ON (full stroke programming) Flashes ON/OFF 500 ms DIP 2 ON >...
  • Page 17 ACCESSORIES - For the connections and the technical data of the optional equipments follow the relevant handbooks. NYLON RACK MODULE 4 PLATE TO BE CEMENTED with zinc plated angle Iron, In 1mt. bars. Ideal for gates up to 1,000 kg / 2,200 lbs weight. 1 m / 3,28”...
  • Page 18 RADIO TRANSMITTER SUN RADIO MODULE 433MHz code ACG8069 SUN 2CH cod. ACG6052 SUN 4CH cod. ACG6054 SUN CLONE 2CH cod. ACG6056 SUN CLONE 4CH cod. ACG6058 SUN-PRO 2CH cod. ACG6210 SUN-PRO 4CH cod. ACG6214 PROBE ACG5460 SET PLUS Encoder to detect obstacles during opening and closing operations.
  • Page 19 PHOTOCELLS CONNECTIONS 4 FIT SLIM / FIT SYNCRO photocells with self-test and infrared signal synchronizer 2 photocells FIT SLIM, FIT SYNCRO with self-test TX SYNCRO COM A+ COM A+ cod. ACG8028 A+ TEST PHOT1 PHOT2 A+ TEST PHOT1 PHOT2 cod. ACG8029 A*D+ A*D+ A*D+...
  • Page 20 PHOTOCELLS CONNECTIONS 4 NOVA photocells synchronized with self-test PHOT1 PHOT2 A+ TEST COM A+ ‫ وتوصيل خلية ضوئية واحدة فقط ، يجب إنشاء وصلة ربط بني مطاري‬AUTOTEST ‫تحذير: يف حالة متكني ميزة‬ .‫ ولن تتحرك البوابة‬AUTOTEST ‫. إذا مل يتم إنشاء العبور ، يفشل‬PHOT 2 ‫ و‬PHOT 1 the AUTOTEST fails and the gate will not move.
  • Page 21 K800 - K1400 - K2200 FCE-FCM Codice Denominazione Particolare AC08082 Scheda L1 ACG1082 Chiave di sblocco K ACG5460 Gruppo encoder K ACG8069 Modulo radio ACG8672 Serratura esagonale BA01019 Serie accessori per cilindro BA01079 Cilindro serratura BA03230B Gruppo finecorsa K FCE BA03230M Gruppo finecorsa magnetico per K FCM ACG8069...
  • Page 23 ‫عرىب‬ ‫ - معلومات للمستخدمني‬WEEE ‫يف حالة ظهور رمز سلة املهمالت املتقاطعة عىل الجهاز أو العبوة ، فهذا يعني أن املنتج يجب أال يتم تضمينه مع النفايات العامة األخرى يف نهاية فرتة عمله. يجب أن يأخذ املستخدم املنتج البايل إىل مركز فرز تم فرزه ، أو يعيده إىل بائع التجزئة عند رش اء منتج جديد. ميكن شحن منتجات التخلص‬ ‫مجان...
  • Page 24 "‫، الملحق الثاني، "ب‬EC/2006/42 ‫إقرار التضمين للماكينة شبه المكتملة - توجيه الماكينات‬ Declaration of incorporation for partly completed machinery - Machinery Directive 2006/42/EC, Annex II., B R.I.B. S.r.l. - Via Matteotti, 162 - 25014 Castenedolo - Brescia - Italy Tel. ++39.030.2135811 - www.ribind.it - ribind@ribind.it K800 - K1100 :‫موديل...
