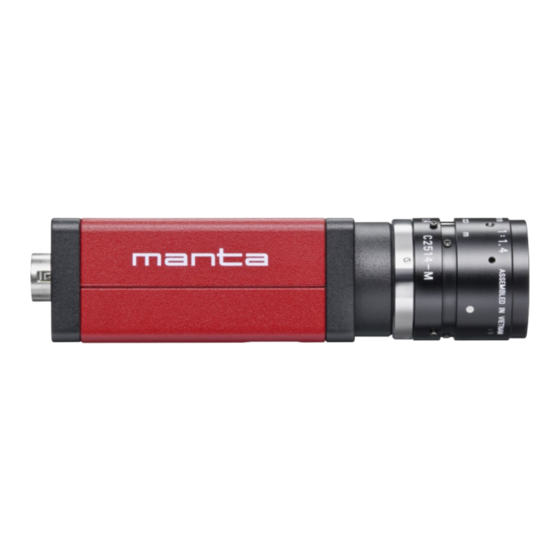

Allied Vision Manta G-2460B PoE User Manual
  1. Manuals
  2. Brands
  3. Allied Vision Manuals
  4. Digital Camera
  5. Manta G-2460B PoE
  6. User manual

Allied Vision Manta G-2460B PoE User Manual

Gige vision cameras
Hide thumbs

Advertisement

Quick Links

Download this manual

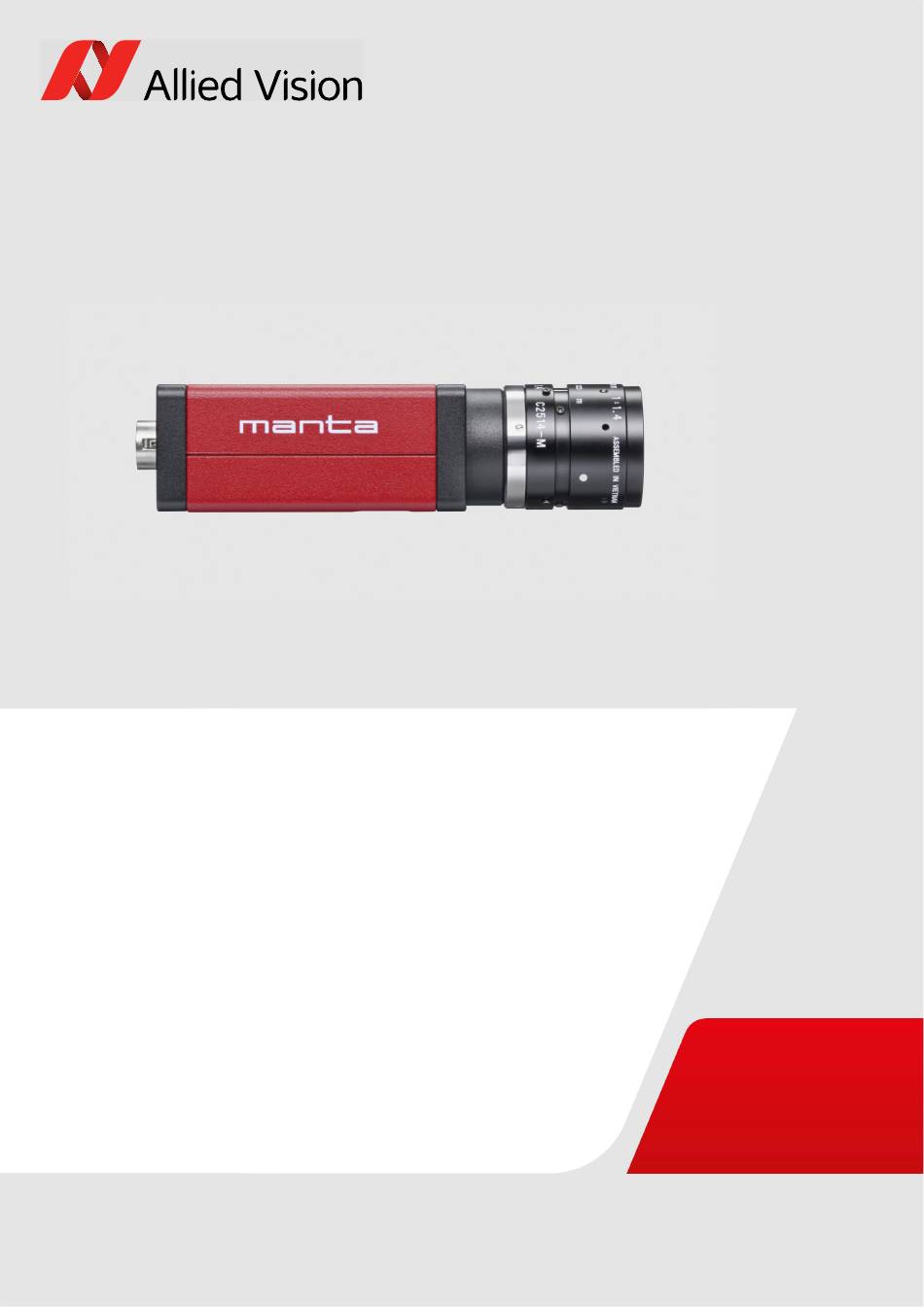

GigE V
C
ISION
AMERAS
Manta
User Guide
V8.2.7
FW Loaders: 40190 | 40111
Note: Lenses are not part of this product.
Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda, Germany
2024-Nov-07

Advertisement

loading
Need help?

Need help?

Do you have a question about the Manta G-2460B PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allied Vision Manta G-2460B PoE

Summary of Contents for Allied Vision Manta G-2460B PoE

  • Page 1 GigE V ISION AMERAS Manta User Guide V8.2.7 FW Loaders: 40190 | 40111 Note: Lenses are not part of this product. Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda, Germany 2024-Nov-07...
  • Page 2 The threads of the lens mount can have sharp edges. Intended use Intended use of Allied Vision product is the integration into vision systems by professionals. All Allied Vision product is sold in a B2B setting. Cameras without closed housings Cameras without housing or with incomplete housing must be shielded against EMC emission by professionals according to local EMC provisions.
  • Page 3 Fare for snitsår på linsemodulets skarpe kanter Linsemodulets gevind kan have skarpe kanter. Tilsigtet brug Allied Vision produktets tilsigtede brug er en indbygning i et visionssystem, udført af fagfolk. Alle Allied Vision produkter sælges i B2B. Kameraer uden lukket hus Kameraer uden hus eller uden komplet hus skal beskyttes mod EMC emissioner iht.
  • Page 4 VORSICHT Schnitte durch scharfkantige Objektivgewinde Objektivgewinde können scharfe Kanten haben. Bestimmungsgemäßer Gebrauch Allied Vision Produkte sind bestimmt für die Integration in Bildverarbeitungs- systeme durch Fachpersonal. Alle Allied Vision Produkte werden in einer B2B-Umgebung verkauft. Kameras ohne geschlossenes Gehäuse Für Kameras ohne Gehäuse oder mit unvollständigem Gehäuse muss die Abschirmung gegen EMV-Emissionen gemäß...
  • Page 5 Las roscas de los objetivos pueden tener bordes afilados. Uso previsto El uso previsto del producto Allied Vision es la integración en el sistema de visión por parte de profesionales. Todos los productos Allied Vision se venden dentro de una relación B2B.
  • Page 6 Linssin kiinnikkeiden kierteiden reunat voivat olla teräviä. Käyttötarkoitus Allied Vision -tuotteen käyttötarkoitus on integrointi kuvajärjestelmiin ammattilaisten toimesta. Kaikki Allied Vision -tuotteet myydään B2B-ympäristössä. Kamerat, joissa ei ole suljettuja koteloita Ammattilaisten on suojattava kamerat, joissa ei ole koteloa tai joiden kotelo on epätäydellinen, EMC-päästöiltä...
  • Page 7 Les filetages des montures d’objectif peuvent présenter des bords tranchants. Utilisation prévue L’utilisation prévue du produit Allied Vision est son intégration dans des systèmes de vision par le soin de professionnels. Tout produit Allied Vision est vendu dans un cadre B2B. Caméras sans boîtier fermé...
  • Page 8 Read before use ‫ת‬ ‫י ר‬ ‫ב ע‬ HE - ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫. ד‬ ‫י מ‬ ‫ת‬ ‫ו‬ ‫ל א‬ ‫ן ו ח‬ ‫ט‬ ‫י ב‬ ‫ת ו‬ ‫א ר‬ ‫ו ה‬ ‫ש‬ ‫מ‬ ‫מ‬ ‫ל‬ ‫ך‬...
  • Page 9 Pericolo di tagliarsi sui bordi affilati degli attacchi della lente I bordi della filettatura dell’attacco della lente possono essere affilati. Uso previsto Il prodotto Allied Vision è concepito per essere integrato in sistemi di monitoraggio in campo professionale. Tutti i prodotti Allied Vision sono venduti in uno scenario B2B.
  • Page 10 Read before use JA - 日本語 安全性 本カメラを使用する前に、この安全の手引きをお読みください。常に、 警告事項を守ってください。必ず、Intended use 45 ページの通りに、本カ メラを使用してください。 注意 やけどの危険性 作動中のカメラは、やけどを引き起こす温度まで熱くなる恐れがありま す。 注意 カメラまたはレンズの落下によるけが カメラまたはレンズが落下すると、けがをする恐れがあります。 注意 レンズマウントの鋭利な端部で切り傷の危険性 レンズマウントのギザギザの部分が鋭利である可能性があります。 用途 Allied Vision製品は、専門家が視覚装置に統合することを意図したもの です。すべてのAllied Vision製品は、企業間取り引き用に販売されてい ます。 ハウジングで閉じられていないカメラ ハウジングのないカメラまたはハウジングが不完全なカメラは、現地の 電磁両立性（EMC）規定に従い、専門家によって、EMCエミッションから 保護される必要があります。 Manta User Guide V8.2.7...
  • Page 11 Risico van snijwonden door scherpe randen van lensbevestigingen Het schroefdraad van de lensbevestiging kan scherpe randen hebben. Beoogd gebruik Het beoogde gebruik van het Allied Vision-product is de integratie in optische systemen door professionals. Alle Allied Vision-producten worden verkocht in de B2B-markt.
  • Page 12 Risiko for kutt fra skarpe kanter på linsefester Sporene på linsefestet kan ha skarpe kanter. Tiltenkt bruk Den tiltenkte bruken av Allied Vision-produktet er integrering i visjonssystemer av profesjonelle. Alle Allied Vision-produkter selges i en forretning til forretning-situasjon. Kameraer uten lukkede kamerahus Kameraer uten kamerahus eller med ufullstendige kamerahus må...
  • Page 13 Objektivets gängor kan ha vassa kanter. Avsedd användning Den avsedda användningen av Allied Vision-produkter är integrering i visionssystem av fackmän. Samtliga Allied Vision-produkter säljs i en B2B-miljö. Kameror utan slutna kamerahus Kameror utan eller med ofullständiga kamerahus måste skyddas mot elektromagnetiska emissioner av fackmän enligt lokala bestämmelser för...
  • Page 14 ZH - 简体中文版 安全需知 使用本相机前，请阅读本安全说明书。请务必遵守相关警告 和 Intended use 于第 45 页 . 注意事项 烫伤风险 相机操作过程中温度可能上升并导致烫伤风险。 注意事项 相机或者镜头跌落造成伤害 相机或者镜头可能会跌落并造成伤害。 注意事项 镜头接口的锐利边缘划伤风险 镜头接口螺纹边缘可能较为锐利。 预期用途 Allied Vision 产品的预期用途是由专业人士整合到视觉系统中。所有 Allied Vision 的产品均通过 B2B 渠道销售。 无封闭式外壳相机 使用不带外壳或外壳不完整的相机时，必须由专业人员根据当地的 EMC 规 定，对其进行 EMC 屏蔽。 Manta User Guide V8.2.7...
  • Page 15 Manta cameras at a glance Get an overview of Manta camera documentation. Manta User Guide V8.2.7...
  • Page 16 Manta cameras are offered with either a C-Mount or CS-Mount to support a wide range of lenses. An M12-Mount )S-Mount( adapter is also available. Scope of delivery Your Allied Vision camera is delivered with the following components: • Manta GigE Vision camera • Download Instructions for First Camera Operation...
  • Page 17 Exton, PA 19341, USA Toll-free// +1-877-USA-1394 T// +1 978 225 2030 Asia-Pacific China Japan Allied Vision Technologies Shanghai Co Ltd. Allied Vision Technologies B-510, Venture International Business Park Yokohama Portside Bldg. 10F 2679 Hechuan Road 8-1 Sakae-cho, Kanagawa-ku Minhang District, Shanghai 201103...
  • Page 18 Contents Contents Read before use EN - English ................2 DA - Dansk .
  • Page 19 Contents Cable connections ..............47 Camera power .
  • Page 20 Contents Spectral response..............79 ROI frame rate .
  • Page 21 Contents Imaging performance ............. 121 Absolute QE .
  • Page 22 Contents ROI frame rate ..............162 Manta G-1236 series .
  • Page 23 Contents W90 housing with C-Mount ............205 W90 S90 housing with C-Mount .
  • Page 24 Allied Vision software ........
  • Page 25 Contents Identifying impurities ..............268 Locating impurities .
  • Page 26 Document history and conventions This chapter includes: Document history ..............27 Document conventions............39 Manta User Guide V8.2.7...
  • Page 27 Document history and conventions Document history Version Date Document updates V8.2.7 2024-Nov-07 Corrected typos. V8.2.6 2024-Jul-15 • Updated addresses in Contact us on page 17. • Applied editorial changes. V8.2.5 2024-Feb-06 Updated contents in IP settings on page 240. Release: Firmware loader: 40190 )Manta CCD 1-Tap( V8.2.4 2024-Jan-29 Firmware loader: 40111 )Manta CMOS 2-Tap(...
  • Page 28 Document history and conventions Version Date Document updates Release: Firmware loader: 37388 V8.1.4 2021-Dec-08 • Applied editorial changes. Firmware loader: 34365 V8.1.3 2021-Oct-19 • Fixed incorrect page numbers. • Applied editorial changes. Firmware loader: 34365 V8.1.2 2021-Aug-19 • Added icon for compliance with UKCA in Compliance notifications page 43.
  • Page 29 Document history and conventions Version Date Document updates Release: Firmware loader: 27877 V8.0.2 2019-Nov-04 • Corrected technical drawings. V8.0.1 2019-Jun-06 • Corrected the feature comparison table in the Specification chapter Added ReverseX and ReverseY for Manta G-223 and G-419. These features were available in firmware version 01.54.18163.
  • Page 30 • Corrected the technical drawings for Manta Type B cameras )standard housing, W90 housing, W90 S90 housing, W270 housing, and W270 S90 housing(. • Added cable color to camera I/O connector pin assignment including pin assignment figure and cross reference to the Allied Vision I/O cable data sheet. V7.8.0 2017-Jan-27 •...
  • Page 31 Document history and conventions Version Date Document updates V7.5.0 2016-Aug-16 • New features for Manta G-282, G-283, G-505, and G-917 series: One-tap, dual-tap switchability )except Manta G-505( Trigger over Ethernet )ToE( Action Commands feature DeviceUserID is now accessible via the Vimba user interface. •...
  • Page 32 • Added Cleaning optical components chapter to replace Camera cleaning and updated information. • Added Contact us section to replace Contacting Allied Vision section. • Removed references to Manta G-095B and G-095C models. The last time shipment period ends on December 31, 2016. For more...
  • Page 33 Document history and conventions Version Date Document updates V7.1.0 2014-Oct-07 • Initial commercial release: Manta G-235 series on page 115 with: Sony IMX174 CMOS sensor Specifications, absolute QE, spectral response, ROI frame rate, camera lens information, and image data flow. •...
  • Page 34 Document history and conventions Version Date Document updates V7.0.1 2013-Sep-30 • Added Camera cleaning. • Changed maximum frame rates and gain range, added burst mode for Manta G-223 and G-419 series. • Added a feature of Manta type B cameras: Temperature monitoring.
  • Page 35 Document history and conventions Version Date Document updates V6.0.1 2013-Mar-20 • Initial commercial release: Manta G-223 series on page 111 with: CMOSIS/ams CMV2000 CMOS sensor Specifications, absolute QE, ROI frame rate, camera lens information, and image data flow. • Initial commercial release: Manta G-282 series on page 120 with: Sony ICX687 CCD sensor...
  • Page 36 Document history and conventions Version Date Document updates V5.0.0 2012-May-15 • Initial commercial release: Model specific specifications on page 56 with: Sony ICX618 CCD sensor Specifications, absolute QE, spectral response, ROI frame rate, camera lens information, and image data flow. •...
  • Page 37 • Corrected frame rate formulas for Manta G-033 and G-504 series. • C-Mount and CS-Mount not adjustable, for modifications contact Customer Care and send camera to Allied Vision Technologies. • Manta board level: Manta board level: deleted )PWR output on demand( at Pin2.
  • Page 38 Document history and conventions Version Date Document updates V4.0.0 2010-Oct-25 • Initial commercial release: Manta G-033 series on page 64 Sony ICX414 CCD sensor. Specifications, absolute QE, spectral response, ROI frame rate, camera lens information, and image data flow. • Initial commercial release: Manta G-504 series on page 141 Sony ICX655 CCD sensor.
  • Page 39 Document history and conventions Document conventions To give this document an easily understood layout and to emphasize important information, the following typographical styles and symbols that are used. Typographic styles Style (example) Function Emphasis Programs, or highlighting important things. Feature names GigE features names are displayed as monospaced text.
  • Page 40 Document history and conventions NOTICE Material damage by electrostatic discharge (ESD) Precautions as described. Avoiding malfunctions Precautions are described. Practical tip Additional information helps to understand or ease handling the camera. Additional information Web address or reference to an external source with more information is shown. Product naming Names of third-party products in this document are shortened to ease reading.
  • Page 41 Document history and conventions Acronym or term Description EMVA European Machine Vision Association Electrostatic Discharge FIFO First-in first-out GigE Gigabit Ethernet Ground )power( GVSP AIA GigE Vision Streaming Protocol H × V Horizontal × Vertical )sensor resolution measurement( Input/Output Look-up Table M12-Mount M-12 Mount )S-Mount( MSDS...
  • Page 42 Compliance, safety, and intended use § This chapter includes: Compliance notifications ............43 Intended use ................. 45 Copyright and trademarks ............ 45 Your safety................46 Product safety ............... 47 Manta User Guide V8.2.7...
  • Page 43 Compliance, safety, and intended use Compliance notifications National regulations on disposal must be followed. For customers in the US Class B digital device Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 44 Compliance, safety, and intended use Party issuing Supplier's Declaration of Conformity Allied Vision Technologies GmbH Taschenweg 2a 07646 Stadtroda, Germany T// +49 )36428( 677-106 quality@alliedvision.com Responsible party - US contact information Allied Vision Technologies, Inc. 102 Pickering Way – Suite 502...
  • Page 45 We are offering standard products as well as customized solutions. Intended use of Allied Vision product is the integration into Vision systems by professionals. All Allied Vision product is sold in a B2B setting.
  • Page 46 Compliance, safety, and intended use Your safety This section informs about issues related to your personal safety. Descriptions explain how to avoid hazards and operate Manta cameras safely. Handling lens mounts The lens mount thread has sharp edges. Be careful these edges do not cut your skin when mounting or unmounting lenses.
  • Page 47 Compliance, safety, and intended use Product safety To prevent material damage, read the following to understand how to safely handle and operate the camera. Electrical connections ESD is dangerous for electronic devices, especially when tools or hands get in contact with connectors. We recommend measures to avoid damage by ESD: •...
  • Page 48 Compliance, safety, and intended use Optical components Provide the following conditions to keep dirt and droplets out of the optical system of camera and lens: • Dust-free environment • Low relative humidity • No condensation. When camera or lens are stored: •...
  • Page 49 Specifications Find the technical specifications for your Manta camera, including imaging performance, absolute QE, spectral response )for selected models(, and ROI frame rates. Contents: Applied standards ..............50 Shock and vibration............... 50 Notes on specifications............51 Specifications common to all models ........55 Hardware options ..............
  • Page 50 The GenICam standard consists of multiple modules that specify tasks to be solved. Allied Vision cameras and software make use of these modules, like the SFNC that standardizes feature names and types via an XML file or the transport layer interface )GenTL( that’s used to acquire images.
  • Page 51 Specifications Notes on specifications Manta CCD 1-Tap versus CMOS 2-Tap Manta CCD 1-Tap )“type A”(: Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 Manta CMOS 2- Tap )“type B”(: Manta G-040, G-158, G-223, G-235, G-282, G-283, G-319, G-419, G-505, G-507, G-895, G-917, G-1236, G-1620, G-2040, G-2460 Manta models up to serial number 503323258 For information regarding Manta models up to serial number 503323258, see the Appendix at the end of this user guide.
  • Page 52 Specifications Number of frames The number of frames ) StreamHoldCapacity ( depends on resolution, pixel format, and GVSP packet size. The stated number of frames is typical for full or Bayer8, and resolution, bytes per packet. Mono8 GevSCPSPacketSize 8192 Resolution and ROI frame rate ROI frame rate is listed after the specification table.
  • Page 53 Specifications Sensor tap mode (CCD models only) With dual-tap sensor mode you can achieve a higher frame rate than with one-tap mode. With one-tap sensor mode, you can achieve an image certain to be free of any tap-boundary artifacts. You can also use one-tap mode if you experience tap imbalance issues with your camera.
  • Page 54 Specifications CMOSIS/ams CMOS sensors The curves in the absolute QE plots shown in this chapter are taken from the sensor manufacturer data sheet. The information was correct at the time of publishing. Sensor specifications may change without notice. Wavelength The wavelength range in the absolute QE plots is based on the information available in the sensor manufacturer data sheet at the time of publishing.
  • Page 55 Specifications Specifications common to all models The following table provides specifications common to all Manta models. Feature Specification Default lens mount C-Mount Default optical filter • Mono models: Protection glass • Color models: Type Hoya C-5000 type IR cut filter •...
  • Page 56 Specifications Model specific specifications Manta G-031 series The following table provides model series specifications. The values are valid for Manta G-031B and G-031C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-031B Manta G-031C Sensor model Sony ICX618ALA...
  • Page 57 Specifications Specification Feature Manta G-031B Manta G-031C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 15 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 58 Specifications Absolute QE Figure 2: Manta G-031 (Sony ICX618) absolute QE Spectral response Figure 3: Manta G-031 (Sony ICX618) spectral response Manta User Guide V8.2.7...
  • Page 59 Specifications ROI frame rate Max. frame rate -------------------------------------------------------------------------------------------------------------------------------------------------- –     15.7 µs ROI height 2.53 µs 492 ROI height 252.74 µs Maximum frame rate at full resolution according formula: 125.2 fps Width = 656 pixels ROI height [pixels] Figure 4: Manta G-031 frame rate as a function of ROI height Height Frame rate (fps)
  • Page 60 Specifications Manta G-032 series The following table provides model series specifications. The values are valid for Manta G-032B and G-032C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-032B Manta G-032C Sensor model Sony ICX424AL Sony ICX424AQ Resolution...
  • Page 61 Specifications Specification Feature Manta G-032B Manta G-032C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 283 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 62 Specifications Absolute QE Figure 5: Manta G-032 (Sony ICX424) absolute QE Spectral response Figure 6: Manta G-032 (Sony ICX424) spectral response Manta User Guide V8.2.7...
  • Page 63 Specifications ROI frame rate Max. frame rate -------------------------------------------------------------------------------------------------------------------------------------------------- –     24.34 µs ROI height 3.01 µs 492 ROI height 495.5 µs Maximum frame rate at full resolution according formula: 80.7 fps Width = 656 pixels ROI height [pixels] Figure 7: Manta G-032 frame rate as a function of ROI height Height Frame rate (fps)
  • Page 64 Specifications Manta G-033 series The following table provides model series specifications. The values are valid for Manta G-033B and G-033C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-033B Manta G-033C Sensor model Sony ICX414AL Sony ICX414AQ Resolution...
  • Page 65 Specifications Specification Feature Manta G-033B Manta G-033C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 93 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 66 Specifications Absolute QE Figure 8: Manta G-033 (Sony ICX414) absolute QE Spectral response Figure 9: Manta G-033 (Sony ICX414) spectral response Manta User Guide V8.2.7...
  • Page 67 Specifications ROI frame rate Max. frame rate -------------------------------------------------------------------------------------------------------------------------------------------------- –     22.49 µs ROI height 1.51 µs 492 ROI height 198.4 µs Maximum frame rate at full resolution according formula: 88.7 fps 1080 Width = 656 pixels ROI height [pixels] Figure 10: Manta G-033 frame rate as a function of ROI height Height Frame rate (fps)
  • Page 68 Specifications Manta G-040 series The following table provides model series specifications. The values are valid for Manta G-040B and G-040C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-040B Manta G-040C Sensor model Sony IMX287LLR Exmor Sony IMX287LQR Exmor Resolution...
  • Page 69 Specifications Specification Feature Manta G-040B Manta G-040C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 16.32 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 21.84 µs YUV422Packed RGB8Packed, BGR8Packed, 32.64 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, ±2.72 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, ±3.64 µs YUV422Packed...
  • Page 70 Specifications Imaging performance Measurement Symbol Manta G-040B Manta G-040C  Quantum efficiency at 448 nm 49 %  Quantum efficiency at 529 nm 64 % 58 %  Quantum efficiency at 632 nm 54 % Inverse of overall system gain —...
  • Page 71 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX287 absolute QE 1000 Wavelength [nm] Figure 11: Manta G-040 (Sony IMX287) absolute QE Spectral response Figure 12: Manta G-040 (Sony IMX287) spectral response Manta User Guide V8.2.7...
  • Page 72 Specifications ROI frame rate 3950 Width = 728 pixels 3555 3160 2765 2370 1975 1580 1185 ROI height [pixels] Figure 13: Manta G-040 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 286.3 1120.8...
  • Page 73 Specifications Manta G-046 series The following table provides model series specifications. The values are valid for Manta G-046B and G-046C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-046B Manta G-046C Sensor model Sony ICX415AL Sony ICX415AQ Resolution...
  • Page 74 Specifications Specification Feature Manta G-046B Manta G-046C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 114 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 75 Specifications Absolute QE Figure 14: Manta G-046 (Sony ICX415) absolute QE Spectral response Figure 15: Manta G-046 (Sony ICX415) spectral response Manta User Guide V8.2.7...
  • Page 76 Specifications ROI frame rate Max. frame rate ------------------------------------------------------------------------------------------------------------------------------------------------- - –     25.14µs ROI height 1.75µs 580 ROI height 224.03µs Maximum frame rate at full resolution according formula: 67.5 fps Width = 780 pixels ROI height [pixels] Figure 16: Manta G-046 frame rate as a function of ROI height Height Frame rate (fps) Height...
  • Page 77 Specifications Manta G-125 series The following table provides model series specifications. The values are valid for Manta G-125B and G-125C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-125B Manta G-125C Sensor model Sony ICX445ALA Sony ICX445AQA Resolution...
  • Page 78 Specifications Specification Feature Manta G-125B Manta G-125C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 63 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 79 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX445 absolute QE 1000 Wavelength [nm] Figure 17: Manta G-125 (Sony ICX445) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX445 spectral response 0.2000 0.1000 0.0000...
  • Page 80 Specifications ROI frame rate Max. frame rate -------------------------------------------------------------------------------------------------------------------------------------------------- -    –  33.21µs ROI height 5.04µs 964 ROI height 226.52µs Maximum frame rate at full resolution according formula: 31 fps Width = 1292 pixels 1000 ROI height [pixels] Figure 19: Manta G-125 frame rate as a function of ROI height plot Height Frame rate (fps)
  • Page 81 Specifications Manta G-145 series The following table provides model series specifications. The values are valid for Manta G-145B and G-145C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-145B Manta G-145C Sensor model Sony ICX285AL Sony ICX285AQ Resolution...
  • Page 82 Specifications Specification Feature Manta G-145B Manta G-145C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 106 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 83 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX285 absolute QE 1000 Wavelength [nm] Figure 20: Manta G-145 (Sony ICX285) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX285 spectral response 0.2000 0.1000 0.0000...
  • Page 84 Specifications ROI frame rate Max. frame rate -----------------------------------------------------------------------------------------------------------------------------------------------------    –  63.39µs ROI height 5.86µs 1038 ROI height 491.75µs Maximum frame rate at full resolution according formula: 15 fps Width = 1388 pixels 1050 ROI height [pixels] Figure 22: Manta G-145 frame rate as a function of ROI height Height Frame rate (fps) Height...
  • Page 85 Specifications Manta G-145-30fps series The following table provides model series specifications. The values are valid for Manta G-145B-30fps and G-145C-30fps models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-145B-30fps Manta G-145C-30fps Sensor model Sony ICX285AL Sony ICX285AQ Resolution...
  • Page 86 Specifications Specification Feature Manta G-145B-30fps Manta G-145C-30fps Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 35 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 87 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX285 absolute QE 1000 Wavelength [nm] Figure 23: Manta G-145-30fps (Sony ICX285) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX285 spectral response 0.2000 0.1000 0.0000...
  • Page 88 Specifications ROI frame rate Max. frame rate ------------------------------------------------------------------------------------------------------------------------------------------------- -    –  31.7µs ROI height 4.71µs 1038 ROI height 245.88µs Maximum frame rate at full resolution according formula: 30.1 fps Width = 1388 pixels 1050 ROI height [pixels] Figure 25: Manta G-145-30fps frame rate as a function of ROI height Height Frame rate (fps)
  • Page 89 Specifications Manta G-145B NIR The following table provides model specifications. The values are valid for Manta G-145B NIR. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-145B NIR Sensor model Sony ICX285AL Resolution 1388 )H( ×...
  • Page 90 Specifications Specification Feature Manta G-145B NIR Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: • Idle state: the sensor is ready, and the camera is idle. The camera is waiting for the next trigger. •...
  • Page 91 Specifications Absolute QE Manta G-145B NIR Manta G-145B Wavelength [nm] Figure 26: Manta G-145B NIR (Sony ICX285) absolute QE (NirMode=On_Fast or On_HighQuality) compared to Manta G-145B Increase of relative response Regression curve Wavelength [nm] Figure 27: Increase of relative response with NIR mode set to On_HighQuality Manta User Guide V8.2.7...
  • Page 92 Specifications ROI frame rate Max. frame rate --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- -    –  MAX(63.39 µs ROI height 11.46 µs 1038 ROI height 644 µs MIN(4300;Expotime);Expotime 142.86 µs) Max. frame rate --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- - –     63.39 µs ROI height 11.4 µs 1038 ROI height (5653.89 + Expotime)µs...
  • Page 93 Specifications ROI height 1038 14.1 14.1 13.9 13.2 14.9 14.9 14.8 13.9 17.6 17.6 17.4 16.2 21.8 19.9 19.9 19.6 18.1 11.9 26.6 23.9 23.9 23.5 21.3 13.2 34.2 29.8 29.8 29.2 25.9 14.8 39.9 34.1 30.1 33.2 29.1 15.8 53.2 43.3 30.1...
  • Page 94 Specifications Manta G-146 series The following table provides model series specifications. The values are valid for Manta G-146B and G-146C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-146B Manta G-146C Sensor model Sony ICX267AL Sony ICX267AK Resolution...
  • Page 95 Specifications Specification Feature Manta G-146B Manta G-146C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 88 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 96 Specifications Absolute QE Figure 29: Manta G-146 (Sony ICX267) absolute QE Spectral response Figure 30: Manta G-146 (Sony ICX267) spectral response Manta User Guide V8.2.7...
  • Page 97 Specifications ROI frame rate Max. frame rate --------------------------------------------------------------------------------------------------------------------------------------------------- - –     53.54 µs ROI height 10.46 µs 1038 ROI height 352µs Maximum frame rate at full resolution according formula: 17.8 fps Width = 1388 pixels 1050 ROI height [pixels] Figure 31: Manta G-146 frame rate as a function of ROI height Height Frame rate (fps)
  • Page 98 Specifications Manta G-158 series The following table provides model series specifications. The values are valid for Manta G-158B and G-158C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-158B Manta G-158C Sensor model Sony IMX273LLR Exmor Sony IMX273LQR Exmor Resolution...
  • Page 99 Specifications Specification Feature Manta G-158B Manta G-158C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 29.76 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 39.6 µs YUV422Packed RGB8Packed, BGR8Packed, 59.52 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, ±4.96 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, ±6.6 µs YUV422Packed...
  • Page 100 Specifications Imaging performance Measurement Symbol Manta G-158B Manta G-158C  Quantum efficiency at 448 nm 48 %  Quantum efficiency at 529 nm 64 % 57 %  Quantum efficiency at 632 nm 52 % Inverse of overall system gain —...
  • Page 101 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX273 absolute QE 1000 Wavelength [nm] Figure 32: Manta G-158 (Sony IMX273) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX273 spectral response 0.3000 0.2000 0.1000...
  • Page 102 Specifications ROI frame rate 2150 1935 Width = 1456 pixels 1720 1505 1290 1075 1000 1100 ROI height [pixels] Figure 34: Manta G-158 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 1088 75.2...
  • Page 103 Specifications Manta G-201 series The following table provides model series specifications. The values are valid for Manta G-201B and G-201C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-201B Manta G-201C Sensor model Sony ICX274AL Sony ICX274AQ Resolution...
  • Page 104 Specifications Specification Feature Manta G-201B Manta G-201C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 60 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g Manta G-201B supports RGB8Packed and BGR8Packed only It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 105 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX274 absolute QE 1000 Wavelength [nm] Figure 35: Manta G-201 (Sony ICX274) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX274 spectral response 0.2000 0.1000 0.0000...
  • Page 106 Specifications ROI frame rate Max. frame rate -------------------------------------------------------------------------------------------------------------------------------------------------------- -    –  54.81 µs ROI height 7.14 µs 1234 ROI height 340.03 µs Maximum frame rate at full resolution according formula: 14.7 fps Width = 1624 pixels 1000 1125 1250 ROI height [pixels]...
  • Page 107 Specifications Manta G-201-30fps series The following table provides model series specifications. The values are valid for Manta G-201B-30fps and G-201C-30fps models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-201B-30fps Manta G-201C-30fps Sensor model Sony ICX274AL Sony ICX274AQ Resolution...
  • Page 108 Specifications Specification Feature Manta G-201B-30fps Manta G-201C-30fps Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 72 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g Manta G-201C-30fps support RGB8Packed and BGR8Packed only It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 109 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX274 absolute QE 1000 Wavelength [nm] Figure 38: Manta G-201-30fps (Sony ICX274) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX274 spectral response 0.2000 0.1000 0.0000...
  • Page 110 Specifications ROI frame rate Max. frame rate ------------------------------------------------------------------------------------------------------------------------------------------------------- - –     26.87 µs ROI height 2.84 µs 1234 ROI height 178.72 µs Maximum frame rate at full resolution according formula: 30 fps Width = 1624 pixels 1000 1125 1250 ROI height [pixels]...
  • Page 111 Specifications Manta G-223 series The following table provides model series specifications. The values are valid for Manta G-223B and G-223C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-223B Manta G-223C Sensor model CMOSIS/ams CMV2000 with microlens Resolution 2048 )H( ×...
  • Page 112 Specifications Specification Feature Manta G-223B Manta G-223C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 69 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 113 Specifications Absolute QE Green Blue Monochrome CMOSIS/AMS CMV2000, CMV4000 absolute QE 1000 1100 Wavelength [nm] Figure 41: Manta G-223 (CMOSIS/ams CMV2000) absolute QE Spectral response Green Blue Monochrome 0.400 CMOSIS/AMS CMV2000, CMV4000 spectral response 0.350 0.300 0.250 0.200 0.150 0.100 0.050 0.000 1000...
  • Page 114 Specifications ROI frame rate 5000 4450 Width = 2048 pixels 3900 3350 2800 2250 1700 1150 1000 1100 ROI height [pixels] Figure 43: Manta G-223 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 1088...
  • Page 115 Specifications Manta G-235 series The following table provides model series specifications. The values are valid for Manta G-235B and G-235C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-235B Manta G-235C Sensor model Sony IMX174LLJ Exmor Sony IMX174LQJ Exmor Resolution...
  • Page 116 Specifications Specification Feature Manta G-235B Manta G-235C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 40.32 µs BayerRG12, BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 53.76 µs YUV422Packed RGB8Packed, BGR8Packed, 80.64 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, 6.72 µs ±...
  • Page 117 Specifications Imaging performance Measurement Symbol Manta G-235B Manta G-235C  Quantum efficiency at 448 nm 58 %  Quantum efficiency at 529 nm 70 % 64 %  Quantum efficiency at 632 nm 47 % Inverse of overall system gain —...
  • Page 118 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX174 absolute QE 1000 Wavelength [nm] Figure 44: Manta G-235 (Sony IMX174) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX174 spectral response 0.3000 0.2000 0.1000...
  • Page 119 Specifications ROI frame rate 1820 1638 Width = 1936 pixels 1456 1274 1092 1050 1225 ROI height [pixels] Figure 46: Manta G-235 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) 1216 50.8 320.7 1080 467.9...
  • Page 120 Specifications Manta G-282 series The following table provides model series specifications. The values are valid for Manta G-282B and G-282C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-282B Manta G-282C Sensor model Sony ICX687ALA Sony ICX687AQA Resolution...
  • Page 121 Specifications Specification Feature Manta G-282B Manta G-282C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 47 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 122 Specifications Absolute QE Figure 47: Manta G-282 (Sony ICX687) absolute QE Spectral response Figure 48: Manta G-282 (Sony ICX687) spectral response Manta User Guide V8.2.7...
  • Page 123 Specifications ROI frame rate Max. frame rate ----------------------------------------------------------------------------------------------------------------------------------------------------    –  22.27µs ROI height 4.36µs 1459 ROI height 221.78µs Maximum frame rate at full resolution according formula: 30.4 fps Width = 1936 pixels Dual tap mode 1200 1500 ROI height [pixels] Figure 49: Manta G-282 frame rate as a function of ROI height Height...
  • Page 124 Specifications Manta G-283 series The following table provides model series specifications. The values are valid for Manta G-283B and G-283C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-283B Manta G-283C Sensor model Sony ICX674ALG Sony ICX674AQG Resolution...
  • Page 125 Specifications Specification Feature Manta G-283B Manta G-283C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 47 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 126 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX674 absolute QE 1000 Wavelength [nm] Figure 50: Manta G-283 (Sony ICX674) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX674 spectral response 0.2000 0.1000 0.0000...
  • Page 127 Specifications ROI frame rate Max. frame rate ------------------------------------------------------------------------------------------------------------------------------------------------------- -    –  22.27 µs ROI height 4.36 µs 1459 ROI height 221.78 µs Maximum frame rate at full resolution according formula: 30.4 fps Width = 1936 pixels Dual tap mode 1200 1500 ROI height [pixels]...
  • Page 128 Specifications Manta G-319 series The following table provides model series specifications. The values are valid for Manta G-319B and G-319C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-319B Manta G-319C Sensor model Sony IMX265LLR Exmor Sony IMX265LQR Exmor Resolution...
  • Page 129 Specifications Specification Feature Manta G-319B Manta G-319C RGB8Packed, BGR8Packed, 84.48 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, 7.04 µs ± BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 9.36 µs ± YUV422Packed RGB8Packed, BGR8Packed, 14.08 µs ± YUV444Packed Pixel format Value Time between exposures Mono8, Mono12Packed, BayerRG8, µs...
  • Page 130 Specifications Imaging performance Measurement Symbol Manta G-319B Manta G-319C  Quantum efficiency at 448 nm 48 %  Quantum efficiency at 529 nm 64 % 58 %  Quantum efficiency at 632 nm 52 % Inverse of overall system gain —...
  • Page 131 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Blue QE Green QE Red QE Monochrome QE Sony IMX265 absolute QE Sony IMX265 absolute QE 1000 Wavelength [nm] 1000 Wavelength [nm] Figure 53: Manta G-319 (Sony IMX265) absolute QE Spectral response Blue Response Green Response...
  • Page 132 Specifications ROI frame rate 1950 Width = 2046 pixels 1755 1560 1365 1170 1085 1240 1395 1550 ROI height [pixels] Figure 55: Manta G-319 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) 1544 37.6 158.1...
  • Page 133 Specifications Manta G-419 series The following table provides model series specifications. The values are valid for Manta G-419B and G-419C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-419B Manta G-419C Sensor model CMOSIS/ams CMV4000 Resolution 2048 )H( ×...
  • Page 134 Specifications Specification Feature Manta G-419B Manta G-419C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 107 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 135 Specifications Absolute QE Green Blue Monochrome CMOSIS/AMS CMV2000, CMV4000 absolute QE 1000 1100 Wavelength [nm] Figure 56: Manta G-419 (CMOSIS/ams CMV4000) absolute QE Spectral response Green Blue Monochrome 0.400 CMOSIS/AMS CMV2000, CMV4000 spectral response 0.350 0.300 0.250 0.200 0.150 0.100 0.050 0.000 1000...
  • Page 136 Specifications ROI frame rate 5000 Width = 2048 pixels 4500 4000 3500 3000 2500 2000 1500 1000 1200 1500 1800 2100 ROI height [pixels] Figure 58: Manta G-419 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height...
  • Page 137 Specifications Manta G-419B NIR The following table provides Manta G-419B NIR specifications. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-419B NIR Sensor model CMOSIS/ams CMV4000 Resolution 2048 )H( × 2048 )V(; 4.2 MP Shutter type Global shutter Sensor type...
  • Page 138 Specifications Imaging performance Measurement Symbol Manta G-419B NIR  Quantum efficiency at 529 nm 77 %  Quantum efficiency at 850 nm 40 % Inverse of overall system gain — 1⁄K 2.4 e Temporal dark noise  — 9.5 e Dark signal non-uniformity )DSNU ...
  • Page 139 Specifications Absolute QE Monochrome CMOSIS/AMS CMV2000-NIR, CMV4000-NIR absolute QE 1000 1100 Wavelength [nm] Figure 59: Manta G-419B NIR (CMOSIS/ams CMV4000) absolute QE Spectral response Monochrome CMOSIS/AMS CMV2000-NIR, CMV4000-NIR spectral response 1000 1100 Wavelength [nm] Figure 60: Manta G-419B NIR (CMOSIS/ams CMV4000) spectral response Manta User Guide V8.2.7...
  • Page 140 Specifications ROI frame rate 5000 Width = 2048 pixels 4500 4000 3500 3000 2500 2000 1500 1000 1200 1500 1800 2100 ROI height [pixels] Figure 61: Manta G-419B NIR frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height...
  • Page 141 Specifications Manta G-504 series The following table provides model series specifications. The values are valid for Manta G-504B and G-504C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-504B Manta G-504C Sensor model Sony ICX655AL Sony ICX655AQ Resolution...
  • Page 142 Specifications Specification Feature Manta G-504B Manta G-504C Pixel format Value Time between exposures Mono8, BayerGB8, Mono12Packed, 29 µs BayerGB12Packed, YUV411Packed Camera dimensions 86.4 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 210 g; Non-PoE model: 200 g It’s possible to start the exposure of the next frame while the previous frame is read out: •...
  • Page 143 Specifications Absolute QE Figure 62: Manta G-504 (Sony ICX655) absolute QE Spectral response Figure 63: Manta G-504 (Sony ICX655) spectral response Manta User Guide V8.2.7...
  • Page 144 Specifications ROI frame rate Max. frame rate ---------------------------------------------------------------------------------------------------------------------------------------------------------- -    –  52.55 µs ROI height 10.27 µs 2056 ROI height 295.62 µs Maximum frame rate at full resolution according formula: 9.2 fps Width = 2452 pixels 1200 1500 1800 2100...
  • Page 145 Specifications Manta G-505 series The following table provides model series specifications. The values are valid for Manta G-505B and G-505C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-505B Manta G-505C Sensor model Sony ICX625ALA Sony ICX625AQA Resolution...
  • Page 146 Specifications Specification Feature Manta G-505B Manta G-505C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 76 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 147 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX625 absolute QE 1000 Wavelength [nm] Figure 65: Manta G-505 (Sony ICX625) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.3000 Sony ICX625 spectral response 0.2000 0.1000 0.0000...
  • Page 148 Specifications ROI frame rate Max. frame rate ----------------------------------------------------------------------------------------------------------------------------------------------------- –     32,18µs ROI height 8,81µs 2056 ROI height 321,82µs Maximum frame rate at full resolution according formula: 15 fps Width = 2452 pixels Dual tap mode 1200 1500 1800 2100 ROI height [pixels]...
  • Page 149 Specifications Manta G-507 series The following table provides model series specifications. The values are valid for Manta G-507B and G-507C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-507B Manta G-507C Sensor model Sony IMX264LLR Exmor Sony IMX264LQR Exmor Resolution...
  • Page 150 Specifications Specification Feature Manta G-507B Manta G-507C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 49.92 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, YUV422Packed 66.48 µs RGB8Packed, BGR8Packed, 99.84 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, 8.32 µs ± BayerRG12Packed, YUV411Packed Mono12, BayerRG12, YUV422Packed 11.08 µs...
  • Page 151 Specifications Imaging performance Measurement Symbol Manta G-507B Manta G-507C  Quantum efficiency at 448 nm 48 %  Quantum efficiency at 529 nm 64 % 58 %  Quantum efficiency at 632 nm 53 % Inverse of overall system gain —...
  • Page 152 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX264 absolute QE 1000 Wavelength [nm] Figure 68: Manta G-507 (Sony IMX264) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX264 spectral response 0.3000 0.2000 0.1000...
  • Page 153 Specifications ROI frame rate 1650 Width = 2464 pixels 1485 1320 1155 1200 1500 1800 2100 ROI height [pixels] Figure 70: Manta G-507 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 2056 23.7...
  • Page 154 Specifications Manta G-895 series The following table provides model series specifications. The values are valid for Manta G-895B and G-895C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-895B Manta G-895C Sensor model Sony IMX267LLR Exmor Sony IMX267LQR Exmor Resolution...
  • Page 155 Specifications Specification Feature Manta G-895B Manta G-895C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 83.52 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 111.12 µs YUV422Packed RGB8Packed, BGR8Packed, 167.04 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, 13.92 µs ± BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 18.52 µs...
  • Page 156 Specifications Imaging performance Measurement Symbol Manta G-895B Manta G-895C  Quantum efficiency at 448 nm 47 %  Quantum efficiency at 529 nm 63 % 56 %  Quantum efficiency at 632 nm 51 % Inverse of overall system gain —...
  • Page 157 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX267 absolute QE 1000 Wavelength [nm] Figure 71: Manta G-895 (Sony IMX267) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX267 spectral response 0.3000 0.2000 0.1000...
  • Page 158 Specifications ROI frame rate Width = 4112 pixels 1000 1200 1400 1600 1800 2000 2200 ROI height [pixels] Figure 73: Manta G-895 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 2176 13.4 36.4...
  • Page 159 Specifications Manta G-917 series The following table provides model series specifications. The values are valid for Manta G-917B and G-917C models. For specifications common to all models, see Specifications common to all models. Specification Feature Manta G-917B Manta G-917C Sensor model Sony ICX814ALG Sony ICX814AQG Resolution...
  • Page 160 Specifications Specification Feature Manta G-917B Manta G-917C Pixel format Value Time between exposures Mono8, BayerRG8, Mono12Packed, 47 µs BayerRG12Packed, YUV411Packed Camera dimensions 86.3 × 44 × 29 mm )L × W × H( Mass )typical( PoE model: 200 g; Non-PoE model: 190 g Temperature monitoring Available for main board only.
  • Page 161 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony ICX814 absolute QE 1000 Wavelength [nm] Figure 74: Manta G-917 (Sony ICX814) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony ICX814 spectral response 0.3000 0.2000 0.1000...
  • Page 162 Specifications ROI frame rate Max. frame rate ---------------------------------------------------------------------------------------------------------------------------------------------------- –     29.71µs ROI height 4.36µs 2207 ROI height 229.22µs Maximum frame rate at full resolution according formula: 10.1 fps Width = 3384 pixels Dual tap mode 1000 1250 1500 1750 2000...
  • Page 163 Specifications Manta G-1236 series The following table provides model series specifications. The values are valid for Manta G-1236B and G-1236C models. For specifications common to all models, Specifications common to all models. Specification Feature Manta G-1236B Manta G-1236C Sensor model Sony IMX304LLR Exmor Sony IMX304LQR Exmor Resolution...
  • Page 164 Specifications Specification Feature Manta G-1236B Manta G-1236C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 83.52 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 111.12 µs YUV422Packed RGB8Packed, BGR8Packed, 167.04 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, ±13.92 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, ±18.52 µs YUV422Packed...
  • Page 165 Specifications Imaging performance Measurement Symbol Manta G-1236B Manta G-1236C  Quantum efficiency at 448 nm 47 %  Quantum efficiency at 529 nm 64 % 57 %  Quantum efficiency at 632 nm 52 % Inverse of overall system gain —...
  • Page 166 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX304 absolute QE 1000 Wavelength [nm] Figure 77: Manta G-1236 (Sony IMX304) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX304 spectral response 0.3000 0.2000 0.1000...
  • Page 167 Specifications ROI frame rate Width = 4112 pixels 1240 1550 1860 2170 2480 2790 3100 ROI height [pixels] Figure 79: Manta G-1236 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 3008 9.73 1200...
  • Page 168 Specifications Manta G-1620 series The following table provides model series specifications. The values are valid for Manta G-1620B and G-1620C models. For specifications common to all models, Specifications common to all models. Specification Feature Manta G-1620B Manta G-1620C Sensor model Sony IMX542-AAMJ Sony IMX542-AAQJ Resolution...
  • Page 169 Specifications Specification Feature Manta G-1620B Manta G-1620C Pixel format Value Trigger latency Mono8, Mono12Packed, BayerRG8, 264.32 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, 351.68 µs YUV422Packed RGB8Packed, BGR8Packed, 528.64 µs YUV444Packed Pixel format Value Trigger jitter Mono8, Mono12Packed, BayerRG8, ±18.88 µs BayerRG12Packed, YUV411Packed Mono12, BayerRG12, ±25.12 µs YUV422Packed...
  • Page 170 Specifications Imaging performance Measurement Symbol Manta G-1620B Manta G-1620C  Quantum efficiency at 448 nm 46 %  Quantum efficiency at 529 nm 69 % 52 %  Quantum efficiency at 632 nm 40 % Inverse of overall system gain —...
  • Page 171 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 80: Manta G-1620 (Sony IMX542) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...
  • Page 172 Specifications ROI frame rate Width = 3040 pixels 750 1000 1250 1500 1750 2000 2250 2500 2750 3000 ROI height [pixels] Figure 82: Manta G-1620 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height Frame rate (fps) 3040...
  • Page 173 Specifications Manta G-2040 series The following table provides model series specifications. The values are valid for Manta G-2040B and G-2040C models. For specifications common to all models, Specifications common to all models. Specification Feature Manta G-2040B Manta G-2040C Sensor model Sony IMX541-AAMJ Sony IMX541-AAQJ Resolution...
  • Page 174 Specifications Specification Feature Manta G-2040B Manta G-2040C Pixel format Value Trigger latency 8/12-bit Mono8, Mono12Packed, BayerRG8, 224 µs BayerRG12Packed, YUV411Packed 16-bit Mono12, BayerRG12, 297.92 µs YUV422Packed 24-bit RGB8Packed, BGR8Packed, 448 µs YUV444Packed Pixel format Value Trigger jitter 8/12-bit Mono8, Mono12Packed, BayerRG8, ±16 µs BayerRG12Packed, YUV411Packed 16-bit...
  • Page 175 Specifications Imaging performance Measurement Symbol Manta G-2040B Manta G-2040C  Quantum efficiency at 448 nm 48 %  Quantum efficiency at 529 nm 70 % 54 %  Quantum efficiency at 632 nm 41 % Inverse of overall system gain —...
  • Page 176 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 83: Manta G-2040 (Sony IMX541) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...
  • Page 177 Specifications ROI frame rate Width = 4512 pixels 750 1000 1250 1500 1750 2000 2250 2500 2750 3000 3250 3500 3750 4000 4250 4500 ROI height [pixels] Figure 85: Manta G-2040 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps)
  • Page 178 Specifications Manta G-2460 series The following table provides model series specifications. The values are valid for Manta G-2460B and G-2460C models. For specifications common to all models, Specifications common to all models. Specification Feature Manta G-2460B Manta G-2460C Sensor model Sony IMX540-AAMJ Sony IMX540-AAQJ Resolution...
  • Page 179 Specifications Specification Feature Manta G-2460B Manta G-2460C Pixel format Value Trigger latency 8/12-bit Mono8, Mono12Packed, BayerRG8, 264.32 µs BayerRG12Packed, YUV411Packed 16-bit Mono12, BayerRG12, YUV422Packed 351.68 µs 24-bit RGB8Packed, BGR8Packed, 528.64 µs YUV444Packed Pixel format Value Trigger jitter 8/12-bit Mono8, Mono12Packed, BayerRG8, ±18.88 µs BayerRG12Packed, YUV411Packed 16-bit...
  • Page 180 Specifications Imaging performance Measurement Symbol Manta G-2460B Manta G-2460C  Quantum efficiency at 448 nm 48 %  Quantum efficiency at 529 nm 70 % 54 %  Quantum efficiency at 632 nm 42 % Inverse of overall system gain —...
  • Page 181 Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 86: Manta G-2460 (Sony IMX540) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...
  • Page 182 Specifications ROI frame rate Width = 4608 pixels 1000 1250 1500 1750 2000 2250 2500 2750 3000 3250 3500 3750 4000 4250 4500 ROI height [pixels] Figure 88: Manta G-2460 frame rate as a function of ROI height Height Frame rate (fps) Height Frame rate (fps) Height...
  • Page 183 Manta models. A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation webpage. Manta Type A models Image optimization features Image optimization features ✔...
  • Page 184 Specifications Camera control features Camera control features Action commands, incl. ToE )trigger over Ethernet( ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Auto iris )video type( ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Event channel ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Image chunk data ✔...
  • Page 185 Specifications Manta Type B models Image optimization features Image optimization features ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Auto exposure ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Auto gain ✔...
  • Page 186 Specifications Camera control features Camera control features ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Action commands, incl. ToE )trigger over Ethernet( ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Auto iris )video type( ✔...
  • Page 187 Mechanical dimensions Find CAD drawings and dimensions, values for maximum protrusion and filter diameter. Learn about sensor position accuracy. Contents: Tripod adapter..............188 Manta type A camera dimensions ........189 Manta type B camera dimensions ........204 Sensor position accuracy ............ 218 Manta User Guide V8.2.7...
  • Page 188 Mechanical dimensions Tripod adapter The tripod adapter )Allied Vision order code 5153( can be used for Manta cameras )type A and type B( and is designed for standard housings. 62.4 3.4 (4x) M6, 5 mm thread depth (2x) UNC 1/4-20, 6 mm thread depth Figure 89: Tripod adapter dimensions Manta User Guide V8.2.7...
  • Page 189 Mechanical dimensions Manta type A camera dimensions Standard housing with C-Mount (default) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M3 - 3 (7x) 62.4 13.4 M2 - 4.5 (4x) 10.5 27.5 15.8 15.1 C-Mount M3 - 3 (4x) 80.1 86.4...
  • Page 190 Mechanical dimensions Angled-head housings W90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M3 - 3 (7x) 62.5 32.8 + 0.3 27.5 13.4 M2 - 4.5 (4x)
  • Page 191 Mechanical dimensions W90 S90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. The sensor is also rotated 90 degrees clockwise. Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 62.5 M3 - 3 (7x) 47.8 + 0.3...
  • Page 192 Mechanical dimensions W270 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 62.5 M3 - 3 (7x) C-Mount 32.8 M2 - 4.5 (4x) 10.5 + 0.3 - 0.0...
  • Page 193 Mechanical dimensions W270 S90 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. The sensor is also rotated 90 degrees clockwise. Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 62.5 M3 - 3 (7x) C-Mount 47.8...
  • Page 194 Mechanical dimensions Board level models Board level with C-Mount (non-PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 13-pole I/O connector: 1 = GND (for RS232, Ext PWR) 7 = GND (for Inputs) Flex cable length: ----------------------------- 2 = Ext PWR input 8 = RxD 9 = TxD Molex PicoBlade...
  • Page 195 Mechanical dimensions Board level with C-Mount (PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 13-pole I/O connector: 1 = GND (for RS232, Ext PWR) 7 = GND (for Inputs) Flex cable length: ----------------------------- 2 = Ext PWR input 8 = RxD 9 = TxD Molex PicoBlade FFC45 L = 56 mm K7500307...
  • Page 196 Mechanical dimensions Board level with C-Mount (non-PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×12 ISO4762 (2x) Front ange M2×8 ISO4762 (4x) Filter ring with lter or protec on glass Spacer 6.3 mm (2x) M2×4 ISO4762-A2 (2x) Spacer M2x5 (4x) M2×4 ISO7046-A2 (4x) Figure 97: Manta type A board level C-Mount (non-PoE models) dimensions...
  • Page 197 Mechanical dimensions Board level with C-Mount (PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×16 ISO4762 (2x) M2×10 ISO4762 (2x) Spacer 6.3 mm (2x) M2×8 ISO4762 (4x) Front Filter rin with lter or protec Spacer M2×5 (4x) M2×3 ISO7046 (4x) Figure 98: Manta type A board level C-Mount (PoE models) dimensions Manta User Guide V8.2.7...
  • Page 198 Mechanical dimensions Board level with CS-Mount (non-PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×12 ISO4762 (2x) Front ange M2×8 ISO4762 (4x) Spacer 6.3 mm (2x) Filter ring with ter or protec on glass M2×4 ISO4762-A2 (2x) Spacer M2×5 (4x) M2×4 ISO7046-A2 (4x) Figure 99: Manta type A board level CS-Mount (non-PoE models) dimensions...
  • Page 199 Mechanical dimensions Board level with CS-Mount (PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×16 ISO4762 (2x) M2×10 ISO4762 (2x) Spacer 6.3 mm (2x) Front ange M2×8 ISO4762 (4x) Filter ring with ter or protec on glass Spacer M2×5 (4x) M2×3 ISO7046 (4x) Figure 100: Manta type A board level CS-Mount (PoE models) dimensions...
  • Page 200 Mechanical dimensions Board level with M12-Mount (non-PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×12 ISO4762 (2x) Front ange * M2×8 ISO4762 (4x) Spacer 6.3 mm (2x) Filter ring with ter or protec on glass * M2×4 ISO4762-A2 (2x) M12 mount * Locking ring *...
  • Page 201 Mechanical dimensions Board level with M12-Mount (PoE models) Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, G-504 M2×16 ISO4762 (2x) M2×10 ISO4762 (2x) Spacer 6.3 mm (2x) Front ange * M2×8 ISO4762 (4x) Filter ring with lter or protec glass * M12 mount * Locking ring *...
  • Page 202 Maximum protrusion is the distance from lens flange to the filter or protection glass in the camera. Protection glass and filter options Allied Vision offers several filter options for both monochrome and color Manta models. Choose protection glass or filter according to the Modular Concept. Maximum Filter or protec on glass protrusion: 9.7...
  • Page 203 Maximum protrusion is the distance from lens flange to the filter or protection glass in the camera. Protection glass and filter options Allied Vision offers several filter options for both monochrome and color Manta models. Choose protection glass or filter according to the Modular Concept. Maximum...
  • Page 204 Mechanical dimensions Manta type B camera dimensions Standard housing with C-Mount (default) Manta G-040, G-158, G-223, G-235, G-282, G-283, G-319, G-419, G-505, G-507, G-895, G-917, G-1236, G-1620, G-2040, G-2460 Figure 105: Manta type B standard housing C-Mount dimensions Manta User Guide V8.2.7...
  • Page 205 Mechanical dimensions Angled-head housings W90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. Manta G-040, G-158, G-223, G-235, G-319, G-419, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M3 - 3 (4x) 62.5 32.8 27.5 69.1...
  • Page 206 Mechanical dimensions W90 S90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. The sensor is also rotated 90 degrees clockwise. Manta G-040, G-158, G-223, G-235, G-319, G-419, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M3 - 3 (4x)
  • Page 207 Mechanical dimensions W270 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. Manta G-040, G-158, G-223, G-235, G-319, G-419, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M3 - 3 (4x) 62.5 C-Mount 32.8 M2 - 4.5 (2x) 69.1...
  • Page 208 Mechanical dimensions W270 S90 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. The sensor is also rotated 90 degrees clockwise. Manta G-040, G-158, G-223, G-235, G-319, G-419, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M3 - 3 (4x)
  • Page 209 Mechanical dimensions Board level models Board level with C-Mount (PoE and non-PoE models) Manta G-223, G-235, G-419 13-pole I/O connector: 1 = GND 7 = GND (for Inputs) Flex cable length: Molex PicoBlade (for RS232, Ext PWR) 8 = RxD 9 = TxD ----------------------------- 2 = Ext PWR input (PWR output on demand) 10 = Power Input...
  • Page 210 Mechanical dimensions Manta G-040, G-158, G-319, G-507, G-895, G-1236, G-1620, G-2040, G-2460 13-pole I/O connector: 1 = GND Flex cable length: Molex PicoBlade (for RS232, Ext PWR) 8 = RxD 9 = TxD ----------------------------- FPC80 L = 60 mm 5568-01 FPC80 L = 110 mm 5569-01 Crimp Terminal 13 x 50079-8000...
  • Page 211 Mechanical dimensions Board level with C-Mount (PoE and non-PoE models) Manta G-223, G-235, G-419 M2×18 ISO7045 (3x) M2×8 ISO4762 (4x) Spacer 6.3 mm (2x) M2×10 ISO7045 Figure 112: Manta type B board level C-Mount (PoE and non-PoE) dimensions Manta G-040, G-158, G-319, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M2×10 ISO7045 Figure 113: Manta type B board level C-Mount (PoE and non-PoE) dimensions Manta User Guide V8.2.7...
  • Page 212 Mechanical dimensions Board level with CS-Mount (PoE and non-PoE models) Manta G-223, G-235, G-419 M2×18 ISO7045 (3x) M2×8 ISO4762 (4x) M2×10 ISO7045 Figure 114: Manta type B board level CS-Mount (PoE and non-PoE) dimensions Manta G-040, G-158, G-319, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M2×18 ISO7045 (3x) M2×8 ISO4762 (4x) M2×10 ISO7045...
  • Page 213 Mechanical dimensions Board level with M12-Mount (PoE and non-PoE models) Manta G-223, G-235, G-419 M2×18 ISO7045 (3x) Spacer 6.3 mm (2x) M12-Mount adapter* M2×8 ISO4762 (4x) Locking ring* M2×10 ISO7045 Figure 116: Manta type B board level M12-Mount (non-PoE and PoE) dimensions Manta G-040, G-158, G-319, G-507, G-895, G-1236, G-1620, G-2040, G-2460 M2×18 ISO7045 (3x) Spacer 6.3 mm (2x)
  • Page 214 Maximum protrusion is the distance from lens flange to the filter or protection glass in the camera. Protection glass and filter options Allied Vision offers several filter options for both monochrome and color Manta models. Choose protection glass or filter according to the Modular Concept Manta G-040, G-158, G-235, G-319, G-507 Filter or Protection glass diameter: 16 mm Maximum protrusion: 9.7 mm...
  • Page 215 22 mm diameter filter or protection glass. All other Manta type B models are equipped with a 16 mm diameter filter or protection glass. Dimensional mount adjustment Dimensional mount adjustment cannot be done by the customer. If you need any mount related adjustments, contact Allied Vision support. Manta User Guide V8.2.7...
  • Page 216 Maximum protrusion is the distance from lens flange to the filter or protection glass in the camera. Protection glass and filter options Allied Vision offers several filter options for both monochrome and color Manta models. Choose protection glass or filter according to the Modular Concept Manta G-040, G-158, G-235, G-319, G-507...
  • Page 217 22 mm diameter filter or protection glass. All other Manta type B models are equipped with a 16 mm diameter filter or protection glass. Dimensional mount adjustment Dimensional mount adjustment cannot be done by the customer. If you need any mount related adjustments, contact Allied Vision support. Manta User Guide V8.2.7...
  • Page 218 Mechanical dimensions Sensor position accuracy Camera body Camera body Pixel area Pixel area Sensor case Sensor case Figure 122: Sensor position accuracy Unless stated otherwise, the following values are applicable: Criteria Subject Properties Alignment method Optical alignment of photo sensitive sensor area into camera front module )lens mount front flange(.
  • Page 219 Filter and lenses The chapter includes: Focal length versus field of view ......... 220 Optical filters ............... 233 Manta User Guide V8.2.7...
  • Page 220 This section presents tables that list selected fields of view )FOV( depending on sensor size, distance, and focal length of the lens. Contact your Allied Vision Sales team or your Allied Vision distribution partner for information on available lenses and accessories.
  • Page 221 Filter and lenses Model values Manta G-031 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-031B and G-031C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 2.8 mm 655 ×...
  • Page 222 Filter and lenses Manta G-033 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-033B and G-033C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 4.8 mm 660 ×...
  • Page 223 Filter and lenses Manta G-125 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-125B and G-125C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 4.0 mm 595 ×...
  • Page 224 Filter and lenses Manta G-146 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-146B and G-146C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 4.8 mm 660 ×...
  • Page 225 Filter and lenses Manta G-201 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-201B, G-201B-30fps, G-201C, and G-201C-30fps models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 4.8 mm 740 ×...
  • Page 226 Filter and lenses Manta G-235 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-235B and G-235C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 8 mm 698 ×...
  • Page 227 Filter and lenses Manta G-283 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-283B and G-283C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 4.8 mm 907 ×...
  • Page 228 Filter and lenses Manta G-419 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-419B, G-419B NIR, and G-419C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 8 mm 692 ×...
  • Page 229 Filter and lenses Manta G-505 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-505B and G-505C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 6 mm 700 ×...
  • Page 230 Filter and lenses Manta G-895 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-895B and G-895C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 12 mm 577 ×...
  • Page 231 Filter and lenses Manta G-1236 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-1236B and G-1236C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 12 mm 577 ×...
  • Page 232 Filter and lenses Manta G-2040 series The following table provides the field of view for various focal lengths. The values are valid for Manta G-2040B and G-2040C models. Field of view Focal length Distance = 500 mm Distance = 1000 mm 6 mm 1018 ×...
  • Page 233 Filter and lenses Optical filters All color Manta cameras are equipped with a type Hoya C-5000 IR cut filter. This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR cut filter, images are dominated by red and incapable of being properly color balanced.
  • Page 234 Installing the camera Learn about the components required for your vision system including configuring the host computer, NIC settings, and connecting your Manta camera. Contents: Touching hot cameras ............235 Electrostatic discharge ............235 Board level cameras ............236 Mounting the camera ............237 Mounting the lens...............
  • Page 235 Installing the camera Touching hot cameras CAUTION Risk of burns A camera in operation can reach temperature levels which could cause burns. • Wear protective gloves when you touch a camera that is heated up. • Ensure proper cooling of the camera. Electrostatic discharge NOTICE ESD is dangerous for electronic devices, especially when tools or hands get in...
  • Page 236 Installing the camera Board level cameras NOTICE • Board level cameras are delivered without housing. Handle the sensor board and main board with care. Do not bend the boards. Do not touch the components or contacts on a board. Hold a board by its edges. •...
  • Page 237 Installing the camera Mounting the camera CAUTION Injury by falling cameras or lenses A falling camera or lens can cause injury. • Ensure proper mounting of cameras and lenses, especially for dynamic applications. • Mount cameras as described in the instructions. •...
  • Page 238 Some cleaning agents can damage this product. Avoid cleaning the image sensor unless absolutely necessary. See instructions on optics cleaning in this document. We can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support. Manta User Guide V8.2.7...
  • Page 239 Manta cameras offer various lens mounts for installing a lens including C-Mount, CS-Mount, and M12-Mount )S-Mount(. Lenses can be purchased directly from Allied Vision or from an Allied Vision distribution partner. Users need to select the desired focal length of the lens and appropriate optical format for the target camera model.
  • Page 240 Installing the camera IP settings After the initial NIC hardware installation, connect the NIC directly to the camera. The default configuration assigns an IP address automatically using the LLA )Link-Local Address( range of 169.254.xxx.xxx or an address defined by the DHCP )Dynamic Host Configuration Protocol( server, if present.
  • Page 241 For desktop systems, use a PCI Express bus NIC. For laptops, use an expansion slot via an ExpressCard. A list of recommended NICs is available on the Allied Vision website. See the Hardware Selection for Allied Vision GigE Cameras application note.
  • Page 242 Installing the camera Powering up the camera A camera power adapter for each Manta camera is available from Allied Vision. See the Specifications chapter for connector definition and voltage specifications. A 12 V power adapter with Hirose connector is available for purchase from Allied Vision: •...
  • Page 243 Cameras powered by both the Hirose I/O port and the Gigabit Ethernet port use the power provided by Hirose I/O port only. Please note the following when using PoE accessories with Allied Vision PoE-capable GigE cameras: • PoE-capable Manta cameras conform to the IEEE 802.3af standard for GigE.
  • Page 244 PoE powered, connect the Hirose cable to power the camera. Allied Vision software Software packages provided by Allied Vision are free of charge and contain such as: • Drivers • SDK for camera control and image acquisition •...
  • Page 245 • Lenses for corresponding sensor sizes and resolutions. For information on available lenses for your camera, see the Accessories webpage. A list of recommended accessories is available on the Allied Vision website. See the Hardware Selection for Allied Vision GigE Cameras application note at www.alliedvision.com/en/support/faqs-application-notes.
  • Page 246 Camera interfaces This chapter includes: Back panel ................247 Status LEDs ................247 Gigabit Ethernet port ............249 Camera I/O connections ............. 250 Auto Iris )video type( output description ......255 Control signals..............256 Trigger timing concept ............258 Manta User Guide V8.2.7...
  • Page 247 Camera interfaces Back panel Figure 126: Rear view of Manta type A cameras Hirose I/O port LED 3 )only for Manta type A models with PoE( LED 1 LED 2 Gigabit Ethernet port Table 7: Ports and LEDs Status LEDs Manta type A status LEDs The following tables describe the status LEDs of Manta type A model series: Manta G-031, G-032, G-033, G-046, G-125, G-145, G-146, G-201, and G-504.
  • Page 248 Camera interfaces LED 2 color Status Solid green Ethernet link with 100 Mbps established Flashing green Ethernet activity with 100 Mbps Table 9: Status LED 2 LED 3 color Status Solid green Camera is powered )Hirose or PoE( LED off No power Table 10: Status LED 3 Manta type B status LEDs...
  • Page 249 From serial number 503323258 on, all Manta models including PoE and board level models contain the same main board. Accessories Contact the Allied Vision Sales team or your local Allied Vision distribution partner for more information on available accessories. Manta User Guide V8.2.7...
  • Page 250 Camera interfaces Camera I/O connections The general purpose I/O port uses a Hirose HR10-10R-12PA)73( connector on the camera side. The mating cable connector is Hirose HR10A-10P-12S. Safety-related instructions to avoid malfunctions Read all Notes and Cautions in the Hardware and Installation chapter before using the Hirose I/O connector.
  • Page 251 Camera interfaces I/O connector pin assignment 4 5 6 Camera side Hirose HR10- 10R-12PA(73) connector I/O cable Signal Direction Level Description color code Camera GND GND for RS232 and Ground for camera Blue external power power supply and RS232 Camera 8 to 30 VDC Camera power supply Power...
  • Page 252 Camera interfaces For cable color and pin out information, see the Allied Vision I/O cable overview: www.alliedvision.com/fileadmin/content/documents/products/accessories/cable/ datasheet/IO-Cable_Overview_DataSheet.pdf. BLUE VIOLET GREY YELLOW GREEN BROWN WHITE BLACK ORANGE WHITE/BLACK WHITE/BROWN TRANSPARENT SHIELD Hirose HR10A Open End Figure 127: Manta cable color coding...
  • Page 253 Camera interfaces Input parameters Parameter Value )low( 0 to 1.0 V )high( 3 to 24 V Current )constant-current source( 3 to 4 mA Table 14: Input parameters Minimum pulse width The minimum pulse width for all Manta cameras is: 20 kHz Figure 129: Minimum pulse width Test conditions The input signal was driven with 3.3 V and no external additional series resistor.
  • Page 254 Camera interfaces NOTICE • Maximum 10 mA per output • Isolated out power > 30 V may damage the camera. Isolated out power Resistor value at  5 mA minimum required 1.0 kΩ current draw 12 V 2.4 kΩ 24 V 4.7 kΩ...
  • Page 255 Camera interfaces Test conditions Output: external 2.4 kΩ resistor to GND, isolated out power set to 12 V. Higher external values increase the times in the previous table. Auto Iris (video type) output description Manta cameras provide built-in video type auto iris controls. NOTICE The following schematic uses Camera POWER to power the video iris lens and assumes Camera POWER = 12 V.
  • Page 256 Camera interfaces Control signals The I/Os of the camera can be configured by software. The different modes are described in this section. Input block diagram Polarity selectable via so ware Input signal LP lter Optocoupler Input state Figure 133: Input block diagram I/O pin control All input and output signals running over the camera I/O connector are controlled by the I/O strobe commands.
  • Page 257 Camera interfaces Output signals Output signals are configured by software. Any signal can be placed on any output. The main output signals are described in the following table. Signal Description Configured to be a general purpose output, control of which is assigned to SyncOutGpoLevels AcquisitionTriggerReady Active after the camera has been recognized by the host computer and is...
  • Page 258 Camera interfaces Trigger timing concept Figure135 explains the general trigger concept. For more information on trigger timing and camera control, see the GigE Features Reference and Triggering Concept application note. Readout me Trigger latency Registered Exposure start delay exposure me User trigger Note: Ji er at the beginning Logic trigger...
  • Page 259 Camera interfaces Trigger rules • The user trigger pulse width must be at least 6 μs. • The end of exposure always trigger the next readout. • The end of exposure must always end after the current readout. • The start of exposure must always correspond with the interline time when readout is true.
  • Page 260 Image data flow Find diagrams that illustrate data flow and bit resolution of the image data. Contents: Manta model series with CCD sensors ....... 261 Manta model series with CMOS sensors......263 Color interpolation )Bayer demosaicing(......265 Manta User Guide V8.2.7...
  • Page 261 Image data flow A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation webpage. • Vimba and third-party users: GigE Features Reference • PvAPI users: GigE Camera and Driver Attributes document Manta model series with CCD sensors...
  • Page 262 Image data flow Manta G-282, G-283, G-505, G-917 series Vertical Binning Gain CCD Sensor Vertical ROI Analog Analog Analog Vertical Horizontal ROI Offset Decimation 14 bit 14 bit Analog Histogram Calculation Horizontal Horizontal Gamma Decimation White balance Binning 14 bit 14 bit 14 bit 12/14 bit...
  • Page 263 Image data flow Manta model series with CMOS sensors Manta G-223, G-419 series Vertical Sensor System CMOS Sensor Vertical ROI Decimation Gain Analog Analog Analog Internal sensor components Sensor System Horizontal ROI Offset Offset 12 bit Analog Analog Horizontal Gain Defect Mask White balance Decimation...
  • Page 264 Image data flow Manta G-040, G-158, G-235, G-319, G-507, G-895, G-1236, G-1620, G-2040, G-2460 series Reverse X/Y Reverse X/Y CMOS Sensor CMOS Sensor Vertical ROI Vertical ROI Gain Gain Offset Offset Analog Analog Analog Analog Analog Internal sensor components Vertical Vertical Horizontal Horizontal...
  • Page 265 Image data flow Color interpolation (Bayer demosaicing) The color sensors capture the color information via so-called primary color )R-G-B( filters placed over the individual pixels in a Bayer mosaic layout. An effective Bayer to RGB color interpolation already takes place in all Manta color version cameras. In color interpolation a red, green, or blue value is determined for each pixel.
  • Page 266 Image data flow In color interpolation a red, green, or blue value is determined for each pixel )P1= first pixel; P2= second pixel(. Only two lines are needed for this interpolation: Figure 142: Bayer demosaicing (interpolation) G1 G3 G1 G4 G2 G4 --------------------- - --------------------- -...
  • Page 267 Cleaning optical components Find safety instructions and cautions for cleaning lenses, optical filters, protection glass, and sensors. Contents: Keep optical components clean.......... 268 Identifying impurities............268 Locating impurities.............. 269 Materials for cleaning optical components ......270 Cleaning Instructions ............270 Manta User Guide V8.2.7...
  • Page 268 Read these instructions before you contact Allied Vision or your Allied Vision distribution partner for assistance. Contact Allied Vision or your Allied Vision distribution partner if you are not familiar with the procedures described in this chapter. Keep optical components clean The best way to ensure the camera remains clean is to avoid penetration of foreign substances into the camera.
  • Page 269 Cleaning optical components Don’t confuse this with a pixel defect which appears as a distinct point. Particles can either rest loosely or can be more or less stuck to the optical surface. Figure 145: Image with tiny dust on the filter (left) and dust on the sensor (right) Locating impurities Before you dismount the lens you must find out whether the impurity is on the filter, lens, or sensor.
  • Page 270 NOTICE Removing IR cut filter or protection glass To remove IR cut filter or protection glass use the special tool )Allied Vision order code E9020001 for 16 mm filter and order code 3851 for 22 mm filter(. Materials for cleaning optical components Use only these cleaning materials for optical components •...
  • Page 271 )as described earlier(. If you notice that the camera lens or sensor is not clean after attempting to clean twice, or if you have any questions regarding cleaning your camera, contact your Allied Vision distribution partner. Manta User Guide V8.2.7...
  • Page 272 Cleaning optical components Cleaning with compressed air Allied Vision does not recommend cleaning Manta cameras with compressed air. Figure 146: Don’t use compressed air NOTICE Possible material damage • Compressed air at high pressure and/or shorter operating distances may push dust into the camera or lens and physically damage the camera, sensor, or optical components.
  • Page 273 Firmware update This chapter includes instruction on how to update the firmware on your Manta camera. Manta User Guide V8.2.7...
  • Page 274 Firmware update When new firmware contains a new feature or control, saved camera UserSets or ConfigFiles are invalidated and erased! Before loading new firmware, backup your current camera settings. • Vimba Viewer: select the Save Camera Settings icon from the Cameras window to export the camera settings file )XML file( to the host computer.
  • Page 275 Firmware update 3. Click Next. Available cameras are displayed as serial numbers. Select the camera you want to update. Recovery Mode Select the Use recovery mode check box if the connected GigE camera is not found by the firmware loader, or if the GigE camera is listed as unavailable. When selected, power cycle the camera to enter the Boot Loader mode.
  • Page 276 Firmware update Power cycle after firmware updates You must always power cycle the camera after the firmware has been updated. Issues with the firmware update If you are unable to load camera firmware, or your camera is not recognized by the firmware loader when using recovery mode, please visit www.alliedvision.com/en/ about-us/contact-us/technical-support-repair-/-rma...
  • Page 277 Appendix Find information for older Manta cameras up to serial number 503323258: Mechanical dimensions ............278 Back panel ................284 Camera I/O connector pin assignment....... 285 Manta User Guide V8.2.7...
  • Page 278 Appendix Mechanical dimensions Exceptions for non-PoE Manta cameras up to serial number 503323258. Standard housing with C-Mount (default) Non-PoE models 62.4 M3×3 (7x) 13.4 10.5 C-Mou nt M3×3 (4x) 80.1 86.4 Figure 147: Standard housing C-Mount (non-PoE models) dimensions Manta User Guide V8.2.7...
  • Page 279 Appendix W90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. Non-PoE models M3×3 (7x) 62.5 32.8 27.5 M2×4.5 (4x) 10.5 69.1 M3×3 (4x) C-Mount 99.6 105.9 Figure 148: W90 housing C-Mount (non-PoE models) dimensions Manta User Guide V8.2.7...
  • Page 280 Appendix W90 S90 housing with C-Mount This version has the sensor tilted 90 degrees clockwise, so that it views upwards. The sensor is also rotated 90 degrees clockwise. Non-PoE models 62.5 M3×3 (7x) 47.8 27.5 M2×4.5 (4x) 10.5 69.1 M3×3 (4x) C-Mount 114.6 120.9...
  • Page 281 Appendix W270 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. Non-PoE models 62.5 M3×3 (7x) C-Mount 32.8 M2×4.5 (4x) 10.5 69.1 27.5 M3×3 (4x) 99.6 105.9 Figure 150: W270 housing C-Mount (non-PoE models) dimensions Manta User Guide V8.2.7...
  • Page 282 Appendix W270 S90 housing with C-Mount This version has the sensor tilted 270 degrees clockwise, so that it views downwards. The sensor is also rotated 90 degrees clockwise. Non-PoE models 62.5 M3x3 (7x) C-Mount 47.8 M2x4.5 (4x) 10.5 69.1 27.5 M3×3 (4x) 114.6 120.9...
  • Page 283 Appendix Board level with C-Mount Non-PoE models 1 = GND (for RS232, Ext PWR) 7 = GND (for Inputs) 13-pole I/O connector: Flex cable length: 2 = Ext PWR input 8 = RxD 9 = TxD ----------------------------- Molex PicoBlade 3 = PMW-Out 10 = Power Input (for Output ports) FFC45 L = 56 mm K7500307 Ver cal Header 53047-1310...
  • Page 284 Appendix Back panel Figure 153: Rear view of non-PoE Manta cameras up to serial number 503323258 Hirose I/O port LED 1 LED 2 Gigabit Ethernet port Status LEDs The following tables describe the status LEDs of non-PoE Manta cameras up to serial number 503323258.
  • Page 285 Appendix Camera I/O connector pin assignment The following table lists and describes the camera I/O pin assignment for non-PoE Manta cameras up to serial number 503323258 Manta G-145-30fps and G-201 -30fps series non-PoE cameras up to serial number 503323258 behave like PoE cameras. Signal Direction Level...
  • Page 286 Index Index Exposure time ......258 External trigger ......257 Acquisition SyncIn1 .
  • Page 287 Index maximum protrusion ....48 Logic trigger ......257 RAW mode .

This manual is also suitable for:

Manta g-2040c poeManta g-2040b poeManta g-1620c poeManta g-040c poeManta g-040b poeManta g-319b poe ... Show all
