NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking
the wood.
PART LIST (CHAIR)
NO.
A
B
C
D
HARDWARE LIST
NO.
1
2
Assembly Instruction

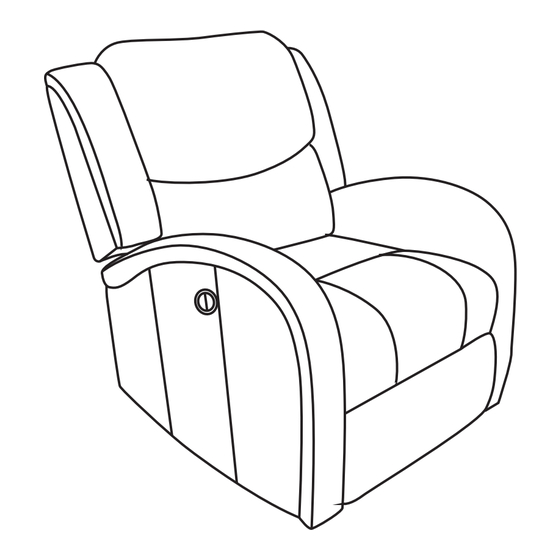

POWER RECLINING CHAIR
ITEM NO.: 9316PUGY-1PW
DRAWING
DRAWING
QTY
DESCRIPTION
1 PC
BACK REST
1 PC
SEAT
1 PC
LSF EAR
1 PC
RSF EAR
QTY
DESCRIPTION
1 PC
ADAPTOR
1 PC
PLUG WITH WIRE
1 OF 3
