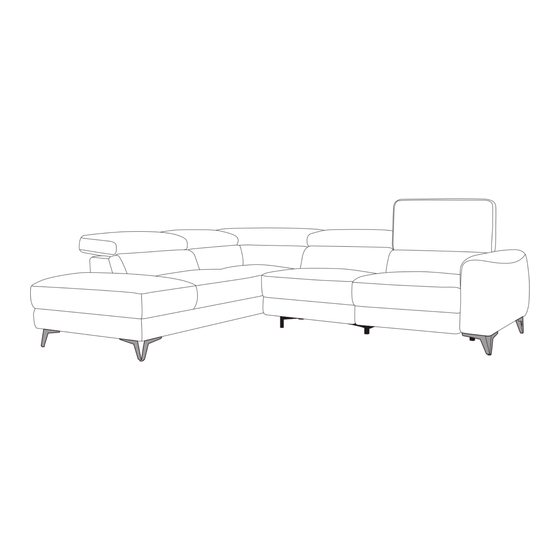

LEFT SIDE CHAISE WITH ADJUSTABLE HEADRESTS
NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking
the wood.
COMPONENT LIST
NO.
A
B
C
D
HARDWARE LIST
NO.
1
2
3
4
5
6
7
Assembly Instruction
ITEM NO.: 9415-LC
D
R
A
W
I
N
G
D
R
A
W
I
N
G
Q
T
Y
DESCRIPTION
1 PC
CHAISE
1 PC
HEADREST
CENTER
1 PC
HEADREST
CORNER
1 PC
HEADREST
Q
T
Y
DESCRIPTION
METAL LEG
2 PCS
PLASTIC SUPPORT
2 PCS
LEG (126MM)
ADJUSTABLE LEG
1 PC
4 PCS
BOLT (8x30MM)
LOCK WASHER
4 PCS
1 PC
ALLEN KEY (30MM)
6 PCS
SCREW (49MM)
QP-AI-P022-168-0
LSF
LSF
(127MM)
(122MM)
(16MM)
1/3
Advertisement
Related Manuals for Homelegance 9415-LC
Summary of Contents for Homelegance 9415-LC
- Page 1 QP-AI-P022-168-0 Assembly Instruction LEFT SIDE CHAISE WITH ADJUSTABLE HEADRESTS ITEM NO.: 9415-LC NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking the wood. COMPONENT LIST DESCRIPTION 1 PC...
- Page 2 QP-AI-P022-168-0 STEP#1 Unzip the dust woven underneath of chaise, unpack the LSF headrest (B) and hardware. STEP#2 Align and attach legs (1) to chair, insert bolts (4) and washers (5) and tighten with Allen key (6). Insert screw (7) and tighten with screw driver. Attach and rotate clockwise to tighten the plastic support leg (2) and adjustable leg (3).
- Page 3 QP-AI-P022-168-0 STEP#4 Align the male connecting brackets of LSF chaise onto the female brackets of RSF 2-seater, push to the end and make sure it is fixed in position securely. STEP#5 Operating instruction. 6 position adjustable headrest CARE INSTRUCTION FOR POLYESTER: In order to maintain the original appearance of your polyester furniture, please follow below simple care procedure : Avoid exposing furniture directly to sunlight or heating and air conditioning outlets.
- Page 4 QP-AI-P022-167-0 Assembly Instruction RIGHT SIDE 2-SEATER WITH 1 POWER RECLINING AND ADJUSTABLE HEADRESTS ITEM NO.: 9415-RPW NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking the wood. COMPONENT LIST DESCRIPTION 1 PC...
- Page 5 QP-AI-P022-167-0 STEP#1 Unpack the hardware from underneath of RSF 2-seater (A). STEP#2 Align and attach legs (1) to chair, insert bolts (5) and washers (6) and tighten with Allen key (7). Insert screw (8) and tighten with screw driver. Attach and rotate clockwise to tighten the plastic supported leg (2). Insert plastic gasket with palstic leg (3), Attach and rotate clockwise to tighten it.
- Page 6 QP-AI-P022-167-0 STEP#4 Align the tube of headrest (B) & (C) and insert it into slot, press to the end and make sure it it fixed. STEP#5 Align the male connecting brackets of LSF chaise onto the female brackets of RSF 2-seater, push to the end and make sure it is fixed in position securely.
- Page 7 QP-AI-P022-167-0 STEP#7 Operating instruction 6 position adjustable headrest CARE INSTRUCTION FOR POLYESTER: In order to maintain the original appearance of your polyester furniture, please follow below simple care procedure : Avoid exposing furniture directly to sunlight or heating and air conditioning outlets. Exposure to sunlight or heating and air conditioning outlets will fade/damage polyester.
