Homelegance 2055T-2 Assembly Instructions

INSTRUCTIONS D'ASSEMBLAGE
Thank you for purchasing this product.Please take time to read and follow the instructions below. Check that you have all
parts and hardware before assembly. Parts apparently missing are often found in the packing materials. If you do not
have all the parts listed, have your dealer contact us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing
furniture on a wood floor or other hard surface, and to limit indentation and prevent discoloration if placing on carpet.
PART LISTS / LISTE DE PIECES
NO. Description
A
Headboard legs (Br-Rsf/ Bl-Lsf)
B
(Gauche/ Droit)
C FB bottom Panel / Panneau Du Bas
D
E
FB divider / Divider
F FB top Panel / Panneau Du Haut
Side Rails /
G
H
Slats / Lattes
STEP 1
ASSEMBLY INSTRUCTIONS

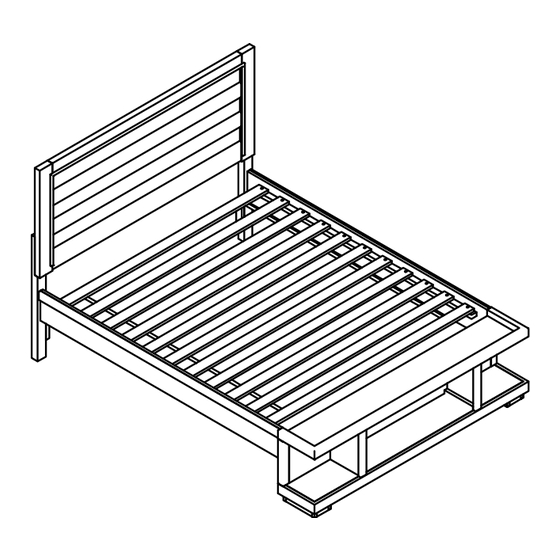

ITEM NO: 2055T-1/2/3 TWIN BED / LIT JUMEAUX
2055T-2 Twin FB & Slats/Pied de Lit/ Lattes-Lit Jumeau
2055T-3 Twin/Full Storage
Sketch Q'ty
1PC
2PCS
1PC
1PC
2PCS
1PC
2PCS
11PCS
A
HARDWARE LISTS / LISTE DE QUINCAILLERIE
NO. Description
Bolt / Boulon
1
Spring Washer /
2
Flat Washer /
3
Rondelle Plate
4
**ABOVE HARDWARE ARE PACKED IN 2055-1 FOR ASSEMBLY
5
Bolt / Boulon
Spring Washer /
6
Flat Washer /
7
Rondelle Plate
8
Wooden Dowel /
9
Goujon on Bois
10 Screw / Vis
**ABOVE HARDWARE ARE PACKED IN 2055-2 FOR ASSEMBLY
B
1 OF 3
Sketch Size Q'ty
6PCS
5/16''x40mm
5/16'x 12mm 6PCS
6PCS
5/16''x 19mm
M5x 58mm
1PC
12PCS
1/4''x30mm
1/4'x10mm 12PCS
12PCS
1/4''x16mm
M4x 58mm
1PC
2PCS
M4x 25mm 22PCS
