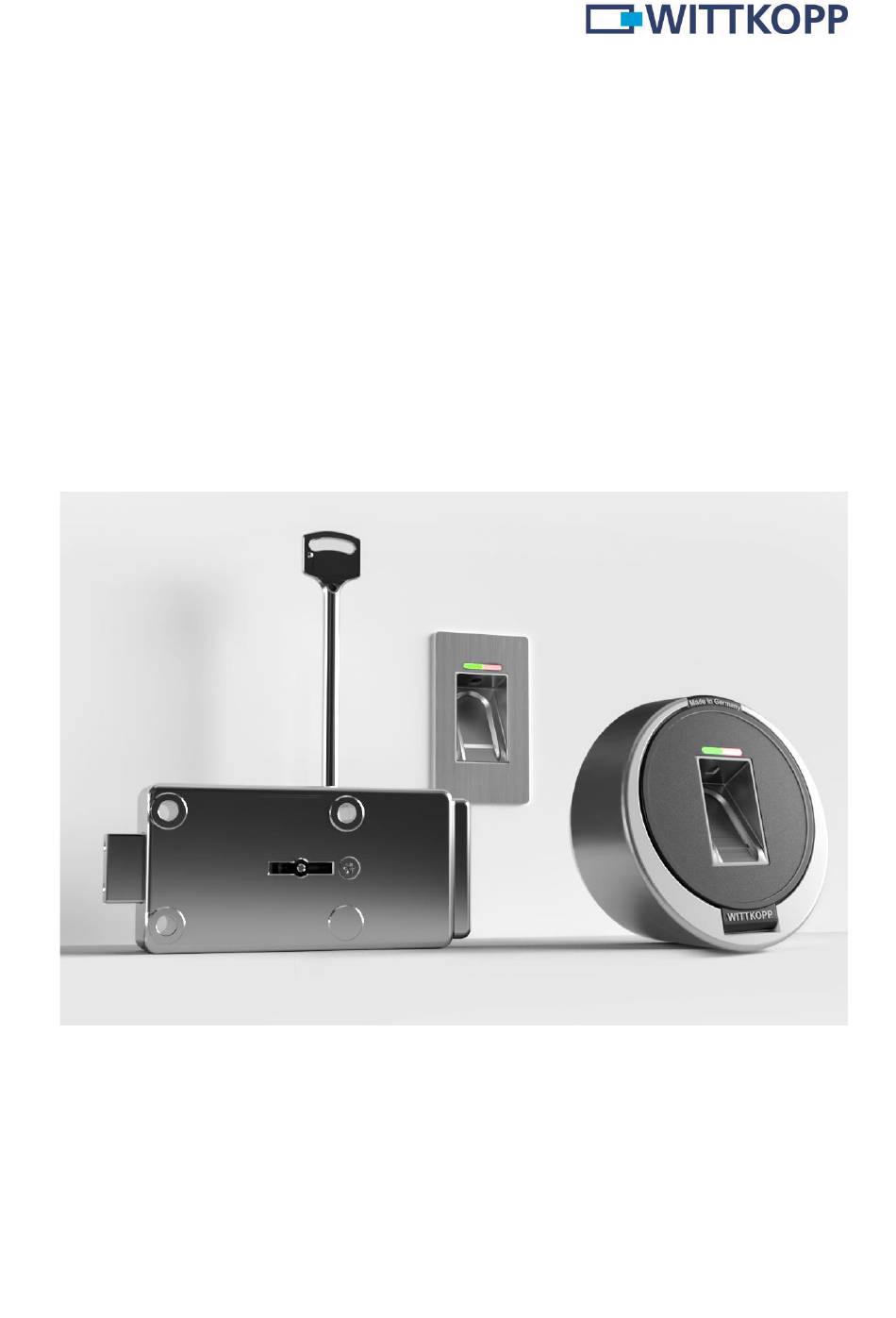

- Page 1 User Guide FINKEY 7000 - VdS...
- Page 2 System Settings via Remote Control ................... 19 8.1. VdS Class 1 ..........................19 8.1.1. Locking Mode........................19 8.1.1.1. Automatic Locking ......................19 8.1.1.2. Manual Locking ......................20 © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 2...
- Page 3 Maintenance and Care ........................ 31 Disclaimer ............................ 31 The user guide refers to FINKEY 7000 sets of the VdS Classes 1 and 2. Please read these instructions carefully before using the system. © Carl Wittkopp GmbH - Errors and changes excepted...
- Page 4 FINKEY 7000 – VdS 1. Product Compliance FINKEY 7000 was developed in compliance with applicable regulations and industry standards. It is produced under strict quality controls and testing procedures to ensure it meets the highest standards for safety and performance.
- Page 5 Set: F-7000-1-F11-Z170-1 REMOTE 7000 VdS Class 2 VdS Class 2 Set: F-7000-2-S10-Z170-1 Set: F-7000-2-F11-Z170-1 Each FINKEY 7000 set consists of the following components: • Scanner unit (FINKEY SL or FINKEY FSM) • Lock (REMOTE 7000 incl. key) • Remote control •...
- Page 6 3.2. Finger Categories and Templates The FINKEY 7000 system distinguishes between three categories of fingerprints: Master Finger: Administers the system and manages all users. User Finger: Opens and closes the system. Alarm Finger: Opens and closes the system and triggers a silent alarm at the same time when the intrusion alarm system is activated.
- Page 7 ID. This means that all scans of the same finger are treated as a single unit, simplifying fingerprint management and usage within the system. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 7...
- Page 8 In accordance with data protection regulations, all biometric data is used exclusively for authentication purposes. • Obtaining consent: It is recommended to obtain the operators' consent for using biometric data with the FINKEY 7000 as a legal basis, which can be obtained during the enrollment process. 4.2. Operating Instructions •...
- Page 9 Red LED lights up accepted Re-scan finger Lockout period in progress Red LED flashes continuously Wait until the lockout period ends © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 9...
- Page 10 3. Place finger: Place your finger flat on the finger guide. 4. Move finger: Slide your finger across the sensor with moderate pressure and speed. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 10...
- Page 11 After approximately three seconds, slide the second Master Finger over the sensor. After another three seconds, slide the third Master Finger over the sensor. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 11...
- Page 12 Repeat the scan to store the User Finger multiple times. The enrollment process automatically ends if no further scan is performed within 5 seconds. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 12...
- Page 13 Slide a User Finger over the sensor. Repeat the scan to store the User Finger multiple times. The enrollment process automatically ends if no further scan is performed within 5 seconds. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 13...
- Page 14 Slide an Alarm Finger over the sensor. Repeat the scan to store the Alarm Finger multiple times. The enrollment process automatically ends if no further scan is performed within 5 seconds. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 14...
- Page 15 (between 1 and 97). Press the [OK] button. Slide the Master Finger over the sensor again to complete the deletion process. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 15...
- Page 16 The lockout period can be ended prematurely by sliding a registered Master or User Finger over the sensor twice. If two more attempts fail after the lockout period, the lockout period extends to 2 minutes. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 16...
- Page 17 Turn the key back to its starting position. • Remove the key and make sure the safe door is securely locked before storing the key in a safe place. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 17...
- Page 18 Wait time: After power is restored, the scanner unit needs about one minute to reach optimal operating temperature. Allow this time to ensure proper functionality and avoid potential errors. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 18...
- Page 19 Enter a locking time between 5 and 65 seconds. Press the [OK] button. The new locking time is set. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 19...
- Page 20 Note: To revert to automatic locking mode, a locking time between 5 and 65 seconds must be programmed (see Chapter 8.1.1.1, Automatic Locking). © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 20...
- Page 21 Press the [R1] button. Enter a locking time between 5 and 65 seconds. Press the [OK] button. The new locking time is set. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 21...
- Page 22 The manual locking function is set. Note: To revert to automatic locking mode, a locking time between 5 and 65 seconds must be programmed (see Chapter 8.2.1.1, Automatic Locking). © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 22...
- Page 23 Press the [R2] button. Enter an alarm duration between 5 and 65 seconds. Press the [OK] button. The new alarm duration is set. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 23...
- Page 24 Enter the ID you want to restrict (between 1 and 97). Press the [OK] button. The entered ID is now restricted from further use. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 24...
- Page 25 Enter the ID you want to reactivate (between 1 and 97). Press the [OK] button. The entered ID is now reactivated and available for use. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 25...
- Page 26 Press the [OK] button. Enter the ID you want to check (between 1 and 97). Press the [OK] button again. available assigned © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 26...
- Page 27 After another three seconds, slide the Master Finger over the sensor for the third time. The system returns to the factory settings. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 27...
- Page 28 Press the [OK] button. Slide a Master Finger over the sensor. The system returns to the factory default state. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 28...
- Page 29 Each finger can only be assigned one function. • The Master Finger is exclusively for system administration and cannot be used as a User or Alarm Finger. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 29...
- Page 30 If the system check does not complete successfully, please contact your dealer's customer service. How can I perform a system reset without a Master Finger? • Please contact your dealer's customer service. © Carl Wittkopp GmbH - Errors and changes excepted Version 1.0 - 10.09.2024 - Page 30...
- Page 31 The manufacturer is not responsible for losses of valuables or documents stored in containers secured with the FINKEY 7000 system. It is the user's responsibility to take appropriate security measures and to regularly check the correct functionality of the system.
