CyberData InformaCast 011505 Installation Quick Reference

Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931685B
The IP Endpoint Company
Typical System Installation
*More installation options are
illustrated in the Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011505/
• Create a plan for the locations of your speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts

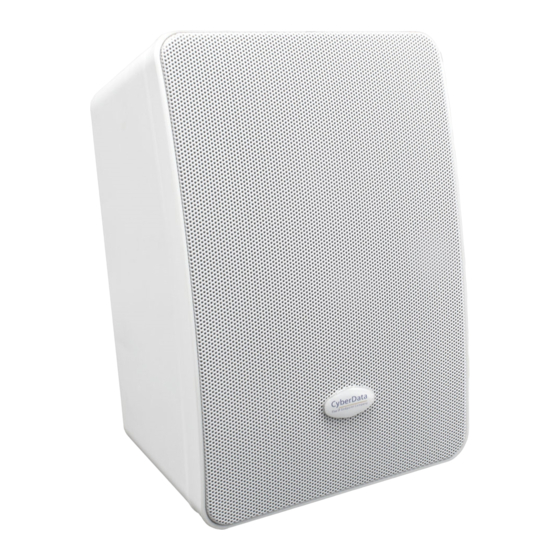

(1) InformaCast Enabled
Wall Mount Speaker
Quick Reference Quick Reference
Installation Quick Reference
InformaCast Enabled Wall Mount Speaker
011505
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address IPv4 Link Local
Web Access Username admin
Web Access Password admin
a
Subnet Mask IPv4 Link Local
a
Default Gateway IPv4 Link Local
a. Default if there is not a DHCP server present.
802.3af/at Compliant Ethernet Switch
Speaker Speaker Speaker
(1) Universal Joint
(1) Base Mount (Two Pieces)
931685B
IP Phone InformaCast Server
(4) Mounting Screws
(2) 20mm Long Screws
(2) 30mm Long Screws
Hex Driver Size: 3/16-inch/ 5mm
