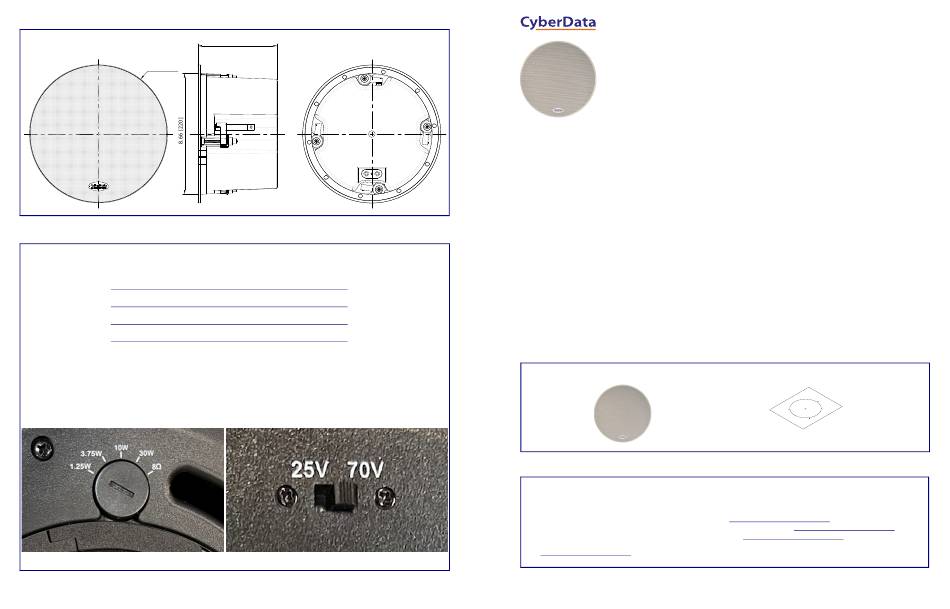

CyberData 011588 Installation Quick Reference

Dimensions
9.93 [252.2]
Tap Settings and Voltage Selection
Analog Ceiling Speaker db Output Levels*
Power Tap Settings
Voltage 1.25W
25V 88.6
70V 89.3
* dBC @ 1M and 1kHz
To access the Voltage Selection switch and the Tap
Settings, remove the magnetically attached speaker grill.
Tap Settings
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
5.74 [145.7] Dimensions are in Inches [Millimeters]
3.75W 10W 30W
93.1 96.8 100.7
93.7 97.4 101.9
Voltage Selection
932029C Quick Reference
Installation Quick Reference

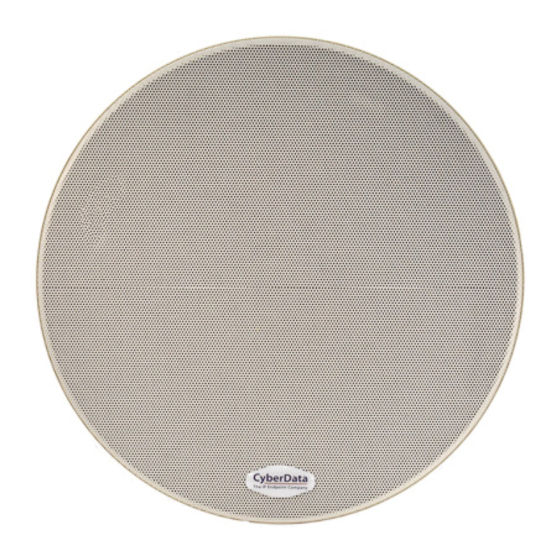

Analog Ceiling Speaker
The IP Endpoint Company
25V/70V/8 Ohm
011588
Features
• Supports 25V, 70V or traditional 8 Ohm power input
• Multiple power tap settings for desired dB output
• Designed for good speech intelligibility
• Suitable for background music
• High efficiency speaker driver
• Easy installation
• Seismic tether bracket for additional stability
Getting Started
• This product ships in 70V mode with the power tap setting value of 1 (1.25W) selected.
• Create a plan for the locations of your speakers.
• WARNING: Do not use the 8 Ohm setting in a constant voltage application.
• WARNING: This product must be set to the appropriate voltage depending on the settings of the amplifier. Using a speaker set
to 25V in a 70V system will cause damage.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Speaker Assembly
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
Quick Reference
(1) Template for Speaker*
* See the last page of this document
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
932029C © 2024, CyberData Corporation, ALL RIGHTS RESERVED
