The IP Endpoint Company
Getting Started
•
•
•
•

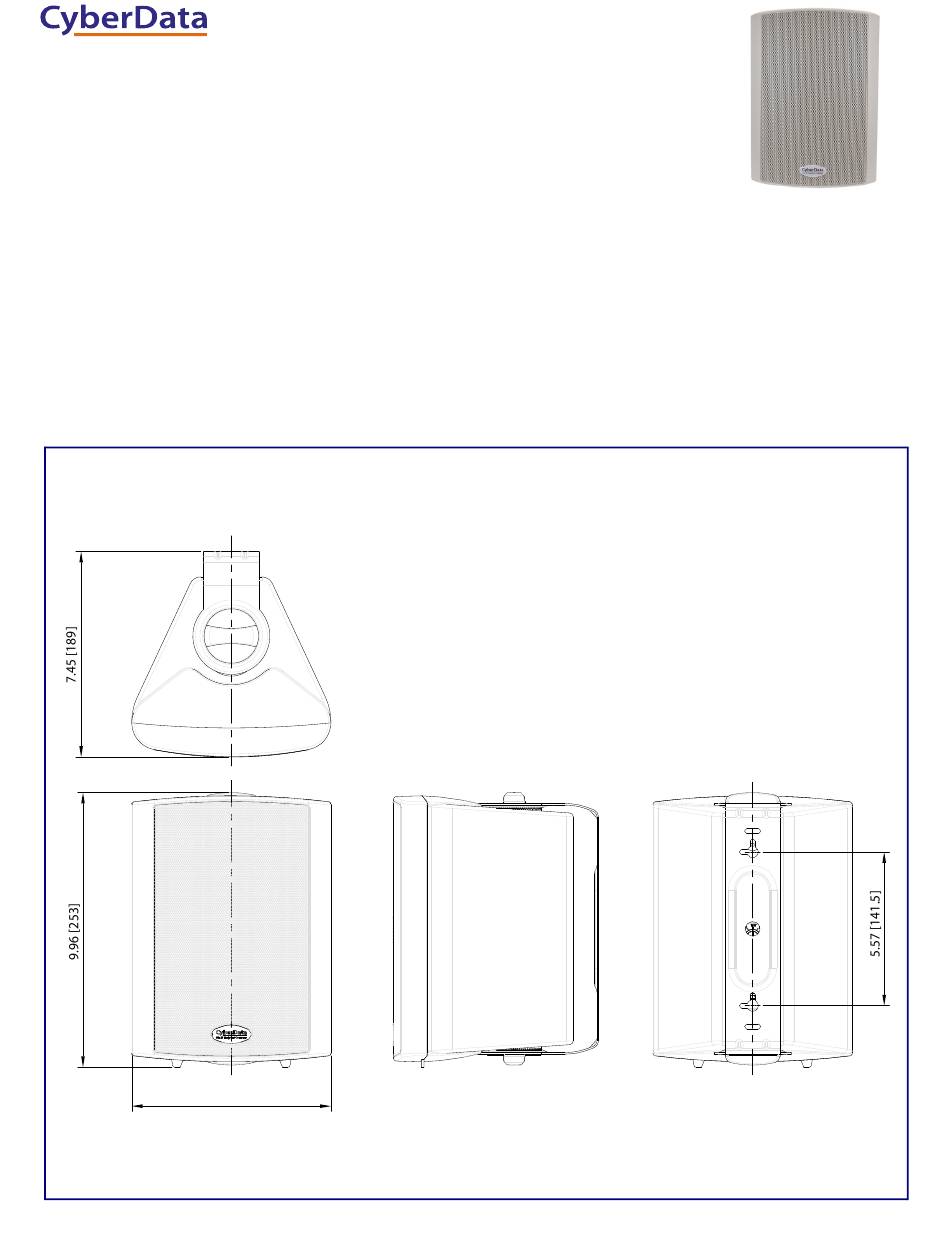

Dimensions
7.22 [183.5]
Dimensions are in Inches [Millimeters]
Quick Reference
Installation Quick Reference

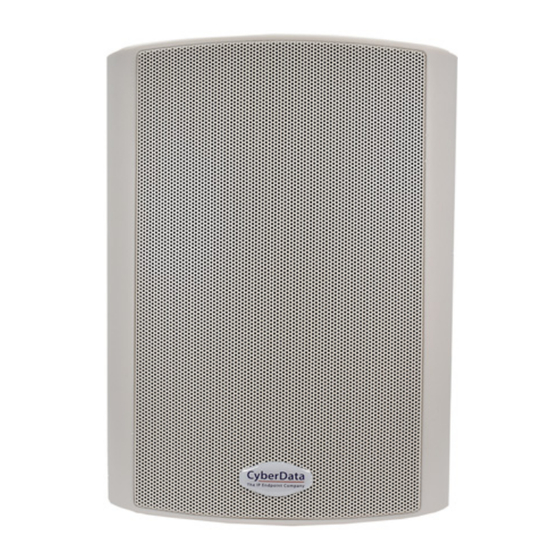

Analog Wall Mount Speaker
25V/70V/8 Ohm
011589
This product ships in 70V mode with the power tap setting value of 1 (1.25W) selected.
WARNING: Do not use the 8 Ohm setting in a constant voltage application.
WARNING: This product must be set to the appropriate voltage depending on the settings of the
amplifier. Using a speaker set to 25V in a 70V system will cause damage.
WARNING: This device is not rated for any AC voltages!
932030C
© 2024, CyberData Corporation, ALL RIGHTS RESERVED.
Advertisement
Related Manuals for CyberData 011589
Summary of Contents for CyberData 011589
- Page 1 Using a speaker set to 25V in a 70V system will cause damage. • WARNING: This device is not rated for any AC voltages! Dimensions 7.22 [183.5] Dimensions are in Inches [Millimeters] Quick Reference 932030C © 2024, CyberData Corporation, ALL RIGHTS RESERVED.
- Page 2 Sales: 831-373-2601 ext. 334 3 Justin Court Support: 831-373-2601 ext. 333 Monterey, CA 93940, USA Support Website: https://support.cyberdata.net/ RMA Department Contact and Status: https://support.cyberdata.net/ Phone: 831-373-2601 Warranty Information: https://support.cyberdata.net/ Fax: 831-373-4193 https://www.cyberdata.net/ © 2024, CyberData Corporation, ALL RIGHTS RESERVED. 932030C Quick Reference...
