1.1 Cable
 Cable type might vary with different devices, and the actual product shall prevail.
 Please waterproof all the cable joints with insulating tape and waterproof tape to avoid
short circuit and water damage. For the detailed operation, see the FAQ manual.
For more information about cable ports, see Table 1-1.
SN Port name
DC 12V power
1
input
2 Alarm I/O
3 Ethernet port
4 Audio input
5 Audio output
For more information about I/O port, see Table 1-2.
Port Port Name
ALARM_OUT
Alarm I/O
ALARM_IN

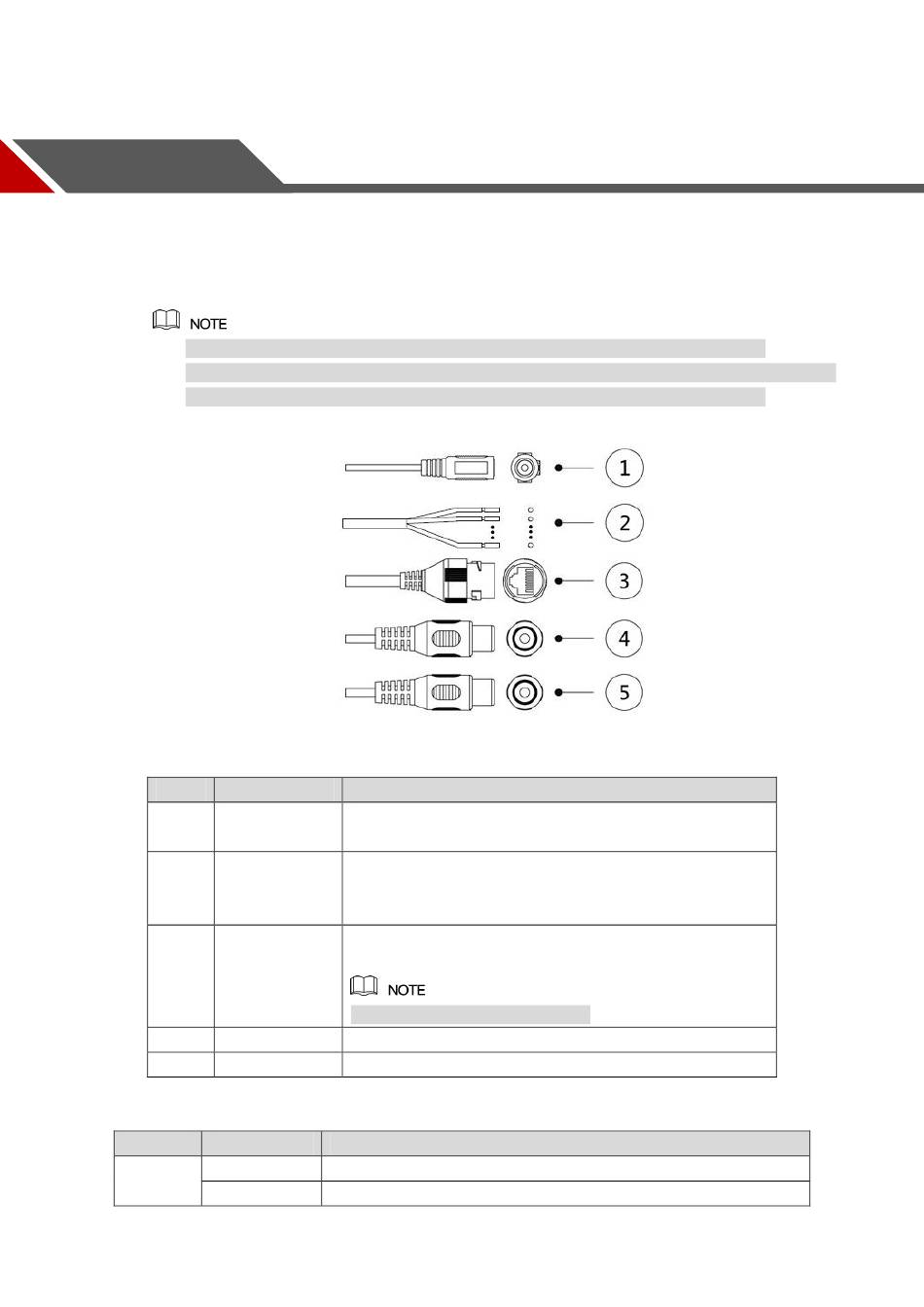

Figure 1-1 Cable list
Table 1-1 Cable Information
Function description
Inputs DC 12V.
Includes alarm signal input and output ports, the number
of I/O ports might vary on different devices. For detailed
information, see Table 1-2.
Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select model.
Connects to sound-pick-up device to receive audio signal.
Connects to speaker to output audio signal.
Table 1-2 Alarm Information
Function
Outputs alarm signal to alarm device.
Receives the switch signal of external alarm source.
1
