WoMaster WR329P Series Quick Start Manual

Industrial Cellular PoE Routing Switch
Cellular Router and 24V Boost PoE
Switch in One LTE/WiFi PoE
Routing Switch for BUS/Vehicle

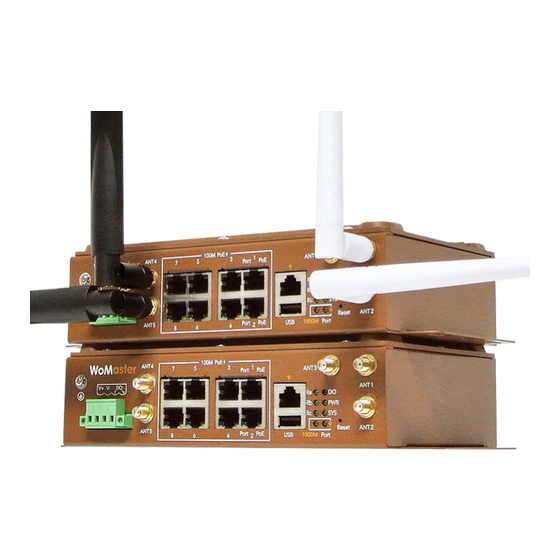

WR329P Series
Industrial 8 PoE+ with 1G WAN and Dual Radio
LTE/WiFi Routing Switch for BUS/Vehicle
The Innovative LTE routing switch WR329P series combines
functionalities of LTE/WiFi router and 8-Port 8~32VDC Power
boost PoE+ switch for Smart Bus applications. It can also be used
in roadside cabinets or other industrial applications for high-speed
Wi-Fi & multi-port Ethernet ports to LTE routing. The modular
design allows project customizations of enable/disable POE ports,
LTE/WiFi. The embedded MQTT and RESTful API enables public
cloud integration such as AWS or Azure.
platform ThingsMaster can also be setup for instant and secured
access to track location and video surveillance over cloud.
High Throughput Wireless Performance
•
LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
•
4G/3G/2G full cellular network compatibility
- LTE-E: FDD B1/3/5/7/8/20; TDD B38/40/41
- LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
- LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
- LTE-U: FDD B2/B4/B12
•
Support GPS for location services
•
IEEE 802.11ac compliant & backward compatible with
802.11a/b/g/n
•
Selectable 5G/2.4G Wi-Fi for local coverage, up to
866Mbps bandwidth
Multiple Ethernet ports
•
Supports 8x Fast Ethernet PoE+ ports, provides 100M
wire-speed switching
•
Supports 1x Gigabit Ethernet WAN port for uplink or
NVR
•
LAN Switch port to LTE or WAN port routing
•
WAN to LTE Redundant
Rugged Design for Bus, Wayside
Surveillance, ITS Application
•
Railway EMC: EN50121-4 compliance
•
IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
•
Vehicle: E-mark compliance
•
Radio RED for CE Marking
•
Emission: FCC part 15 B Class A
•
Effective heat dissipation design for operating in
o
40~75 C environments
The private cloud
Extreme PoE Capability
•
Provides 8-port IEEE 802.3af/at compliance PoE+, up to
30W per port
•
12/24V to 54VDC Booster PoE
•
Up to 120W PoE power budget
•
Complete PoE management including per-port Power
Budget Control, PoE Scheduling and PoE Status
Enhanced Cyber Security for Critical
Application
•
Firewall for traffic classification, port forwarding
•
Support NAT, DMZ for LAN protection
•
Support OpenVPN, IPsec for secure connection
•
Support HTTPs/SSH secure login
Cloud Management over ThingsMaster
•
Interactive monitoring dashboard and map shows the
status, signal strength, and location of all WR series
deployed
•
Supports over-the-air batch device registration,
configuration and firmware update
•
Set alerts on critical events to prevent downtime (i.e
signal strength is too low or temperature is too high)
Management Features
•
Various configuration paths, including WebGUI, CLI
SNMP, LAN Utility (ViewMaster), and NMS (NetMaster)
•
Support ViewMaster Utility, Remote configuration
-
software utility
•
Redundancy: WAN to LTE redundancy, wireless auto-
offload
•
Diagnostic tool includes Radio LED, Ping, TFTP, SNMP
Trap, E-mail Alert and System Log
•
LTE watchdog, auto-reconnect cellular connection
•
OPCuA by request
