Summary of Contents for Sicma V1003

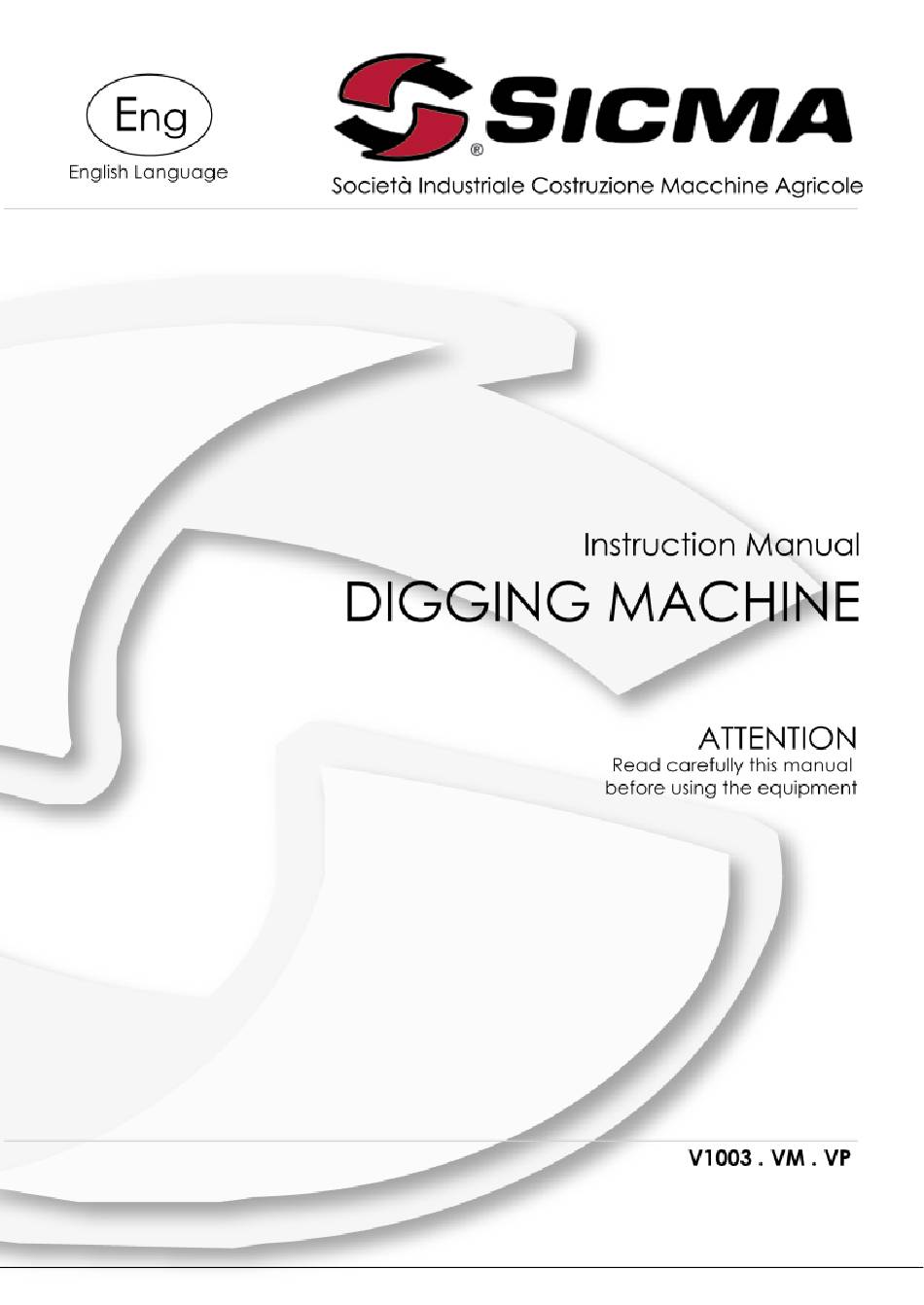

- Page 1 Sicma S.p.A. Miglianico (CH) page 1...
- Page 2 Sicma S.p.A. Miglianico (CH) page 2...
- Page 3 Printed in Italy Industrial Manufacture Company of Agricultural Machines No part of this manual shall be reproduced, copied or disseminated by any means without SICMA S.p.A. company prior authorization in writing. SICMA S.p.A. company reserves the right to make any necessary changes without giving prior notice in order to optimize the quality and safety of its products and without committing itself to update this manual every time a change takes place.
- Page 4 Sicma S.p.A. Miglianico (CH) INDEX General information Symbols Tightening table Safety labels Technical data Main parts Identification plates Allowed/improper use Safety Safety in the workplace Job clothing General safety rules 9/10 Set up Connection to the tractor Connection to the cardan joint...
- Page 5 Sicma S.p.A. Miglianico (CH) GENERAL INFORMATION SYMBOLS This booklet contains three “safety graphic symbols” to highlight as many danger levels or important information: It draws the operator’s attention to situations which can jeopardize people’s safety. It draws the attention to situations which jeopardize the machine efficiency but not people’s safety.
- Page 6 Make sure that the labels are always present and legible, should this not be the case contact your nearest SICMA dealer to replace the missing or illegible ones. Danger of hand injuries: keep safety guards in position while operating.
- Page 7 Sicma S.p.A. Miglianico (CH) Technical data Larghezza Profondità di larghezza Potenza Peso Frizione modello Cambio Nr. vanghe lavoro lavoro parastrappi Standard 4 C-95 15-35 Standard a 4 velocità Standard V1003 6 C-120 15-35 Standard a 4 velocità Standard 6 C-130...
- Page 8 When asking for information or technical service, always specify the machine type and width. ALLOWED USE SICMA S.p.A. digging machines, as described in this instruction and maintenance booklet, have been specifically designed to till the land. Any other use jeopardizes the operator’s safety and the machine integrity.
- Page 9 Sicma S.p.A. Miglianico (CH) SAFETY SAFETY IN THE WORKPLACE Most of the accidents which take place while the operator is using the machine or the equipment or during their maintenance or repair are caused by a lack of compliance with the basic safety precautions.
- Page 10 Do not make any cleanings, lubrications, repairs or adjustments with running engine and lifted machine. Never use the machine in steep slopes which may jeopardize the equipment’s stability. SICMA declines all responsibility for a lack of compliance with these instructions. page 10...
- Page 11 It is necessary to read up this instruction manual and the manuals of the tractor and cardan shaft manufacturer. All SICMA digging machines have been manufactured to be attached to any tractor provided with hydraulic elevator and universal three-point hitch...
- Page 12 Sicma S.p.A. Miglianico (CH) CONNECTION TO THE CARDAN JOINT picture 1 Connect cardan joint by inserting it into the power takeoff shaft A (picture 1) Before assembling the cardan shaft, it is very important to check out that its number of revolutions and direction of rotation match those the tractor.
- Page 13 Sicma S.p.A. Miglianico (CH) WORKING HEIGHT ADJUSTMENT picture 3 machine’s working depth determined by the position of side skids. Lifting the skids the work depth increases, lowering them it decreases; it is important to lift or lower skids equally on both sides.
- Page 14 Miglianico (CH) SPEED GEAR Sicma digging machines are provided with speed gear and it is possible to modify the rotor speed independently f rom the speed of the power takeoff of the tractor. Higher speeds improve the soil working speed but produce a faster wear of rotating parts.
- Page 15 Sicma S.p.A. Miglianico (CH) STARTING UP Now that all setting up operations are completed, your machine is ready to be used; after reaching the work place we advice to engage power takeoff only after having lifted the digging machine of a few centimetres with the tractor elevator.
- Page 16 Sicma S.p.A. Miglianico (CH) MAINTENANCE Maintenance is a fundamental operation to ext end life and performances of any agricultural vehicle; taking care of the machine grants you not only a good work execution, but also a longer life of the whole equipment and a greater safety on the workplace.
- Page 17 EVERY 500 HOURS OF WORK Check that all bolts and nuts are tightened strongly * Check oil level of sump/bevel gear pair * * ATTENTION: this maintenance activity is to be made only at SICMA authorized repair shops. picture 9 picture 10...
- Page 18 Sicma S.p.A. Miglianico (CH) Get rid of exhaust oil in compliance with the relevant rules of the country where you operate. It is thus forbidden to pour it on the ground. Before executing maintenance activities on the machine, stop engine, disengage power takeoff, pull parking brake and place the equipment on the ground.
- Page 19 Sicma S.p.A. Miglianico (CH) page 19...
- Page 20 Sicma S.p.A. Miglianico (CH) page 20...
