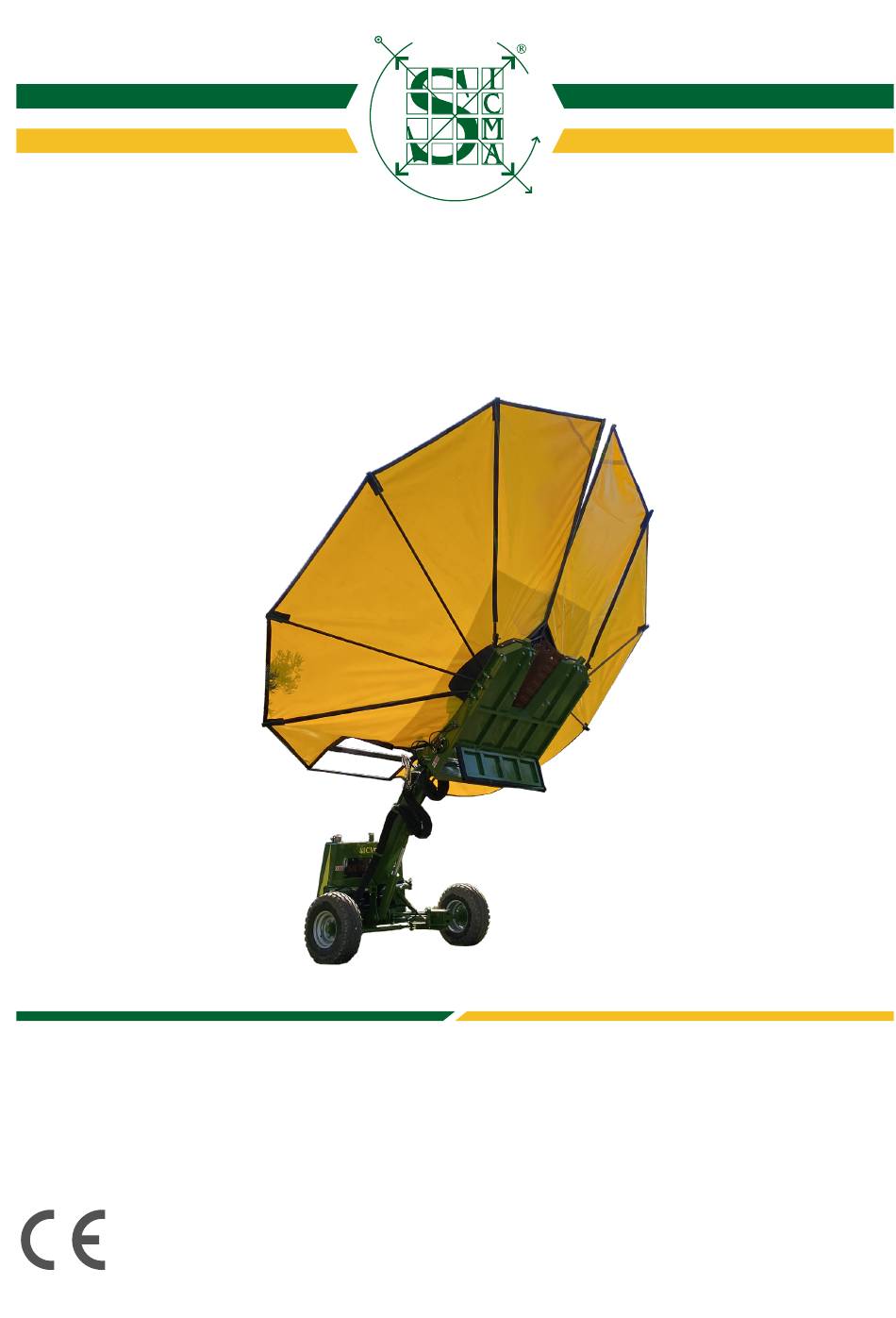

USER AND MAINTENANCE MANUAL
Translation of the original supplementary instructions
Code
-
010004
Date
-
05/2021
Revision
-
0
ACCESSORY
REVERSE UMBRELLA - TR80
SICMA S.r.l. | Località Callipo, Zona Industriale - 88022 Acconia di Curinga (CZ) - Italy
tel. +39 0968 78240
www.sicmasrl.com | info@sicmasrl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR80 and is the answer not in the manual?

Questions and answers

Related Manuals for Sicma TR80

Summary of Contents for Sicma TR80

  • Page 1 USER AND MAINTENANCE MANUAL Translation of the original supplementary instructions ACCESSORY Code 010004 Date 05/2021 REVERSE UMBRELLA - TR80 Revision SICMA S.r.l. | Località Callipo, Zona Industriale - 88022 Acconia di Curinga (CZ) - Italy tel. +39 0968 78240 www.sicmasrl.com | info@sicmasrl.com...
  • Page 3 Dear Customer, Sicma srl congratulates and thanks you for choosing one of our machines. We have compiled this User and Maintenance Manual with the intention of helping you appreciate and fully exploit the quality and performance of Sicma technology, while respecting the safety of the operator and the vehicle.

  • Page 5: Table Of Contents

    3.2.1 Size ....................10 4. Transportation, assembly and disassembly Transport of the umbrella ..............12 Umbrella assembly ................. 12 Umbrella disassembly ..............15 5. Using the umbrella Controls ..................17 Operation ..................21 5.2.1 Work cycle ..................22 SICMA S.r.l.
  • Page 6 Index 6. Maintenance Routine maintenance ..............30 6.1.1 Lubrication of the umbrella opening and closing system (idle and driving rods) ..............31 6.1.2 Lubrication of quick-release system ........... 32 6.1.3 Lubrication of the hydraulic piston of the box hatch ......33 6.1.4 Tarpaulin replacement..............

  • Page 7: General Information

    General information 1. General information 1.1 Introduction The TR80 semi-mounted rear application, hereinafter, will simply be called "MACHINE" or “HARVESTER”; while the drive unit to which it is coupled with will be called “TRACTOR” or “DRIVE UNIT”. 1.2 Purpose of the manual This document contains all the necessary information about the accessory to which it refers.

  • Page 8: Safety

    Highway Code of the Country. SICMA S.r.l. declines all responsibility in case of unaware use of the machine and its accessories on public roads or places.

  • Page 9: Description And Technical Information

    1 or 2 meters from the initial size. The maximum diameter of the umbrella may not, however, exceed 7 meters under any circumstances, even with the aid of extensions. SICMA S.r.l.

  • Page 10: Main Components

    User and maintenance manual - REVERSE UMBRELLA - TR80 3.1.1 Main components 1) Quick coupling 2) Product collection box 3) Frame and protection net 4) Interceptor tarpaulin 5) Idle rods for opening/closing the umbrella tarpaulin 6) Leading umbrella shaft (driving arm)
  • Page 11 20) Tubular York Ø45 21) Small rubber flap 22) Protection case rubber flap 23) Sicma single band 20.5 mm 24) 3-hole rubber pipe hanger 25) Rubber band holder Figure 2 - Front view of the vibrating head and the reverse umbrella...
  • Page 12 User and maintenance manual - REVERSE UMBRELLA - TR80 The following diagram shows the TR80 harvester coupled to the tractor, in working position with standard umbrella. Figure 3 In the mechanical tilting version, the frontal rods the umbrella (two on each side), open/close at a height of about 80 cm from the ground.
  • Page 13 Description and technical information The TR80 harvester hooked to the tractor in the fruit unloading position is shown below. Figure 4 SICMA S.r.l.

  • Page 14: Technical Data

    User and maintenance manual - REVERSE UMBRELLA - TR80 3.2 Technical data Description Value Maximum length of iron box 1850 mm Height* 2000 mm / 2600 mm Umbrella case width 1500 mm Minimum width (with umbrella folded) 2300 mm Umbrella diameter available...
  • Page 15 Description and technical information 1850 Figure 6 - TR80 umbrella case dimensions SICMA S.r.l.

  • Page 16: Transportation, Assembly And Disassembly

    4. Transportation, assembly and disassembly 4.1 Transport of the umbrella The reverse umbrella is transported on the road separate from TR80 harvester. A forklift is sufficient for loading, unloading and transporting the reverse umbrella into the work area. Once the machine has been brought into the working area, it is necessary to proceed with the coupling of the reverse umbrella as described in the paragraph “4.2 Umbrella assembly”...
  • Page 17 G) Once the case has been hooked, to lock it definitively insert the special red pin with handle (2) which is locked to the frame by screwing the special bolt (3) which prevents it from coming out. Figure 7 SICMA S.r.l.
  • Page 18 User and maintenance manual - REVERSE UMBRELLA - TR80 H) Hook the quick couplings (4) of the umbrella as shown in the figure. I) Lower the hinged protective frame (5) from above. J) Insert the two fixing screws (6) of the metal protection frame (on both sides) as shown in the figure.

  • Page 19: Umbrella Disassembly

    B) Make sure the umbrella collecting case is resting flat on the ground and not under tension. C) Remove two fixing screws (6) of the metal protection frame (on both sides). D) Lift the hinged protective frame (5) from above. Figure 9 SICMA S.r.l.
  • Page 20 User and maintenance manual - REVERSE UMBRELLA - TR80 E) Remove the locking bolt (3) and then the red pin with handle (2). F) Unhook the quick couplings (4) of the reverse umbrella. Figure 10 G) After removing the blocking pin, act on the hydraulic arm and move it backwards slowly until the umbrella case can be released, as shown in the figure (1).

  • Page 21: Using The Umbrella

    Using the umbrella 5. Using the umbrella 5.1 Controls The remote control supplied with the TR80 harvester governs the operation of the reverse umbrella as well. The commands relating to the umbrella only work if it is attached to the machine.
  • Page 22 User and maintenance manual - REVERSE UMBRELLA - TR80 REF. DESCRIPTION POSITION FUNCTION External aux input Not used. Press to stop the machine movements immediately (button pressed and released). Emergency push-button Unlock button (to unlock, turn clockwise and immediately release the red mushroom button).
  • Page 23 Bright LEDs They indicate the charge level of the remote control batteries. Opening jaws of the vibrating head. 3-position switch with return to neu- Neutral position. tral position Closing jaws of the vibrating head. SICMA S.r.l.
  • Page 24 User and maintenance manual - REVERSE UMBRELLA - TR80 REF. DESCRIPTION POSITION FUNCTION Increase in the revolutions per minute of the PTO. 3-position switch with return to neu- Neutral position. tral position Reduction of the revolutions per minute of the PTO.

  • Page 25: Operation

    Trees harvesting with the umbrella involves vibrating the tree trunk. Do not attempt to open the umbrella by clamping only one branch of the tree. Do not open the umbrella in the case of bushy/multi-stem plants (e.g. suckers). SICMA S.r.l.

  • Page 26: Work Cycle

    User and maintenance manual - REVERSE UMBRELLA - TR80 5.2.1 Work cycle A) Carry out the start-up and work preparation procedures given in the machine’s User and Maintenance Manual. B) Move near the designated tree that needs to be shaken.
  • Page 27 (4) already open. E) Once in position, use the manipulator (5) to lower the umbrella case (1) onto the ground (during vibration, the case must always be resting on the ground and never suspended). Figure 14 SICMA S.r.l.
  • Page 28 User and maintenance manual - REVERSE UMBRELLA - TR80 F) Control the opening of the reverse umbrella by means of the manipulator (8) of the radio control. G) The umbrella rods rotate outward, opening the tarpaulin (9) that wraps around the tree canopy from below.
  • Page 29 ATTENTION In order to use the vibration gear selector, ensure that the vibrating head is completely stopped, otherwise serious damage may be caused to it and to its hydraulic system. SICMA S.r.l.
  • Page 30 User and maintenance manual - REVERSE UMBRELLA - TR80 K) Actuate the vibrating head (4) which, by transmitting vibration to the clamped woody organ, causes the hanging fruit to fall into the reverse umbrella (1). L) Once the vibration is over, ONLY when the vibrating head (4) has come to a complete standstill, can it be opened completely by acting on the appropriate control.
  • Page 31 (estimated with olives). Once the maximum capacity has been reached, it will be necessary to unload the fruits. The unloading of the harvested fruits can take place on farm trailers (usually a single bank), in bins, on nets, in special containers carried, towed, etc.. Figure 17 SICMA S.r.l.
  • Page 32 User and maintenance manual - REVERSE UMBRELLA - TR80 Stages of unloading ATTENTION The unloading of the reverse umbrella must take place on flat ground, with the machine stationary and with the telescopic arm totally retracted (not extended). The operator must avoid any risky maneuver that could cause the machine to become unstable, causing danger to third parties or to himself.
  • Page 33 H) When unloading is complete, operate the drain tank hatch lock (2). I) Turn off the remote control by turning the main selector (battery switch) anticlockwise. J) Access the driver's seat of the tractor and move the machine back, away from the container/trailer (3). Figure 19 SICMA S.r.l.

  • Page 34: Maintenance

    User and maintenance manual - REVERSE UMBRELLA - TR80 6. Maintenance DANGER Observe the safety instructions regarding maintenance in the machine’s User and Maintenance Manual. 6.1 Routine maintenance EVERY 10 HOURS Lubrication of the umbrella opening and closing See par. “6.1.1” pag. 31...

  • Page 35: Lubrication Of The Umbrella Opening And Closing System

    Lubrication of the umbrella opening and closing system (idle and driving rods) The umbrella opening and closing system requires lubrication, even several times a day. Grease the points indicated at Figure 20 using common lubricating greases. Figure 20 SICMA S.r.l.

  • Page 36: Lubrication Of Quick-Release System

    User and maintenance manual - REVERSE UMBRELLA - TR80 6.1.2 Lubrication of quick-release system The quick-release couplings between the reverse umbrella and the telescopic arm require lubrication, even several times a day. Grease at the points indicated at Figure 21.

  • Page 37: Lubrication Of The Hydraulic Piston Of The Box Hatch

    Maintenance 6.1.3 Lubrication of the hydraulic piston of the box hatch To lubricate the hydraulic piston for opening the case hatch, use the two grease nipples shown at Figure 22. Figure 22 SICMA S.r.l.

  • Page 38: Tarpaulin Replacement

    User and maintenance manual - REVERSE UMBRELLA - TR80 6.1.4 Tarpaulin replacement In the event of obvious wear and tear, cracks or otherwise non-repairable damages to the tarpaulin of the reverse umbrella, it must be replaced: A) Open the umbrella, not fully.

  • Page 39: Attachments

    Attachments 7. Attachments The attachments to this Use and Maintenance Manual are: - EC Declaration of Conformity SICMA S.r.l.
  • Page 40 NOTES: ............
  • Page 41 ............
  • Page 42 SICMA DEALER REFERENCES Loc. Callipo, Z.I., 88022 Acconia di Curinga (CZ), Italy VAT number: 01805340799 www.sicmasrl.com info@sicmasrl.com – international@sicmasrl.com Phone +39 0968 78240...
  • Page 44 SICMA S.r.l. | Località Callipo, Zona Industriale - 88022 Acconia di Curinga (CZ) - Italy tel. +39 0968 78240 www.sicmasrl.com | info@sicmasrl.com...
