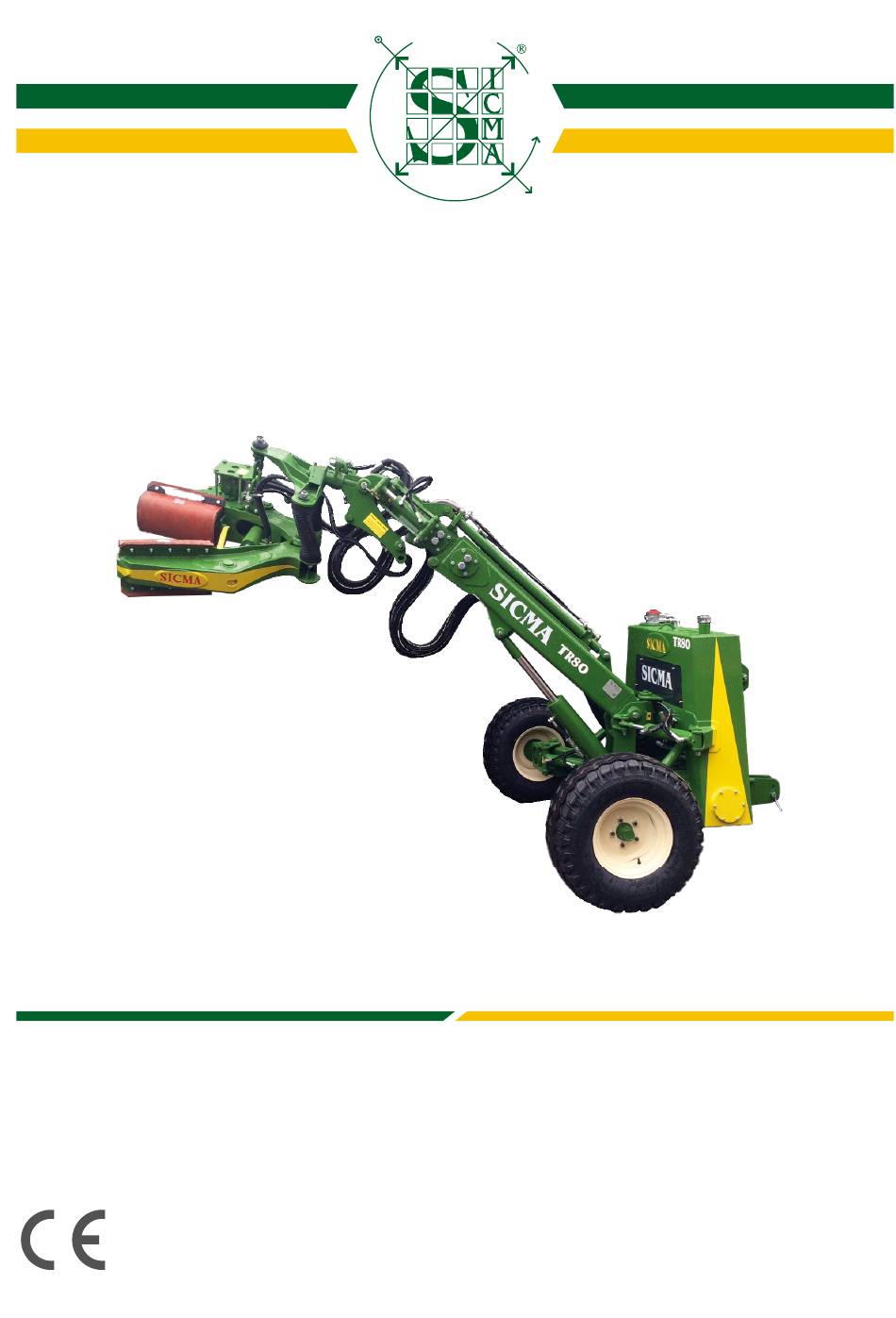

Page 1 USER AND MAINTENANCE MANUAL Translation of the original instructions SEMI-MOUNTED HARVESTER WITH Code 000202 Date 05/2021 TRUNK SHAKER - TR80 Revision SICMA S.r.l. | Località Callipo, Zona Industriale - 88022 Acconia di Curinga (CZ) - Italy tel. +39 0968 78240 www.sicmasrl.com | info@sicmasrl.com...
Page 3 Dear Customer, Sicma srl congratulates and thanks you for choosing one of our machines. We have compiled this User and Maintenance Manual with the intention of helping you appreciate and fully exploit the quality and performance of Sicma technology, while respecting the safety of the operator and the vehicle.
Page 5: Table Of Contents
Safety distance from overhead power lines ........22 Intended use .................. 23 Improper use ................. 24 Forbidden use ................25 Staff qualification................26 Personal Protective Equipment (PPE) ..........27 Safety signs ..................28 2.10 Residual risks ................. 30 2.11 Safety devices ................. 33 SICMA S.r.l.
Page 6 Index 3. Machine description and technical information Orientation of the machine ............. 34 Machine identification ..............35 3.2.1 Warranty terms ................36 General description ................ 36 3.3.1 Main components ................37 Description of main components ............. 38 3.4.1 Vibrating head ................. 38 3.4.2 Telescopic arm ................
Page 7 Machine operating cycle ..............93 5.6.1 Machine start and positioning ............95 5.6.2 Operation of the radio control ............96 5.6.3 Processing steps / vibration .............. 97 Stopping the machine ..............99 5.7.1 Short stops ..................99 5.7.2 Emergency stop ................100 SICMA S.r.l.
Page 8 Index 6. Maintenance Introduction .................. 101 Precautions .................. 101 6.2.1 Precautions for hydraulic system ............. 103 6.2.2 Precautions for greasing and lubrication .......... 103 Consumables ................104 6.3.1 Product Specifications ..............105 Routine maintenance ..............106 6.4.1 Intervention table ................107 Complete machine ...............
Page 9 Greasing the telescopic extension and the rollers ......141 6.11.7 Replacement of the sliding runners ..........142 6.11.8 Wear of sliding blocks check ............143 6.12 Extraordinary maintenance ............143 7. Troubleshooting General warnings ................. 144 Troubleshooting ................144 SICMA S.r.l.
Page 10 Index 8. Decommissioning Short breaks ................. 146 Extended stops/storage ..............146 Machine disposal ................. 147 9. Optional accessories Reverse umbrella ................149 10. Attachments 10.1 Electrical diagram................. 151 10.2 Hydraulic diagrams ..............152 10.2.1 Service hydraulic diagram .............. 152 10.2.2 Vibration hydraulic diagram ............
Page 11: General Information
General information 1. General information 1.1 Introduction The TR80 semi-mounted rear application, hereinafter, will simply be called "MACHINE" or “HARVESTER”; while the drive unit to which it is coupled with will be called “TRACTOR” or “DRIVE UNIT”. 1.2 Importance of the manual...
Page 12: Reproduction And Copyright Restrictions
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 1.4 Reproduction and copyright restrictions The instructions, drawings and documentation contained in this manual are of technical nature, they are confidential and they are property of the Manufacturer and may not be reproduced in any way, either partially or entirely.
Page 13: Manufacturer's Data
88022 Acconia di Curinga (CZ) - Italy - +39 0968 78240 info@sicmasrl.com www.sicmasrl.com SICMA is available for any technical problem and when in need of spare parts. Only by using original spare parts can the optimum performance of the machine be guaranteed.
Page 14: Consultation Method
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 1.8 Consultation method Consultation of the manual is facilitated by the inclusion, on the first page, of the general index, which makes it possible to locate the topic of interest immediately.
Page 15: Safety
- Do not damage the signs and pictograms posted on the machine. If they are damaged inadvertently, immediately replace them with identical ones. SICMA S.r.l. - Do not wear clothing, ornaments or accessories that could become entangled in moving parts.
Page 16 - check the proper operation of all safety devices on the machine. DANGER User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 Always apply and enforce all safety regulations. In case of doubt, please consult the present User Manual once again, before operating.
Page 17: Warnings For Coupling/Uncoupling The Machine
Before putting the hydraulic lines under pressure, always check the correctness SICMA S.r.l. of the connection and the presence of any damage. - It is strictly forbidden to modify or alter the machine’s hydraulic system.
Page 18 The approach of any unauthorized person to this area is prohibited. User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 - Before carrying out any work on the machine, make sure that the tractor is switched off, that the ignition key has been removed and that the parking brake has been applied.
Page 19: Warnings On The Cardan Shaft
Cardan shaft support - Do not use the chains to transport or support the cardan shaft at the end of work. Use the proper support. SICMA S.r.l. DANGER For safety reasons with respect to unforeseeable accidents, in the absence...
Page 20 - Contact with rotating parts can be fatal. Forbidden use - Do not lean on or step on the cardan shaft. User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 - It is absolutely forbidden to climb over the cardan shaft. Protection chains - Attach the protective retaining chains.
Page 21: Warnings On Machine Transportation
- The driver must avoid risks of instability deriving from the oscillation of the vibrating head, assuming moderate speeds, especially when turning, avoiding any abrupt manoeuvres and choosing routes that are not rough (ditches, etc.). SICMA S.r.l.
Page 22: Warnings For Using The Harvesting Machine
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.1.4 Warnings for using the harvesting machine CAUTION Failure to comply with these warnings may cause serious damage to people, animals or property. The Manufacturer declines any responsibility for the non observance of such requirements.
Page 23 The pictographic and descriptive indications on the radio control are essential conditions for the health and safety of the operator and prevent damage to the machine. SICMA S.r.l.
Page 24: Warnings On Machine Cleaning, Adjustment And Maintenance
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.1.5 Warnings on machine cleaning, adjustment and maintenance CAUTION Failure to comply with these warnings may cause serious damage to people, animals or property. The Manufacturer declines any responsibility for the non observance of such requirements.
Page 25: Precautions For Health
15 minutes. Seek immediate medical attention. - Keep all metal objects (watches, rings, chains, etc.) away from the battery terminals as they may cause a short circuit resulting in burns. SICMA S.r.l.
Page 26: Safety Distance From Overhead Power Lines
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.3 Safety distance from overhead power lines Before working in the field, pay particular attention to the presence of suspended power lines; avoid working in the presence of power lines or electrical systems with unprotected active parts, or which, due to particular circumstances, must be considered insufficiently protected.
Page 27: Intended Use
Compliance with and strict adherence to the conditions of use, maintenance and repair specified by the manufacturer is an essential component of the intended use. DANGER It is recommended to operate the machine in the daylight, and in conditions of good visibility. Figure 2 SICMA S.r.l.
Page 28: Improper Use
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.5 Improper use DANGER Use of the machine for unauthorized purposes, its improper use and lack of maintenance can lead to the risk of serious danger to health and safety of operator, as well as affecting the working efficiency and safety of the machine.
Page 29: Forbidden Use
- do not make changes or modifications to the structure of the machine without written authorization from the manufacturer; CAUTION The Manufacturer cannot be held responsible for any damage to persons, animals or property arising from reasonably foreseeable incorrect uses, however not compliant with the directions mentioned. SICMA S.r.l.
Page 30: Staff Qualification
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.7 Staff qualification OPERATOR (DRIVER): The operator must be suitably trained (in compliance with the legislation in OPERATOR (DRIVER): force in the country of use) and authorized to use the machine and the tractor to which it is connected.
Page 31: Personal Protective Equipment (Ppe)
Compulsory use of gloves. Compulsory use of safety shoes. Compulsory use of protective clothing. Compulsory use of devices to protect airways. Compulsory use of protective goggles. Mandatory use of hearing protection devices during machine operation. SICMA S.r.l.
Page 32: Safety Signs
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.9 Safety signs The safety adhesive labels described in this manual, are located on the machine structure at suitable points and warn of the likelihood of danger due to residual risks.
Page 33 It is mandatory to consult the user manual Please refer to this manual. It is applied on the telescopic arm. The following image shows the positions of the adhesive labels applied to the right side of the machine: Figure 3 SICMA S.r.l.
Page 34: Residual Risks
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 2.10 Residual risks The harvester has been designed and built to enable the operator to use it safely, eliminating or reducing residual risks to a minimum by the adoption of safety devices.
Page 35 RISK OF ELECTRIC SHOCK When operating the machine, pay attention to the position of the telescopic arm, maintaining appropriate safety distances from overhead power lines. Pay particular attention to swinging ropes of overhead power lines in windy SICMA S.r.l. conditions.
Page 36 RISK OF BURNS Pay attention to the temperature of the liquids in the pipes and tubes during User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 maintenance operations. Scrupulously observe the maintenance warnings provided for in this manual.
Page 37: Safety Devices
To unlock it, turn the mushroom head slightly clockwise. B) Hydraulic parking brakes (optional); they block the rotation of the support wheels, thus increasing safety in the most adverse working conditions. Figure 4 SICMA S.r.l.
Page 38: Machine Description And Technical Information
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3. Machine description and technical information 3.1 Orientation of the machine The image below shows the orientation of the machine. UPPER FRONT LEFT REAR RIGHT LOWER Figure 5...
Page 39: Machine Identification
It is absolutely forbidden to remove or tamper with the identification metal plate. The plate is positioned as shown in the figure below. SICMA S.r.l. C.da Callipo - Zona Industriale 88022 ACCONIA di CURINGA (CZ) ITALY OMOLOGAZIONE TIPO ANNO FABBR. SERIE N° www.sicmasrl.com Figure 6 SICMA S.r.l.
Page 40: Warranty Terms
- failure in observing the requirements in this manual. 3.3 General description The TR80 is semi-mounted by the tractor, thanks to the 3-point hitch, driven by the cardan shaft and controlled by the wireless remote control supplied. The fruits fall from the tree through the vibration of the perennial woody organs by means of the vibrating head installed in the rear end of the machine, at the end of the telescopic arm.
Page 41: Main Components
Machine description and technical information 3.3.1 Main components 1) Hydraulic tank 2) Telescopic arm 3) Vibrating head 4) Support wheels 5) Wireless control unit 6) Power take-off for cardan shaft attachment 7) 3-point hitch Figure 7 SICMA S.r.l.
Page 42: Description Of Main Components
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3.4 Description of main components 3.4.1 Vibrating head The shaker, or vibrating head, was designed for the harvesting of hanging fruit (e.g. olives, walnuts, almonds, plums, pistachios, pecans, macadamias, oranges, etc.) by means of the twisting of the stalk given by the vibration...
Page 43 7) Vibrating head transversal tilting hydraulic piston cylinder 8) Vibration hydraulic motor 9) Jaws hydraulic cylinder pins (opening and closing vibrating head) 10) Articulation pin 11) Rubber pillows 12) Rubber bands 13) Rubber suspensor 14) Vibrating head holding chain Figure 8 SICMA S.r.l.
Page 44: Telescopic Arm
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3.4.2 Telescopic arm The telescopic arm of the machine supports the vibrating head through the holding arms and allows its approach to the woody organ to be shaken.
Page 45: Hydraulic System
5) Wheel lock/unlock lever (steering wheel aid control) 6) Quick couplings for hydraulic connection to the tractor (steering wheel aid actuation) 7) Vibrating head closing pressure adjustment knob 8) Power take-off 9) Vibrating head tightening pressure gauge Figure 10 SICMA S.r.l.
Page 46 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 10) Hydraulic oil heat exchanger 11) Speed multiplier gearbox 12) Service pump Figure 11 13) Block valve and telescopic arm rotation speed 14) Vibrating head pressure gauge connection...
Page 47: Electrical System
For further details, refer to the wiring diagrams of the machine attached to the manual. Main components 1) Remote control 2) Electric socket (12 V) for connection to the tractor 3) Electric fuse holder 4) Remote control wireless signal receiving unit Figure 13 SICMA S.r.l.
Page 48 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5) Fuse (20 Ah) for wireless signal control unit power supply 6) Wireless remote control unit 7) Vibration gear control solenoid valves (1st and 2nd) 8) Upper solenoid valves group...
Page 49: Technical Characteristics
Machine description and technical information 3.5 Technical characteristics 3.5.1 Size in working configuration NOTE The dimensions shown in the figure are in millimeters. 1330 3500 5500 Figure 16 SICMA S.r.l.
Page 50: Size In Transport Configuration
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3.5.2 Size in transport configuration NOTE The dimensions shown in the figure are in millimeters. 1330 3500 Figure 17 The harvester is configured as follows: - Arm fully retracted - Arm in horizontal position Rev.
Page 51: Work Areas
Machine description and technical information 3.5.3 Work areas 80° Figure 18 - Horizontal rotation of the vibrating head 106° Figure 19 - Vertical rotation of the vibrating head SICMA S.r.l.
Page 52 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 108° Figure 20 - Lateral tilting of the vibrating head 84° Figure 21 - Rotation of the telescopic arm Rev. 0 - 05/2021...
Page 53: Features Of The Harvester
The machine track width (external tyre – external tyre) can be adjusted to 4 positions by acting on the wheel hubs. Figure 22 NOTE (*) Track adjustment to 2,415 mm is exclusive of the version equipped with hydraulically controlled braking wheel hubs (optional). SICMA S.r.l.
Page 54: Technical Data Of The Vibrating Head
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3.5.5 Technical data of the vibrating head Version T213 Length (mm) 1200 Height (mm) Maximum width with open vibrating head (mm) 1250 Maximum width with closed vibrating head (mm)
Page 55 L4 - tilting to the left Vibrating head rotation H6 - right rotation L6 - left rotation Head overturning H5 - lifting L5 - lowering Telescopic arm H3 - extends L3 - retracts Telescopic arm L1 - lifting H1 - lowering SICMA S.r.l.
Page 56: Technical Data Of The Hydraulic System
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 3.5.7 Technical data of the hydraulic system Description Value Maximum operating pressure of the hydraulic circuit 350 bar Hydraulic tank capacity 190 liters Total hydraulic system capacity 200 liters...
Page 57: Vibrations
The vibration should only be operated when the vibrating head is clamped to the trunk or branches of the tree. Under these conditions, only the vibrations of the tractor to which the machine is connected reach the driver. SICMA S.r.l.
Page 58: Machine Transport And Handling
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 4. Machine transport and handling 4.1 Transport of the machine Unless otherwise agreed, the transport of the machine is at the expense of the buyer and can be carried out by means of an appropriate transport vehicle (truck, transport trailer, etc.).
Page 59: Loading And Unloading Of The Machine
Figure 25 CAUTION Before moving the machine, check that there are no deposits of grease, oil, soil, ice or other slippery substances or solvents on the floor of the transport vehicle or on the ramps. SICMA S.r.l.
Page 60: Loading Of The Machine By Means Of A Ramp
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 CAUTION Before moving the machine, check that there are no deposits of grease, oil, soil, ice or other slippery substances or solvents on the floor of the transport vehicle or on the ramps.
Page 61 Figure 26 ATTENTION Before proceeding, make sure that the ramp (or the two ramps) is set up correctly and that the machine is in the proper configuration for transport. SICMA S.r.l.
Page 62 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 DANGER If during the loading operations on the ramp, the machine and the tractor are not correctly aligned, it is necessary to stop the operations and try again by repeating the sequence correctly;...
Page 63 • Start the tractor to move it away from the loading bed of the transport vehicle; always proceed at low speed, avoiding sudden movements and sudden accelerations. • Carry out the procedures for anchoring the machine as indicated in paragraph “2.1.1 Warnings for coupling/uncoupling the machine” pag. 13. Figure 28 SICMA S.r.l.
Page 64: Loading Of The Machine By Means Of A Platform
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 4.2.2 Loading of the machine by means of a platform (*) See par. “5.1” pag. 72 • Connect the machine to a tractor to load it (*). • Make sure the PTO (540 rpm) is engaged and active.
Page 65 • Raise the platform until it is perfectly aligned with the floor of the transport vehicle. • Disengage the tractor parking brake to reverse, at low speed, over the bed of the transport vehicle. • Proceed carefully until the machine is completely positioned on the platform. Figure 31 SICMA S.r.l.
Page 66 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 • Operate the remote control (*). (*) See par. “5.6.2” pag. 96 • Act on the manipulators (3) and (4) of the radio control to lower the arm of the machine and place the vibrating head on the platform of the means of transport.
Page 67: Anchoring To The Transport Vehicle
Use chains, wire ropes or anchor straps with safety hooks and appropriate tensioners. It is forbidden to use ropes to fasten the machine to the transport vehicle; the rope could come loose as a result of the tension caused by acceleration, with sudden loosening of the fastening. Figure 33 SICMA S.r.l.
Page 68: Unloading Of The Machine By Means Of A Ramp
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 4.2.4 Unloading of the machine by means of a ramp • Secure the wheels of the transport vehicle with wheel chocks. • Prepare the ramp (or the two ramps) as shown above.
Page 69 During unloading, pay particular attention to the lower part of the vibrating head (see Figure 35); if the operations are not carried out correctly, there is a risk of collision between the vibrating head and the ramp. Figure 35 SICMA S.r.l.
Page 70 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 • Drive the tractor forward at low speed, avoiding sudden movements and accelerations. DANGER Do not steer on the ramp and do not operate any machine controls. • Maintain a slow, continuous movement until the machine and the tractor are completely unloaded from the transport vehicle.
Page 71: Unloading Of The Machine By Means Of A Platform
• Engage the tractor parking break. DANGER Be assisted by a ground operator who can assist with the operations and report any obstacles or when to stop the tractor translation to avoid incorrect positioning on the platform. Figure 37 SICMA S.r.l.
Page 72 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 • Raise the platform until it is aligned with the floor of the transport vehicle. • Disengage the tractor parking brake to reverse at low speed. • Proceed slowly and carefully until you have approached the tractor to the machine.
Page 73 Avoid abrupt movements and sudden accelerations when moving. DANGER Be assisted by a ground operator who can assist with the operations and report any obstacles or when to stop the tractor translation to avoid incorrect positioning on the platform. Figure 39 SICMA S.r.l.
Page 74 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 ATTENTION If the telescopic arm extends beyond the platform at the front, there is a risk of collision between the telescopic arm and the transport vehicle (see Figure 40).
Page 75: Adjustments
When moving the machine, the operator maneuvering the tractor must always adjust the speed of the tractor according to the terrain, visibility and atmospheric conditions. DANGER It is absolutely forbidden to exceed the travel speed of 30 km/h. SICMA S.r.l.
Page 76: Machine Use
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5. Machine use 5.1 Coupling to the tractor The tractor to which the machine is to be connected must comply with the following characteristics: - It must be of the “open field” type (both wheeled and tracked) with an engine power of at least 100 HP and a total gross mass at least 30% higher than the gross mass of the machine itself.
Page 77: Preliminary To The Coupling Phase
- Carefully analyze the Use and maintenance manual of the tractor, paying particular attention to the chapters concerning the tractor/ machine connection and the hydraulic devices. DANGER Never position yourself between the tractor and the machine during the approach to carry out the coupling. SICMA S.r.l.
Page 78: Coupling Of The Machine
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.1.2 Coupling of the machine Make sure that the machine is firmly positioned on a solid surface, in a manner that prevents uncontrolled movements. The width between the two arms of the three-point linkage of the tractor linkage must be at least equal to (or greater) than the width of the links of the two lower points of the machine.
Page 79 Figure 42 ATTENTION Once the coupling operation has been completed, always check that all the connections have been made correctly and make sure that all the pins have the safety pin inserted and closed. SICMA S.r.l.
Page 80: Connection To Power/Power Take-Off (Pto 540 Rpm)
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.1.3 Connection to power/power take-off (PTO 540 rpm) The machine is equipped with an independent hydraulic system. To operate the machine, however, it is necessary to connect the power take-off of the machine with that of the tractor by means of a cardan shaft (supplied).
Page 81: Electrical Connection
(see example in Figure 44). If the tractor is not equipped with three-pole hitches, adapt its system with the necessary modifications. Contact a specialized technician for this type of operation. DANGER It is forbidden to connect wet plugs or sockets. Figure 44 SICMA S.r.l.
Page 82 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 If the electrical socket is inserted correctly, the green LED (2) will light up on the machine. If otherwise the red LED (2) lights up, check the correct insertion of the power socket and, if necessary, the electrical system of the tractor.
Page 83: Steering Wheel Control Engagement (Hydraulic Steering Aid)
The tractor must therefore be equipped with a third (in addition to the 2 used for steering) free quick coupling. Braking will be activated by the hydraulic distributor on board the tractor. When the control valve lever is released, the wheels will become free again. SICMA S.r.l.
Page 84: Uncoupling From The Tractor
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.2 Uncoupling from the tractor Follow the procedure below to disconnect the machine: • Check that there are no obstacles in the parking area. • Use the radio control to bring the vibrating head to rest on the ground.
Page 85 • Start the tractor and move it away from the machine. Figure 49 SICMA S.r.l.
Page 86: Control Panel
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.3 Control panel This section provides information about the function and location of the controls on the machine. Become familiar with all the controls and instruments described in this section and learn how to use them safely.
Page 87: Remote Control
A) remote control; B) two charger bases; C) two batteries; D) a power supply for the charger bases; E) a belt for the remote control attachment at the waist; F) Remote control User and Maintenance manual. Figure 50 SICMA S.r.l.
Page 88 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 Remote control features Description Value Manufacturer AUTEC® Model Type NN021 Certification TÜV system Frequency 863-870 MHz Receiving unit (RFM786RL0) ARM analogic PWM Battery Li-ion (LPM02) Charger AC-DC multi plug...
Page 89 External aux input Not used. Press to stop the machine movements immediately (button pressed and released). Emergency push-button Unlock button (to unlock, turn clockwise and immediately release the red mushroom button). SICMA S.r.l.
Page 90 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 REF. DESCRIPTION POSITION FUNCTION Acting on the manipulator in the indicated direction raises the support arm. Acting on the manipulator in the indicated direction, the support arm rotates to the right.
Page 91 Speed "1 " or "2" must be set for vibration. Speed "1 " or "2" must tral position be set for vibration. Engagement of second vibration gear. Vibration drive of the head at the speed set by the switch (12). 2-position switch 13** with return to neu- tral position Neutral position. SICMA S.r.l.
Page 92 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 NOTE (*) The switch (11) works only if the machine is supplied with the mini electric actuator (optional accessory). WARNING (**) Before switching on the vibration, the switch (10) must be in the middle position (neutral).
Page 93: Controls On The Machine
Reduction of the clamping pressure of the jaws of the vibrating the left head. NOTE The ideal clamping pressure should be between 110 and 190 bar. It is recommended not to work at pressures outside this range to ensure perfect machine functionality. SICMA S.r.l.
Page 94: Commissioning
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.4 Commissioning 5.4.1 (Daily) Preventive checks The pre-operational check consists of a visual inspection performed by the operator before each work shift. It must be performed on the machine to check for anomalies before the operator proceeds to test the functions.
Page 95: Machine Start-Up
12 Volt electrical socket (of the tractor, if necessary). • Operate the remote control (*). (*) See par. “5.6.2” pag. 96 • At this point the machine is ready to function. • Check the proper operation of all safety devices on the machine. SICMA S.r.l.
Page 96: Operation
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.5 Operation The harvesting of the product (hanging fruits in general) is done by shaking the perennial organs (trunk or branches) on which it is located, so that it can fall by detachment with or without a stalk.
Page 97: Machine Operating Cycle
ATTENTION The processing, regardless of the position of the telescopic arm and the inclination of the ground, must be carried out with the vibrating head positioned horizontally, as illustrated in Figure 53. Figure 53 SICMA S.r.l.
Page 98 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 Below is an example of machine operation in a tree with a distance of 6 m between the rows and 6 m on the row: - The machine is positioned at the center of the inter-row and through the rotation and the telescopic extension of the arm reaches the trunk of the two opposite trees.
Page 99: Machine Start And Positioning
A) Release the tractor parking break. B) Reverse to bring the machine near the shaft identified by the vibration. C) Apply the tractor parking brake and get out of the driver's seat. Figure 55 SICMA S.r.l.
Page 100: Operation Of The Radio Control
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.6.2 Operation of the radio control ATTENTION The operator on the ground, during the operating phases, must secure the radio control to the waist using the supplied adjustable fastening belt.
Page 101: Processing Steps / Vibration
ATTENTION In order to change the vibration gear, it is absolutely necessary that the vibrating head is completely stopped, otherwise serious damage may occur to it and to its hydraulic system. Figure 57 SICMA S.r.l.
Page 102 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 D) Act on the switch (8) to activate the vibrating head (6) which, by transmitting the vibration to the clamped wooden organ, causes the hanging fruit fall to the ground.
Page 103: Stopping The Machine
• Bring the machine in a place where it will not be in the way. • Using the remote control, lower the arm until the vibrating head rests on the ground. • Disengage the tractor power take-off (PTO). • Stop the tractor safely (engine off, ignition key removed and parking brake applied). SICMA S.r.l.
Page 104: Emergency Stop
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 5.7.2 Emergency stop The machine is equipped with an emergency button (red mushroom head pushbutton), to be used in case a situation arises that requires the immediate stop of the machine.
Page 105: Maintenance
The operations of planned maintenance are based even on the machine’s working hours. Failure to comply with the scheduled maintenance indicated in this manual will invalidate SICMA SRL’s warranty. 6.2 Precautions When performing maintenance or repair operations, observe the following: - Never use gasoline, solvents or flammable substances for cleaning.
Page 106 - When carrying out maintenance, always keep the work area perfectly User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 clean and clear of objects and tools. - Secure the lifted component firmly and safely before performing any maintenance work that involves lifting a component.
Page 107: Precautions For Hydraulic System
- Clean the caps thoroughly before putting them back on. - When greasing, before injecting lubricating grease into the grease nipples, clean them thoroughly to prevent mud, dust or other foreign bodies from mixing with the grease, thus reducing or even canceling the lubrication effect. SICMA S.r.l.
Page 108: Consumables
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.3 Consumables NOTE Use products recommended by the Manufacturer in this paragraph. If it is not possible to find them on the market, use products with the same technical characteristics.
Page 109: Product Specifications
The kinematic motion of the vibrating head must be greased daily (even twice a day) when the machine is cold. Lubricating oil The machine is delivered with the speed multiplier gearbox filled up to the optimum level; for subsequent topping up and/or replacement use lubricating oil type SAE 90. SICMA S.r.l.
Page 110: Routine Maintenance
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.4 Routine maintenance This section describes the operations to be carried out periodically to ensure correct operation of the machine. The careful observance of the maintenance operations described in this paragraph is essential to make the machine’s operation more efficient and...
Page 111: Intervention Table
Greasing of the tilting hydraulic cylinder pins See par. “6.10.3” pag. 129 Greasing of the jack pins for transversal inclina- See par. “6.10.4” pag. 130 tion (tilting) and spider Greasing of the chain supporting the vibrating See par. “6.10.5” pag. 131 head SICMA S.r.l.
Page 112 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 EVERY 10 HOURS Greasing of the arm support pin See par. “6.11.1” pag. 136 Greasing the jack pins for arm lifting See par. “6.11.2” pag. 137 Checking and greasing the telescopic extension See par.
Page 113 In addition to the interval indicated, if special events occur (tampering, leaks, repairs to the hydraulic system), it is advisable to always check the state of cleanliness of the oil and the hydraulic system itself and, if necessary, replace the hydraulic oil. SICMA S.r.l.
Page 114: Complete Machine
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 WHEN NEEDED Replacement of the rubber suspensor See par. “6.10.7” pag. 132 Replacement of rubber bands See par. “6.10.8” pag. 133 Vibrating head Replacement of rubber pillows See par. “6.10.9” pag. 134 Chain replacement See par.
Page 115: Cleaning The Machine
2 bar, according to local and/or national regulations in force; always wear suitable PPE. 6.5.3 Check of tolerance limits between pins and bushings of all joints Restore worn bushings/pins if the deviation between the parts exceeds 10% of the original bush diameter. SICMA S.r.l.
Page 116: Hydraulic System
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.6 Hydraulic system 6.6.1 Hydraulic fittings tightening control Visually check for oil leaks from fittings, hoses and pipes. Take prompt action if similar problems occur, checking for proper tightening and replacing the damaged part if necessary.
Page 117: Check And Reset Hydraulic Oil Level
E) Thoroughly clean the area around the filler plug (3) of any oil residue. F) Remove the drain plug (3). G) Fill in new oil until the correct level is reached, as indicated on the oil level gage (2). H) Reposition and tighten the filler plug (3). Figure 60 SICMA S.r.l.
Page 118: Replacement Of Hydraulic Oil Filter Cartridge
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.6.4 Replacement of hydraulic oil filter cartridge The pressure gauge (3) indicates the pressure in the hydraulic oil filter (see Figure 61); for correct machine efficiency the pressure must be maintained between a minimum of 0.5 bar and a maximum of 2.0 bar.
Page 119: Replace Hydraulic Oil
NOTE Alternatively, the hydraulic oil can be removed from the machine’s reservoir by suction. F) Let the oil drain completely. G) At the end of the operation, close the cap (1) carefully cleaning the surrounding area. Figure 62 SICMA S.r.l.
Page 120 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 H) Removing the side protection (4) it is possible to carry out an inspection and possible internal cleaning of the tank; the guards (4) are located on both sides of the tank.
Page 121: Check Of Wear And Efficiency Of Hydraulic Pipes
If there is no date stamped on the pipes or if it is not readable, the pipes must be replaced no later than 6 years from the date of delivery of the machine. SICMA S.r.l.
Page 122: Replacement Of Fittings And Hydraulic Pipes
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.6.7 Replacement of fittings and hydraulic pipes If it is necessary to replace deteriorated fittings and/or piping, follow these instructions: - Before replacing a damaged hydraulic hose, disassemble it with the utmost care and cleanliness, sealing the part of the system from which you remove the hose.
Page 123: Speed Multiplier Gearbox
E) Thoroughly clean the area around the filler plug (1) of any oil residue. F) Remove the drain plug (1). G) Fill in new oil until the correct level is reached, as indicated by the oil sight glass (2). H) Reposition and tighten the filler plug (1). Figure 64 SICMA S.r.l.
Page 124: Lubricating Oil Replacement
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.7.2 Lubricating oil replacement To replace the hydraulic oil inside the speed multiplier gearbox, proceed as follows: A) Park the machine on level, solid and firm ground. B) Safely stop the machine. (*).
Page 125 H) Fill in new oil until the correct level is reached, as indicated by the oil sight glass (2). NOTE The oil level must be between the minimum and maximum references. I) Tighten the filler plug (1). J) Thoroughly clean the area around the filler plug (1) of any oil residue. Figure 66 SICMA S.r.l.
Page 126: Wheels
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.8 Wheels 6.8.1 Wheel jack pin lubrication To lubricate the jack pins of the support wheels, inject grease into the grease nipples shown in Figure 67. Wheel without brakes...
Page 127: Wheel Hub Lubrication
Maintenance 6.8.2 Wheel hub lubrication To lubricate the hub of the support wheels, inject grease into the grease nipple indicated in Figure 68. Wheel without brakes Wheel with brakes Figure 68 SICMA S.r.l.
Page 128: Checking The Tightening Of The Wheel Bolts
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.8.3 Checking the tightening of the wheel bolts Use a torque wrench to check that the wheel bolts are tightened correctly; if necessary, tighten them in accordance with the tightening torques of the bolts.
Page 129: Electrical System
Electric cables position check Check that there is no friction between the electrical cables and the frame or other mechanical parts of the machine. If damaged electrical cables are found, replace them; this procedure must be performed by a qualified technician. SICMA S.r.l.
Page 130: Vibrating Head
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.10 Vibrating head ATTENTION When greasing, before injecting lubricating grease into the grease nipples, clean them thoroughly to prevent mud, dust or other foreign bodies from mixing with the grease, thus reducing or even canceling the lubrication effect.
Page 131 E) After the grease has escaped, clean the vent and screw the valve (4) back on. ATTENTION Use only hand grease and lithium grease for very high speed bearings. Failure to comply with these instructions will result in irreparable damage to the vibrating head apparatus. Figure 70 SICMA S.r.l.
Page 132: Greasing Of Jack Pins And Jaws
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.10.2 Greasing of jack pins and jaws The pins of the jacks for opening/closing the jaws are equipped with grease nipples, as is the central pivot of the jaws.
Page 133: Greasing The Pins Of The Vibrating Head Tilting Jack
Maintenance 6.10.3 Greasing the pins of the vibrating head tilting jack The pins of the vibrating head tilting jack are equipped with two grease nipples. Inject lubricating grease at the points indicated at Figure 72. Figure 72 SICMA S.r.l.
Page 134: Greasing Of The Jack Pins For Transversal Inclination (Tilting) And Spider
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.10.4 Greasing of the jack pins for transversal inclination (tilting) and spider The pins of the pivot jack of the vibrating head have two grease nipples positioned as indicated by reference (1).
Page 135: Greasing The Vibrating Head Support Chains
NOTE It is recommended to grease the chain as needed, even several times a day. To grease the chains, spread grease with a simple brush at the points indicated in Figure 74. Figure 74 SICMA S.r.l.
Page 136: Vibrating Head Hardware Tightening Check
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.10.6 Vibrating head hardware tightening check Use a dynamometric key to check the correct tightening of the vibrating head bolts; if necessary proceed with the tightening observing the values of the tightening torques of the bolts.
Page 137: Replacement Of Rubber Bands
C) Replace the rubber band (2) with a new one. D) Insert and tighten the screws (1), nuts (4) and washers (5) removed earlier to secure the new band (2) to the jaw (3). E) Tighten the screws (1). Figure 76 SICMA S.r.l.
Page 138: Replacement Of Rubber Pillows
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.10.9 Replacement of rubber pillows In case of excessive wear, evident deformation or breakage of a rubber roller, it must be replaced: A) Safely stop the machine. (*).
Page 139: Chain Replacement
F) Tighten the nut (4) to secure the new chain to the vibrating head frame. G) Insert the screw (1), nut (3) and washers (2) to secure the chain (5) to the right jaw. H) Tighten the screws (1). Figure 78 SICMA S.r.l.
Page 140: Telescopic Arm
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.11 Telescopic arm ATTENTION During the greasing operations, before injecting lubricating grease into the grease nipples, clean the grease nipples thoroughly to prevent mud, dust or other foreign bodies from mixing with the grease, thus reducing or even canceling the lubrication effect.
Page 141: Greasing The Jack Pins For Arm Lifting
To grease the pins of the lifting jack of the telescopic arm, proceed as follows: A) Safely stop the machine. (*). (*) See par. “5.7” pag. 99 B) Grease the pins of the arm lift jack at the points indicated in Figure 80. Figure 80 SICMA S.r.l.
Page 142: Greasing Of Arm Total Rotation Pins And Rotation Jack Pins
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.11.3 Greasing of arm total rotation pins and rotation jack pins To grease the total rotation pins of the arm and the jack pins that allow it to rotate, proceed as follows: A) Safely stop the machine.
Page 143: Greasing Of The Vibrating Head Oscillation Jack Pins
B) Safely stop the machine. (*). (*) See par. “5.7” pag. 99 C) To grease it is necessary to use the prepared grease nipples; inject lubricating grease in the points indicated in Figure 82. Figure 82 SICMA S.r.l.
Page 144: Greasing Of The Joint And Vibrating Head Holder Arm
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.11.5 Greasing of the joint and vibrating head holder arm To grease the joint and the vibrating head holder arm, proceed as follows: A) Use the controls on the remote control to lower the arm just enough to allow greasing from the ground.
Page 145: Greasing The Telescopic Extension And The Rollers
E) Spread some grease also on the pillows indicated by the reference (2). ATTENTION Before applying the new grease to the extension of the telescopic arm, thoroughly clean any residues of the old grease with degreasing agents. Figure 84 SICMA S.r.l.
Page 146: Replacement Of The Sliding Runners
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 6.11.7 Replacement of the sliding runners In the event of excessive wear of the sliding runners, they must be replaced. A) Use the controls on the remote control to completely remove the telescopic arm.
Page 147: Wear Of Sliding Blocks Check
Extraordinary maintenance operations are interventions to be carried out after malfunctions that may implicate a partial dismantling of components and/or the removal of some protections. WARNING All maintenance operations must be carried out by qualified personnel authorised by Manufacturer. SICMA S.r.l.
Page 148: Troubleshooting
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 7. Troubleshooting 7.1 General warnings To carry out repair, maintenance or adjustment operations not described in the previous paragraphs, we recommend that you contact specialized personnel, or in any case, follow the instructions in this User and Maintenance Manual.
Page 149 (hydraulic oil heat exchang- functionality of the heat Operator exchanger (fan) NOTE Also consult the Use and Maintenance Manual of the tractor to which the machine is connected for further information on any inconveniences not mentioned in this paragraph. SICMA S.r.l.
Page 150: Decommissioning
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 8. Decommissioning 8.1 Short breaks At the end of the working day, park the machine so that it does not present a hazard. Take all precautions to prevent danger to persons approaching the machine when it is not in use.
Page 151: Machine Disposal
Violation of these requirements is legally punishable. To dispose of exhausted oils refer to the appropriate authorized consortiums. Cartridges and filter elements Units, boxes and filter cartridges are classified as special waste and must be disposed of accordingly. Observe applicable local regulations. SICMA S.r.l.
Page 152 User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 Batteries Specifications: Autec model LPM02, 7.4 V, 1400 mAh, 10.36 Wh, Li-ion Figure 86 RESPECT THE ENVIRONMENT Exhausted lead-containing batteries cannot be disposed of as normal industrial solid waste, but since they contain harmful materials, they must be collected, disposed of and/or recycled according to the Country Regulations.
Page 153: Optional Accessories
The umbrella is available in standard or mechanical tilting version and its diameter can be 5, 6 or 7 meters. For information on this accessory, please refer to the Supplementary Manual supplied as an attachment to this document. SICMA S.r.l.
Page 154: Attachments
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 10. Attachments Attachments to this User and Maintenance Manual - Electrical diagram. - Service hydraulic diagram. - Vibration hydraulic diagram. - Remote control and transmitter control unit manual.
Page 155: Electrical Diagram
Attachments 10.1 Electrical diagram Figure 87 SICMA S.r.l.
Page 156: Hydraulic Diagrams
User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80 10.2 Hydraulic diagrams 10.2.1 Service hydraulic diagram Figure 88 Rev. 0 - 05/2021...
Page 157: Vibration Hydraulic Diagram
Attachments 10.2.2 Vibration hydraulic diagram Figure 89 SICMA S.r.l.
Page 158 NOTES: ............
Page 159 ............
Page 160 SICMA DEALER REFERENCES Loc. Callipo, Z.I., 88022 Acconia di Curinga (CZ), Italy VAT number: 01805340799 www.sicmasrl.com info@sicmasrl.com – international@sicmasrl.com Phone +39 0968 78240...
Page 162 SICMA S.r.l. | Località Callipo, Zona Industriale - 88022 Acconia di Curinga (CZ) - Italy tel. +39 0968 78240 www.sicmasrl.com | info@sicmasrl.com...

Sicma TR80 User And Maintenance Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sicma TR80

Summary of Contents for Sicma TR80

Table of Contents
