Contents
Product Details
System Overview
Power Supply from Grid
Power Supply from Solar
Energy and Grid
Power Supply Distributed
by EcoFlow PowerOcean
Installation Preparation
App Functions
Connect to EcoFlow App
Load Balancing
Plug and Play
Scheduled Charging
Electricity Bill Settings
Share Device
View Data
Charging Mode ¹
Extended Functions
Add Homepage Widget
Set the Minimum Charging
Amount
Specifications
Safety Instructions
Installation and
Wiring

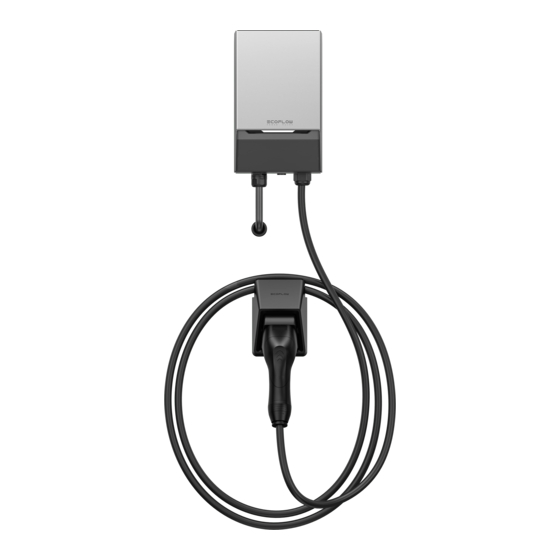

Product Details
Main charging
1
Installed in both indoor and outdoor environments.
box
The white light indicates the charging status;
2 Indicator light
and the orange light indicates a fault alarm. Please check the
solution in the app.
Set Up Smart
Look Up Error
Meter
Download
Code
EcoFlow App
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EcoFlow PowerPulse
Summary of Contents for EcoFlow PowerPulse
- Page 1 Power Supply from Solar Energy and Grid Power Supply Distributed Product Details by EcoFlow PowerOcean Installation Preparation App Functions Connect to EcoFlow App Load Balancing Plug and Play Scheduled Charging Electricity Bill Settings Share Device View Data Charging Mode ¹...
- Page 2 In the current scenario, follow the instructions in this manual to complete the product installation and electrical wiring steps. It will work normally after powering on for self- test. When using it, you can customize the charging current in the EcoFlow app, or select the fast charging mode (16A).
- Page 3 Load Balancing If there are too many load devices on household branch circuits for a long time, or if there are peak electricity usage regulations in the local power grid, power restrictions may be triggered, causing charging interruption or even tripping. In order to avoid such incidents, it is recommended to install a smart meter (ADL400) to communicate with this product and activate the dynamic load balancing function...
- Page 4 In the current scenario, it is necessary to complete the product installation, electrical and meter communication wiring steps, and ensure that the home solar inverter system is connected to the grid, so that PowerPulse can work normally after powering on for self-test.
- Page 5 In the current scenario, it is necessary to complete the product installation, electrical and communication (with PowerOcean system) wiring steps, and ensure that the home solar battery system is connected to the grid, so that PowerPulse can work normally after powering on for self-test.
- Page 6 When this product communicates with the PowerOcean system, if the remaining discharging capacity of the solar energy and battery pack is lower than the minimum charging power of PowerPulse (three-phase, 4.14kW), the system will automatically switch to single-phase charging mode, supporting a minimum power of 1.38kW for charging the car.
- Page 7 App Functions Connect to EcoFlow App Download EcoFlow App When using the product, please first add the device via Bluetooth on the EcoFlow app and configure it under your home Wi-Fi to remotely control the product or view data.
- Page 8 Please wait until the [Stop] icon is completely loaded on the app before pulling out the charging cable. Load Balancing After PowerPulse communicates with the smart meter (ADL400), you can turn on the load balancing function. Settings: Device settings - Load balancing - Set the maximum current of the...
- Page 9 Plug and Play After adding this product to the EcoFlow app, the plug-and-play function can be turned on. After turning it on, plug the charging cable directly into the car charging port to start charging. Settings: Device settings - Plug and play...
- Page 10 Share Device This product only supports binding to one main account. You can share it with other EcoFlow app accounts (no more than 10) so that other users can use the EV charger directly through the app. If you need to cancel the sharing, swipe left on the shared account icon to delete it.
- Page 11 Settings: Device settings - Device sharing View Data You can view ongoing charging data, daily, weekly, monthly, and annual charging reports, as well as charging logs. You can also clear all charging data in the app. Please see below for specific steps. View charging data in progress: Device homepage - Charging details View daily, weekly, monthly, and annual charging reports:...
- Page 12 Charging logs: Device settings - Log Clear data: Device settings - Clear data...
- Page 13 ≥ 6A to maintain the normal operation of the EV charger. Charging mode ¹ It can only be set on the PowerPulse device homepage on the app. After PowerPulse communicates with the PowerOcean system, please perform smart charging directly on the PowerOcean device homepage.
- Page 14 1. PowerOcean device homepage → 2. Edit (at the bottom of the page) → 3. Widget → 4. Add PowerPulse (long press the widget and drag to place it) → 5. Save Set the Minimum Charging Amount You can set the minimum charging amount according to your daily travel needs, and EcoFlow PowerOcean will always allocate the maximum power ¹...
- Page 15 Maximum power ¹ Hybrid charging from grid, solar energy, and battery packs. PowerOcean will self-generate power for self-consumption when charging. Please refer to the PowerOcean user manual for detailed explanation. Charging logic ² After the minimum charging amount is reached, PowerOcean will prioritize solar energy input for charging power supply.
- Page 16 The user undertakes to be responsible for his/her actions and all consequences arising therefrom. EcoFlow is not liable for all losses caused by the user ’s failure to use this product according to the disclaimer and safety instructions.
- Page 17 specification,working voltage≥charging station working voltage,working current≥charging station working current, Ingress Protection (IP) ≥ IP54 or installed inside IP54 protection box for outdoor use. 4. For safety reasons, it is recommended that you add a surge protection device (before RCBO) to your home distribution box. Use and Disposal 1.
